Vertiv Liebert GXT5LI-3000LVRT2UXL uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 7 AC outlet(s)
- Brand: Vertiv
- Category:
- SKU: GXT5LI-3000LVRT2UXL
- EAN: 0767041034912

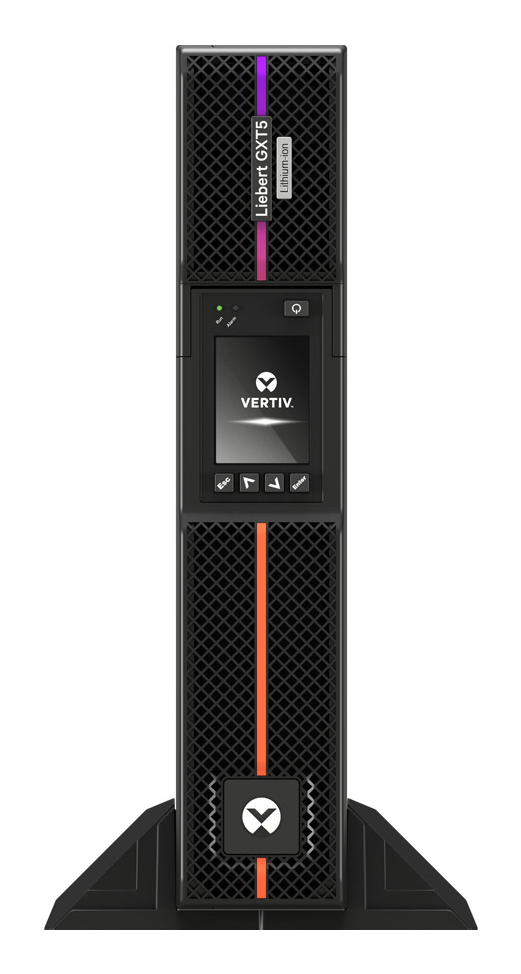

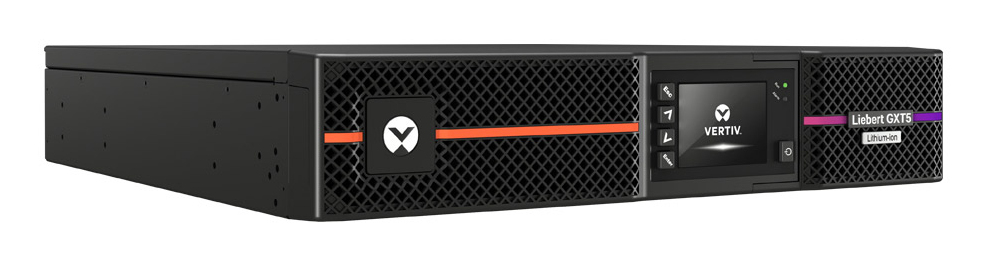

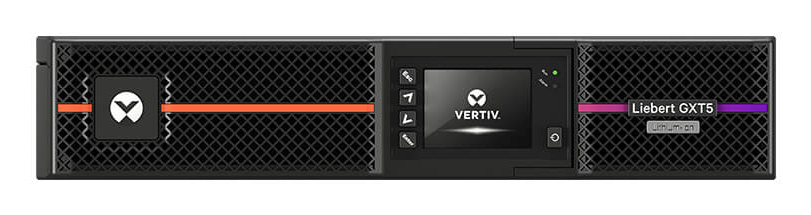

Liebert GXT5 Lithium-Ion Online UPS 3000VA/2700W 120V Tower/Rack UPS
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
GXT5 Lithium Ion 3000VA UPS |
GXT5LI3000LVRT | |||
|
GXT5 LITHIUM-ION 3000VA UPS |
01RP79 | |||
|
GXT5 Lithium-Ion 3000VA UPS, 120VAC, 2U Rack/Tower |
6503981 |
Description
The Vertiv™ Liebert® GXT5 Lithium-Ion UPS 1000VA/1000W/120V protects critical IT applications against outages and various power disturbances. This online double conversion UPS offers highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations.
Specifications
| Power | |
|---|---|
| Output frequency | 40/70 Hz |
| Output power | 2700 W |
| Input operation voltage (min) | 102 V |
| Input operation voltage (max) | 150 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Output power capacity | 3 kVA |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| Cable length | 118.1" (3 m) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |

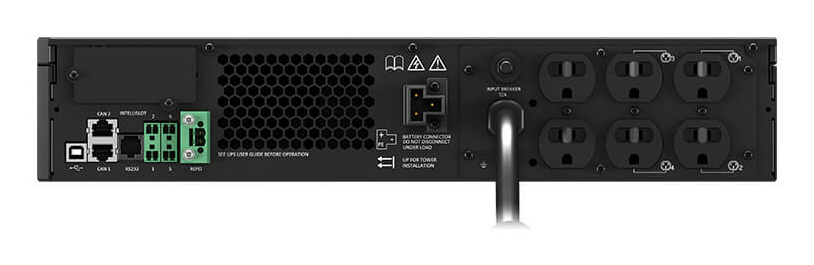

| AC outlets quantity | 7 AC outlet(s) |
| AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L5-30R |
| Power plug | NEMA L5-30P |
| USB port type | USB Type-B |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Response time | 0 ms |
| LED indicators | Yes |
| Noise level | 48 dB |
| Features | |
| Output frequency | 40/70 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Response time | 0 ms |
| Output power | 2700 W |
| Input operation voltage (min) | 102 V |
| Input operation voltage (max) | 150 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 125 V |
| Noise level | 48 dB |
| Output power capacity | 3 kVA |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery technology | Lithium Iron Phosphate (LiFePO4) |
| Battery recharge time | 2 h |
| Typical backup time at half load | 15 min |
| Typical backup time at full load | 6.5 min |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 118.1" (3 m) |
| Control type | Buttons |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 40/70 Hz |
| Compliance certificates | REACH, RoHS, WEEE |
| Certificates | |
| Compliance certificates | REACH, RoHS, WEEE |
| Weight & dimensions | |
| Package width | 22.4" (570 mm) |
| Package depth | 28.2" (717 mm) |
| Package height | 9.53" (242 mm) |
| Weight | 48.5 lbs (22 kg) |
| Width | 16.9" (430 mm) |
| Package weight | 59.7 lbs (27.1 kg) |
| Height | 3.35" (85 mm) |
| Depth | 21.5" (545 mm) |
| Packaging data | |
| Package width | 22.4" (570 mm) |
| Package depth | 28.2" (717 mm) |
| Package height | 9.53" (242 mm) |
| Package weight | 59.7 lbs (27.1 kg) |
