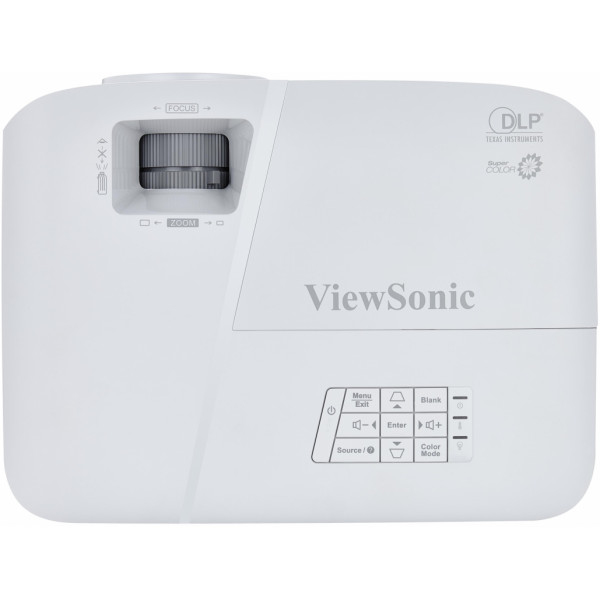

Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White
- Brand: Viewsonic
- Category:
- SKU: PA503W
- EAN: 0766907904918
3600 Lumen, DLP, WXGA, 16:9, 30-300", 100-240V, 50/60Hz, 396x110x218mm, 2.2 kg, White
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
PJ PA503W WXGA DLP 1280x800 3800 Lumens HDMI VGA mUSB RE232 Retail |
202981 | |||
|
WXGA 1280x800 DLP Projector |
PA503W | |||
|
WXGA DLP PROJ 1280 800 |
1DG874 | |||
|
WXGA DLP PROJECTOR |
4952327 |
Description
Description
The ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.
The ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colors |
| Projector native resolution | WXGA (1280x800) |
| Screen size compatibility | 30 - 300" |
| Projection distance | 39.4 - 432.3" (1 - 11 m) |
| Contrast ratio (typical) | 22000:1 |
| Vertical scan range | 23 - 120 Hz |
| Horizontal scan range | 15 - 102 kHz |
| Matrix size | 0.65" |
| Keystone correction, vertical | -40 - 40° |
| Projection technology | DMD |
| Projector brightness | 3800 ANSI lumens |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 200 W |
| Service life of light source (economic mode) | 15000 h |
| Lens system | |
| Zoom ratio | 2.0:1 |
| Zoom capability | Yes |
| Focus | Manual |
| Focal length range | 22 - 24.1 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Throw ratio | 1.55-1.7 |
| Offset | 100% |
| Video | |
| Analog signal format system | NTSC, PAL, SECAM |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Ports & interfaces | |
| Mobile High-Definition Link (MHL) | No |
| HDMI connector type | Full-size |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| HDMI version | 1.4 |
| DVI port | No |
| AC (power) in | Yes |
| Mini-USB 2.0 ports quantity | 1 |
| Network | |
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| Number of OSD languages | 22 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Design | |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Desktop, Ceiling |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| Supplier features | |
| Harmonized System (HS) code | 85286200 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Package width | 14.4" (365 mm) |
| Package depth | 11.8" (300 mm) |
| Package height | 7.4" (188 mm) |
| Weight | 4.85 lbs (2.2 kg) |
| Width | 11.6" (294 mm) |
| Depth | 8.58" (218 mm) |
| Height | 4.33" (110 mm) |
| Package weight | 7.14 lbs (3.24 kg) |
| Packaging content | |
| Remote control included | Yes |
| Manual | Yes |
| Cables included | AC, VGA |
| Logistics data | |
| Harmonized System (HS) code | 85286200 |
