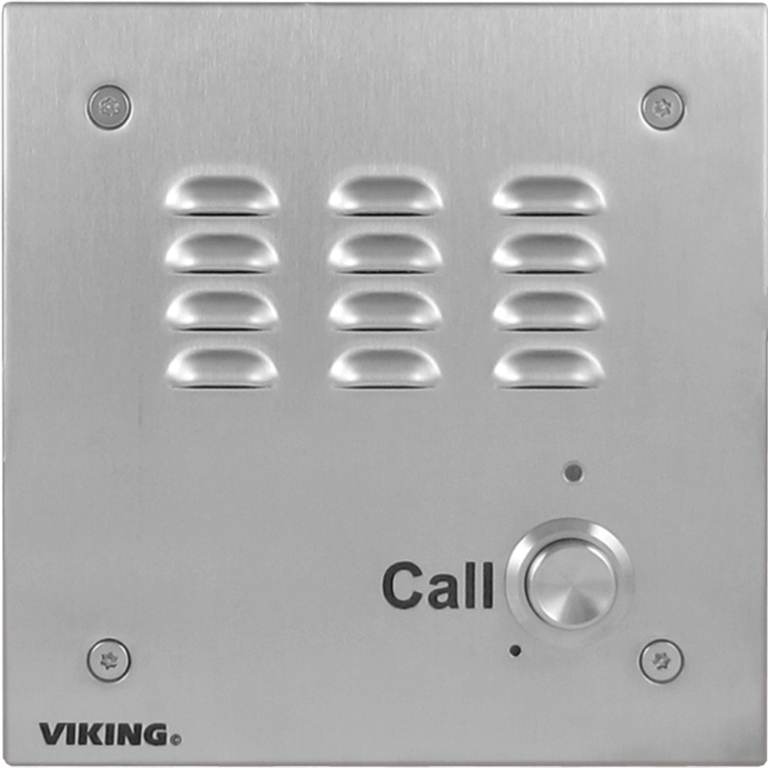

Viking E-30-IP-EWP audio intercom system Stainless steel
- Brand: Viking
- Category:
- SKU: E-30-IP-EWP
- EAN: 0615687225754
PoE class 1, 4 W, 90dB SPL, 30V DC, 125V AC, RJ45 10/100 Base-T, 127 x 127 x 57 mm, 1 kg
Offer details
Description
The E-30-IP-EWP VoIP Entry Phone is designed to provide quick and reliable handsfree communication for SIP VoIP phone systems with PoE. The E-30-IP-EWP door entry phone can be programmed from any touch tone phone, a PC on the same LAN, or remotely using a static IP address. The E-30-IP-EWP can dial up to 5 programmable numbers.
The E-30-IP-EWP entry phone will flash the “Call” LED during dialing and automatically light the LED when the call is answered. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. This unit is PoE powered.
The E-30-IP-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more information, see DOD 859.
The E-30-IP-EWP entry phone will flash the “Call” LED during dialing and automatically light the LED when the call is answered. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. This unit is PoE powered.
The E-30-IP-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more information, see DOD 859.
Specifications
| Features | |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| International Protection (IP) code | IP66 |
| Networking standards | IEEE 802.3af |
| Connector type | RJ-45 |
| Certification | EWP IP66 CE Canada ICES FCC Part 15 SIP |
| Buttons quantity | 1 |
| Connectivity technology | Wired |
| Outdoor units quantity | 1 |
| Noise level | 90 dB |
| Design | |
| Product colour | Stainless steel |
| Placement | Wall |
| Easy to install | Yes |
| Weight & dimensions | |
| Width | 5" (127 mm) |
| Depth | 2.24" (57 mm) |
| Height | 5" (127 mm) |
| Weight | 2.2 lbs (1 kg) |
| Packaging content | |
| Indoor unit included | No |
| Outdoor unit included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
