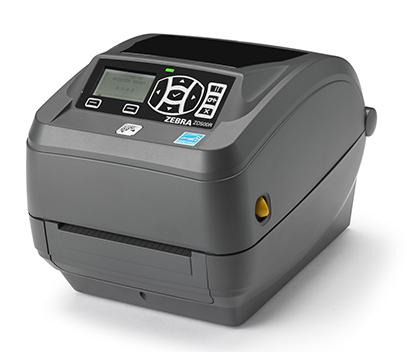

Zebra ZD500 label printer Thermal transfer 203 x 203 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
- Brand: Zebra
- Category:
- SKU: ZD50042-T01A00FZ
- EAN:
ZD500, 8 dots/mm (203 dpi), 128MB SDRAM, 256MB Flash, Parallel, Serial, USB, Ethernet, WLAN (802.11a/b/g/n), Bluetooth v3.0, ZPL II, 100-240V, LCD Display, 2.2 kg
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ZEBRA AIT, DISCONTINUED, REFER TO ZD6A142-301L01EZ, ZD500, TT PRINTER, 203 DPI, US CORD, USB/SERIAL/CENTRONICS PARALLEL/ETHERNET, ZEBRANET INTERNAL WIRELESS 802.11 A/B/G/N RADIO WITH BLUETOOTH AND LC |
ZD50042-T01A00FZ |
Description
Bringing Link-OS® environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.
- Tool-less printhead and platen replacement;
- OpenACCESS™ for easy media loading;
- Quick and easy ribbon loading;
- Simplified calibration of media;
- Quad connectivity: USB, Parallel, Serial, and Ethernet;
- Real-time clock;
- LCD User Interface;
- Zebra E3 Printhead Energy Control;
- ENERGY STAR® qualified;
- Link-OS™enabled;
- Print Touch™ app;
- Unicode compliant for multi-language printing;
- 16 resident expandable ZPL II® bitmap fonts;
- Two resident scalable ZPL fonts;
- Auto-switching 100-240V power supply;
- Head-up sensor;
- Standard tear-off mode feature;
- 3" media core adaptor;
- Zebra printer drivers for Windows™.
- Tool-less printhead and platen replacement;
- OpenACCESS™ for easy media loading;
- Quick and easy ribbon loading;
- Simplified calibration of media;
- Quad connectivity: USB, Parallel, Serial, and Ethernet;
- Real-time clock;
- LCD User Interface;
- Zebra E3 Printhead Energy Control;
- ENERGY STAR® qualified;
- Link-OS™enabled;
- Print Touch™ app;
- Unicode compliant for multi-language printing;
- 16 resident expandable ZPL II® bitmap fonts;
- Two resident scalable ZPL fonts;
- Auto-switching 100-240V power supply;
- Head-up sensor;
- Standard tear-off mode feature;
- 3" media core adaptor;
- Zebra printer drivers for Windows™.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 4.09" (10.4 cm) |
| Maximum print height | 39" (99 cm) |
| Printing | |
| Colour | No |
| Print speed | 152 mm/sec |
| Print speed | 6 lpm |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 4.09" (10.4 cm) |
| Maximum print height | 39" (99 cm) |
| Print technology | Thermal transfer |
| Design | |
| LED indicators | Yes |
| Display | LCD |
| Product colour | Black |
| Built-in display | Yes |
| Display | |
| Display | LCD |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 256 MB |
| Paper handling | |
| Supported paper width | 33.8 - 109.2 mm |
| Ribbon width | 4.29" (10.9 cm) |
| Ribbon length | 2913.4" (74 m) |
| Media thickness | 0.08 - 0.305 mm |
| Maximum roll diameter | 5" (12.7 cm) |
| Maximum media length | 39" (99 cm) |
| Maximum label width | 4.25" (10.8 cm) |
| Maximum label length | 39" (0.99 m) |
| Core diameter | 0.5" (1.27 cm) |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Parallel ports quantity | 1 |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 3.0+HS |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Ribbon width | 4.29" (10.9 cm) |
| Ribbon length | 2913.4" (74 m) |
| Internal memory | 128 MB |
| Flash memory | 256 MB |
| Built-in RFID module | Yes |
| Power | |
| Power consumption (printing) | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Cabling technology | 10/100Base-T(X) |
| Windows operating systems supported | Yes |
| Product colour | Black |
| Built-in barcodes | 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Ribbon width | 4.29" (10.9 cm) |
| Ribbon length | 2913.4" (74 m) |
| Maximum label width | 4.25" (10.8 cm) |
| Maximum label length | 39" (0.99 m) |
| LED indicators | Yes |
| Built-in RFID module | Yes |
| Sustainability certificates | ENERGY STAR |
| Software | |
| Drivers included | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 4.4 - 41 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 7.6" (193 mm) |
| Depth | 10" (254 mm) |
| Height | 7.52" (191 mm) |
| Weight | 3.09 lbs (1.4 kg) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, USB |
| Drivers included | Yes |
| Other features | |
| Cabling technology | 10/100Base-T(X) |
| LED indicators | Yes |
