Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
SERVICE BYPASS PANEL(6)5-15R, (2)5-20R, 120V, 20ANEMA 5-15P - 8FT |
482590 | |||
|
Service Bypass Panel |
SBP2200RM | |||
|
SERVICE BYPASS PANEL PDU 120V |
KL4840 | |||
|
APC SERVICE BYPASS PANEL 120V 20A BBM 5- |
APC-SBP2200RM | |||
|
APC SERVICE BYPASS PANEL 120V 20A |
3024735 |
Reasons To Buy
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Load test port provides simple connection for full testing of a Symmetra PX UPS
Description

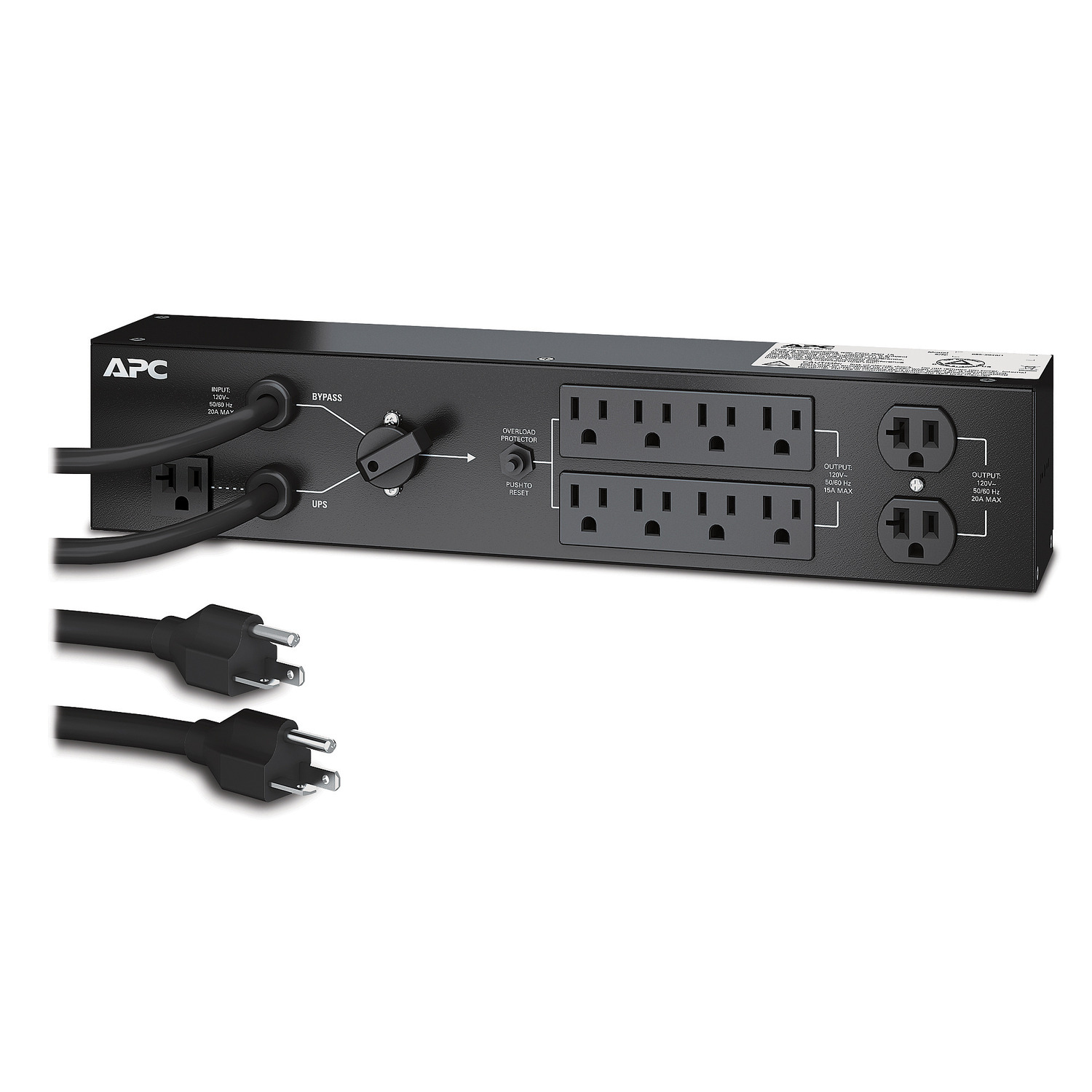

The APC Service Bypass Panel supports output voltage of 120V. It includes 8 NEMA 5-15R and 2 5-20R outlets. It features a 2U rack-mount design and is rack mountable. It includes rack mounting brackets and a user manual.
Specifications
| Design | |
|---|---|
| PDU types | Basic |
| Product colour | Black |
| Certification | TÜV |
| Rack capacity | 2U |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | NEMA 5–20P |
| Output connections | 6 x NEMA 5-15R & 2 x NEMA 5-20R |
| Features | |
| Certification | TÜV |
| Power | |
| Nominal input voltage | 120 V |
| Nominal output voltage | 120 V |
| Maximum total current draw per phase | 20 A |
| Maximum input current per phase | 20 A |
| Load capacity | 2200 VA |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | TÜV |
| Compliance certificates | RoHS, REACH, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 177165.4" (0 - 4500 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Weight & dimensions | |
| Weight | 6.5 lbs (2.95 kg) |
| Width | 17" (432 mm) |
| Depth | 2.99" (76 mm) |
| Height | 3.5" (89 mm) |
| Package width | 18.2" (463 mm) |
| Package depth | 11.6" (295 mm) |
| Package height | 5.94" (151 mm) |
| Package weight | 8.38 lbs (3.8 kg) |
| Packaging data | |
| Package width | 18.2" (463 mm) |
| Package depth | 11.6" (295 mm) |
| Package height | 5.94" (151 mm) |
| Package weight | 8.38 lbs (3.8 kg) |
| Technical details | |
| Compliance certificates | RoHS, REACH, WEEE |
