CLUB3D SenseVision MST Hub DP1.2 to HDMI™ Triple Monitor

CLUB3D SenseVision MST Hub DP1.2 to HDMI™ Triple Monitor

  • Brand: CLUB3D
  • Category:
  • SKU: CSV-5300H
  • EAN: 0854365005794 8717249400844 08 ...9400844 0871724940084more
Multi Stream Transport (MST) Hub DP1.2 to HDMI™ Triple Monitor

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex

MST HUB 1XDP 3XHDMI

4172069 Register free see stock

Description

Display devices have always been a key part of the PC experience. PC Gamers want a more immersive experience and Professionals seek more desktop space to run apps side by side and increase their productivity. The easiest solution is to add multiple Monitors to an existing Laptop or Desktop PC. The SenseVision MST Hub HDMI® Triple Monitor utilizes Multi Stream Transport, a unique DisplayPort™ 1.2 feature, to split a single DP 1.2 signal into three HDMI® outputs. This enables Three Full HD HDMI® Displays to be driven independently from one DisplayPort™ 1.2 output on the source device. With multiple Monitors, games become more immersive, workstations become more useful and you become more productive.
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.


AMD Eyefinity™
Enjoy the ultimate immersive gaming experience. AMD Radeon™ graphics cards can support up to 6 displays by using two MST hubs* showing each monitor independently or using the Single Large Surface (SLS) mode.

Give your device more Displays
Get even more from your Microsoft Surface Pro tablet or Intel NUC with its powerful (mini) DisplayPort™ output. These platforms feature powerful Intel CPU's with integrated Intel HD graphics and are capable of driving Multiple High Resolution external displays

Increased Productivity
According to a study done by Jon Peddie Research, a majority of (semi) professional power uses can benefit significantly from using Multiple Monitors instead of one. Productivity estimations average to 42% improvement. Primary applications users expect to benefit from Multiple Displays are: content creation, general office use, gaming and CAD. The MST Hub is an affordable and easy alternative to more traditional Multi Monitor Graphics solutions.

Compatible with DisplayPort™ 1.2 and Mini DisplayPort™ 1.2 devices
Notebooks, Ultrabooks and Desktop PC’s are getting smaller yet more powerful with every generation. Only (Mini)DisplayPort™ provides the Functionality and bandwidth to power Multiple High Resolution Monitors from a single output. Included with the MST Hub is a Mini DP to DP adapter for maximum compatibility with mobile and desktop based platforms featuring AMD, Nvidia and Intel Graphics Solutions.

Specifications

Ports & interfaces
Video ports quantity3
Video port typeDisplayPort

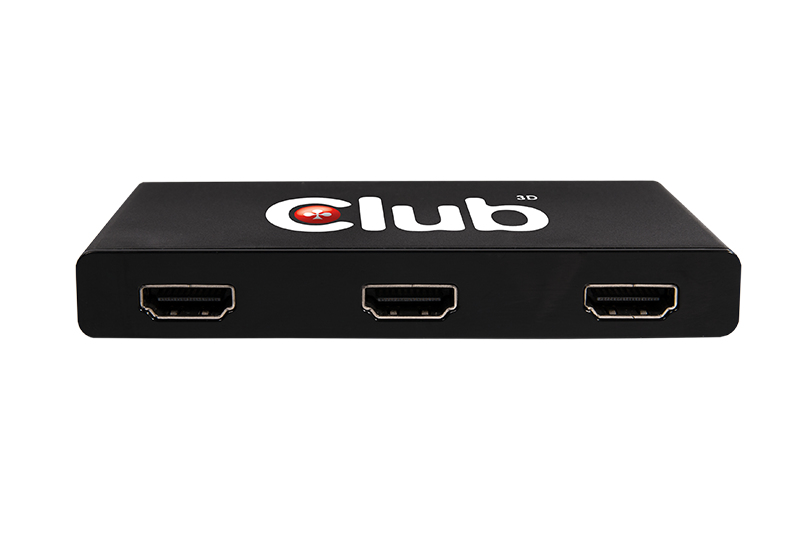

Video out3x HDMI
HDMI version1.4
DC-in jackYes
Features
Windows operating systems supportedYes
Maximum resolution3840 x 2160 pixels
HDCPYes
Plug and PlayYes
Maximum operating distance5.51" (0.14 m)
Easy to installYes
Product colourBlack
HD type4K Ultra HD
HDCP version1.3
Data transfer rate5.4 Gbit/s
Power
Output current0.5 A
Power consumption (typical)2.5 W
Output voltage5 V
Weight & dimensions
Weight4.23 oz (120 g)
Width4.21" (107 mm)
Depth2.36" (60 mm)
Height0.787" (20 mm)
Package depth3.19" (81 mm)
Package width10.4" (265 mm)
Package height6.61" (168 mm)
Packaging data
Package depth3.19" (81 mm)
Package width10.4" (265 mm)
Package height6.61" (168 mm)
Quantity per pack1 pc(s)
Video
Maximum resolution3840 x 2160 pixels
HDCPYes
Colour
Product colourBlack
Technical details
Package width10.4" (265 mm)
Package height6.61" (168 mm)
Video out3x HDMI
Plug and PlayYes
Maximum operating distance5.51" (0.14 m)
HDMI version1.4
Easy to installYes
System requirements
Windows operating systems supportedYes
Logistics data
Quantity per pack1 pc(s)
