Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
MST HUB 1XDP 2XDP |
4172067 |
Related Products
-
Category: Video Splitters -
Category: Video Splitters -
Category: Video Splitters -
Category: Video Splitters
Description

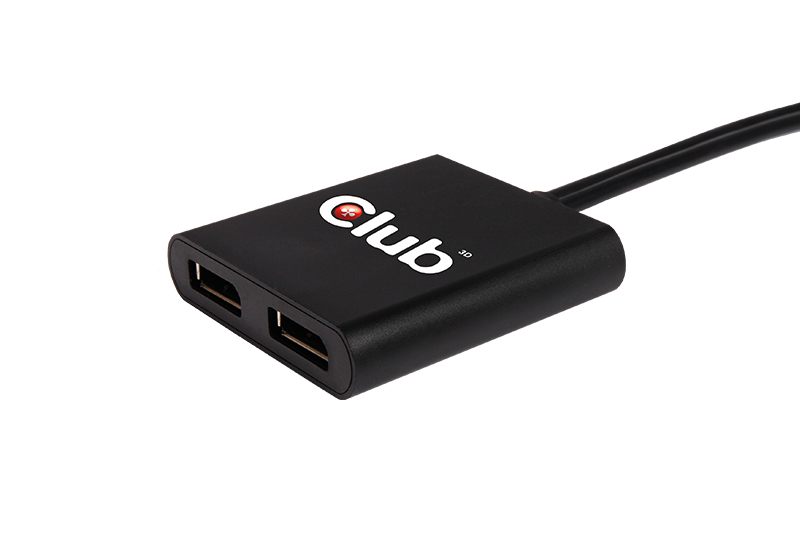

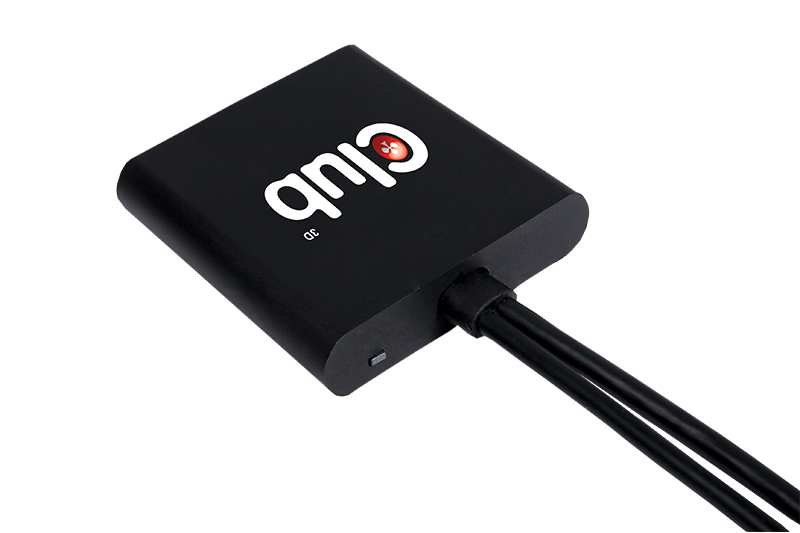

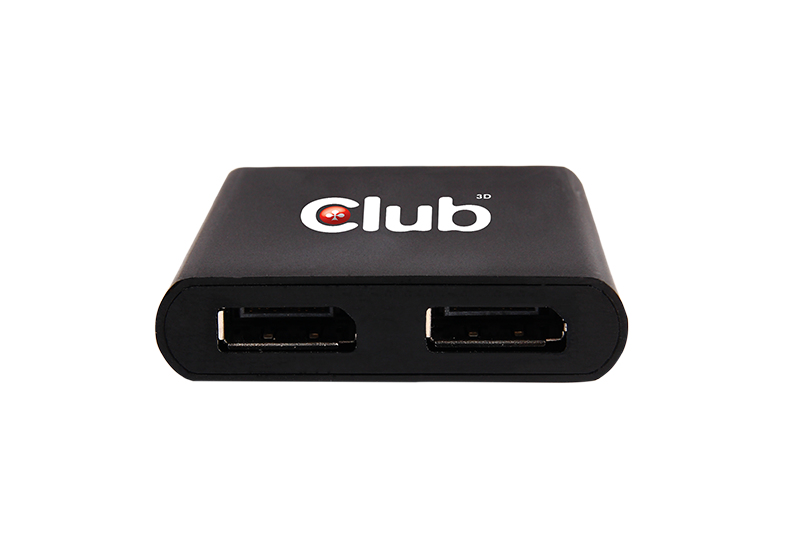

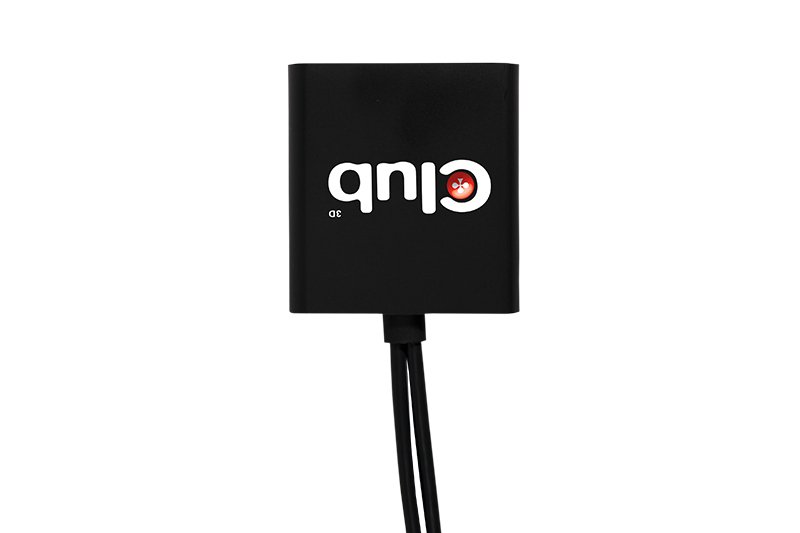

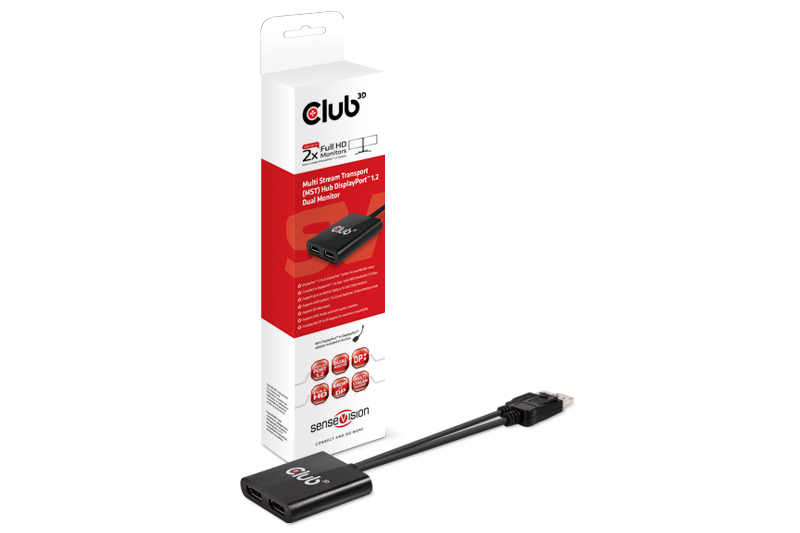

CLUB 3D Multi Stream Transport
Display devices have always been an integral part of the PC experience. Whether it is in the form of a desktop monitor, a notebook’s embedded panel, or the touch screen of a PC tablet, display devices play a vital role in defining the user’s visual experience.
The Club 3D MST hub is a hub device that receives a DisplayPort™ 1.2a MST signal from the source device and splits up and routes the video streams independently to each display device. Using this type of configuration also allows the use of non DisplayPort™ 1.2 monitors. Non DisplayPort™ outputs, such as VGA, DVI or HDMI®, the Club 3D MST hub is DP++ and can actively convert the DisplayPort™ signal to the other types of display interface signals.
Adaptive-Sync*
The CSV-5200 supports the DisplayPort 1.2a interface standard. This technology delivers several important capabilities to computer users: Adaptive-Sync provides smoother, tear-free images for gaming and judder-free video playback. It also significantly reduces power consumption for static desktop content and low frame rate video.
Advanced WideEye™SerDes
Technology capable of receiving data over long and low quality cables
Display devices have always been an integral part of the PC experience. Whether it is in the form of a desktop monitor, a notebook’s embedded panel, or the touch screen of a PC tablet, display devices play a vital role in defining the user’s visual experience.
The Club 3D MST hub is a hub device that receives a DisplayPort™ 1.2a MST signal from the source device and splits up and routes the video streams independently to each display device. Using this type of configuration also allows the use of non DisplayPort™ 1.2 monitors. Non DisplayPort™ outputs, such as VGA, DVI or HDMI®, the Club 3D MST hub is DP++ and can actively convert the DisplayPort™ signal to the other types of display interface signals.
Adaptive-Sync*
The CSV-5200 supports the DisplayPort 1.2a interface standard. This technology delivers several important capabilities to computer users: Adaptive-Sync provides smoother, tear-free images for gaming and judder-free video playback. It also significantly reduces power consumption for static desktop content and low frame rate video.
Advanced WideEye™SerDes
Technology capable of receiving data over long and low quality cables
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | DisplayPort |
| Video out | 2x DisplayPort |
| DC-in jack | No |
| Cable length | 5.51" (0.14 m) |
| Features | |
| Maximum resolution | 3840 x 2160 pixels |
| Full HD | Yes |
| HD-Ready | Yes |
| HDCP | Yes |
| Plug and Play | Yes |
| Easy to install | Yes |
| Product colour | Black |
| Certification | CE, RoHS, FCC |
| 3D | Yes |
| Cable length | 5.51" (0.14 m) |
| Power | |
| USB powered | Yes |
| Weight & dimensions | |
| Weight | 1.69 oz (48 g) |
| Dimensions (WxDxH) | 2.43 x 2.28 x 0.535" (61.8 x 58 x 13.6 mm) |
| Package weight | 2.82 oz (80 g) |
| Package width | 9.06" (230 mm) |
| Package length | 6.5" (16.5 cm) |
| Package height | 2.36" (60 mm) |
| Packaging data | |
| Package weight | 2.82 oz (80 g) |
| Package width | 9.06" (230 mm) |
| Package length | 6.5" (16.5 cm) |
| Package height | 2.36" (60 mm) |
| Packaging content | |
| AC adapter included | No |
| User guide | Yes |
| Cables included | DisplayPort, USB |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Full HD | Yes |
| HD-Ready | Yes |
| HDCP | Yes |
| 3D | Yes |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, RoHS, FCC |
| Technical details | |
| Package width | 9.06" (230 mm) |
| Package length | 6.5" (16.5 cm) |
| Package height | 2.36" (60 mm) |
| Video out | 2x DisplayPort |
| Plug and Play | Yes |
| Easy to install | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
