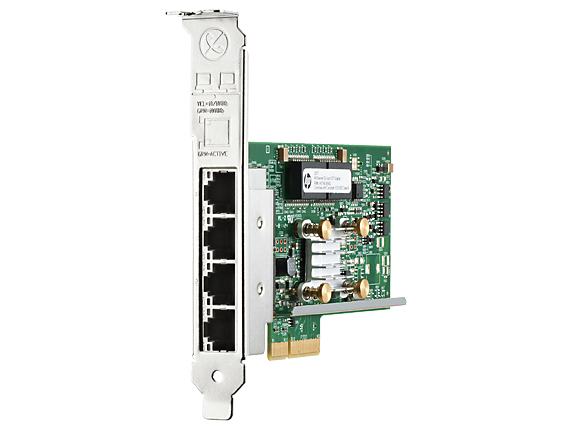

HPE 331T Internal Ethernet 2000 Mbit/s

  • Brand: HPE
  • Category:
  • SKU: 647594-B21
  • EAN: 0886111431069 5711045374081 50 ...5374081 5057454830269 4053162258198 5054629290453 4948382807205 2514101412245 8861114310698 5712505202753 5054533407800 7106221816741 5054484407805more
HPE 331T, Internal, Wired, PCI Express, Ethernet, 2000 Mbit/s, Green, Gray

Trade Prices

Distributor Product SKU Stock Updated Price
Arbitech ETH 1GB 4PT 331T ADPTR 647594-B21 Register free see stock
D&H Ethernet 1Gb 4 port 331T Adapt 647594B21
EXAS Ethernet 1Gb 4-port 331T Adapter High Profile (FRU: 649871-001) - Refurbished 647594-B21-HP-06
Ingram Micro 1GBE 4PORT 331T ADAPTER PA7754

Description

HPE 331T. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product color: Green, Gray

Specifications

Ports & interfaces
InternalYes
Connector(s)RJ-45
Ethernet LAN (RJ-45) ports4
Parallel ports quantity0
Compatible memory cardsNot supported
InterfaceEthernet
Host interfacePCI Express
Connectivity technologyWired
Bandwidth
Data transfer rate1 Gbit/s
Bandwidth8 Gbit/s
Full duplexYes
Maximum data transfer rate2000 Mbit/s
Wireless LAN features
Wi-FiNo
Network
Data transfer rate1 Gbit/s
ChipsetBroadcom BCM5719
Bandwidth8 Gbit/s
Wi-FiNo
Ethernet LANYes
Cabling technology10/100/1000BaseT(X)
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Maximum operating distance3937" (100 m)
Jumbo frames supportYes
Full duplexYes
Ethernet LAN data rates10,100,1000 Mbit/s
Maximum data transfer rate2000 Mbit/s
Technical details
Product colourGreen, Gray
Compatible memory cardsNot supported
Harmonized System (HS) code85176990
Design
Product colourGreen, Gray
ChipsetBroadcom BCM5719
CertificationFCC Part 15 Class B ICES=--3, Issue 4 VCCI V3 (2010.04) Class B KN22 ClassB, KN24 EN55022:2006+A12007 class B EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008 EN55022:2006 + A1:2007 Class B UL/cUL CE EN 60590
InternalYes
Power
Power consumption (typical)4.3 W
System requirements
Compatible operating systemsWindows Server 2008 (32/64), Enterprise, Web, Embedded, R2 Microsoft Windows HPC Server 2008 Microsoft Windows 2008 Standard (32/x64) Microsoft Windows 2008 Enterprise (32/x64) Microsoft Windows Small Business Server 2011 (SBS V7) Microsoft Windows Small Business Server 2011 Essentials RHEL 5.7 x86/ AMD 64 & EM 64T RHEL 6.1 x86/ AMD 64 & EM 64T SLES10: x86 / AMD 64 & EM 64T SLES 11: x86 / AMD 64 & EM64T Solaris 10 VMWare vSphere 4.1/5.0 Citrix HyperV (Windows 2008 32 and 64)
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-65 - 85 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width2.25" (57.2 mm)
Depth9.5" (241.3 mm)
Height7.5" (190.5 mm)
Weight15.9 oz (450 g)
Performance
Compatible memory cardsNot supported
Certificates
CertificationFCC Part 15 Class B ICES=--3, Issue 4 VCCI V3 (2010.04) Class B KN22 ClassB, KN24 EN55022:2006+A12007 class B EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008 EN55022:2006 + A1:2007 Class B UL/cUL CE EN 60590
Other features
ChipsetBroadcom BCM5719
Compatible operating systemsWindows Server 2008 (32/64), Enterprise, Web, Embedded, R2 Microsoft Windows HPC Server 2008 Microsoft Windows 2008 Standard (32/x64) Microsoft Windows 2008 Enterprise (32/x64) Microsoft Windows Small Business Server 2011 (SBS V7) Microsoft Windows Small Business Server 2011 Essentials RHEL 5.7 x86/ AMD 64 & EM 64T RHEL 6.1 x86/ AMD 64 & EM 64T SLES10: x86 / AMD 64 & EM 64T SLES 11: x86 / AMD 64 & EM64T Solaris 10 VMWare vSphere 4.1/5.0 Citrix HyperV (Windows 2008 32 and 64)
Data transfer rate1 Gbit/s
Cable typeCat5
Connector(s)RJ-45
Harmonized System (HS) code85176990
Logistics data
Harmonized System (HS) code85176990
