HPE ProLiant 603251-B21 server 0 GB Blade Intel® Xeon® 5000 Sequence X5670 2.93 GHz 12 GB DDR3-SDRAM

  • Brand: HPE
  • Category:
  • SKU: 603251-B21
  • EAN: 0884962876275 8849628762752 49 ...8762752 4948382714077more
Intel Xeon X5670 (2.93 Ghz, 12Mb L3), Intel 5520, 12Gb RAM, Matrox G200, 3xLAN, Blade

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro HPE PROLIANT BL460C G7 1X NQ4835 Register free see stock

Related Products

Description

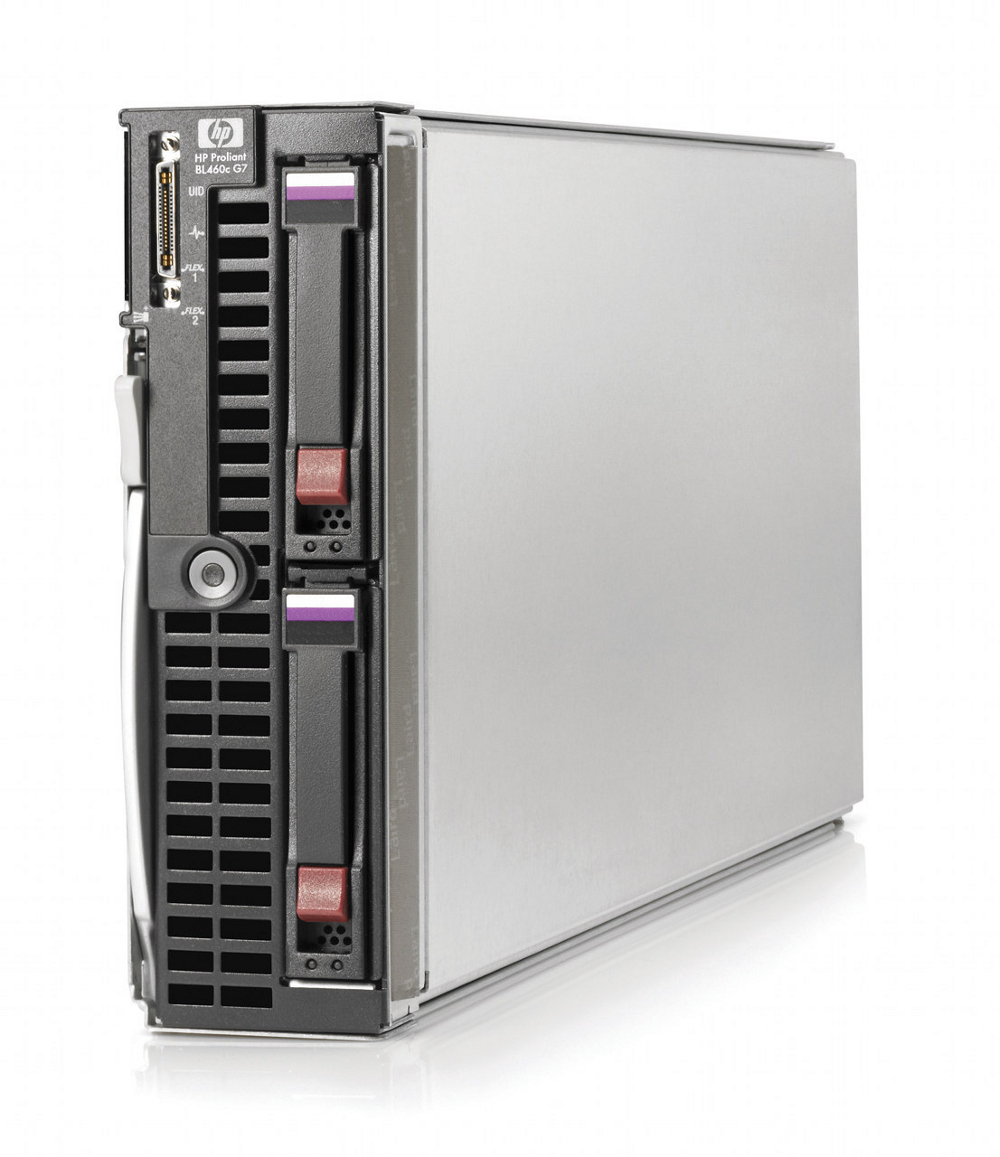

As the world's most popular blade, the HP ProLiant BL460c G7 Server offers the ideal balance of performance, scalability, and expandability to make it the standard for data center computing. Packing two processors, two hot plug hard drives, up to 384 GB of memory, and a dual-port FlexFabric adapter into a half-height blade, the BL460c gives IT managers a single platform that can handle any business applications.

Dense Compute Power
- Up to two (2) two-, four-,or six-core Intel® Xeon® 5500 or 5600 series processors
- 12 DIMM slots supporting up to 384 GB of DDR-3 memory with Advanced ECC
- HP Smart Array P410i controller for hardware RAID 0 and 1, with optional cache modules for increased performance
- Up to two (2) hot plug small form factor (SFF) SAS, SATA, or SSD drives
- Internal USB and SD card slots enable simple, flexible hypervisor deployments

Integrated HP Virtual Connect FlexFabric Support
- Embedded dual-port 10 Gb FlexFabric adapter delivers high bandwidth for network intensive applications
- Simplify management and lower infrastructure costs by converging LAN and SAN traffic over the same flexible connection
- Up to eight (8) connections to network and storage without the need for add-in mezzanine cards
- Divide and fine-tune network and storage bandwidth to match application requirements

Industry-leading Infrastructure Management
- Save time and conserve valuable IT resources by simplifying remote management with HP Integrated Lights-Out 3 (iLO 3)
- Deploy servers quickly, proactively manage virtual or physical server health, and optimize power consumption with HP Insight Control
- Rapidly provision, continuously analyze, and confidently optimize your converged server infrastructure with HP Insight Dynamics

Specifications

Processor
Thermal Monitoring TechnologiesNo
Thermal Design Power (TDP)95 W
Tcase81.3 °C
Supported instruction setsSSE4.2
SteppingB1
Processor threads12
Processor package size42.5 X 45 mm
Processor operating modes64-bit
Processor lithography32 nm
Processor codenameWestmere EP
Processor codeSLBV7
Physical Address Extension (PAE)40 bit
Physical Address Extension (PAE)Yes
Number of QPI links2
Memory types supported by processorDDR3-SDRAM
Memory clock speeds supported by processor800,1066,1333 MHz
Memory channels supported by processorTriple
Memory bandwidth supported by processor (max)32 GB/s
Maximum internal memory supported by processor288 GB
Idle StatesYes
FSB ParityNo
Execute Disable BitYes
Embedded options availableNo
ECC supported by processorYes
Bus typeQPI
Processor cache typeSmart Cache
Processor cache12 MB
CPU multiplier (bus/core ratio)22
Conflict-Free processorNo
Processor seriesIntel Xeon 5600 Series
Processor frequency2.93 GHz
Number of processors installed1
Processor modelX5670
Processor boost frequency3.33 GHz
System bus rate6.4 GT/s
Processor socketSocket B (LGA 1366)
Processor cores6
Processor manufacturerIntel
Motherboard chipsetIntel® 5520
Maximum number of SMP processors2
Processor familyIntel® Xeon® 5000 Sequence
Memory
Internal memory12 GB
Memory layout (slots x size)3 x 4 GB
Memory slots12
Memory clock speed1333 MHz
Maximum internal memory384 GB
Internal memory typeDDR3-SDRAM
Storage
Total storage capacity0 GB
Number of HDDs installed0
RAID supportYes
RAID levels0, 1
Optical drive typeNo
Number of HDDs supported2
Maximum storage capacity2 TB
Network
Network readyYes
Ethernet LANYes
Ports & interfaces
USB 2.0 ports quantity0
Serial ports quantity0
PS/2 ports quantity0
Ethernet LAN (RJ-45) ports3
Expansion slots
PCI Express x8 slots2
Optical drive
Optical drive typeNo
Design
Optical drive typeNo
Chassis typeBlade
Graphics
Graphics card familyMatrox
Graphics cardG200
Performance
Operating system installedNo
Software
Operating system installedNo
Processor special features
Intel® Wireless Display (Intel® WiDi)No
Enhanced Intel SpeedStep TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® Turbo Boost Technology1.0
Intel Trusted Execution TechnologyYes
Intel® Smart CacheYes
Intel® Quick Sync Video TechnologyNo
Intel® My WiFi Technology (Intel® MWT)No
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel Flex Memory AccessNo
Intel Enhanced Halt StateYes
Intel Demand Based SwitchingYes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel Clear Video TechnologyNo
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® Anti-Theft Technology (Intel® AT)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Intel FDI TechnologyNo
Intel Dual Display Capable TechnologyNo
Intel Fast Memory AccessNo
Processor ARK ID47920
Intel Rapid Storage TechnologyNo
CPU configuration (max)2
Power
Number of power supply units0
Operational conditions
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)10 - 35 °C
Operating altitude0 - 120078.7" (0 - 3050 m)
Non-operating altitude0 - 360000" (0 - 9144 m)
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Rapid Storage TechnologyNo
CPU configuration (max)2
Chassis typeBlade
Weight & dimensions
Width2.19" (55.6 mm)
Height7.15" (181.7 mm)
Depth20.1" (509.5 mm)
Other features
Disk array controllerP410i
Graphics card familyMatrox
Graphics cardG200
CPU configuration (max)2
