Tripp Lite 4POSTRAILSM rack accessory Mounting kit

Tripp Lite 4POSTRAILSM rack accessory Mounting kit

SmartRack 4-Post Rack-Mount Installation Kit for Select UPS Systems, Side Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

4-POST RACK SERVER CABINETINSTALL KIT FOR RACK MOUNT UPS4POSTRAILSM

 812239 Register free see stock
Ingram Micro

4-POST RM UPS INSTALLATION KIT

 3F8604
ScanSource

4-Post Rack Server Cabinet Ins

 POW-4POSTRAILSM
TD Synnex

Tripp Lite Series SmartRack 4-Post Rack-Mount Installation Kit for Select UPS Systems, Side Mount

 4460648

Related Products

Description

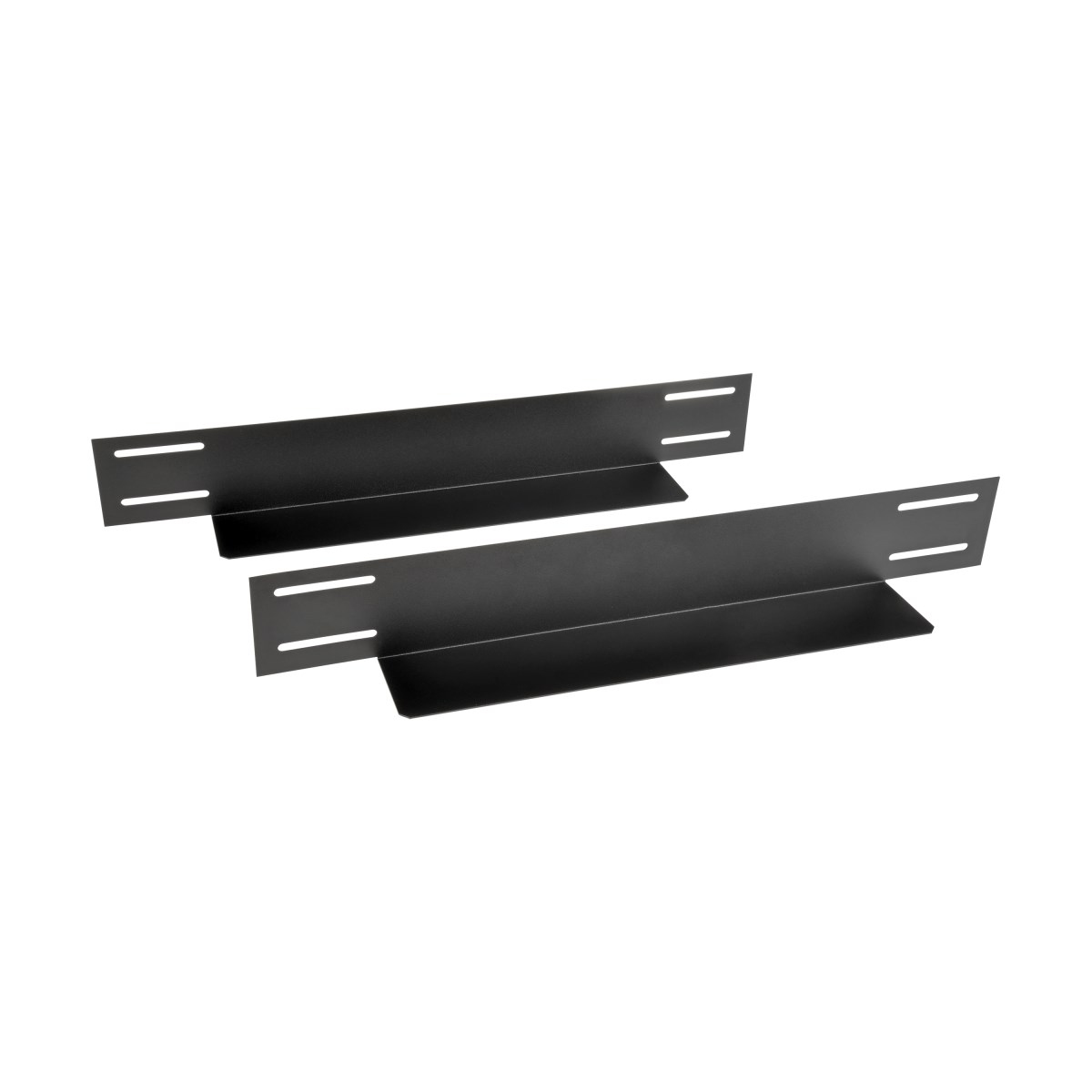

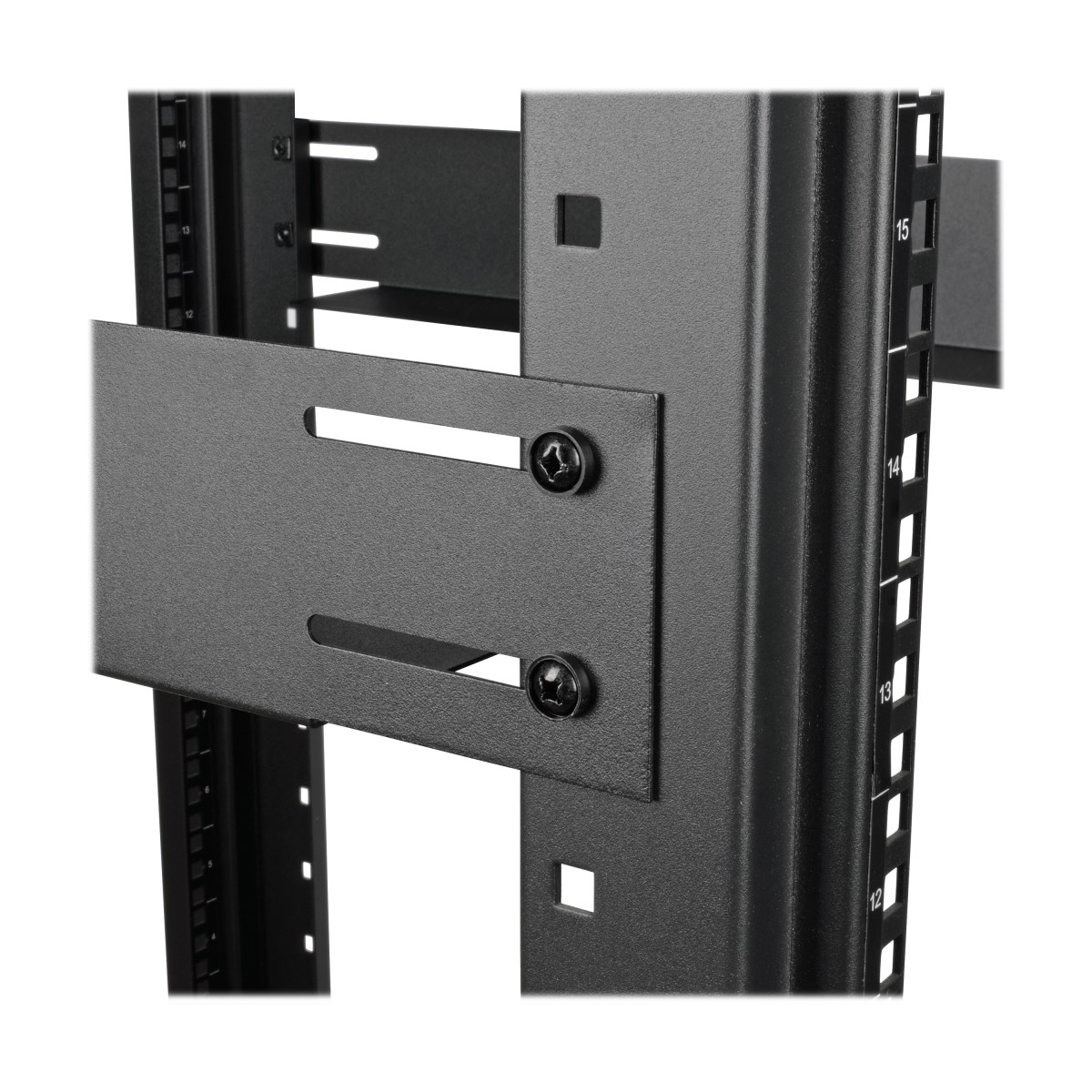

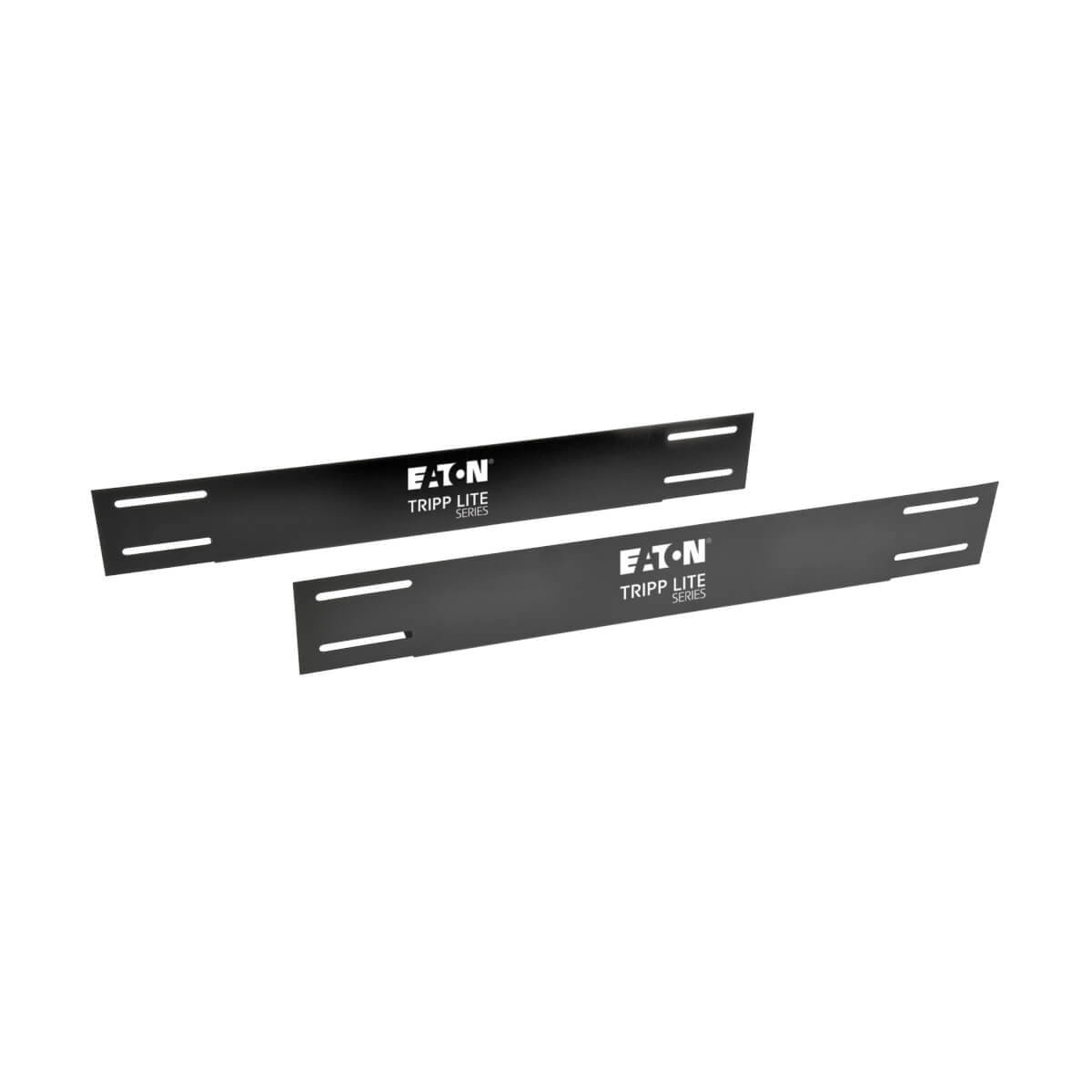

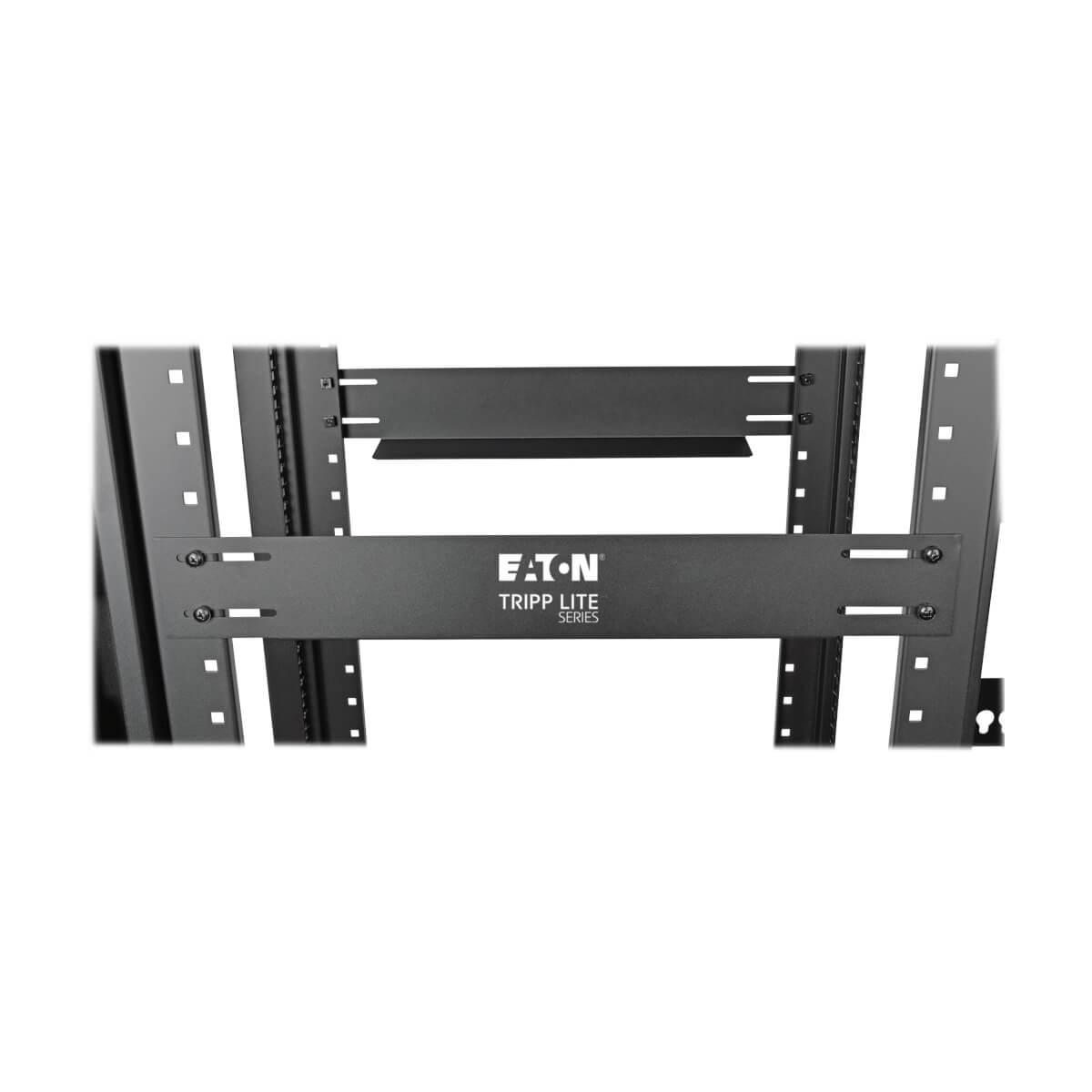

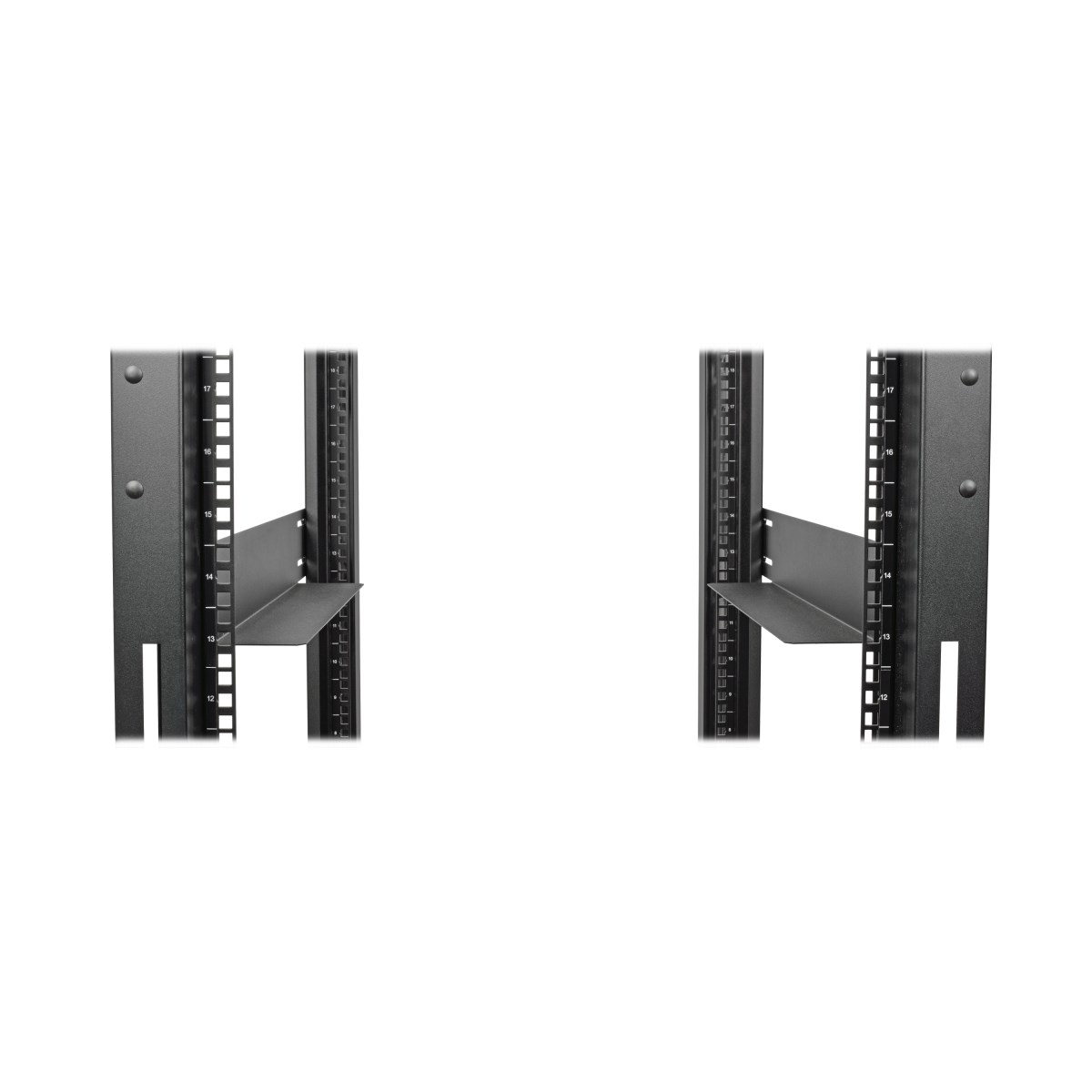

The 4POSTRAILSM 4-Post Rack-Mount Installation Kit supports heavy UPS systems in your EIA-standard four-post rack. The two L brackets mount to the outside edges of the rack's vertical mounting rails - the edges facing the side panels - using the rails' square mounting holes. Attaching the 4POSTRAILSM to the side leaves your front and rear mounting holes free for equipment.

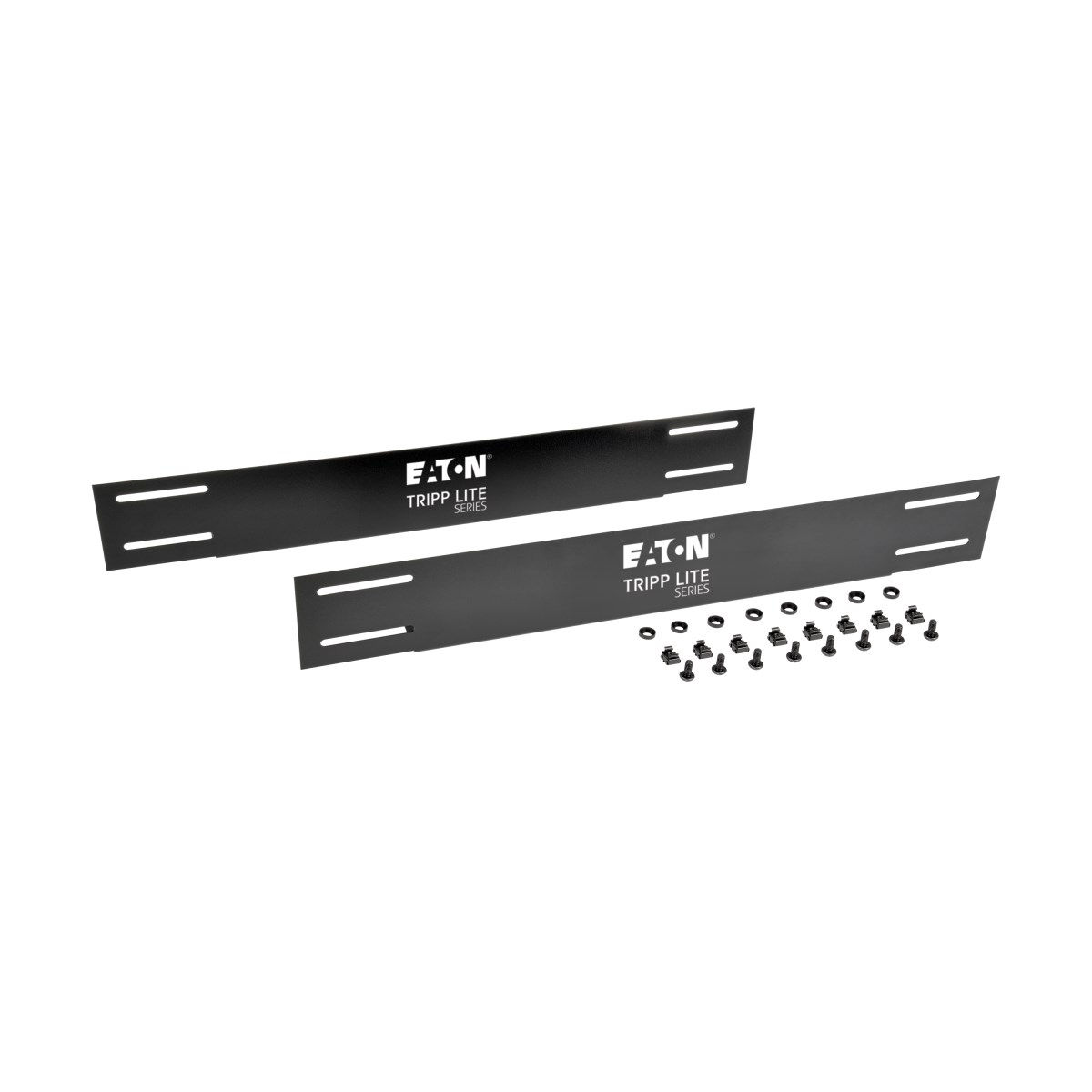

The brackets support up to 250 lbs (113.4 kgs) and are compatible with four-post racks with a mounting depth of 16.5 to 21.5 inches. In addition to UPS systems, the 4POSTRAILSM is compatible with other heavy networking or power protection equipment with a rectangular chassis of 17.5 inches in width. Rack-attachment hardware for square-hole mounting is included.

Specifications

Features
TypeMounting kit
Maximum weight capacity249.1 lbs (113 kg)
Product colourBlack
Harmonized System (HS) code7326.90.8688
Country of originChina
Weight & dimensions
Package width5.71" (145 mm)
Package height6.3" (160 mm)
Package depth25.4" (645.2 mm)
Package weight4.21 lbs (1.91 kg)
Width3" (76.2 mm)
Weight25.7 oz (730 g)
Height3.25" (82.6 mm)
Depth23" (584.2 mm)
Maximum weight capacity249.1 lbs (113 kg)
Packaging data
Package width5.71" (145 mm)
Package height6.3" (160 mm)
Package depth25.4" (645.2 mm)
Package weight4.21 lbs (1.91 kg)
Packaging content
Screws includedYes
Mounting kitYes
Technical details
TypeMounting kit
Master (outer) case GTIN (EAN/UPC)10037332191769
Compliance certificatesRoHS
Colour
Product colourBlack
Logistics data
Master (outer) case width26.6" (675.6 mm)
Master (outer) case length29.7" (754.9 mm)
Master (outer) case height13.2" (335.3 mm)
Master (outer) case gross weight46.3 lbs (21 kg)
Products per master (outer) case10 pc(s)
Harmonized System (HS) code7326.90.8688
