Tripp Lite SRGROUND rack accessory

Tripp Lite SRGROUND rack accessory

  • Brand: Tripp Lite
  • Category:
  • SKU: SRGROUND
  • EAN: 0037332154811 0373321548118
SmartRack Copper Bus Grounding Bar

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 42U RACK ENCLOSURE SERVERCABINET COPPER BUS GROUNDING 565530 Register free see stock
ASI Corp AC SRGROUND SmartRack Copper Bus Grounding Bar Retail 135292
D&H 42U Rack Enclosure Server Cab. SRGROUND
Ingram Micro 42U RACK COPPER GROUNDING BAR DV6734
ScanSource SmartRack Copper Bus Grounding Bar POW-SRGROUND
TD Synnex 42U RACK ENCL COPPER BUS GROUNDING BAR 2796474

Related Products

Description

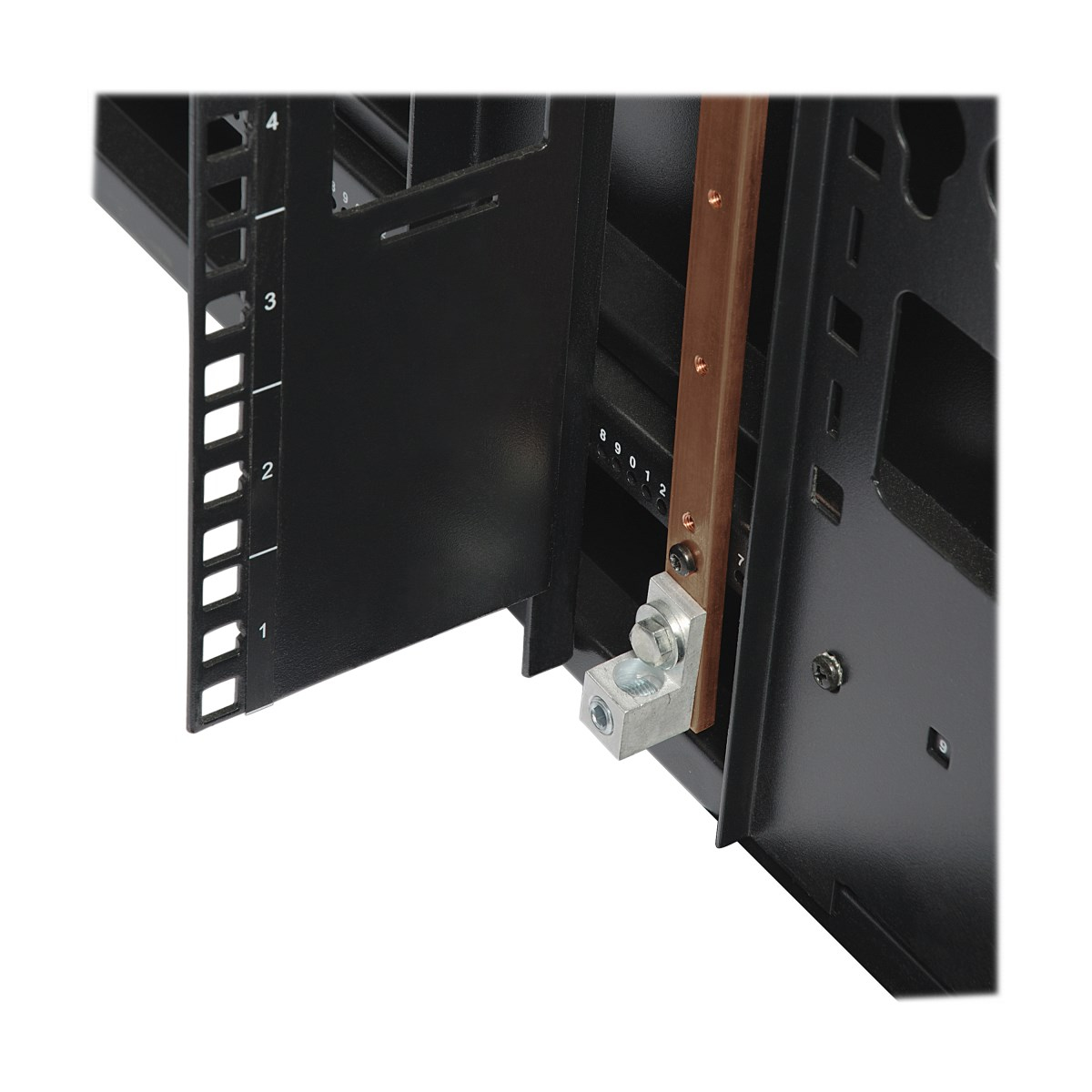

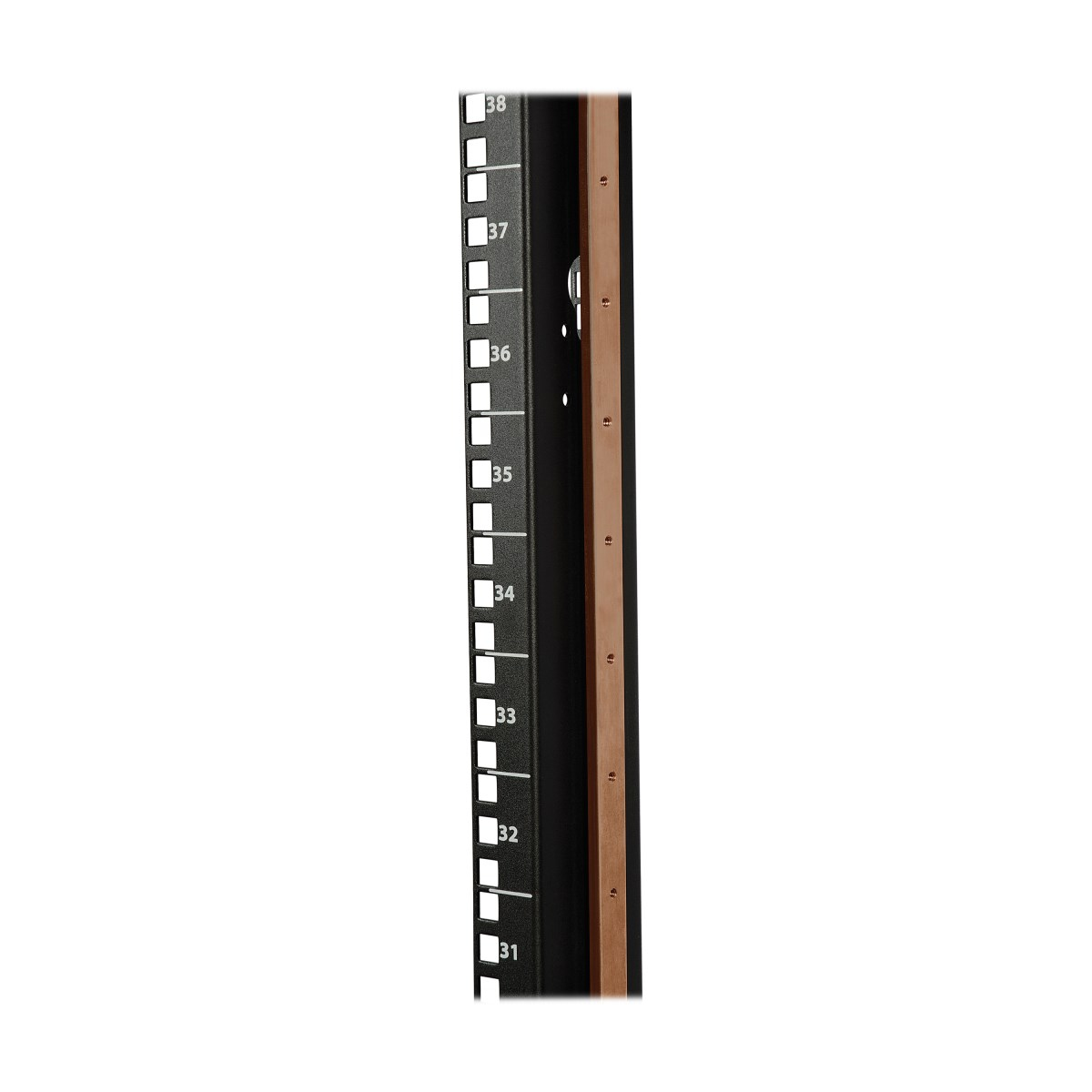

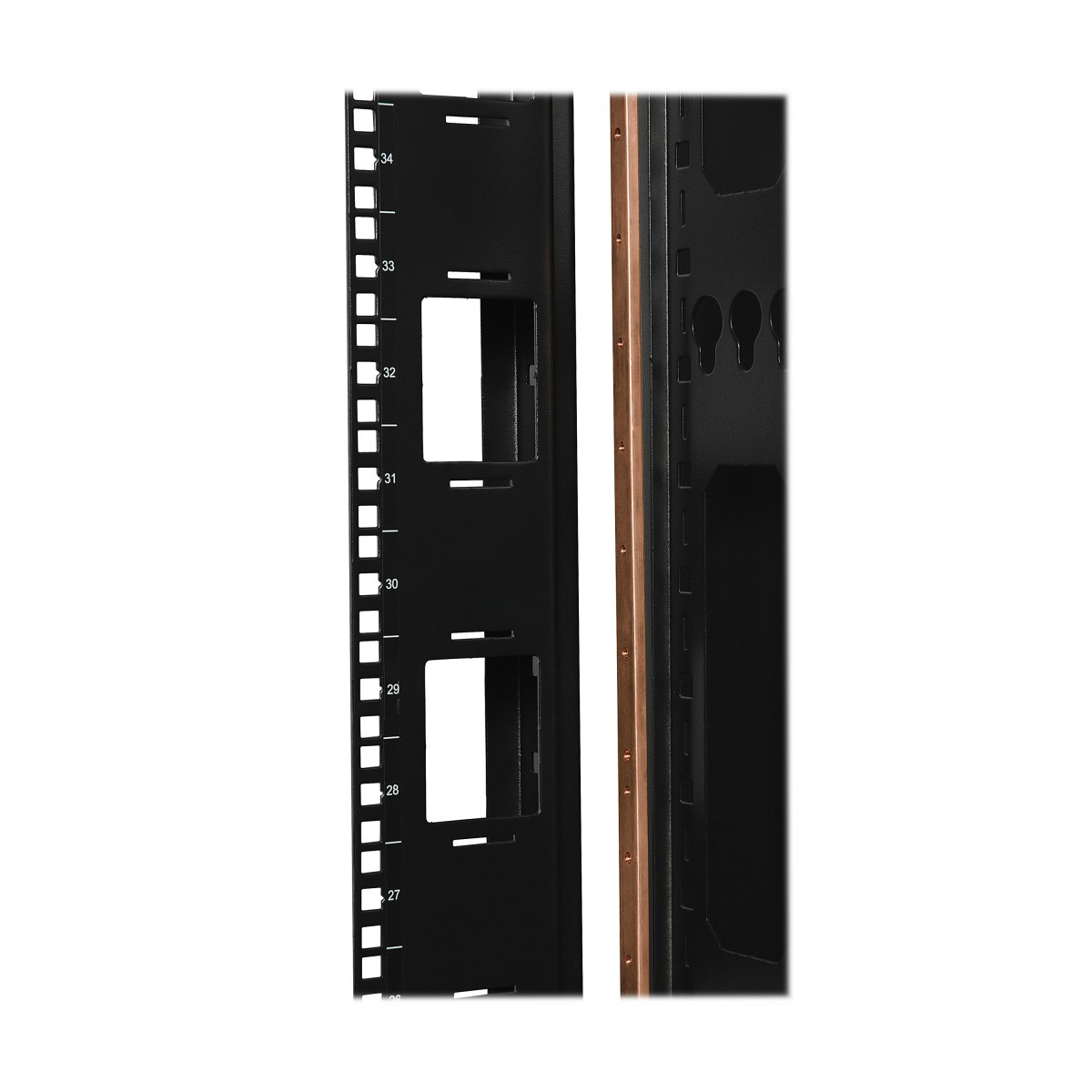

The SRGROUND is a full-length (42U) bus grounding bar made from heavy-gauge solid copper that attaches to Rack Enclosure Cabinets or Open Frame Racks to provide convenient ground contact for standard rack-mount equipment. Every other U space has a drilled and tapped hole to allow a ground wire "jumper" to be installed. The jumper then bridges to the individual pieces of equipment with grounding straps, allowing a direct path to ground, rather than going through surrounding equipment. The SRGROUND can mount in an enclosure in two ways: it can be screwed into the Rack Enclosures (hardware included) or it can be installed using the toolless mounting buttons in the Open Frame Racks.

Specifications

Features
Product colourBlack, Brown
Harmonized System (HS) code85389099
Country of originChina
Weight & dimensions
Package width3.6" (91.4 mm)
Package height2.4" (61 mm)
Package depth78.5" (1993.9 mm)
Package weight5.49 lbs (2.49 kg)
Width0.626" (15.9 mm)
Weight3.99 lbs (1.81 kg)
Height75.5" (1917.7 mm)
Depth0.252" (6.4 mm)
Packaging data
Package width3.6" (91.4 mm)
Package height2.4" (61 mm)
Package depth78.5" (1993.9 mm)
Package weight5.49 lbs (2.49 kg)
Colour
Product colourBlack, Brown
Technical details
Master (outer) case GTIN (EAN/UPC)10037332154818
Compliance certificatesRoHS
Logistics data
Master (outer) case width11.5" (292.1 mm)
Master (outer) case length79" (2006.6 mm)
Master (outer) case height5.5" (139.7 mm)
Master (outer) case gross weight35.9 lbs (16.3 kg)
Products per master (outer) case6 pc(s)
Harmonized System (HS) code85389099
