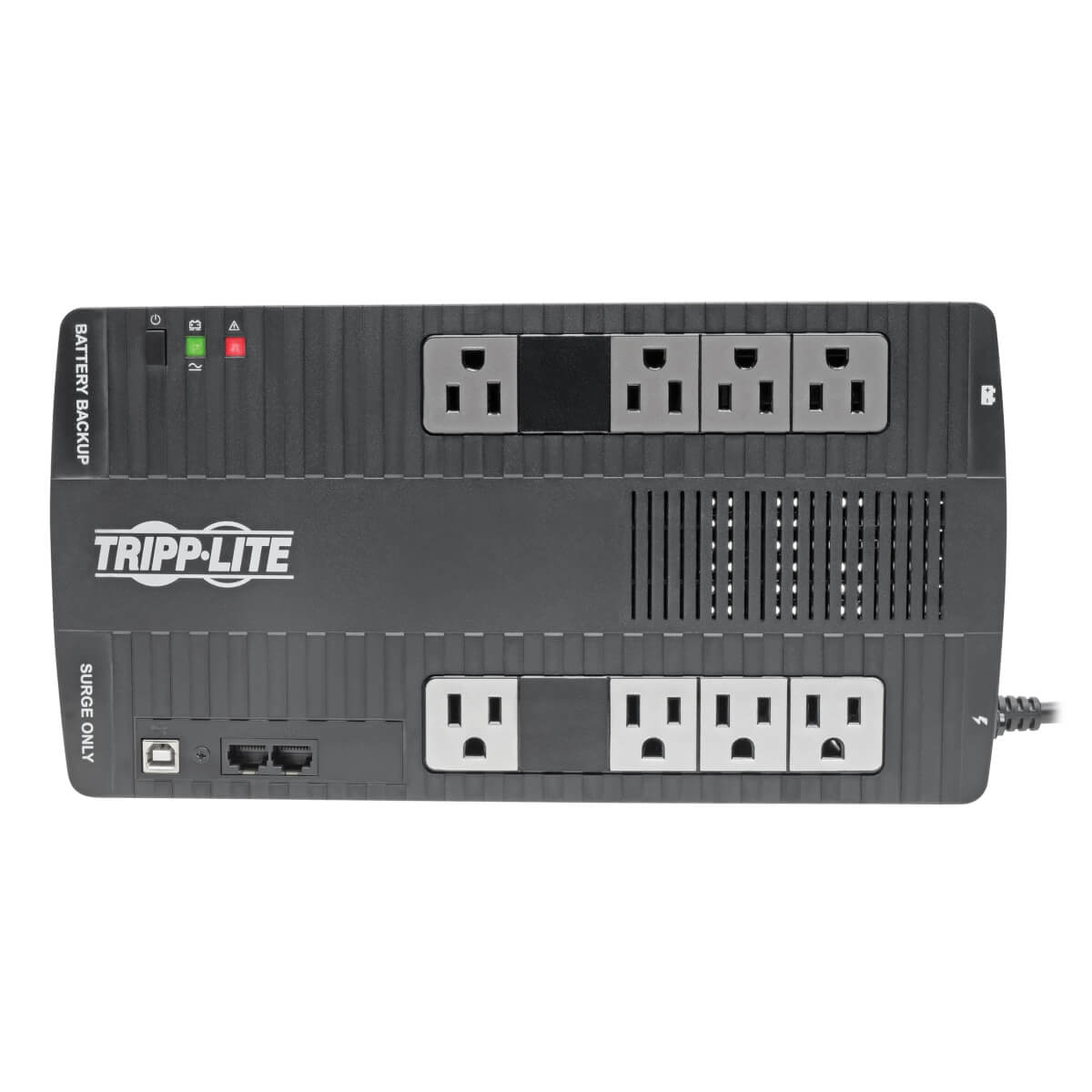

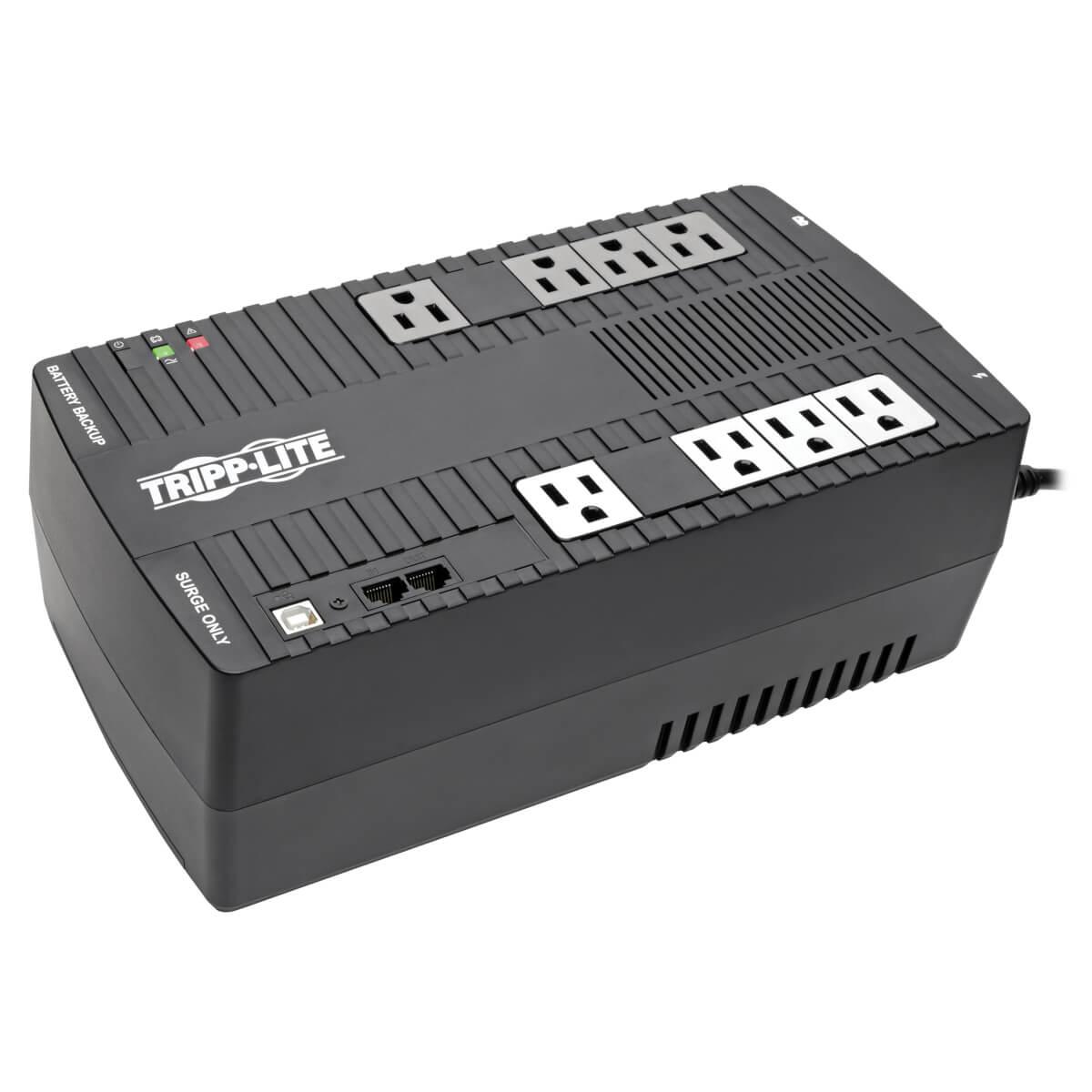

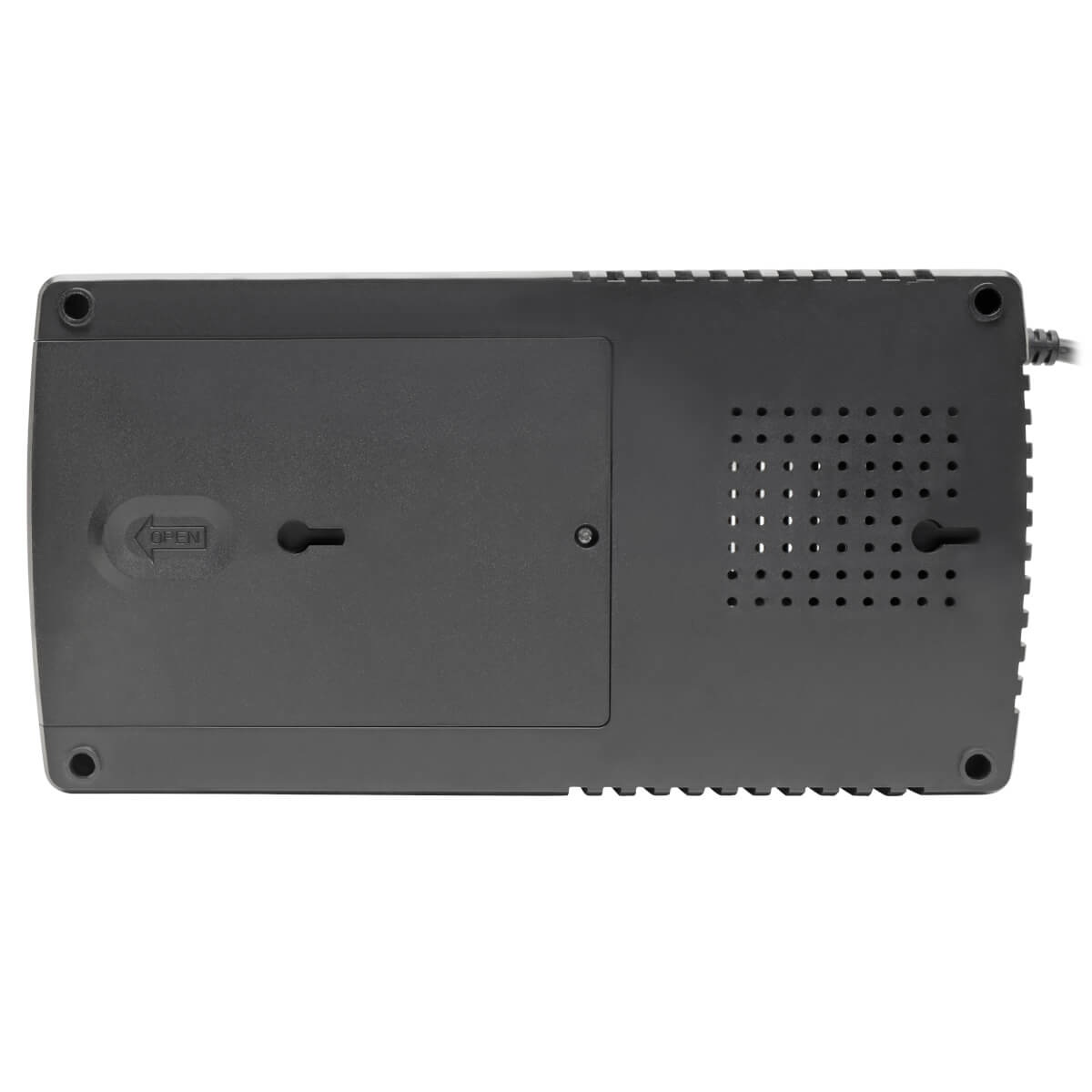

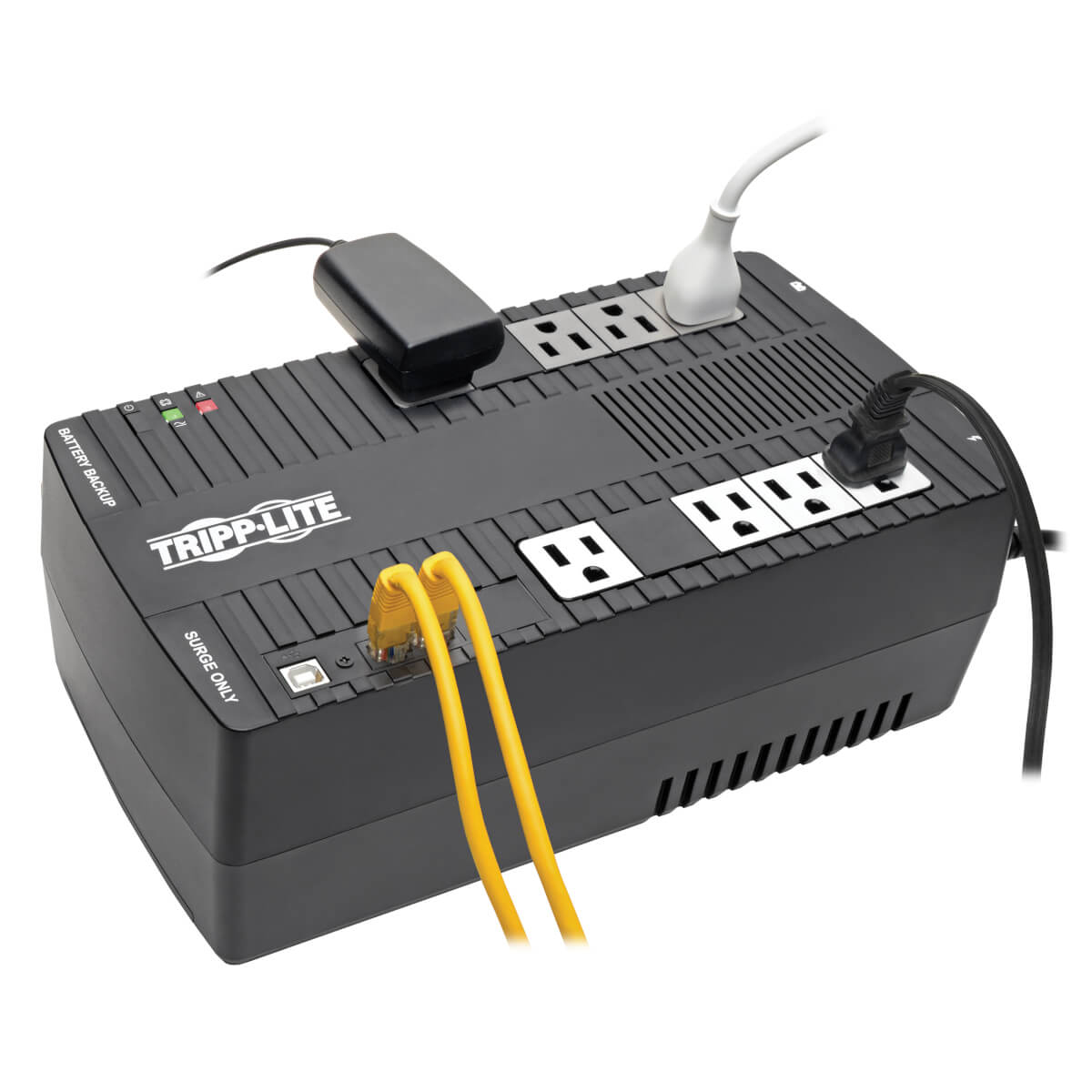

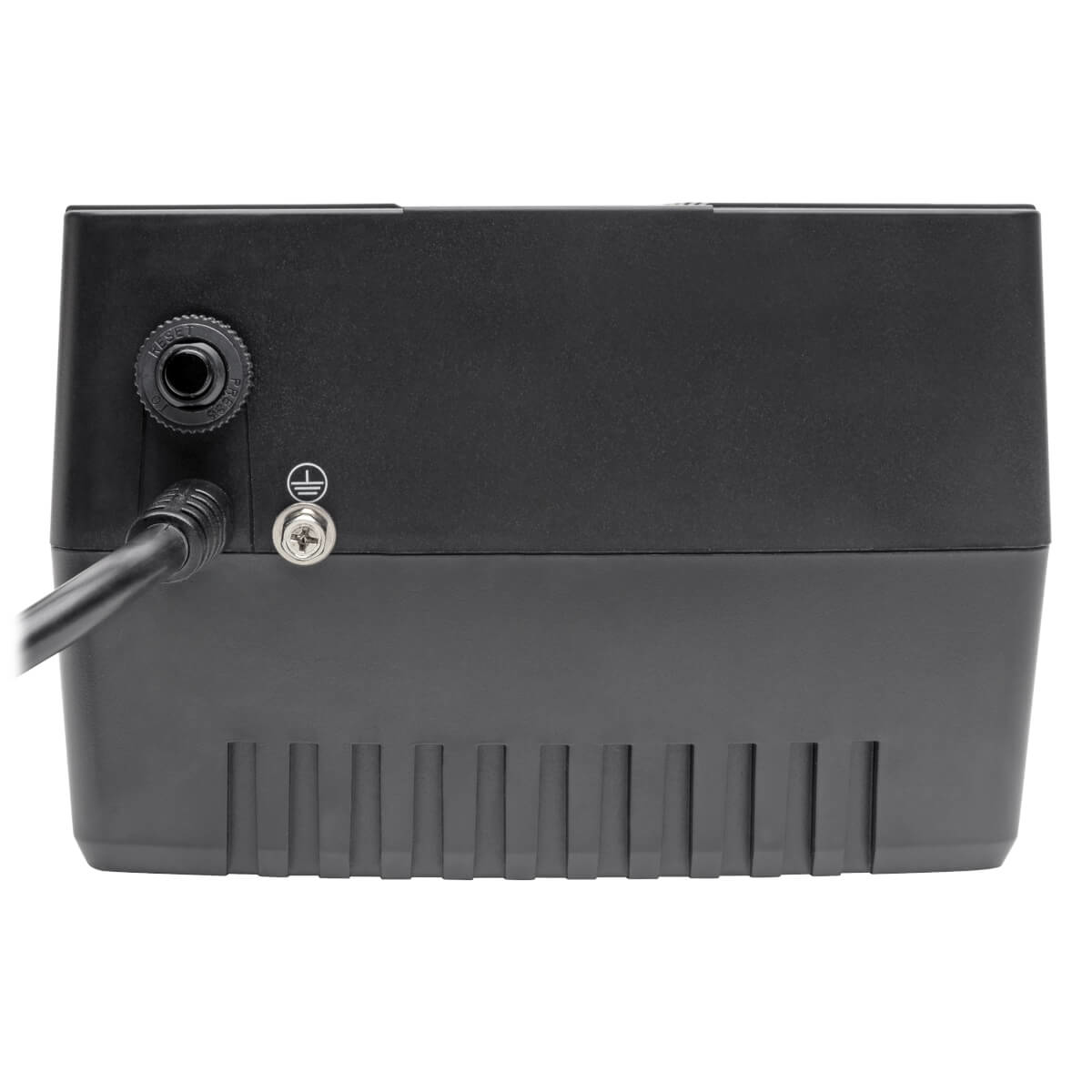

Tripp Lite AVR650UM uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 325 W 8 AC outlet(s)

Tripp Lite AVR650UM uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 325 W 8 AC outlet(s)

Tripp Lite AVR650UM, Line-Interactive, 0.65 kVA, 325 W, Pure sine, 89 V, 145 V

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

AVR SERIES 120V 650VA 325WULTRA-COMPACT LINE-INTERACTIVEUPS W/USB PRT & ALRM

 640139 Register free see stock
ASI Corp

Tripp Lite UPS AVR650UM AVR 120V 650VA 325W Ultra-compact line-interactive

 222057

Description

Tripp Lite AVR650UM. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 325 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Typical backup time at half load: 11 min. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Compliance certificates: RoHS

Specifications

Power
Output frequency50/60 Hz
Output power325 W
Input operation voltage (min)89 V
Input operation voltage (max)145 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current15 A
Output power capacity0.65 kVA
Ports & interfaces
Cable length59.1" (1.5 m)
USB portYes
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Performance
Audible alarm modesBattery replacement
UPS topologyLine-Interactive
WaveformPure sine
Auto-restartYes
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsPower, Status
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
Country of originChina
Audible alarm modesBattery replacement
UPS topologyLine-Interactive
WaveformPure sine
Auto-restartYes
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power325 W
Input operation voltage (min)89 V
Input operation voltage (max)145 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current15 A
EMI/RFI noise filteringYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Output power capacity0.65 kVA
Battery
Typical backup time at half load11 min
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsPower, Status
Product colourBlack
Cable length59.1" (1.5 m)
Housing materialAcrylonitrile butadiene styrene (ABS)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Output frequency50/60 Hz
Compliance certificatesRoHS
Certificates
Compliance certificatesRoHS
Packaging content
ManualYes
Cables includedUSB cable
Weight & dimensions
Package width6.2" (157.5 mm)
Package depth15" (381 mm)
Package height9.4" (238.8 mm)
Weight13.7 lbs (6.21 kg)
Width6.4" (162.6 mm)
Package weight14.8 lbs (6.71 kg)
Height4.33" (110 mm)
Depth12" (304.8 mm)
Packaging data
ManualYes
Cables includedUSB cable
Package width6.2" (157.5 mm)
Package depth15" (381 mm)
Package height9.4" (238.8 mm)
Package weight14.8 lbs (6.71 kg)
Logistics data
Country of originChina
Products per master (outer) case3 pc(s)
Master (outer) case width15.6" (396.2 mm)
Master (outer) case length19.5" (495.3 mm)
Master (outer) case height10.4" (264.2 mm)
Master (outer) case gross weight46.5 lbs (21.1 kg)
Master (outer) case GTIN (EAN/UPC)10037332211467
