Tripp Lite SMX1000LCD uninterruptible power supply (UPS) 1 kVA 500 W 6 AC outlet(s)

Tripp Lite SMX1000LCD uninterruptible power supply (UPS) 1 kVA 500 W 6 AC outlet(s)

SmartPro 230V 1kVA 500W Line-Interactive UPS, Tower, LCD, USB, 6 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1000VA 500W UPS INTERNATIONALSMART TOWER LCD AVR 230V 565436 Register free see stock
BlueStar TRIPP LITE, UPS BACK UP BATT 230V EUROPEAN SMX1000LCD

Related Products

Description

The SMX1000LCD SmartPro® 230V 1kVA 500W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, media centers and home entertainment systems, the SMX1000LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Featuring six C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1000LCD has an internal battery that provides 11 minutes of support at half load and three minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. Three of the six outlets provide surge protection only for printers and other non-essential devices. A front-panel LCD screen lets you configure settings and monitor operating data, such as voltage, battery and load statuses.

Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 171V to 266V without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 480-joule surge suppression rating protects your equipment from harmful power surges. With free downloadable PowerAlert® software, SMX1000LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Protects Mission-Critical Equipment
Provides fully regulated AC output for home/office workstations, media centers and home entertainment systems
Audible alarm signals loss of utility power or overload

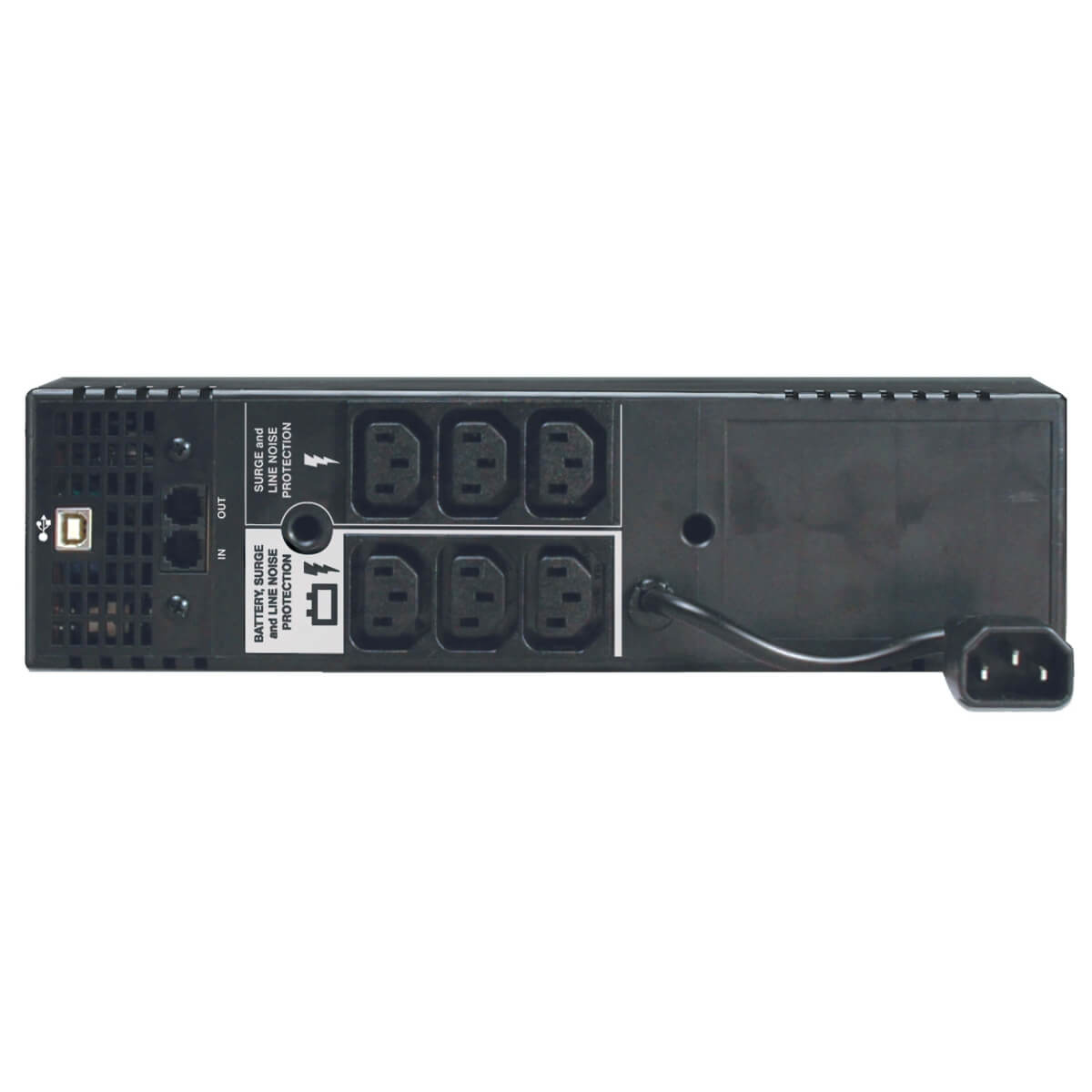

6 C13 outlets—3 surge-only
C14 inlet accepts user-supplied AC power cord with country-specific plug
480-joule surge suppression rating

Reliable Battery Backup
Supports half load up to 11 min. and full load up to 3 min.
Powers entry-level PC up to 60 min. and a DVR/VCR component up to 3 hr.
96% line-power efficiency rating saves money in energy costs
Cold-start capability enables turn-on in battery mode during blackouts

Automatic Voltage Regulation (AVR)
Maintains 230V nominal output over input range of 171V–266V without using battery power

EMI/RFI Line Noise Filtering
Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance

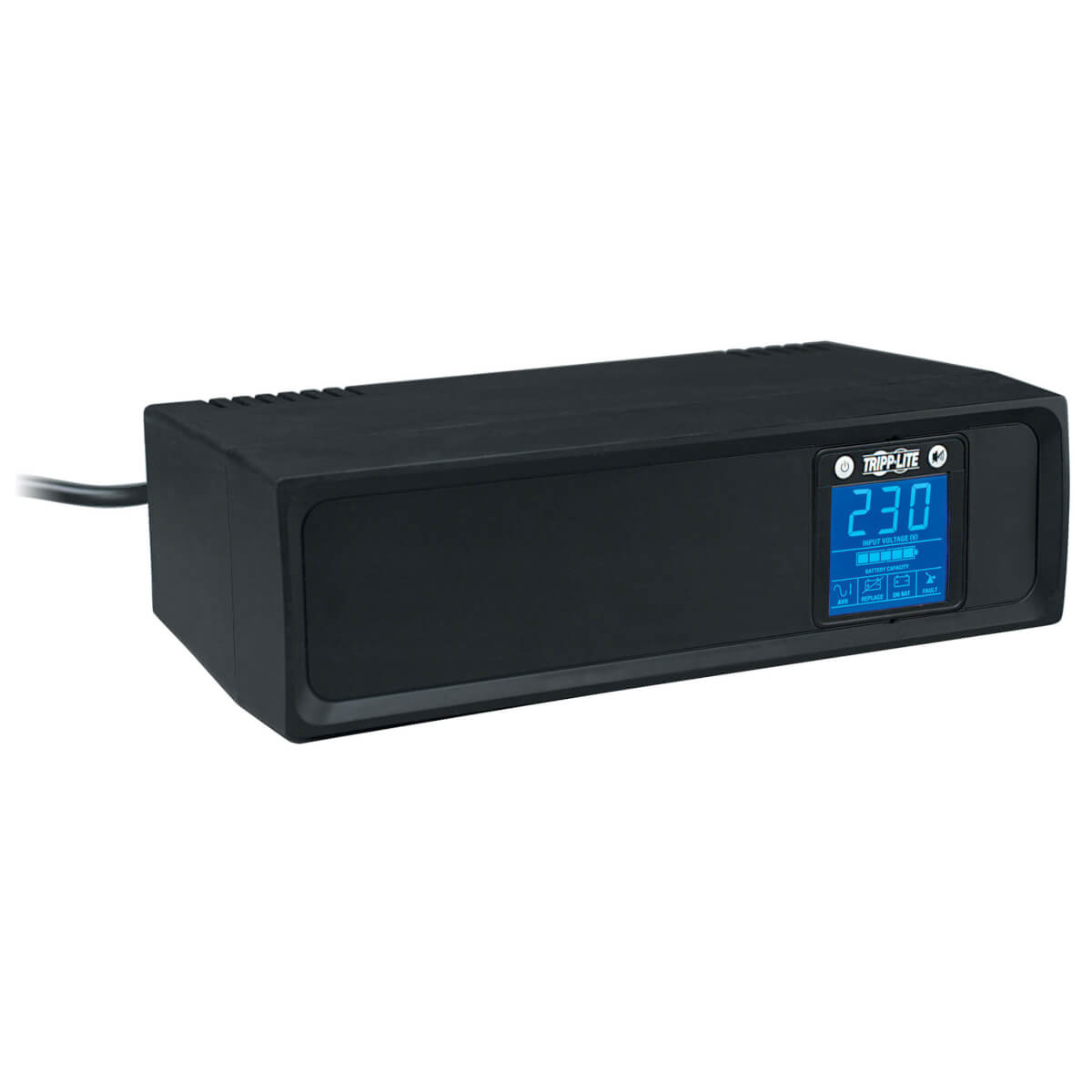

Interactive LCD Screen
Front-panel LCD signals voltage, battery and load statuses
Supports multiple advanced user setup and operating preferences
Rotates for easy viewing in rack-mount or tower configurations

Communications Port
USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert

RJ45 Telephone/Ethernet Protection Jacks
Protect phone/DSL/fax/modem/Ethernet network against power surges

Specifications

Power
Output power500 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Maximum current10 A
Output power capacity1 kVA
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity6 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Performance
Surge protectionYes
Audible alarm(s)Yes
Features
Country of originChina
Output power500 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating480 J
Maximum current10 A
Surge protectionYes
Audible alarm(s)Yes
Output power capacity1 kVA
Battery
Typical backup time at half load11 min
Typical backup time at full load3 min
Design
Country of originChina
Form factorTower
Product colourBlack
CertificationCE (IEC 62040), GOST, SASO, CE Class B
Cable length70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Technical details
Compliance certificatesRoHS
Weight & dimensions
Package width15.5" (393.7 mm)
Package depth11" (279.4 mm)
Package height14.3" (364 mm)
Weight14.6 lbs (6.62 kg)
Width3.5" (88.9 mm)
Package weight16.1 lbs (7.3 kg)
Height11.8" (300 mm)
Depth6.5" (165.1 mm)
Packaging data
Package width15.5" (393.7 mm)
Package depth11" (279.4 mm)
Package height14.3" (364 mm)
Package weight16.1 lbs (7.3 kg)
Logistics data
Products per master (outer) case2 pc(s)
Master (outer) case width15.7" (400 mm)
Master (outer) case length11" (279.4 mm)
Master (outer) case height10.9" (276.1 mm)
Master (outer) case gross weight32.2 lbs (14.6 kg)
Master (outer) case GTIN (EAN/UPC)10037332125924
Certificates
CertificationCE (IEC 62040), GOST, SASO, CE Class B
Other features
Non-operating relative humidity (non-condensing)0 - 95%
