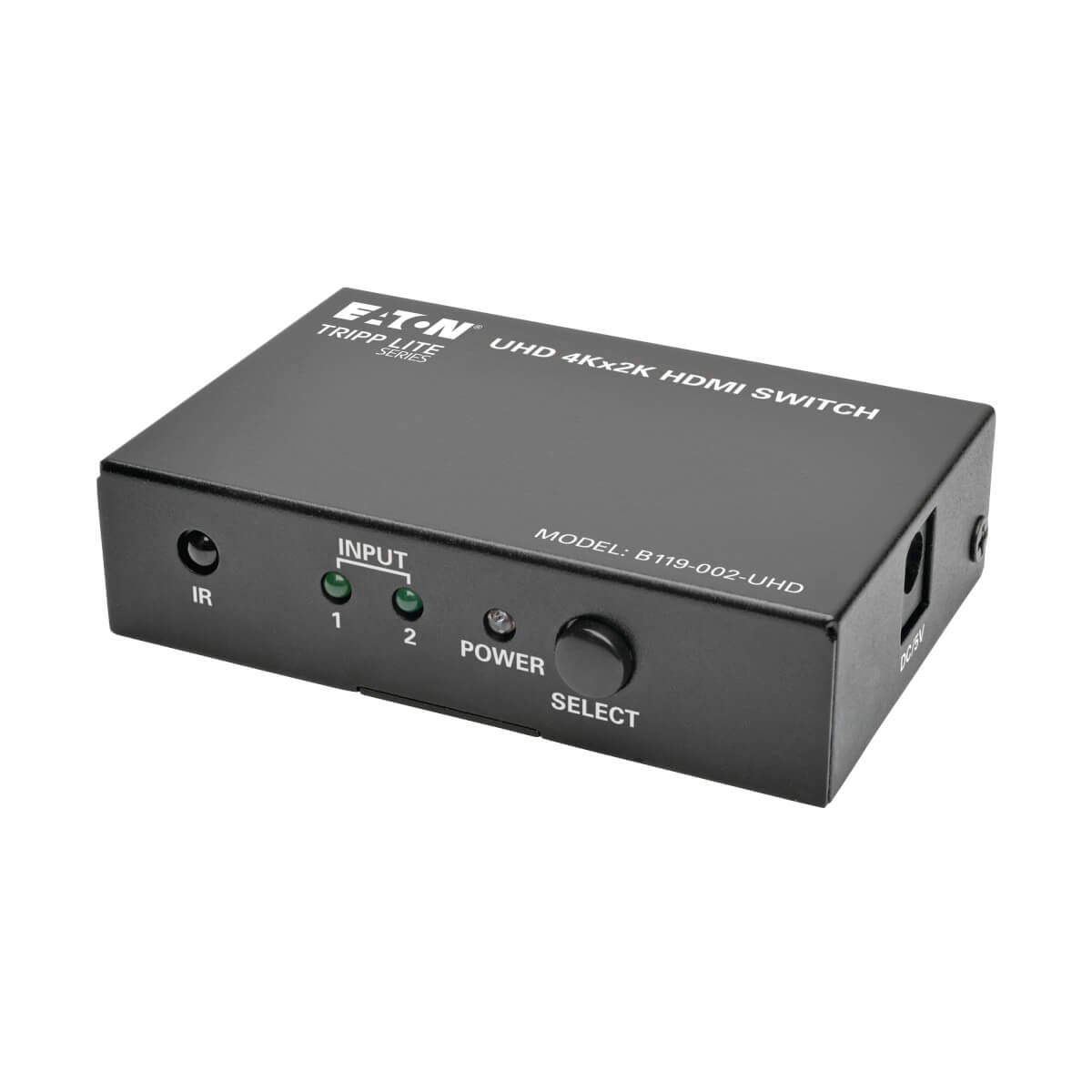

Tripp Lite B119-002-UHD video switch HDMI
- Brand: Tripp Lite
- Category:
- SKU: B119-002-UHD
- EAN:
2-Port HDMI Switch with Remote Control - 4K @ 60 Hz, 4:4:4, HDR, 3D, HDCP 2.2, EDID
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
2-PORT HDMI SWITCH FOR AV4KX2K UHD 60 HZ W REMOTEB119-002-UHD |
812263 | |||
|
EATON, 2 PORT 4K ULTRA-HD HDMI SWITCH |
B119-002-UHD |
Related Products
-
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches
-
Category: HDMI Cables -
Category: HDMI Cables
-
Category: HDMI Cables -
Category: HDMI Cables
-
Category: AV Extenders -
Category: AV Extenders -
Category: AV Extenders -
Category: AV Extenders
Description
The B119-002-UHD 2-Port HDMI Switch allows you to connect two HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player and video game system or a computer and cable/satellite DVR to one HDMI port on a monitor, projector or TV. Or you can connect two computers or media centers to a display for exhibiting digital signage or giving presentations.

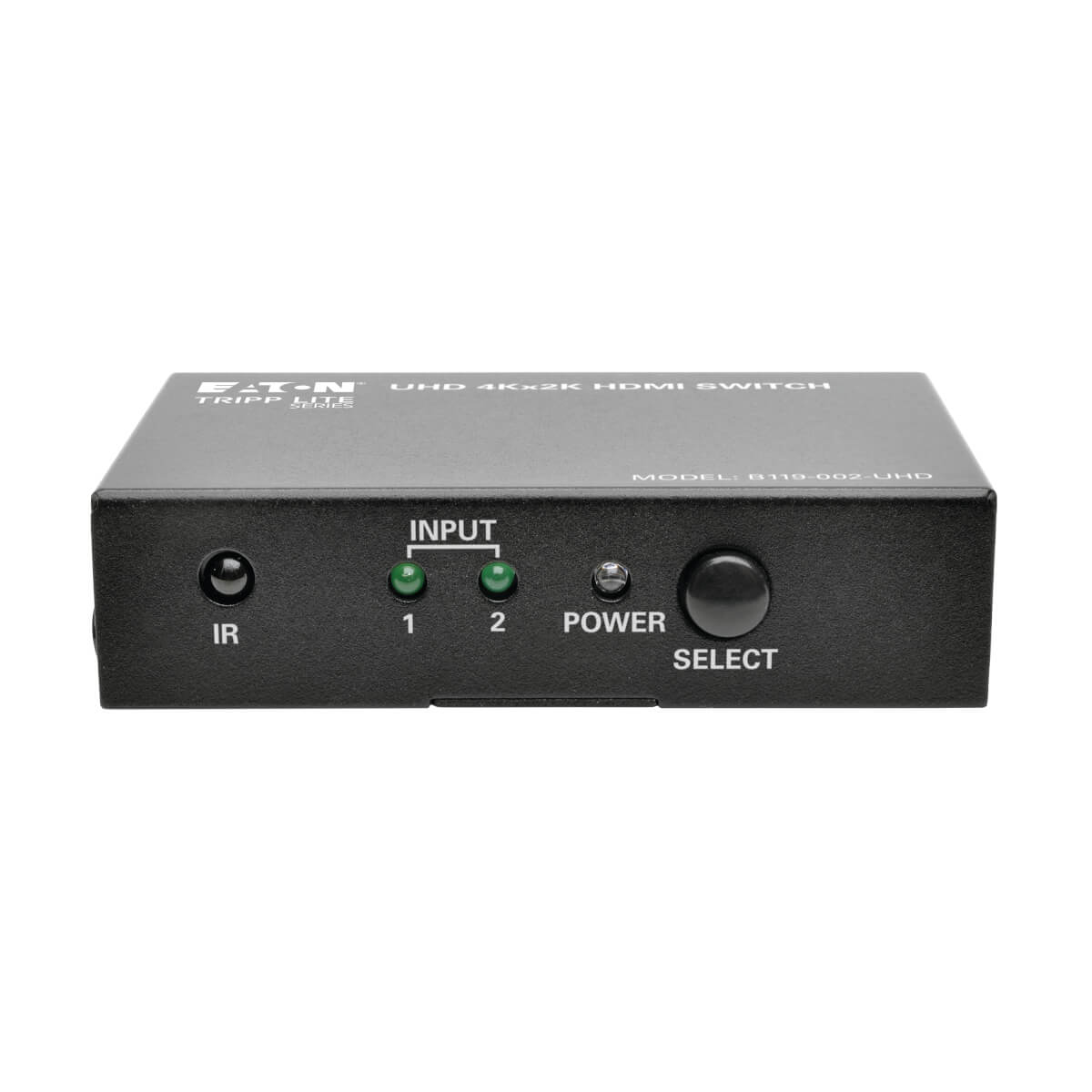

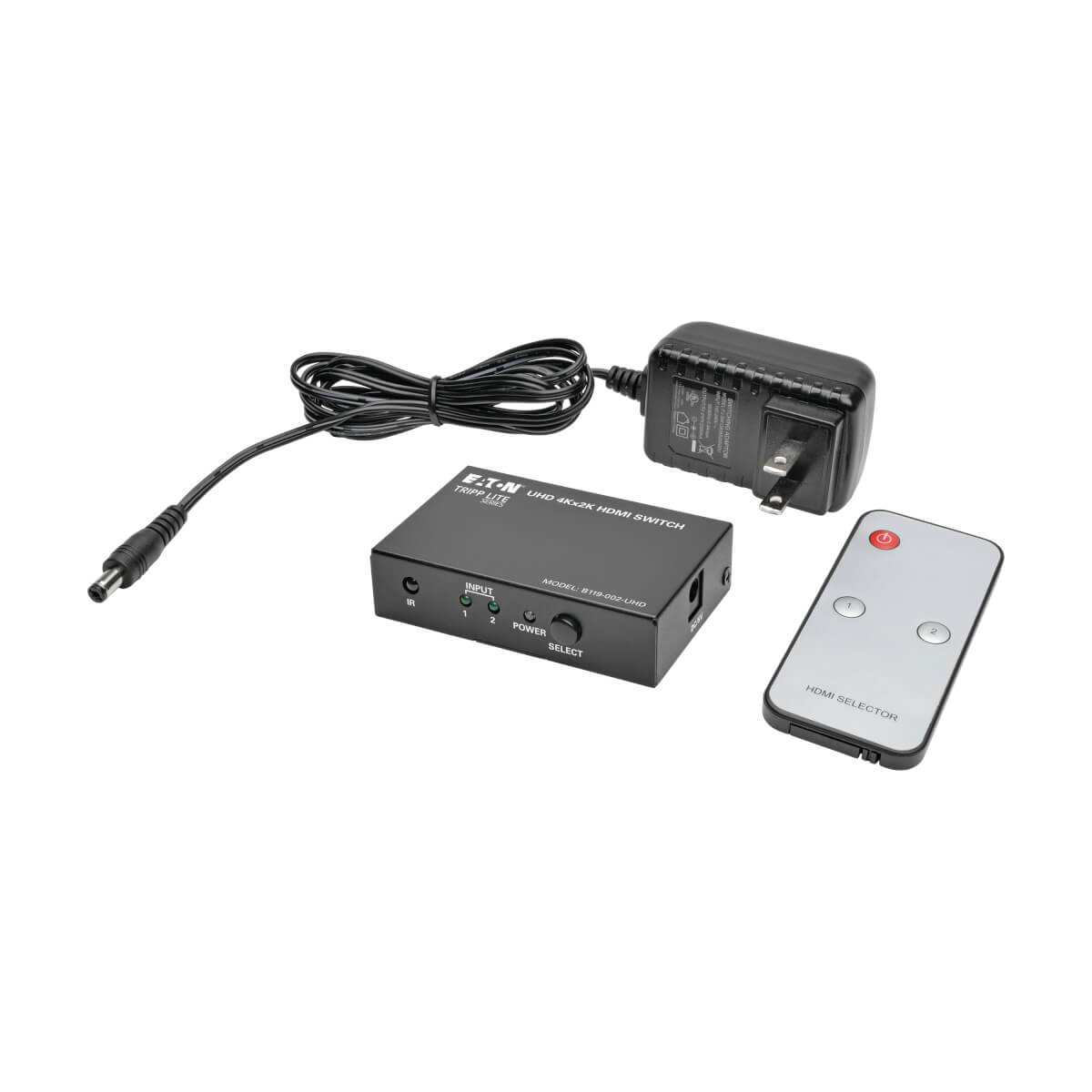

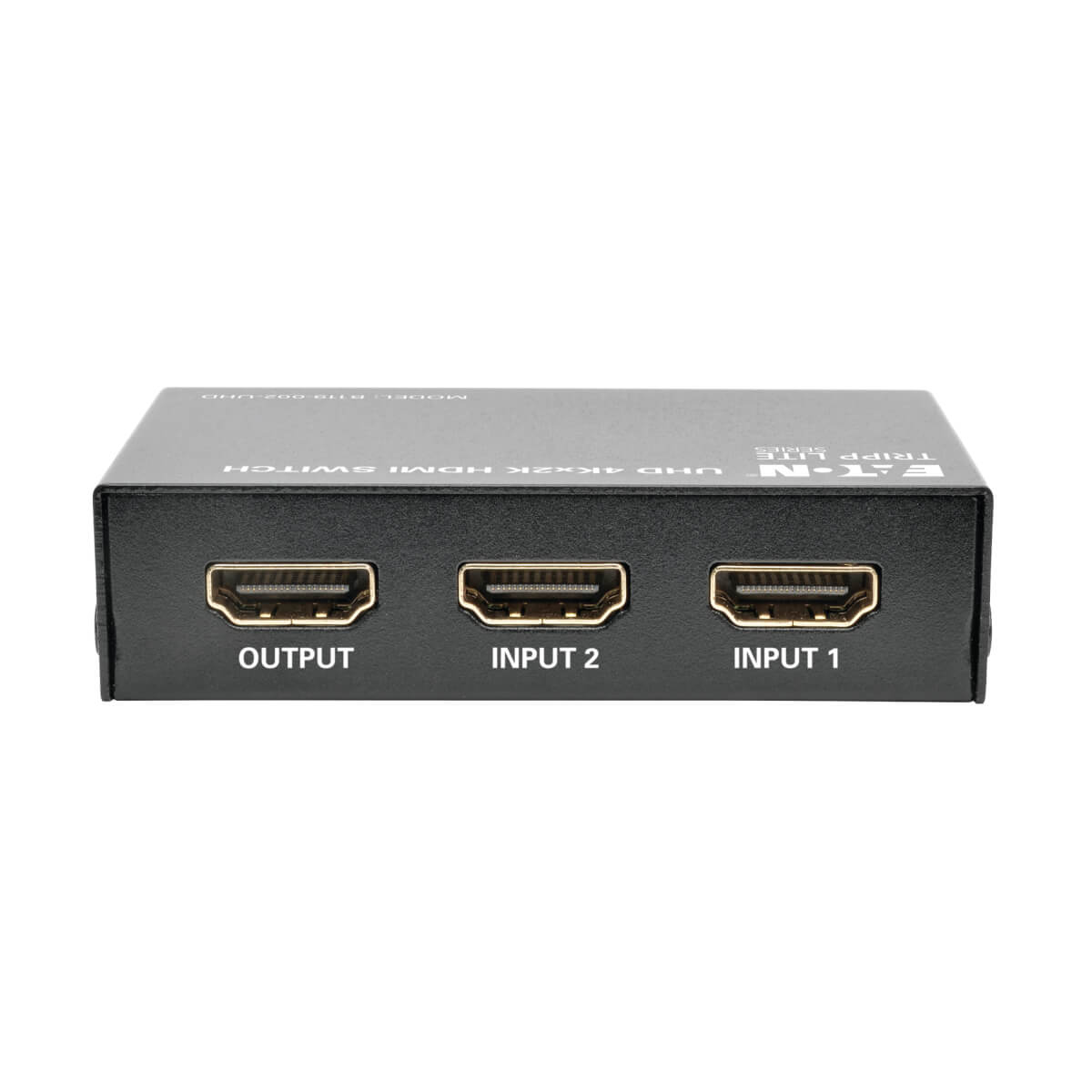

Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit’s Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.
The B119-002-UHD ensures top-quality performance with video resolutions up to 4K @ 60Hz 4:4:4, as specified in HDMI 2.0. It is also capable of 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It’s compatible with 3D, HDR, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.
Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit’s Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.
The B119-002-UHD ensures top-quality performance with video resolutions up to 4K @ 60Hz 4:4:4, as specified in HDMI 2.0. It is also capable of 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It’s compatible with 3D, HDR, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Number of HDMI outputs | 1 |
| HDMI in | 2 |
| DC-in jack | Yes |
| Features | |
| Audio output channels | 7.1 channels |
| 3D | Yes |
| Dolby technologies | DTS-HD, Dolby TrueHD |
| Product colour | Black |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| LED indicators | Yes |
| HDCP | Yes |
| Country of origin | Vietnam |
| Weight & dimensions | |
| Width | 3.1" (78.7 mm) |
| Height | 0.799" (20.3 mm) |
| Depth | 2" (50.8 mm) |
| Weight | 3.88 oz (110 g) |
| Packaging data | |
| Package width | 6.69" (169.9 mm) |
| Package height | 2.36" (59.9 mm) |
| Package depth | 4.92" (125 mm) |
| Package weight | 9.17 oz (260 g) |
| Packaging content | |
| Manual | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case gross weight | 6.44 lbs (2.92 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 12.4" (315 mm) |
| Master (outer) case length | 10.4" (264.9 mm) |
| Master (outer) case height | 7.48" (190 mm) |
| Country of origin | Vietnam |
| Master (outer) case GTIN (EAN/UPC) | 10037332191332 |
