Tripp Lite B119-2X2 video switch HDMI
- Brand: Tripp Lite
- Category:
- SKU: B119-2X2
- EAN: 0037332180186 0710980175215 03 ...0175215 0373321801862more

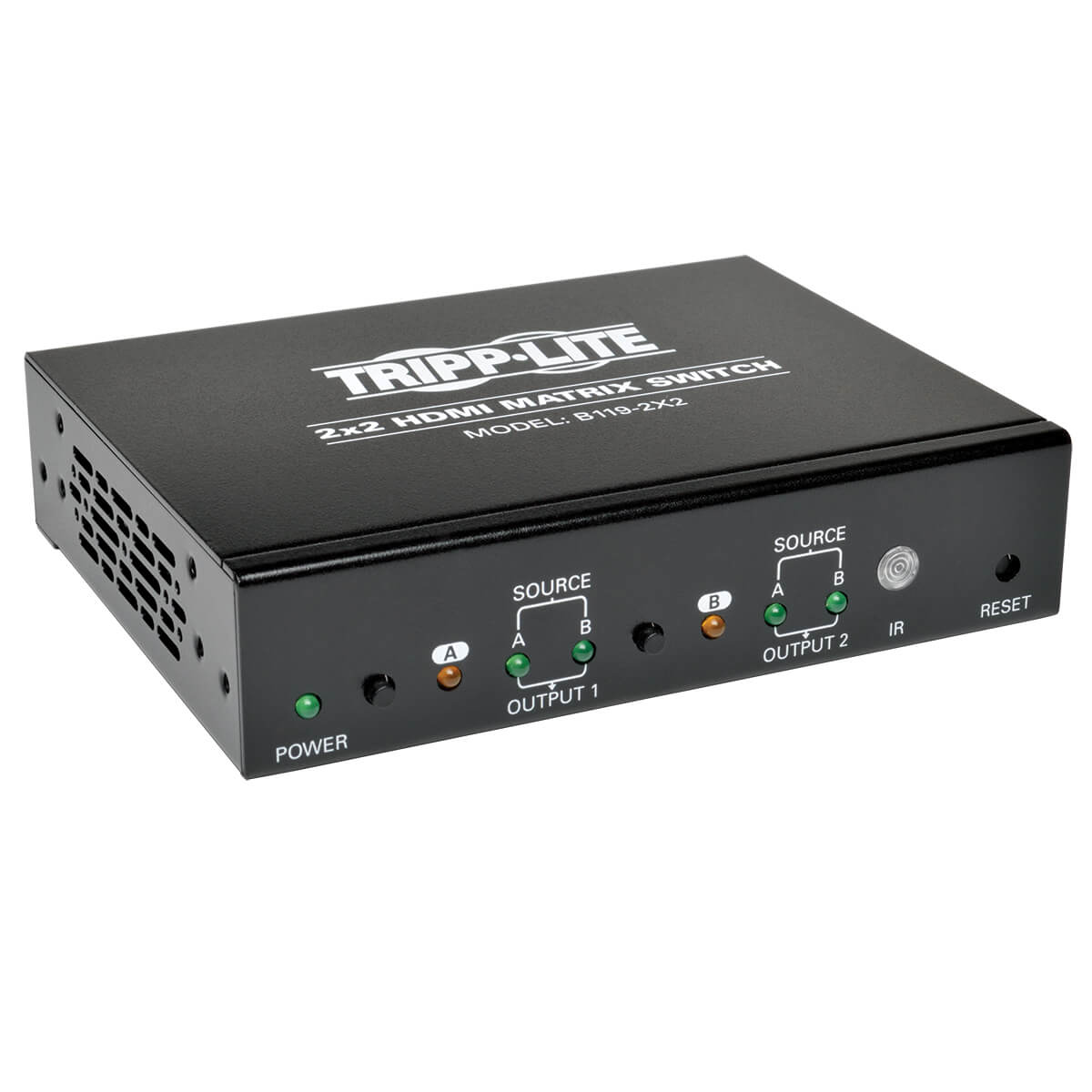

2 x 2 HDMI Matrix Switch for Video and Audio, 1920 x 1200 at 60Hz / 1080p (HDMI 2xF/2xF)
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
2X2 HDMI MATRIX SWITCH AV1920X1200 AT 60HZ/1080PB119-2X2 |
812266 |
Related Products
-
Category: Video Splitters -
Category: Video Splitters -
Category: Video Splitters
-
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches -
Category: Video Switches
-
Category: AV Extenders -
Category: AV Extenders -
Category: AV Extenders -
Category: AV Extenders -
Category: AV Extenders
Description
Tripp Lite's B119-2X2 is a 2x2 HDMI Matrix Switch that routes high definition video from any two HDMI sources to any two HDMI displays. It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz. The 2x2 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit.
● Share multiple HDMI sources between multiple monitors ( 2 Input, 2 Output )
● Allows any input to be routed to any output; or the same input to be routed to multiple outputs
● Switch between inputs via pushbuttons, remote control, or RS-232 serial
● Monitors can be located up to 7.6 m from the switch
● Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz
● HDCP and EDID compatible

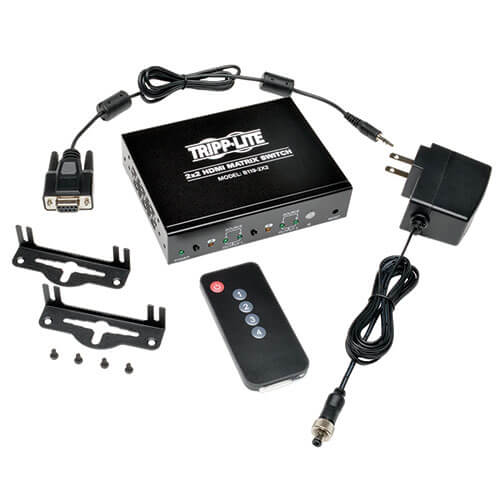

● Mounting hardware included
● Plug-and-play; No software or drivers required
● Compatible with all operating systems
System Requirements
● For international use, a power supply with the appropriate plug type must be purchased separately.
● Share multiple HDMI sources between multiple monitors ( 2 Input, 2 Output )
● Allows any input to be routed to any output; or the same input to be routed to multiple outputs
● Switch between inputs via pushbuttons, remote control, or RS-232 serial
● Monitors can be located up to 7.6 m from the switch
● Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz
● HDCP and EDID compatible
● Mounting hardware included
● Plug-and-play; No software or drivers required
● Compatible with all operating systems
System Requirements
● For international use, a power supply with the appropriate plug type must be purchased separately.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| RS-232 ports | 1 |
| HDMI ports quantity | 4 |
| Number of HDMI outputs | 2 |
| HDMI in | 2 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Plug and Play | Yes |
| Maximum operating distance | 300" (7.62 m) |
| HDCP | Yes |
| Full HD | Yes |
| Country of origin | Taiwan |
| Power | |
| Power requirements | 100-240V, 50/60Hz |
| Certificates | |
| Certification | TAA |
| Weight & dimensions | |
| Width | 5" (127 mm) |
| Height | 1.2" (30.5 mm) |
| Depth | 3.9" (99.1 mm) |
| Weight | 12.7 oz (360 g) |
| Dimensions (WxDxH) | 9.2 x 3.9 x 1.2" (233.7 x 99.1 x 30.5 mm) |
| Packaging data | |
| Package width | 10.2" (259.1 mm) |
| Package height | 2.2" (55.9 mm) |
| Package depth | 6.5" (165.1 mm) |
| Package weight | 24 oz (680 g) |
| Packaging content | |
| Manual | Yes |
| Remote control included | Yes |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case gross weight | 31.7 lbs (14.4 kg) |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 23.2" (589.3 mm) |
| Master (outer) case length | 13.7" (348 mm) |
| Master (outer) case height | 11.7" (297.2 mm) |
| Country of origin | Taiwan |
| Master (outer) case GTIN (EAN/UPC) | 10037332180183 |
| Quantity per pack | 1 pc(s) |
