Tripp Lite BP288VEBP UPS battery cabinet Tower

Tripp Lite BP288VEBP UPS battery cabinet Tower

+/-144VDC External Battery Pack for 208V SUT-Series UPS

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter +/-144VDC EXTERNAL BATTERYPACK FOR TRIPP LITE 208VSUT-SERIES UPS 9810285 Register free see stock

Description

+/-144VDC External Battery Pack Gives Your Compatible UPS System Extended Runtime
The BP288VEBP is compatible only with Tripp Lite’s 3-phase 208V SUT20K, SUT30K, SUT40K, SUT60K and other UPS systems that specify the use of this battery pack. Not only does it provide extended runtime, but it can also be daisy-chained to additional external battery packs for even longer extended-run operation. The three-pole input/output terminal blocks allow safe, simple hardwire installation, as well as internal disconnect for battery isolation.

Rugged Steel Construction Designed to Last in Busy IT Applications

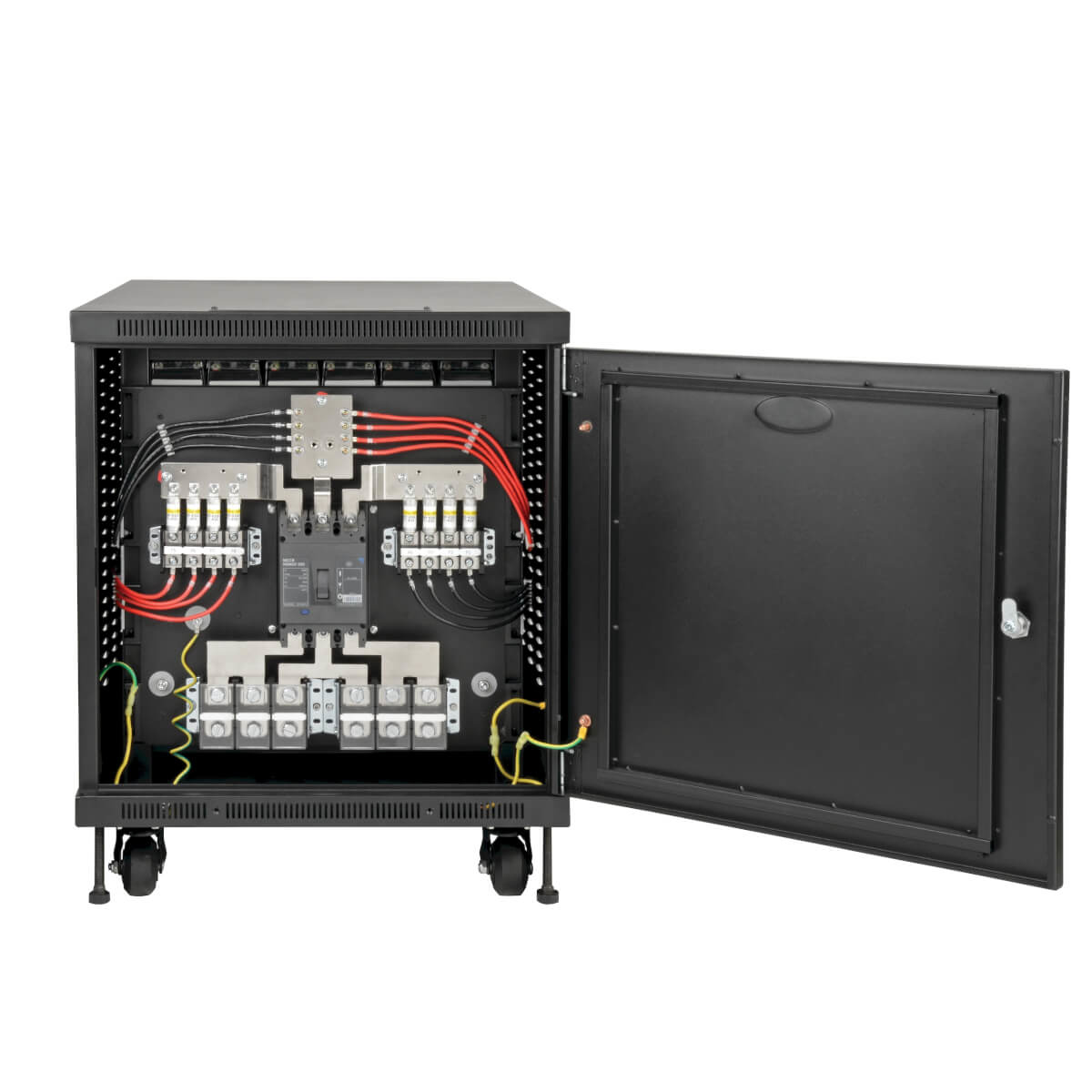

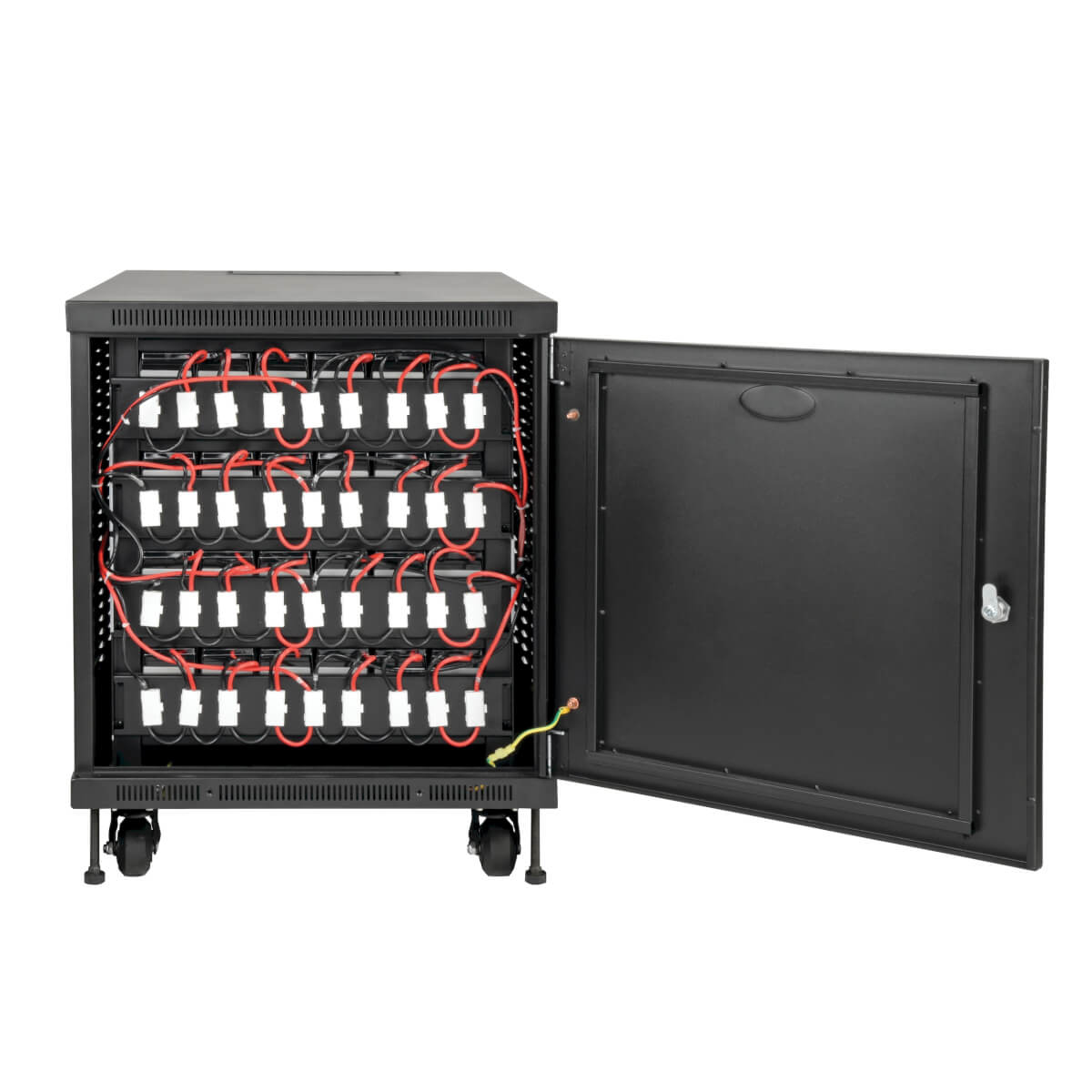

The steel cabinet features front and rear doors that provide easy access to the recyclable internal batteries and input/output terminal blocks. A 250A circuit breaker protects your equipment from dangerous overcurrent or overloads, while 63A fuses guard each battery string. Pre-installed rolling casters allow you to move the cabinet smoothly to its intended destination. Use the adjustable levelers for secure deployment on a stable surface.

One-Year Warranty
The BP288VEBP is backed by a one-year warranty, ensuring reliability and performance.

Specifications

Design
Form factorTower
Product colourBlack
Housing materialSteel
Castor wheelsYes
Number of wheels4 wheel(s)
Weight & dimensions
Width30.1" (764 mm)
Depth33.6" (852.9 mm)
Height23.5" (596.9 mm)
Weight771.6 lbs (350 kg)
Package width26.8" (680 mm)
Package depth37.4" (950 mm)
Package height30.1" (765 mm)
Package weight871 lbs (395.1 kg)
Packaging content
Quantity1
ManualYes
Technical details
Compliance certificatesRoHS
Logistics data
Country of originChina
Master (outer) case width26.8" (680 mm)
Master (outer) case length37.4" (950 mm)
Master (outer) case height30.1" (765 mm)
Master (outer) case gross weight871 lbs (395.1 kg)
Products per master (outer) case1 pc(s)
