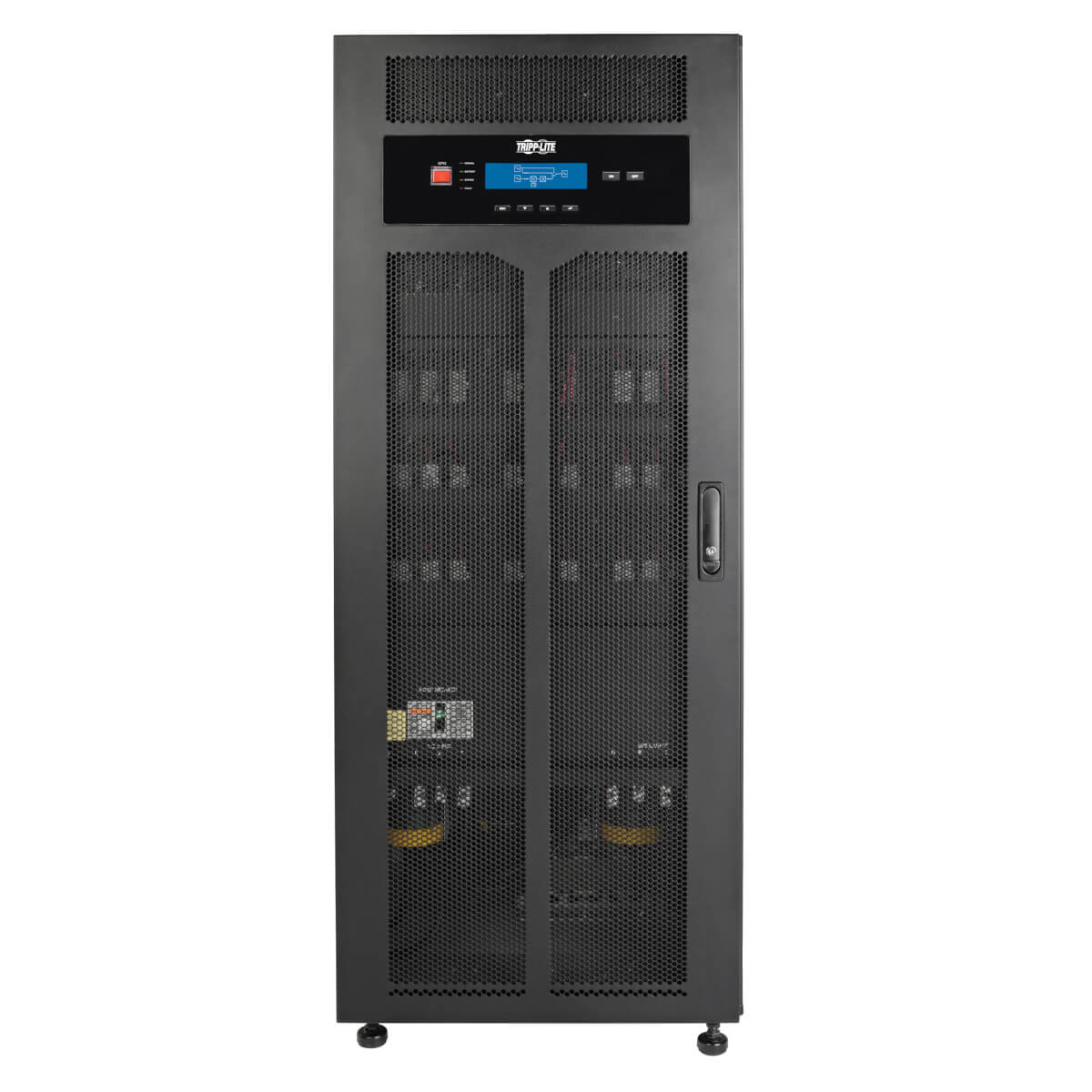

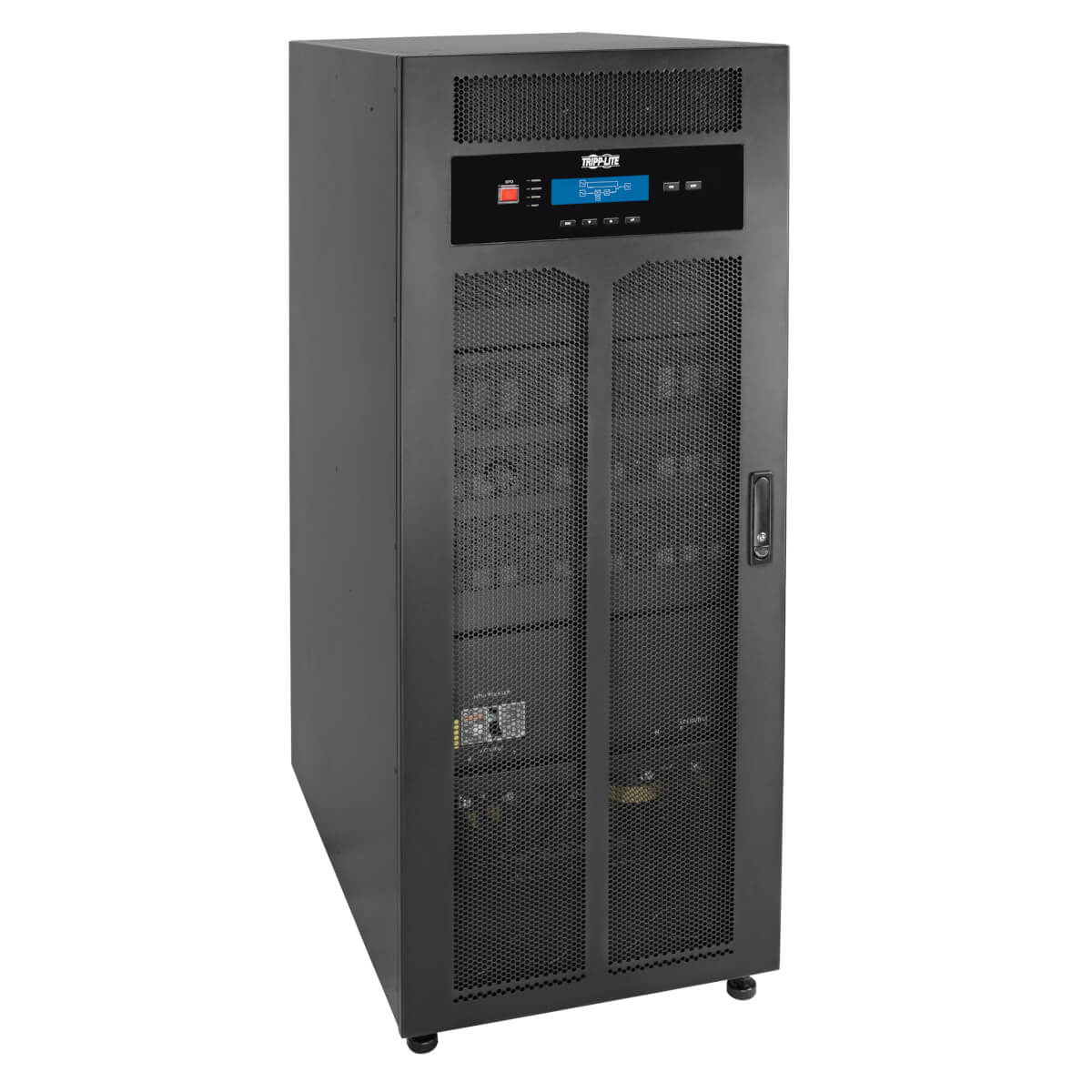

Tripp Lite SUT20K uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

Tripp Lite SUT20K uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

3-Phase, 208/120V, 220/127V, 20kVA, 20kW, On-Line Double-Conversion UPS, Tower, Extended Run, SNMP Option

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SMARTONLINE SUT SERIES3-PHASE 208/120V 220/127V20KVA 20KW ON-LINE 9810690 Register free see stock

Related Products

Description

The SUT20K SmartOnline® SUT Series 3-Phase 208/120V 220/127V 20kVA 20kW On-Line Double-Conversion UPS provides complete protection against power interruptions and fluctuations that can contribute to equipment failures and data loss. It’s recommended for critical data center, telecommunications, computer network, light industrial and financial applications.

The Voltage and Frequency Independent (VFI) design allows continuous operation at either 50 or 60 Hz. Zero transfer time from online to battery mode ensures no disruption to attached equipment loads. Offering an efficiency of 94% during normal operation and 98% in economy mode, the SUT20K reduces energy losses for cost-saving operation. Automatic bypass keeps connected equipment powered, even during overloads and many potential UPS fault conditions.

IGBT inverter technology produces output power with less than 2% total harmonic distortion (THDi) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

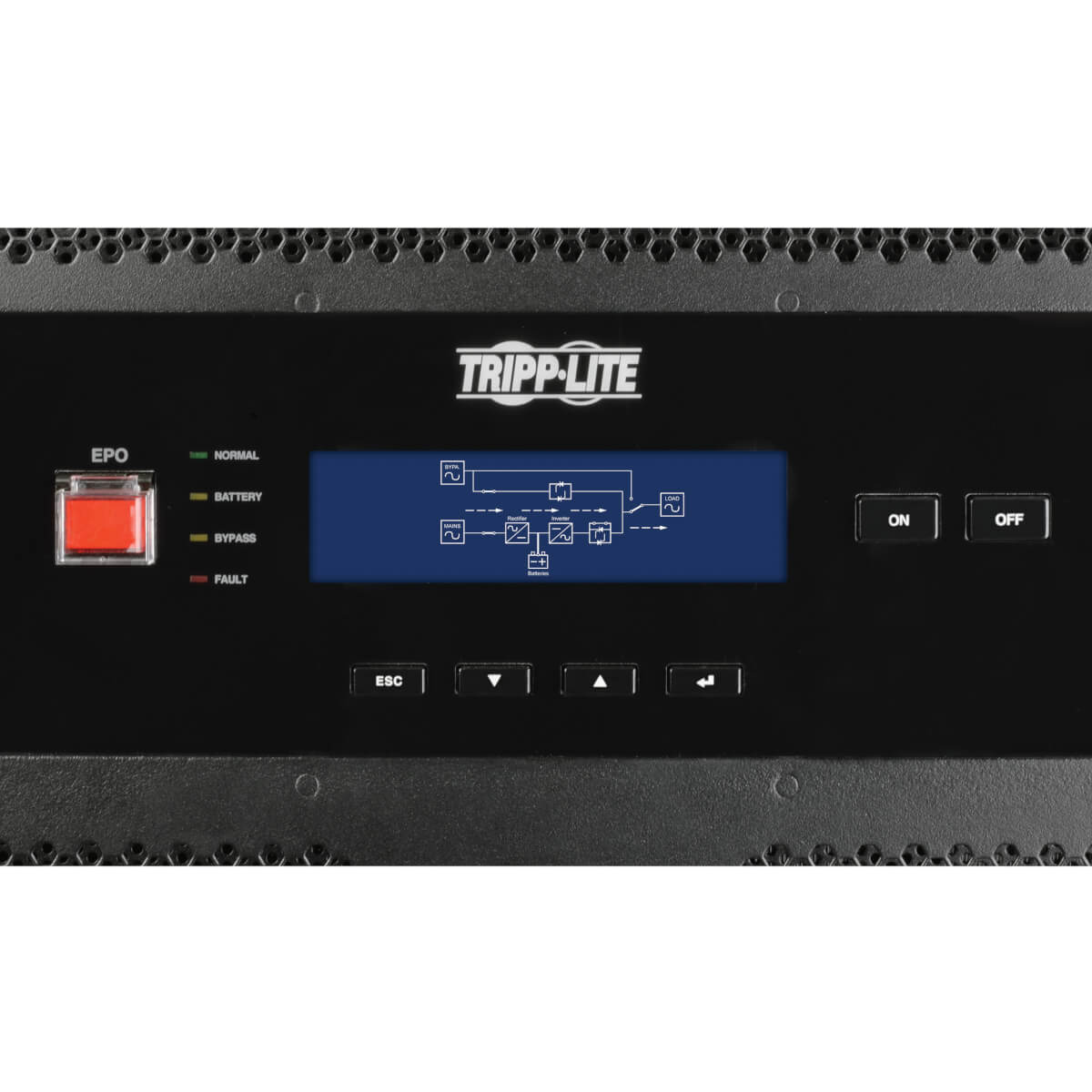

Managing the SUT20K is simplified through the multi-language LCD interface, which displays critical operating conditions and diagnostic data, such as battery and load status. Four LEDs indicate AC, bypass, battery and fault modes. A built-in card slot supports optional remote management cards, such as WEBCARDLX, for comprehensive monitoring and control over a network.

Specifications

Power
Output power factor1
Input power factor0.99
Output power20000 W
Input operation voltage (min)120 V
Input operation voltage (max)220 V
Output operation voltage (min)120 V
Output operation voltage (max)220 V
Surge energy rating9220 J
Maximum current67.5 A
Efficiency98%
Crest factor3:1
Output power capacity20 kVA
Input frequency50/60 Hz
Battery
Battery typeBP288VEBP
Battery recharge time3.2 h
Typical backup time at half load15.4 min
Typical backup time at full load5.2 min
Cold startYes
Performance
Audible alarm modesLow battery alarm, Overload alarm
UPS topologyDouble-conversion (Online)
Number of output phases3
Number of input phases3
LED indicatorsYes
EMI/RFI noise filteringYes
Noise level70 dB
Audible alarm(s)Yes
Features
Country of originChina
Audible alarm modesLow battery alarm, Overload alarm
UPS topologyDouble-conversion (Online)
Number of output phases3
Number of input phases3
Output power factor1
Input power factor0.99
Output power20000 W
Input operation voltage (min)120 V
Input operation voltage (max)220 V
Output operation voltage (min)120 V
Output operation voltage (max)220 V
Surge energy rating9220 J
Maximum current67.5 A
Efficiency98%
EMI/RFI noise filteringYes
Noise level70 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity20 kVA
Input frequency50/60 Hz

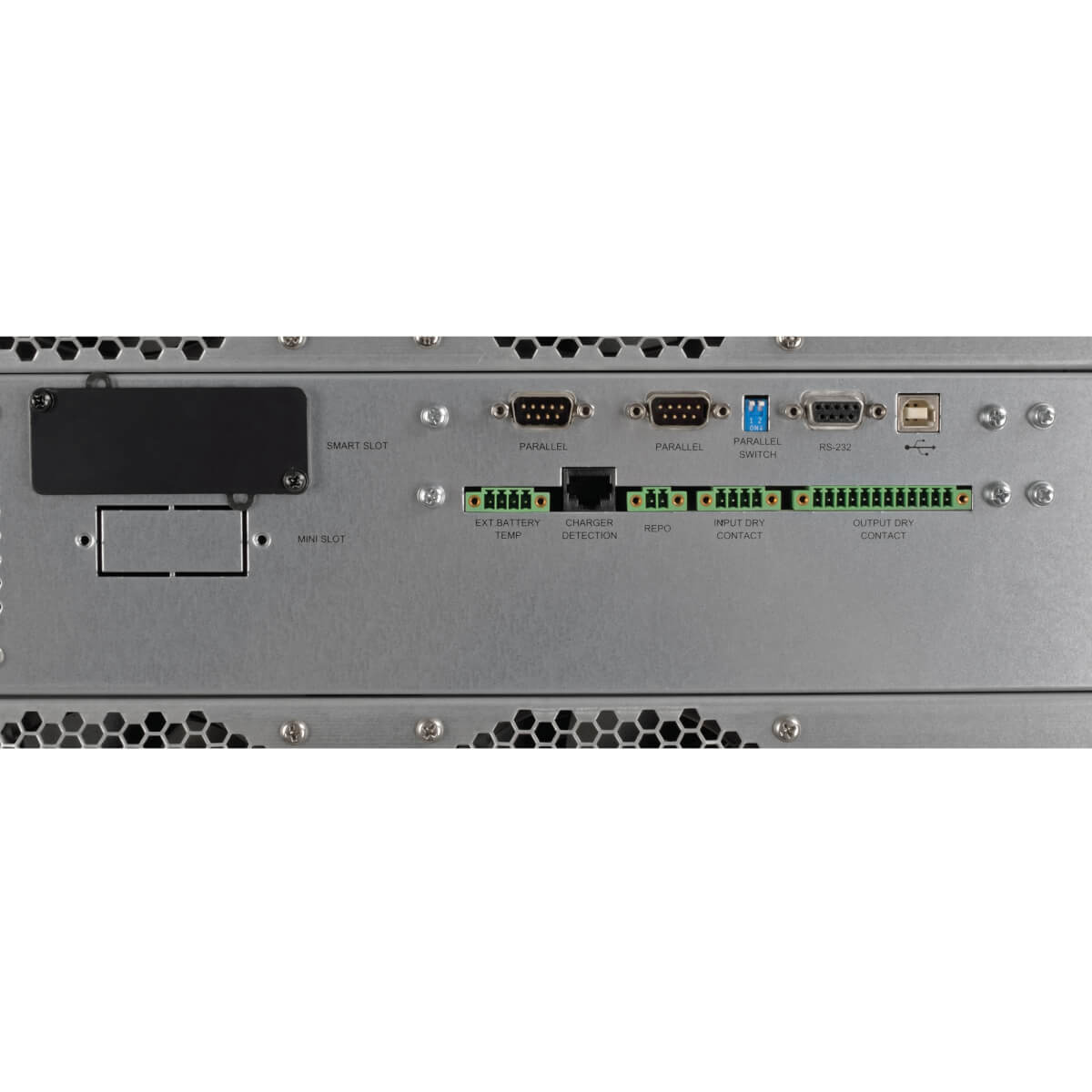

Ports & interfaces
Serial interfaceYes
Serial interface typeRS-232
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 40 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Weight & dimensions
Package width28" (711.2 mm)
Package depth39" (990.6 mm)
Package height61.8" (1569.7 mm)
Weight781.1 lbs (354.3 kg)
Width20.5" (520.7 mm)
Package weight865.1 lbs (392.4 kg)
Height53.1" (1350 mm)
Depth31.5" (800.1 mm)
Packaging data
Cables includedSerial
Package width28" (711.2 mm)
Package depth39" (990.6 mm)
Package height61.8" (1569.7 mm)
Package weight865.1 lbs (392.4 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width28" (711.2 mm)
Master (outer) case length39" (990.6 mm)
Master (outer) case height61.8" (1569.7 mm)
Master (outer) case gross weight865.1 lbs (392.4 kg)
Certificates
CertificationIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5
Other features
Battery typeBP288VEBP
Packaging content
Cables includedSerial
