Tripp Lite BP72V28RT-3U UPS battery 72 V
- Brand: Tripp Lite
- Category:
- SKU: BP72V28RT3U
- EAN: 0037332126641 5052182406229 03 ...2406229 0373321266418more

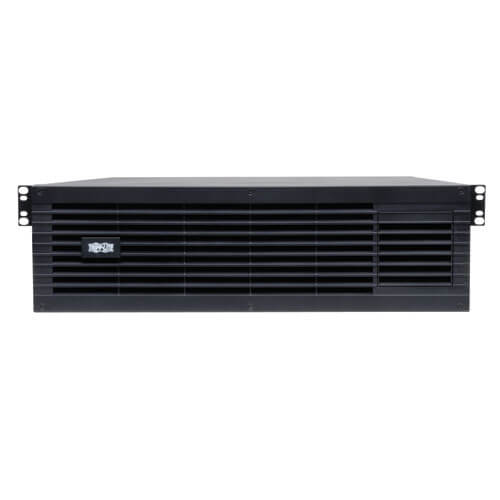

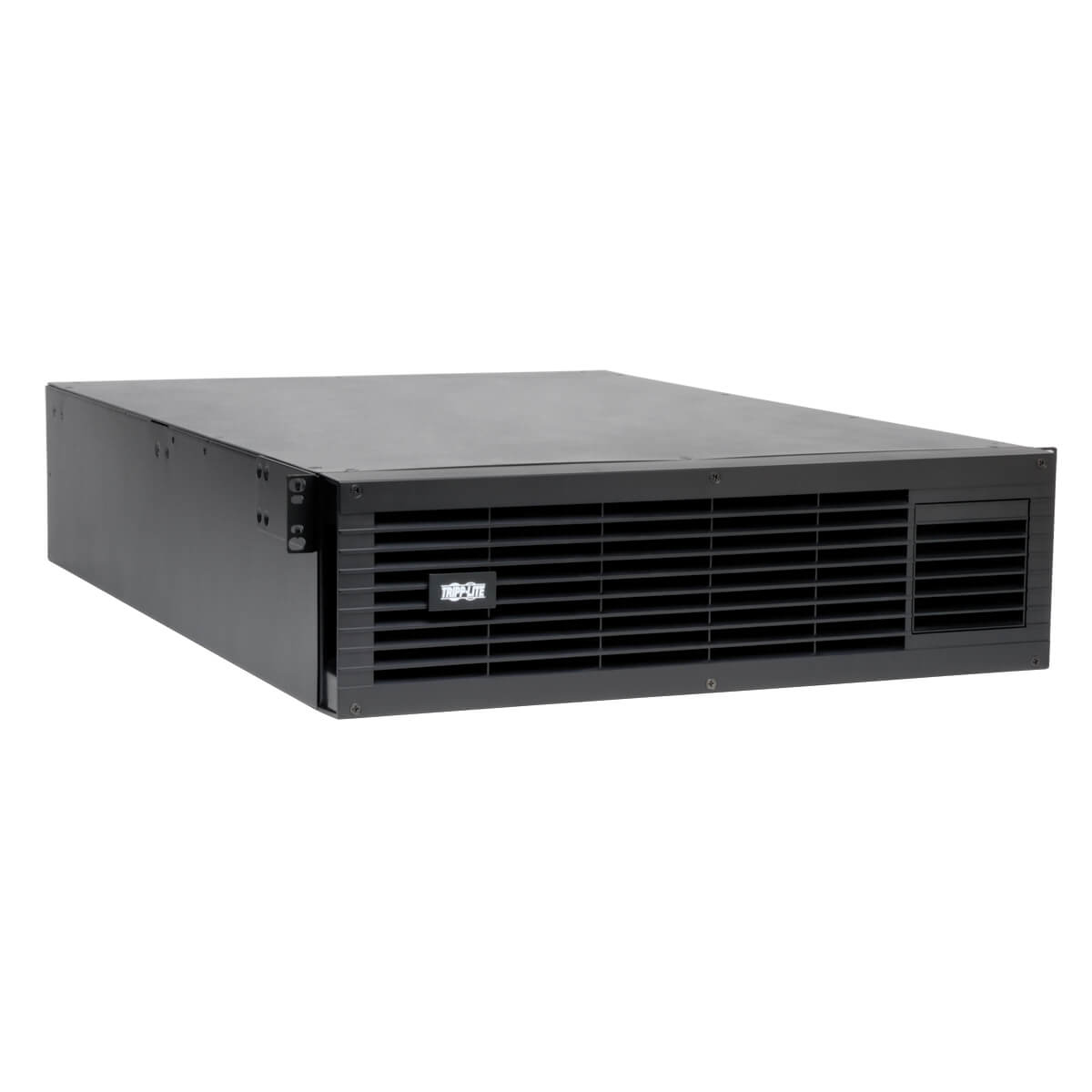

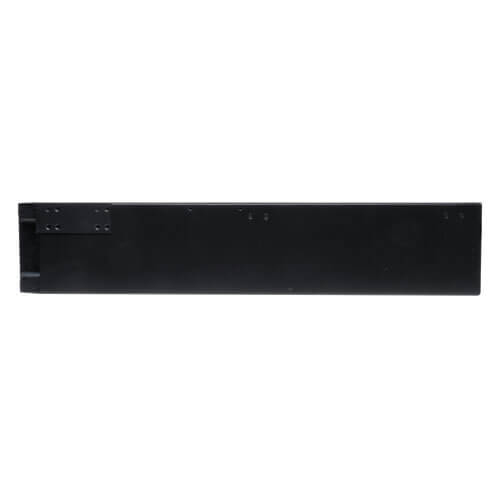

External 72V 3U Rack/Tower Battery Pack for Select UPS systems (BP72V28RT-3U)
Offer details
Description
BP72V28RT-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 72V rack-mount and tower UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 72V external battery packs to the host UPS. Included mounting accessories support 3U rack-mount installation in 4-post racks. Options for 2-post center-mounting and upright tower installation available.
Compatible with these UPS Systems - SU3000RTXL2U, SU3000RTXL3U, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U and other UPS systems that specify the use of this battery pack.
Offers extended-run UPS operation when used in conjunction with compatible 72V DC UPS systems

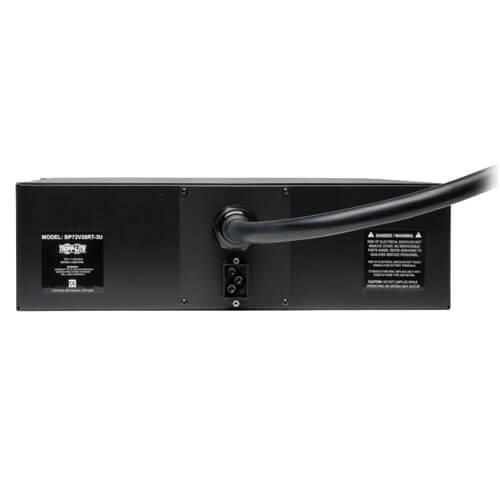

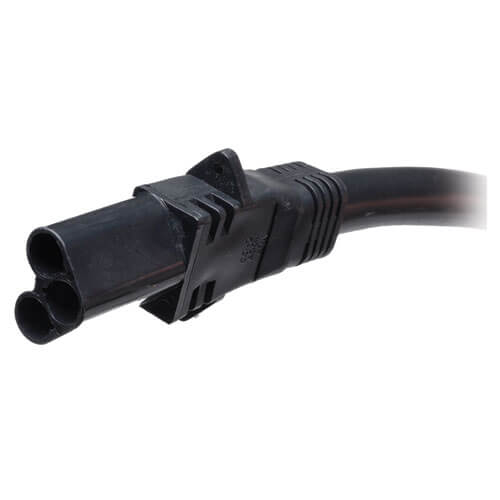

Includes heavy-gauge cabling with high-current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS

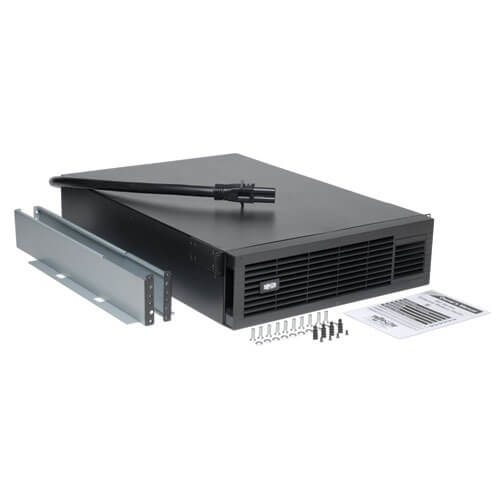

Included mounting brackets support rack-mount installation in 4-post racks using only 3 rack spaces (3U)
2POSTRMKITHD option supports balanced two-point center-mounting in 2-post equipment racks
2-9USTAND option enables upright tower placement
Compatible with these UPS Systems - SU3000RTXL2U, SU3000RTXL3U, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U and other UPS systems that specify the use of this battery pack.
Offers extended-run UPS operation when used in conjunction with compatible 72V DC UPS systems
Includes heavy-gauge cabling with high-current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 72V external battery packs to the host UPS
Included mounting brackets support rack-mount installation in 4-post racks using only 3 rack spaces (3U)
2POSTRMKITHD option supports balanced two-point center-mounting in 2-post equipment racks
2-9USTAND option enables upright tower placement
Specifications
Features | |
---|---|
Battery voltage | 72 V |
Battery life | 6 year(s) |
Product colour | Black |
Compatibility | Tripp Lite SMART3000RMOD2U, SU3000RTXL2U, SU3000RTXL3U, SU3000RTXL3UHV, SU3000RTXLCD2U, SU3000RTXLCD3U, SU3000RTXR3U, SU3000RTXR3UHW, SU3000XL, SU3000XLCD, SUINT3000RTXL2U, SUINT3000RTXL3U |
Country of origin | Taiwan |
Technical details | |
Master (outer) case GTIN (EAN/UPC) | 00037332126641 |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 182.1 lbs (82.6 kg) |
Width | 17.5" (444.5 mm) |
Height | 5.25" (133.3 mm) |
Depth | 24.5" (622.3 mm) |
Packaging data | |
Package width | 23" (584.2 mm) |
Package height | 11" (279.4 mm) |
Package depth | 33" (838.2 mm) |
Package weight | 185 lbs (83.9 kg) |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Logistics data | |
Master (outer) case width | 23" (584.2 mm) |
Master (outer) case length | 33" (838.2 mm) |
Master (outer) case height | 11" (279.4 mm) |
Master (outer) case gross weight | 185 lbs (83.9 kg) |
Products per master (outer) case | 1 pc(s) |
