Tripp Lite SU3000RTXLCD3U uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)

Tripp Lite SU3000RTXLCD3U uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)

SmartOnline 100-127V 3kVA 2.7kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 3U Rack, LCD display, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Arlington Industries

3000VA/2700W 3U 9-OUT LCD ON-LINE UPS

 TRPSU3000RTXLCD3U Register free see stock

Related Products

Description

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Battery independent restart. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
- Tripp Lite SU3000RTXLCD3U 3000VA / 3kVA / 2700W on-line, double-conversion 3U rackmount UPS
- Transformerless, IGBT technology
- Selectable 100/110/120/127V output (120V factory preset)

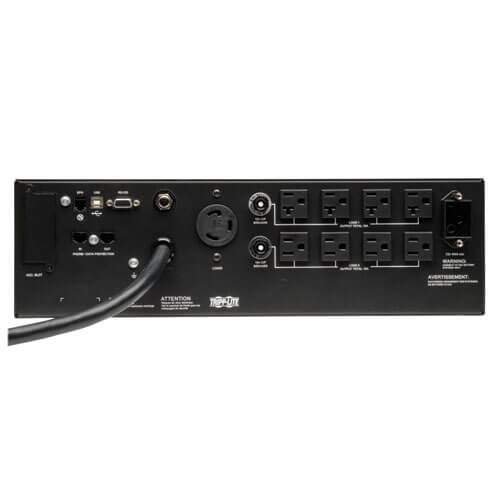

- NEMA L5-30P input, 4 NEMA 5-15/20R, 4 5-15R & 1 L5-30R outlets
- Two switched 4-outlet load banks support remote reboot or programmable load shedding options
- Supports 2% output voltage regulation and zero transfer time in double conversion mode
- Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU emissions
- 11 minutes runtime at 50% load (1350W) and 4 minutes at 100% load (2700W) with internal batteries
- BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)

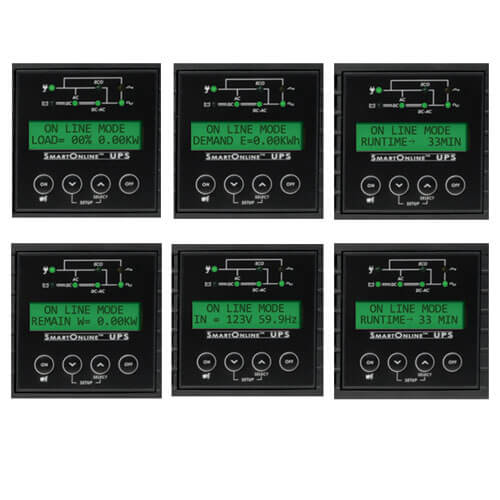

- LCD interface reports operating mode plus 9 selectable screens of UPS data (Load percentage, kW & kVA, Power factor, Input voltage & frequency, Output voltage & frequency, Battery voltage and charge percentage, Minutes runtime, Capacity remaining and Kw/hr. consumption)
- LCD interface also supports 16 screens of UPS configuration and setup options

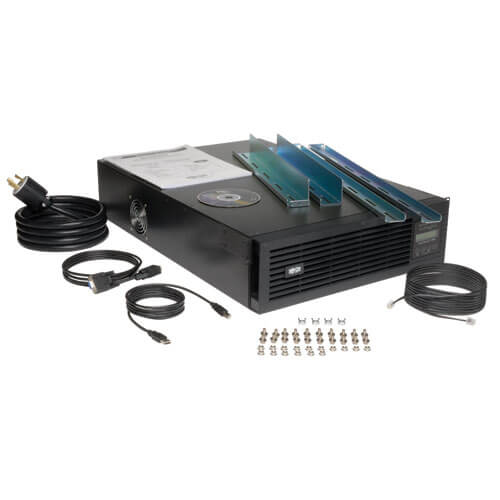

- 4 post installation hardware included, Optional 2POSTRMKITHD enables 2 post rack installation
- Single line TEL / Network surge suppression
- Electronic bypass maintains utility output during a variety of UPS fault conditions
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Frequency regulation / conversion mode offers generator-compatible frequency correction or conversion of frequency from 50 to 60Hz or 60 to 50Hz
- Built-in USB, RS-232, contact-closure and optional SNMPWEBCARD accessory monitoring options
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software

Specifications

Power
Output power2700 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Surge energy rating570 J
Maximum current24 A
Efficiency94%
Emergency Power Off (EPO)Yes
Power factor0.9
Crest factor3:1
Output power capacity3 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity9 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R, NEMA L5-30R

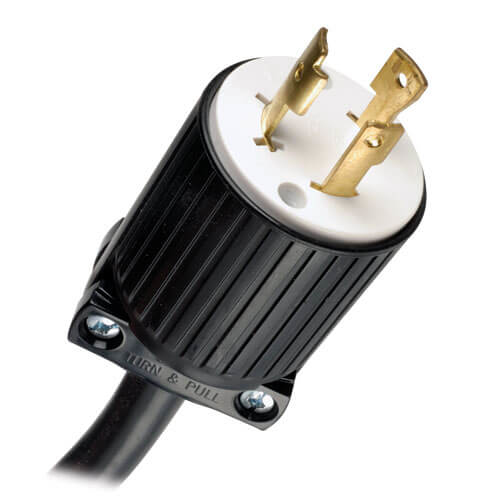

Power plugNEMA L5-30P
Performance
UPS topologyDouble-conversion (Online)
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protection featuresNetwork
Noise level50 dB
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyDouble-conversion (Online)
Output power2700 W
Input operation voltage (min)100 V
Input operation voltage (max)127 V
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Surge energy rating570 J
Maximum current24 A
Efficiency94%
EMI/RFI noise filteringYes
Surge protection featuresNetwork
Emergency Power Off (EPO)Yes
Power factor0.9
Noise level50 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity3 kVA
Input frequency50/60 Hz
Battery
Typical backup time at half load11 min
Typical backup time at full load4 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Rack capacity3U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778, CSA, FCC
Cable length118.1" (3 m)
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Certificates
CertificationUL1778, CSA, FCC
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width23" (584.2 mm)
Package depth33" (838.2 mm)
Package height12" (304.8 mm)
Weight74.1 lbs (33.6 kg)
Width17.7" (450.8 mm)
Package weight121.9 lbs (55.3 kg)
Height5.25" (133.4 mm)
Depth26" (660.4 mm)
Packaging data
Package width23" (584.2 mm)
Package depth33" (838.2 mm)
Package height12" (304.8 mm)
Package weight121.9 lbs (55.3 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width23" (584.2 mm)
Master (outer) case length33" (838.2 mm)
Master (outer) case height12" (304.8 mm)
Master (outer) case gross weight121.9 lbs (55.3 kg)
Other features
InterfaceUSB, DB9
Output connections4 x 5-15R, 4 x 5-15/20R, 1 x L5-30R
Relative humidity0 - 95%
Management platformSNMP/Web
