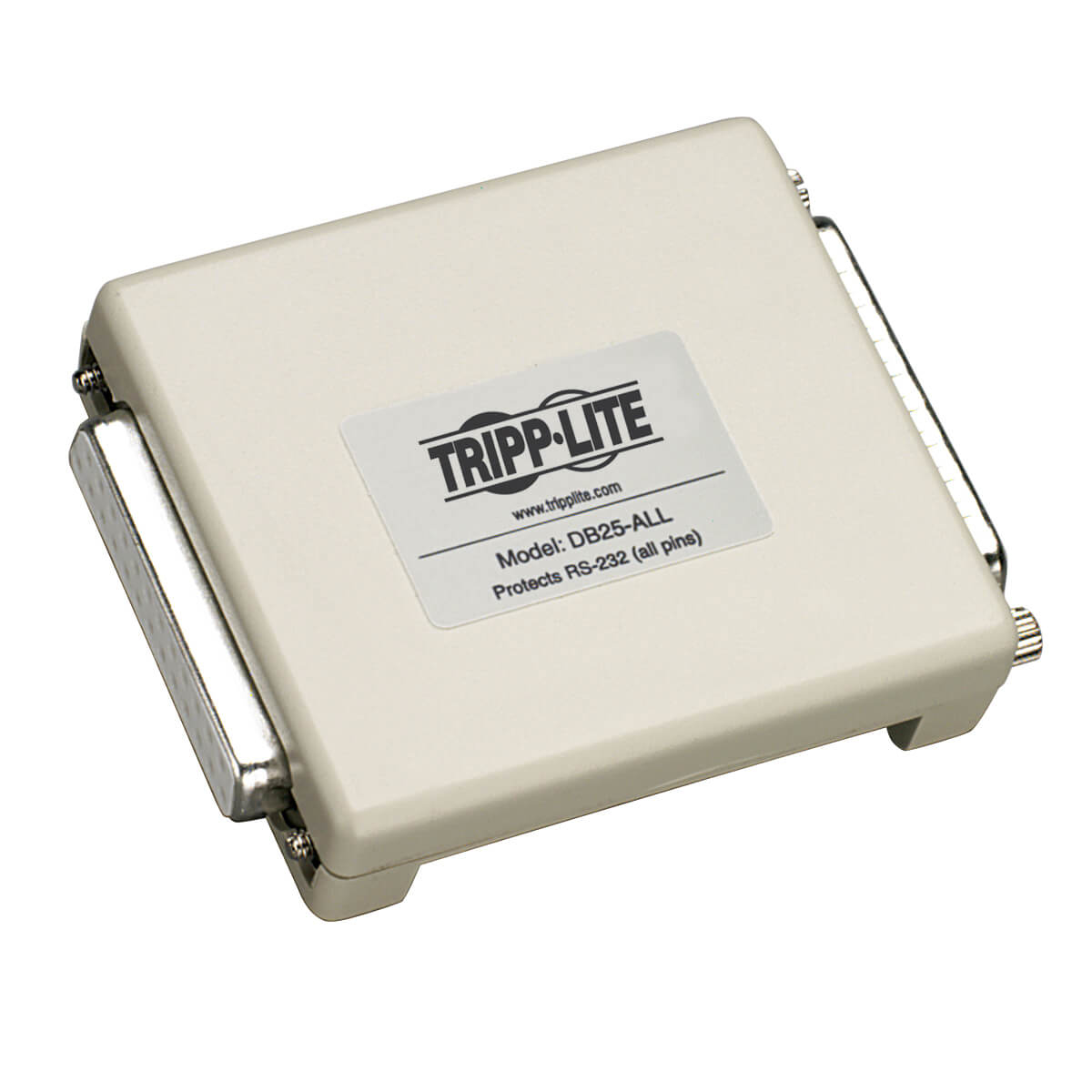

Tripp Lite DB25-ALL surge protector Beige

  • Brand: Tripp Lite
  • Category:
  • SKU: DB25-ALL
  • EAN: 0037332010858 0373320108580
DataShield Serial In-Line Surge Protector, DB25

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter NETWORK IN-LINE DATALINESURGE PROTECTOR 120V / 230V 565196 Register free see stock

Related Products

Description

DB25-ALL offers dataline surge suppression for any DB25 serial port, regardless of cable configurations. Connects and protects all 25 pins, plus D shell chassis for universal protection of any DB25 application. User-configurable for use with male or female captive DB25 port. Convenient DB25 input and output connects directly to the protected port, obtaining a ground outlet from the computer chassis. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges away from network interface connections. Network surge suppressors reduce blown interface connections, garbled transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground.

DB25 protects 25 pin serial connections for dataline surge suppression of data terminal, data communications equipment and PCs, printers, modems and more
Reversible for use with male or female captive DB25 ports
Offers protection on all 25 data lines, plus D shell chassis
Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground

Specifications

Power
Nominal current output340 A
Features
Country of originChina
On/off switchNo
Product colourBeige
Weight & dimensions
Weight2.12 oz (60 g)
Width2.25" (57.2 mm)
Depth2.78" (70.6 mm)
Height0.72" (18.3 mm)
Packaging data
Package weight2.47 oz (70 g)
Package width3" (76.2 mm)
Package depth2" (50.8 mm)
Package height5" (127 mm)
Other features
Country of originChina
Telephone line protectionNo
Network line protectionYes
Input connectionsDB25
Audio/video line protectionNo
Logistics data
Master (outer) case width19" (482.6 mm)
Master (outer) case length23" (584.2 mm)
Master (outer) case height11.5" (292.1 mm)
Products per master (outer) case12 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332010855
Master (outer) case gross weight30.7 oz (870 g)
