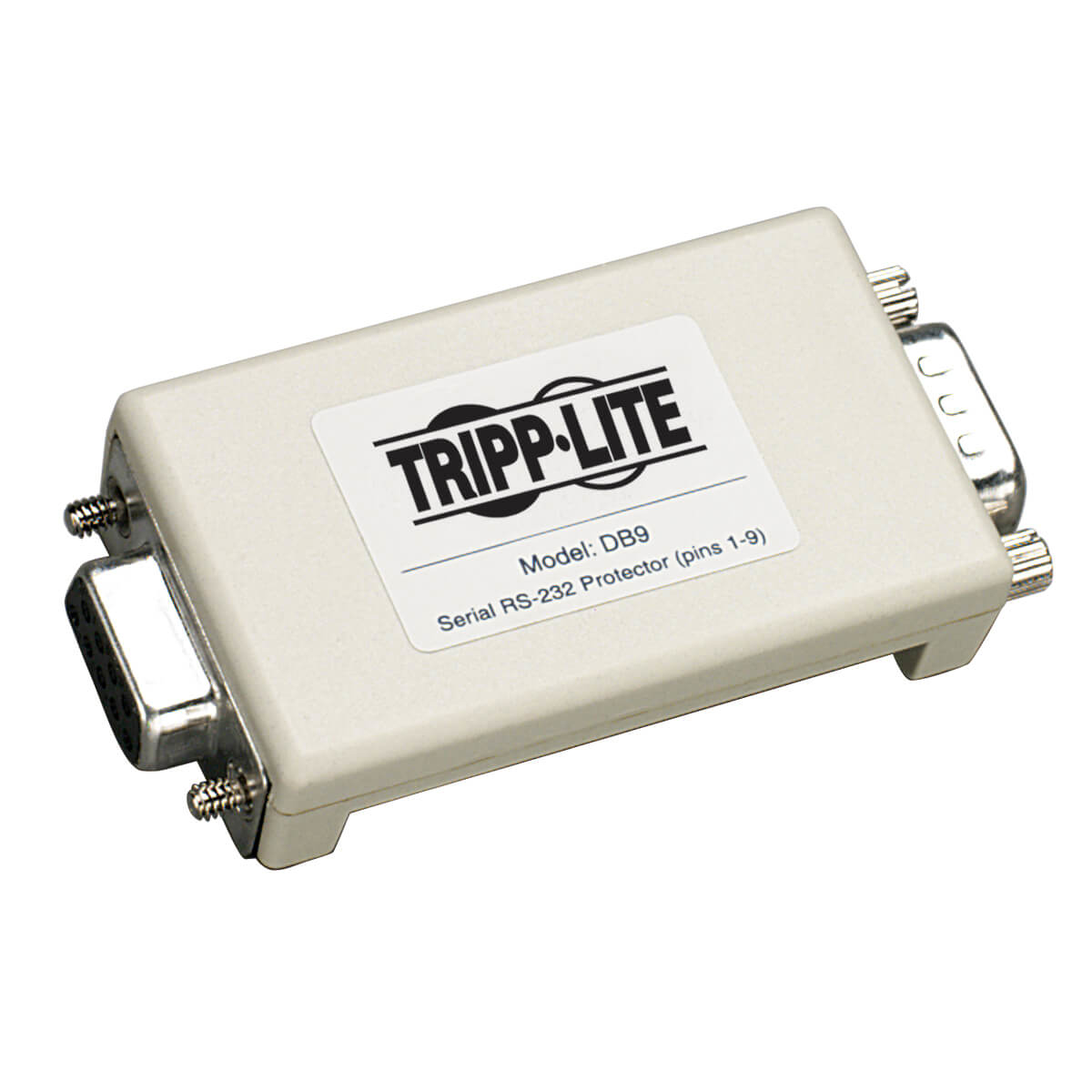

Tripp Lite DB9 surge protector Beige

DataShield Serial In-Line Surge Protector, DB9

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp TrippLite Accessory DB9 Network Surge Protector for Data & Communication RTL 113056 Register free see stock
BlueStar TRIPP LITE, NETWORK IN-LINE DATALINE SURGE PROTECTOR 120V / 230V 9-PIN DB9 DB9
Ingram Micro SERIAL IN-LINE SURGE PROTECTOR 519410
ScanSource Network In-Line Dataline Surge POW-DB9
TD Synnex DATASHIELD IN LINE SURGE PROTECTOR DB9 947401

Related Products

Description

This DB9 offers dataline surge suppression for DB9 serial ports of data terminal and data communications equipment, including PCs, printers, modems and more. User-configurable for use with male or female captive DB9 ports. Offers protection on all nine lines, plus D shell chassis. Convenient DB9 input and output connects directly to the protected port, obtaining a ground outlet from the computer chassis. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges away from network interface connections. Network surge suppressors reduce blown interface cards, garbled transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground.

Specifications

Power
Nominal current output340 A
Features
Country of originChina
On/off switchNo
Product colourBeige
Weight & dimensions
Weight2.47 oz (70 g)
Width1.38" (35.1 mm)
Depth2.85" (72.4 mm)
Height0.642" (16.3 mm)
Packaging data
Package weight2.47 oz (70 g)
Package width3" (76.2 mm)
Package depth2" (50.8 mm)
Package height5" (127 mm)
Other features
Country of originChina
Telephone line protectionNo
Network line protectionYes
Input connectionsDB9
Audio/video line protectionNo
Logistics data
Master (outer) case width19" (482.6 mm)
Master (outer) case length23" (584.2 mm)
Master (outer) case height11.5" (292.1 mm)
Products per master (outer) case12 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332010831
Master (outer) case gross weight30.7 oz (870 g)
