Tripp Lite IS1000HG surge protector White 4 AC outlet(s) 120 V 120.1" (3.05 m)
- Brand: Tripp Lite
- Category:
- SKU: IS1000HG
- EAN: 0037332116215 0373321162154
Isolator Series 120V 1000W UL60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets
Offer details
Trade Prices
Related Products
Description
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of medical electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1000HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-15P Hospital Grade; Output - 4 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 8.3A (Requires NEMA 5-15R wall receptacle)
- The IS1000HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
- Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
- Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of
- sensitive electronic equipment in patient-care areas
- Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps
- Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
- Serves as an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades
- Removes EMI/RFI noise, utility switching transients, load generated harmonics and ground loops
- Active transformer filtering offers continuous common-mode noise rejection with no wearable parts, uniquely able to reduce surges in the worst of power
- environments to harmless levels
- Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

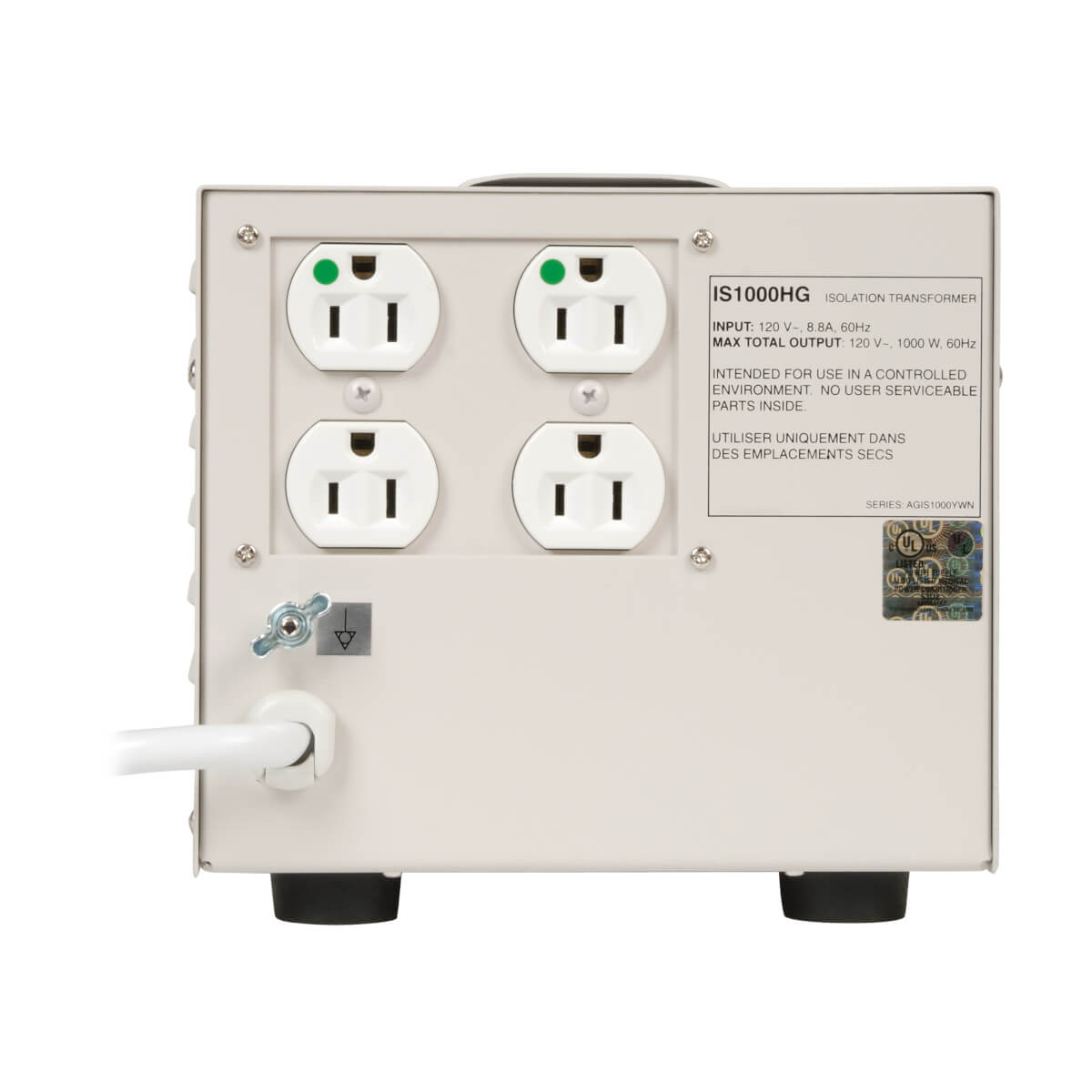

- Includes 4 widely spaced NEMA5-15R hospital grade output receptacles, a 10-ft power cord, hospital grade input plug, circuit breaker overload protection
- and lighted power switch
- Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
- The IS1000HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering
- Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
- Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of
- sensitive electronic equipment in patient-care areas
- Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps
- Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment
- Serves as an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades
- Removes EMI/RFI noise, utility switching transients, load generated harmonics and ground loops
- Active transformer filtering offers continuous common-mode noise rejection with no wearable parts, uniquely able to reduce surges in the worst of power
- environments to harmless levels
- Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode
- Includes 4 widely spaced NEMA5-15R hospital grade output receptacles, a 10-ft power cord, hospital grade input plug, circuit breaker overload protection
- and lighted power switch
- Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment
Specifications
Power | |
---|---|
AC outlets quantity | 4 AC outlet(s) |
AC outlet types | NEMA 5–15R |
Nominal input voltage | 120 V |
Nominal current output | 8.8 A |
AC input frequency | 60 Hz |
Ports & interfaces | |
Cable length | 120.1" (3.05 m) |
Power plug | NEMA 6–15P |
Features | |
Country of origin | Taiwan |
EMI/RFI noise filtering | 65 dB |
On/off switch | Yes |
Product colour | White |
Technical details | |
Capacity | 1000 W |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 36.8 lbs (16.7 kg) |
Cable length | 120.1" (3.05 m) |
Width | 7.25" (184.2 mm) |
Depth | 10.5" (266.7 mm) |
Height | 7.25" (184.2 mm) |
Certificates | |
Certification | TAA, UL60601-1 |
Packaging data | |
Package weight | 37.7 lbs (17.1 kg) |
Package width | 10.7" (271.8 mm) |
Package depth | 12.8" (325.1 mm) |
Package height | 10.4" (264.2 mm) |
Packaging content | |
Number of products included | 1 pc(s) |
Other features | |
Country of origin | Taiwan |
Logistics data | |
Master (outer) case width | 14.2" (360.7 mm) |
Master (outer) case length | 22.8" (579.1 mm) |
Master (outer) case height | 11.7" (297.2 mm) |
Products per master (outer) case | 2 pc(s) |
Master (outer) case GTIN (EAN/UPC) | 10037332116212 |
Master (outer) case gross weight | 76.9 lbs (34.9 kg) |
