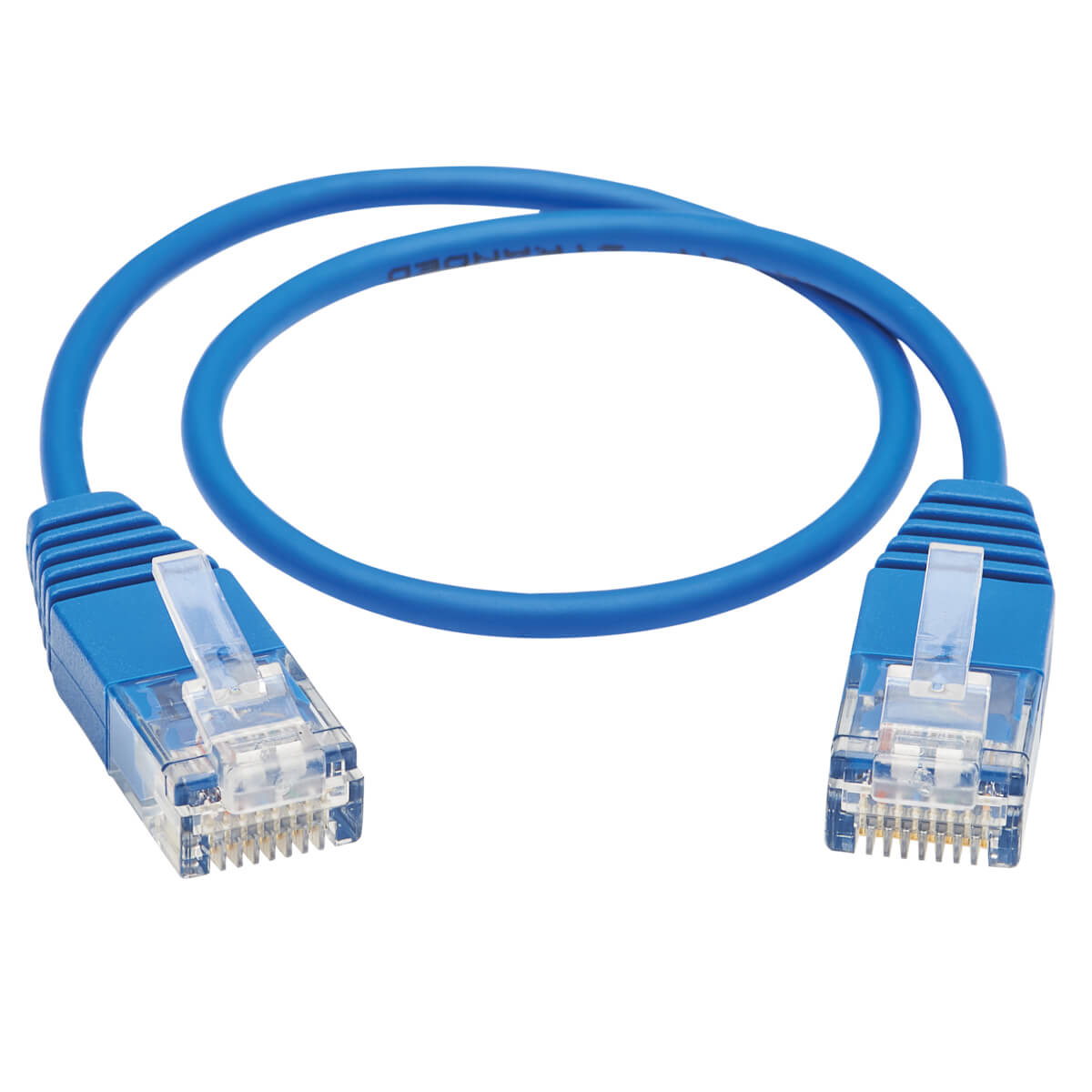

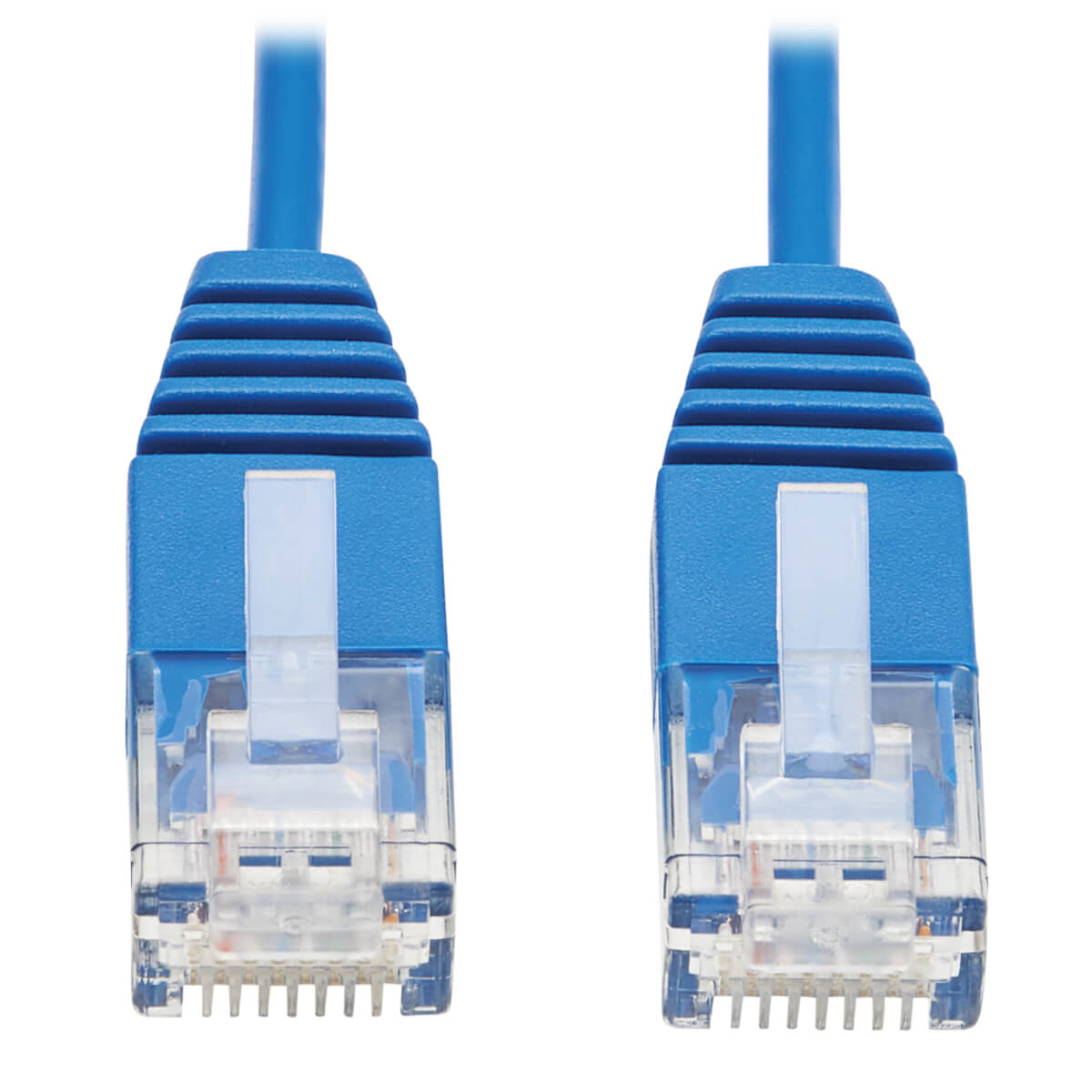

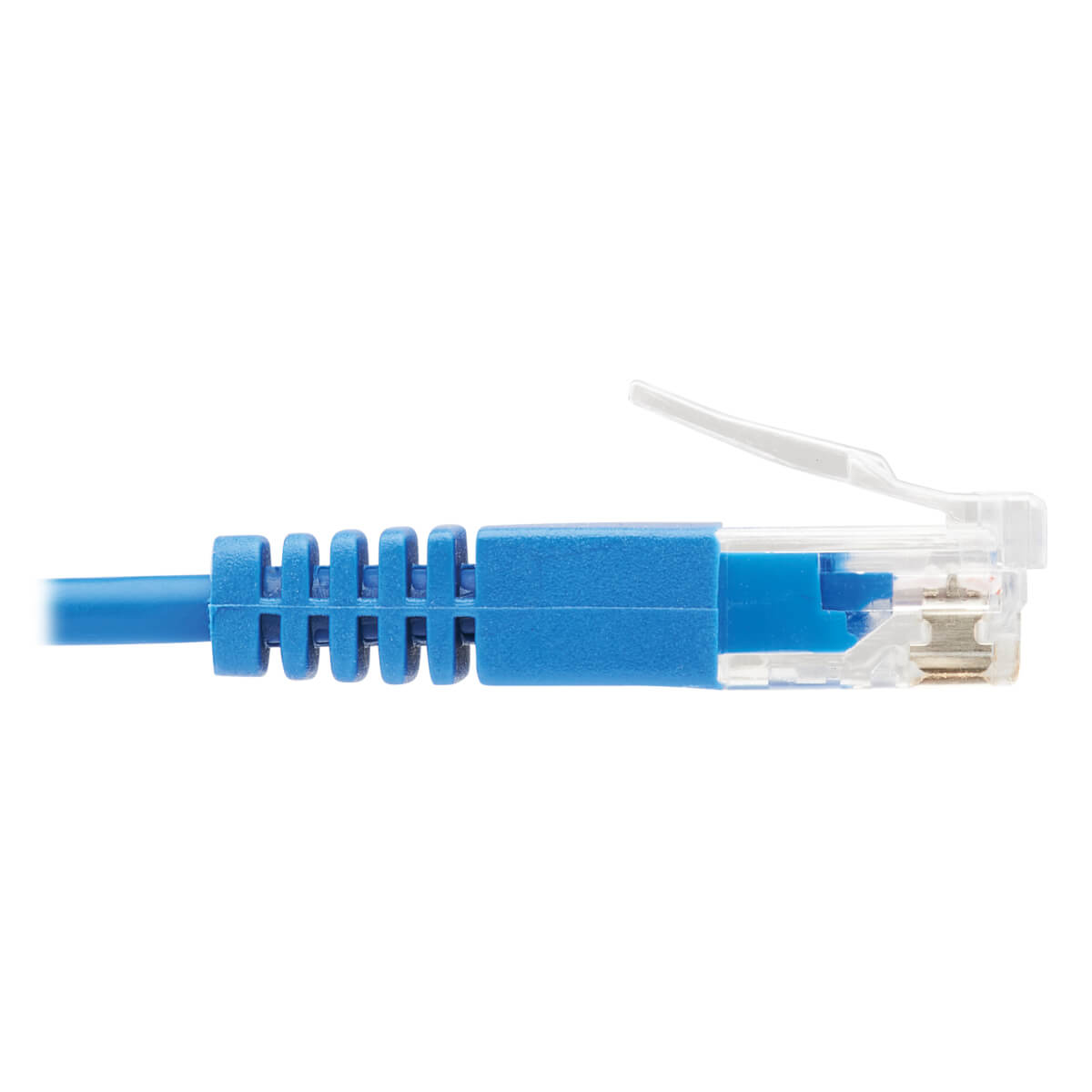

Tripp Lite N261-UR01-BL networking cable Blue 11.8" (0.3 m) Cat6a U/UTP (UTP)

Tripp Lite N261-UR01-BL networking cable Blue 11.8" (0.3 m) Cat6a U/UTP (UTP)

Cat6a 10G Molded Ultra-Slim UTP Ethernet Cable (RJ45 M/M), Blue, 1 ft. (0.31 m)

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro 1FT CAT6A GIGABIT ENET CABLE 8DV710 Register free see stock
ScanSource CAT6A ETHERNET ULTRA-SLIM 1FT POW-N261UR01BL
TD Synnex CAT6A ETHERNET CABLE ULTRA-SLIM BLUE 1FT 5963467

Related Products

Description

Cat6a Cable Ideal for Connecting Equipment in Your 10G Ethernet Network
This Cat6a Ethernet cable with RJ45 connectors is recommended for connecting network components like printers, computers, copiers, routers, servers, modems and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this one-foot cable ensures peak performance throughout your local area network (LAN).

Special Ultra-Slim Design for Better Airflow and Easier Installation
The N261-UR01-BL is just 2.8 millimeters in diameter—more than 50% smaller than standard Cat6a cable. This increases airflow in crowded equipment racks, which helps keep your components cool and properly functioning. The extra-slim design also makes the cable easier to install around corners and through cable management panels.

Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
The PVC jacket is colored blue to allow easy, fast identification in a crowded rack or workstation and help prevent the cable from becoming inadvertently disconnected.

Premium Construction for Superior Performance

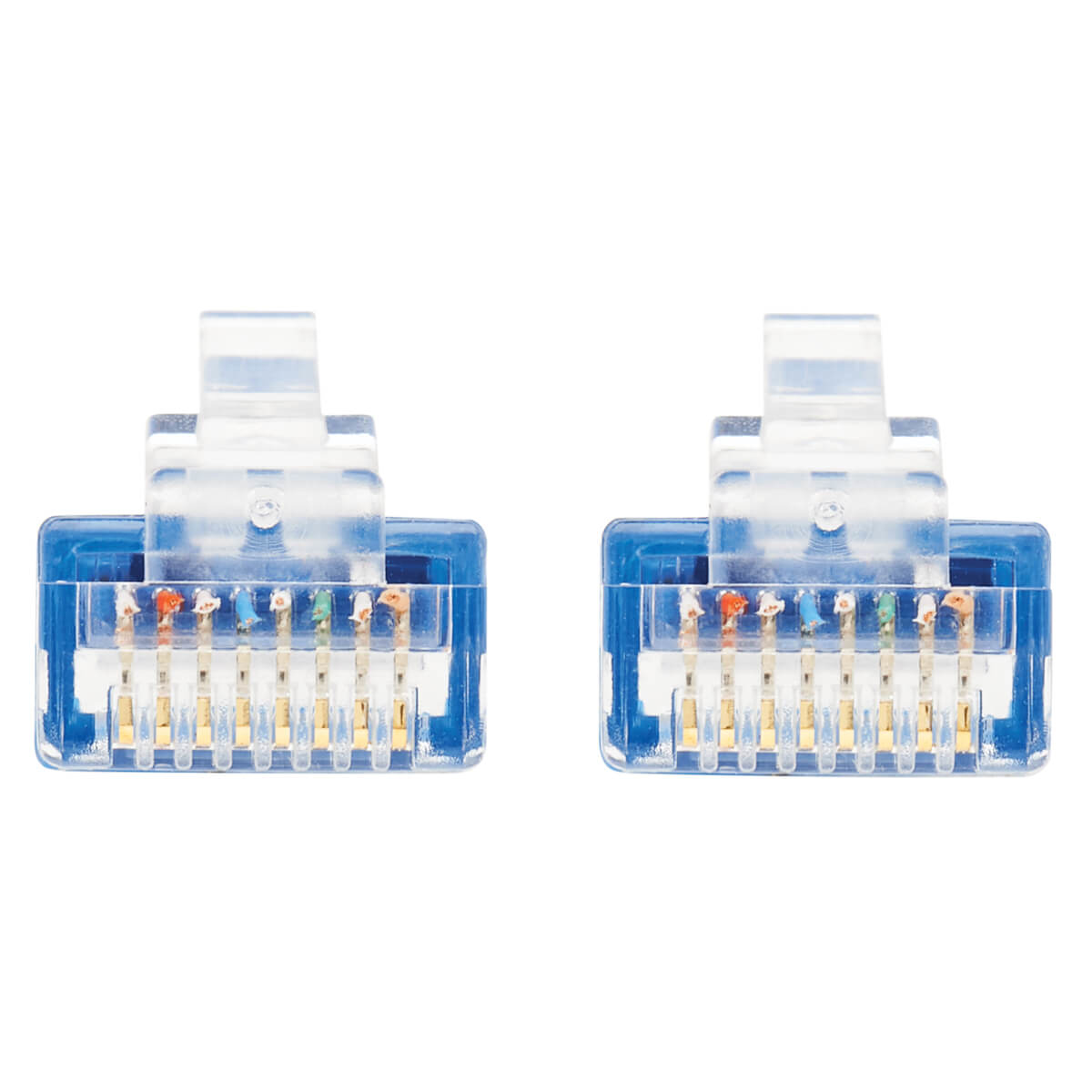

Manufactured from 32 AWG copper wire, the four-pair stranded cable is rated for speeds up to 10 Gbps. The RJ45 connectors improve near-end crosstalk (NeXT) performance to 500 MHz and feature 3-micron gold plating to help ensure the most accurate signal transfer possible. Integral strain relief gives the unshielded cable extra flexibility, reduces stress, and helps the cable move freely without cracking or breaking loose from the connector.

Specifications

Technical details
Product colourBlue
Plug and PlayYes
Cable standardCat6a
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector contacts platingGold
Cabling technology10/100/1000Base-T(X)
Data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3ab, IEEE 802.5
Jacket materialPolyvinyl chloride (PVC)
Conductor typeStranded
Cable length11.8" (0.3 m)
Country of originChina
Sustainability certificatesRoHS
Compliance certificatesRoHS
Certificates
CertificationRoHS, REACH
Features
Product colourBlue
Country of originChina
Molded cable bootYes
Frequency550 MHz
AWG wire size32
Plug and PlayYes
Cable standardCat6a
Cable shieldingU/UTP (UTP)
Connector 1RJ-45
Connector 2RJ-45
Connector contacts platingGold
Cabling technology10/100/1000Base-T(X)
Data transfer rate1000 Mbit/s
Networking standardsIEEE 802.3ab, IEEE 802.5
Jacket materialPolyvinyl chloride (PVC)
Conductor typeStranded
CertificationRoHS, REACH
Cable length11.8" (0.3 m)
Harmonized System (HS) code8544.42.2000
Connector 2 genderMale
Connector 1 genderMale
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Storage relative humidity (H-H)0 - 90%
Operating temperature (T-T)-10 - 40 °C
Operating relative humidity (H-H)0 - 90%
Packaging content
ManualYes
Weight & dimensions
Outer diameter0.11" (2.8 mm)
Packaging data
ManualYes
Package width7" (177.8 mm)
Package depth0.5" (12.7 mm)
Package height9" (228.6 mm)
Package weight0.705 oz (20 g)
Quantity per pack1 pc(s)
Logistics data
Master (outer) case gross weight5.64 oz (160 g)
Products per master (outer) case10 pc(s)
Master (outer) case width10" (254 mm)
Master (outer) case length1" (25.4 mm)
Master (outer) case height12" (304.8 mm)
Master (outer) case GTIN (EAN/UPC)10037332256970
Harmonized System (HS) code8544.42.2000
Other features
Master (outer) case GTIN (EAN/UPC)10037332256970
