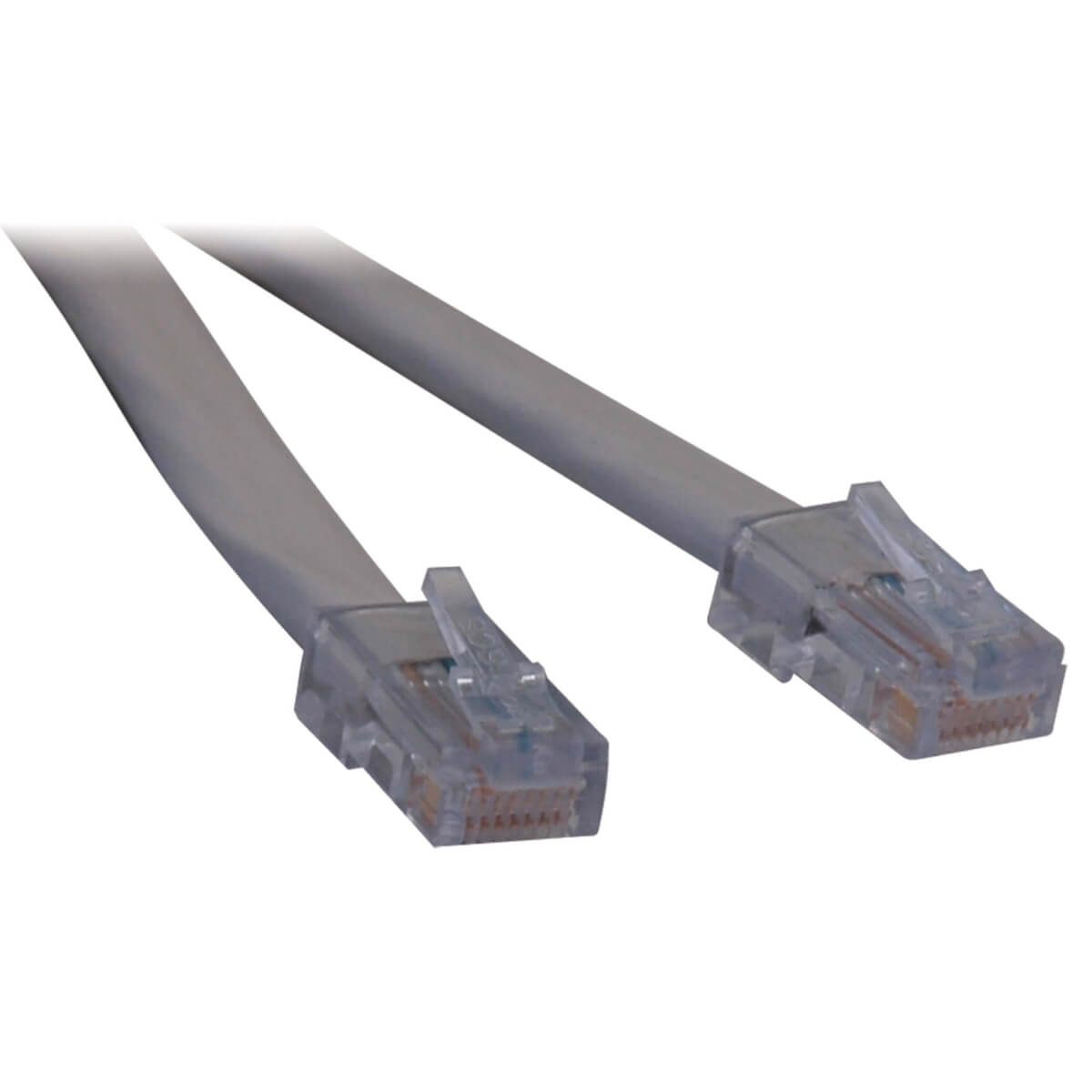

Tripp Lite N266-007 networking cable Beige 83.9" (2.13 m) Cat5

Tripp Lite N266-007 networking cable Beige 83.9" (2.13 m) Cat5

T1 Shielded RJ48C Crossover Cable (RJ45 M/M), 7 ft. (2.13 m) TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro 7FT T1 RJ48C CROSS OVER CABLE V57461 Register free see stock
ScanSource 7ft T1 Shielded RJ48C Crossove POW-N266007
TD Synnex 7FT T1 SHIELDED RJ48C CROSS-OVER CABLE 2446492

Related Products

Description

These T1, RJ45-RJ45 ( RJ48C ) cross-over Ethernet cables are constructed with premium Quabbin 9720, T1 certified cable. Two individually shielded, 22 AWG, 100 ohm pairs maximize the performance of your expensive T1 circuits and equipment. Beware of generic T1 Ethernet cables made with inexpensive Cat5 unshielded Ethernet cable. The American National Standards Institute (ANSI) states in ANSI T1.403 that T1 cable be constructed of two balanced pairs, 22 AWG Solid conductor, 100 ohm impedance, with a loss budget of 5.5 db. Cross-over wiring configuration available in 3-foot (0.9-meter), 5-foot (1.5-meter), 7-foot (2.1-meter) and 10-foot (3.1-meter) lengths. Custom lengths available. Consult your reseller. Also available in straight-through wiring configuration. See N265-Series T1 Ethernet cables.

Specifications

Technical details
Product colourBeige
Cable standardCat5
Connector 1RJ-45
Connector 2RJ-45
Input impedance100 Ω
Conductor typeSolid
Cable length83.9" (2.13 m)
Cable ratingCMR
Country of originUnited States
Compliance certificatesRoHS
Features
Input impedance100 Ω
Product colourBeige
Cable ratingCMR
Country of originUnited States
AWG wire size22
Cable standardCat5
Connector 1RJ-45
Connector 2RJ-45
Conductor typeSolid
Cable length83.9" (2.13 m)
Harmonized System (HS) code8544.42.2000
Connector 2 genderMale
Connector 1 genderMale
Packaging data
Package width8.5" (215.9 mm)
Package depth11.3" (287 mm)
Package height0.5" (12.7 mm)
Package weight3.17 oz (90 g)
Logistics data
Master (outer) case gross weight3.2 lbs (1.45 kg)
Products per master (outer) case10 pc(s)
Master (outer) case width11.5" (292.1 mm)
Master (outer) case length12" (304.8 mm)
Master (outer) case height3.9" (99.1 mm)
Master (outer) case GTIN (EAN/UPC)10037332150360
Harmonized System (HS) code8544.42.2000
Other features
Input impedance100 Ω
Master (outer) case GTIN (EAN/UPC)10037332150360
