Tripp Lite NSS-G24D2 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Tripp Lite NSS-G24D2 network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

24 10/100/1000Mbps Port Gigabit L2 Managed Switch, 2 Dedicated Gigabit SFP Slots, 52Gbps, Web/CLI, 12-Outlet 120V PDU

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 24P GIGABIT ETHERNET SWITCHL2 MGD W/ 12-OUTLET PDU 120V 871803 Register free see stock
BlueStar TRIPP LITE, 24 10/100/1000MBPS PORT GIGABIT L2 WEB-SMART MANAGED SWITCH, 2 DEDICATED GIGABIT SFP SLOTS, 52 GBPS, 12-OUTLET 120V PDU NSS-G24D2

Related Products

Description

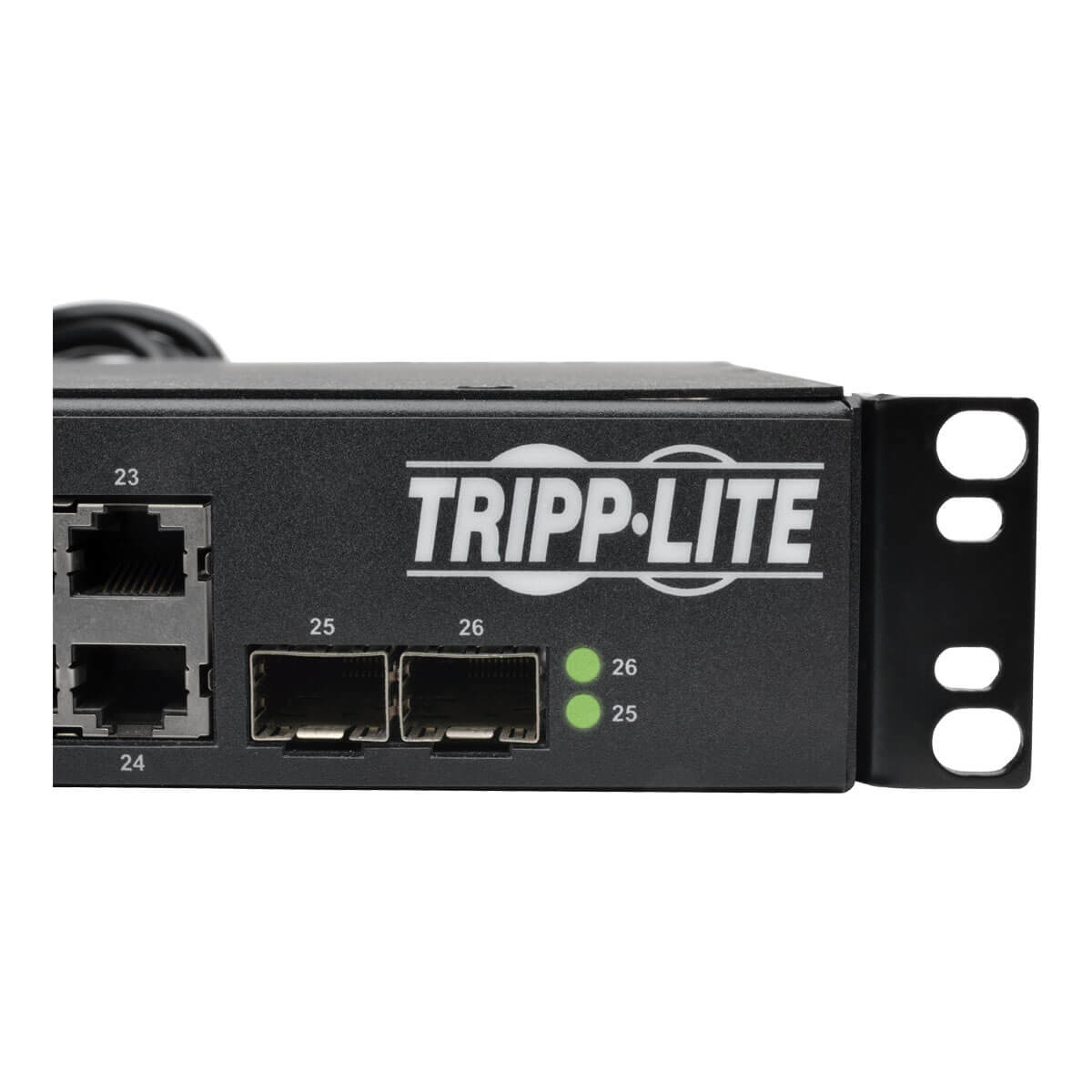

The energy-efficient NSS-G24D2 24-Port Gigabit L2 Managed Network Switch does more than complete your home or office LAN. It also features a basic 120V 15A PDU to distribute reliable AC power to critical IT equipment in your wiring closet, server room or equipment rack. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper.

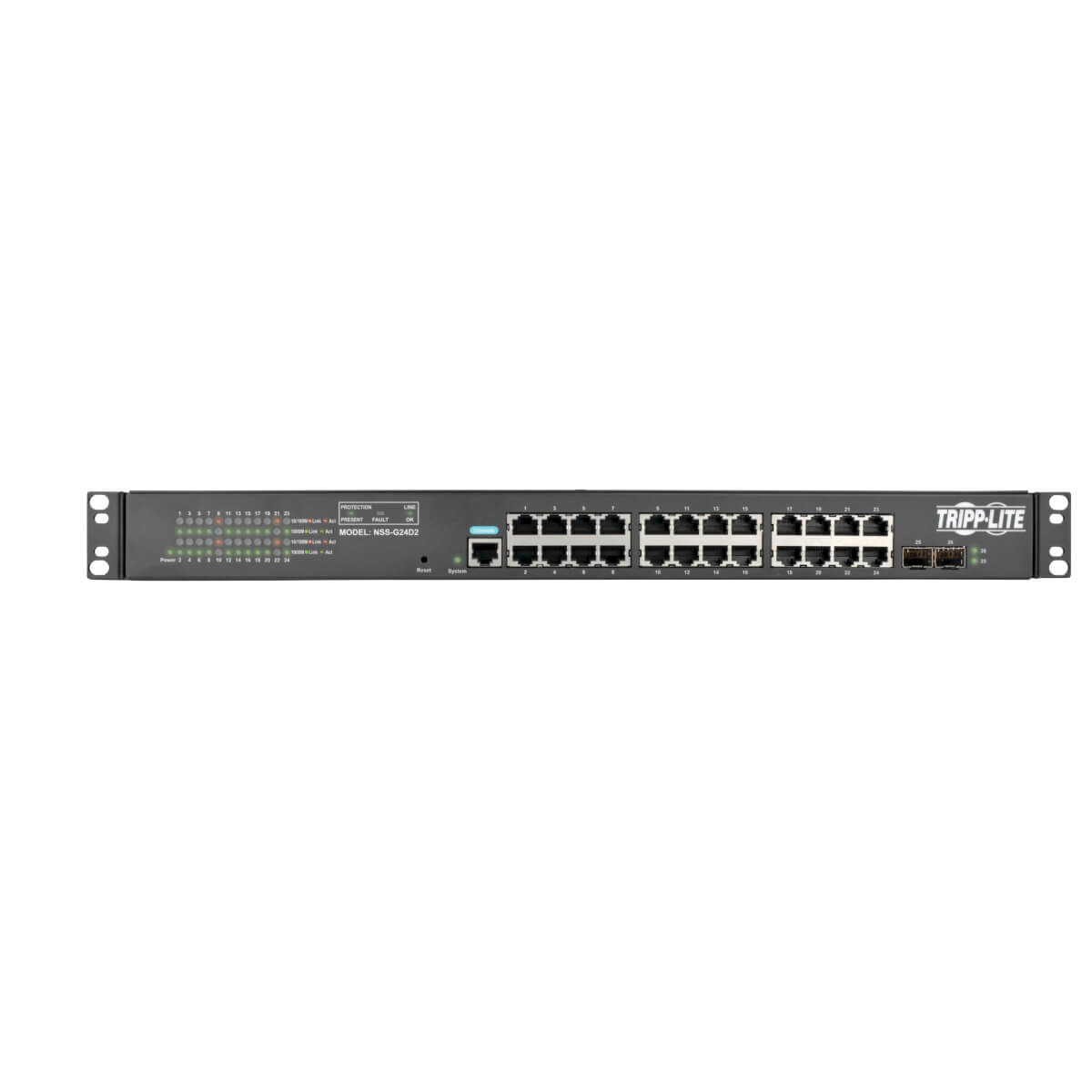

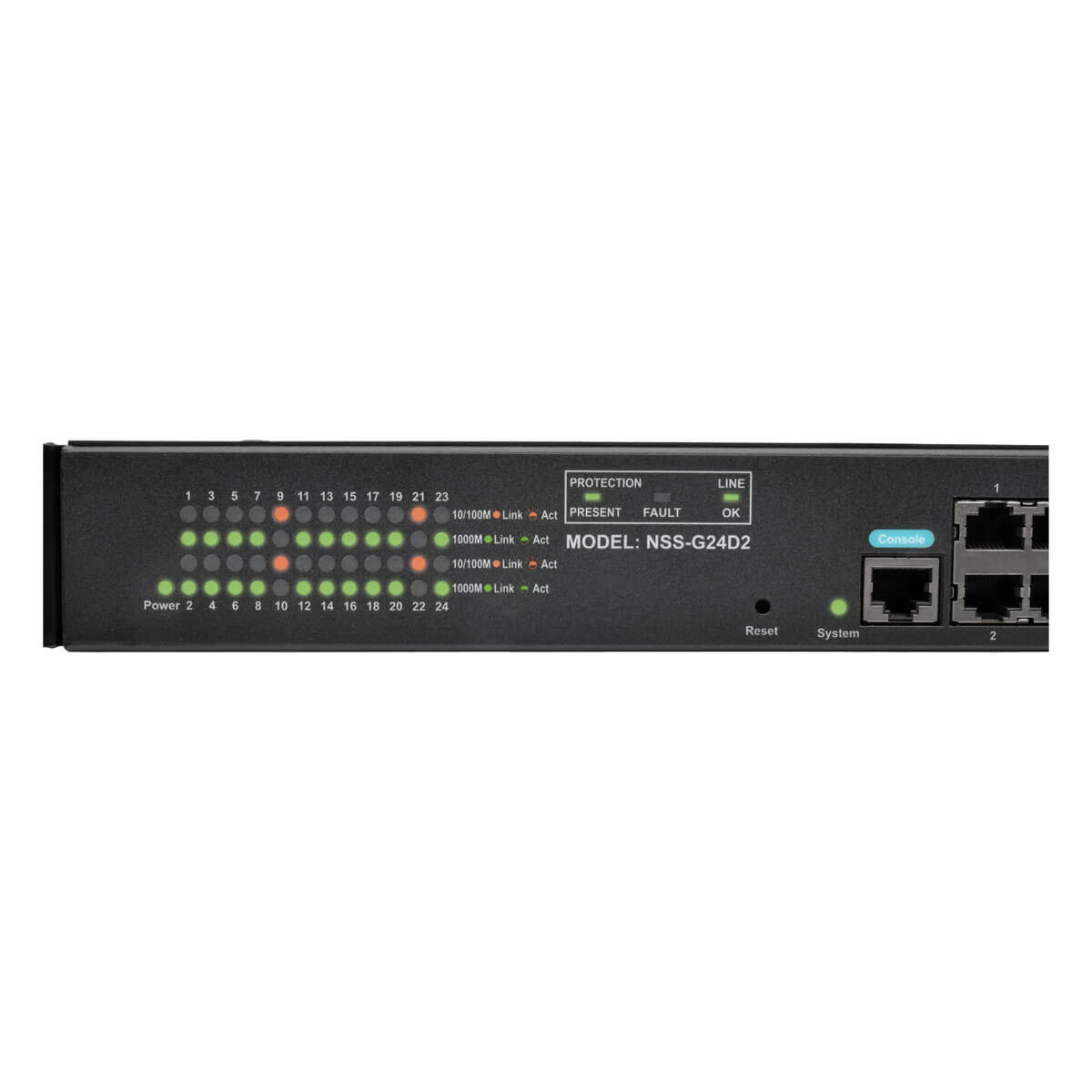

This switch features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Easy-to-read LEDs indicate connection and activity status for each port. Built-in management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex.

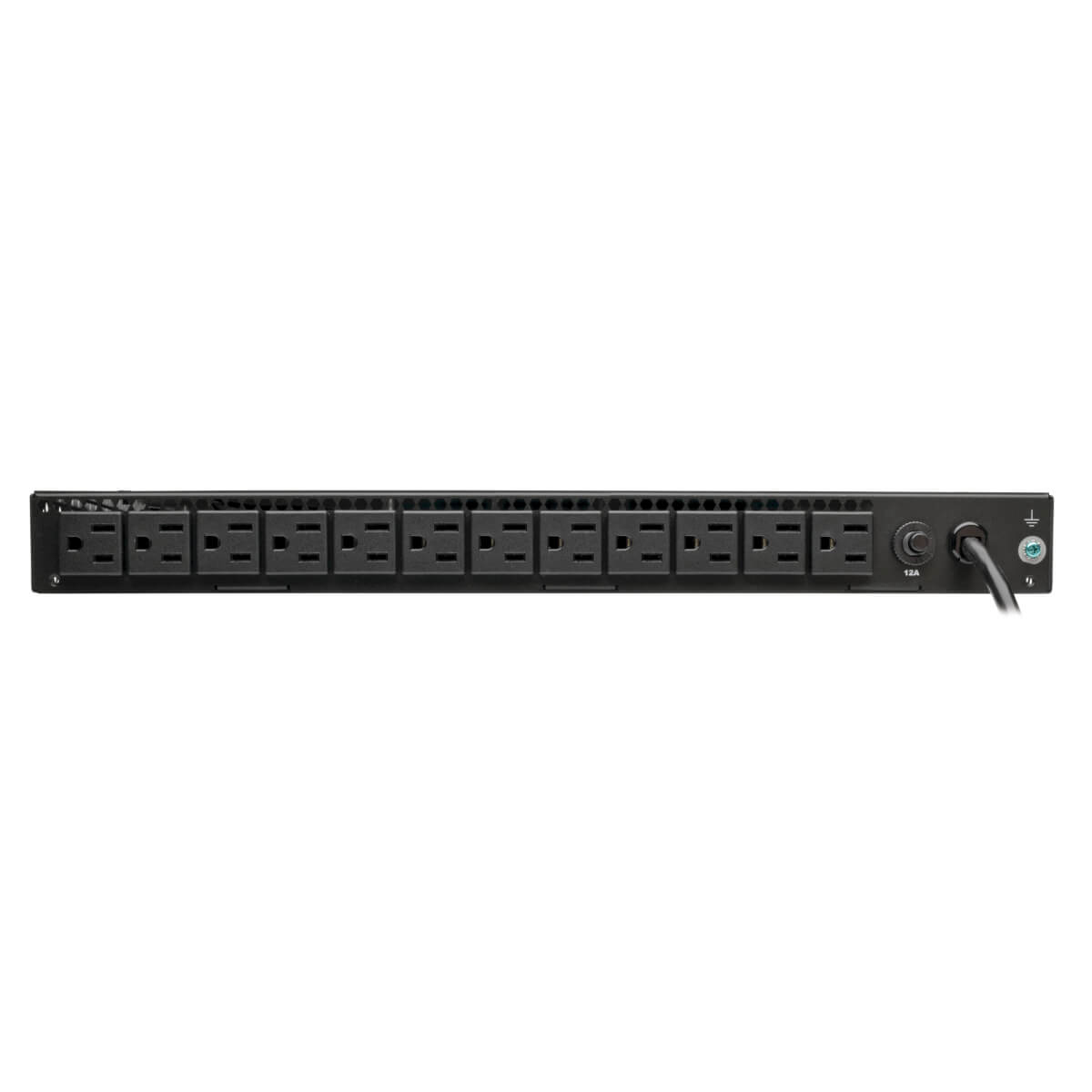

The rear panel contains 12 NEMA 5-15R outlets that supply continuous power to connected devices. Your equipment is protected by 3860 joules of Isobar surge suppression, as well as front-panel LEDs that let you monitor line status at a glance. A 12A circuit breaker trips if the current drawn by connected equipment exceeds the PDU’s maximum load rating.

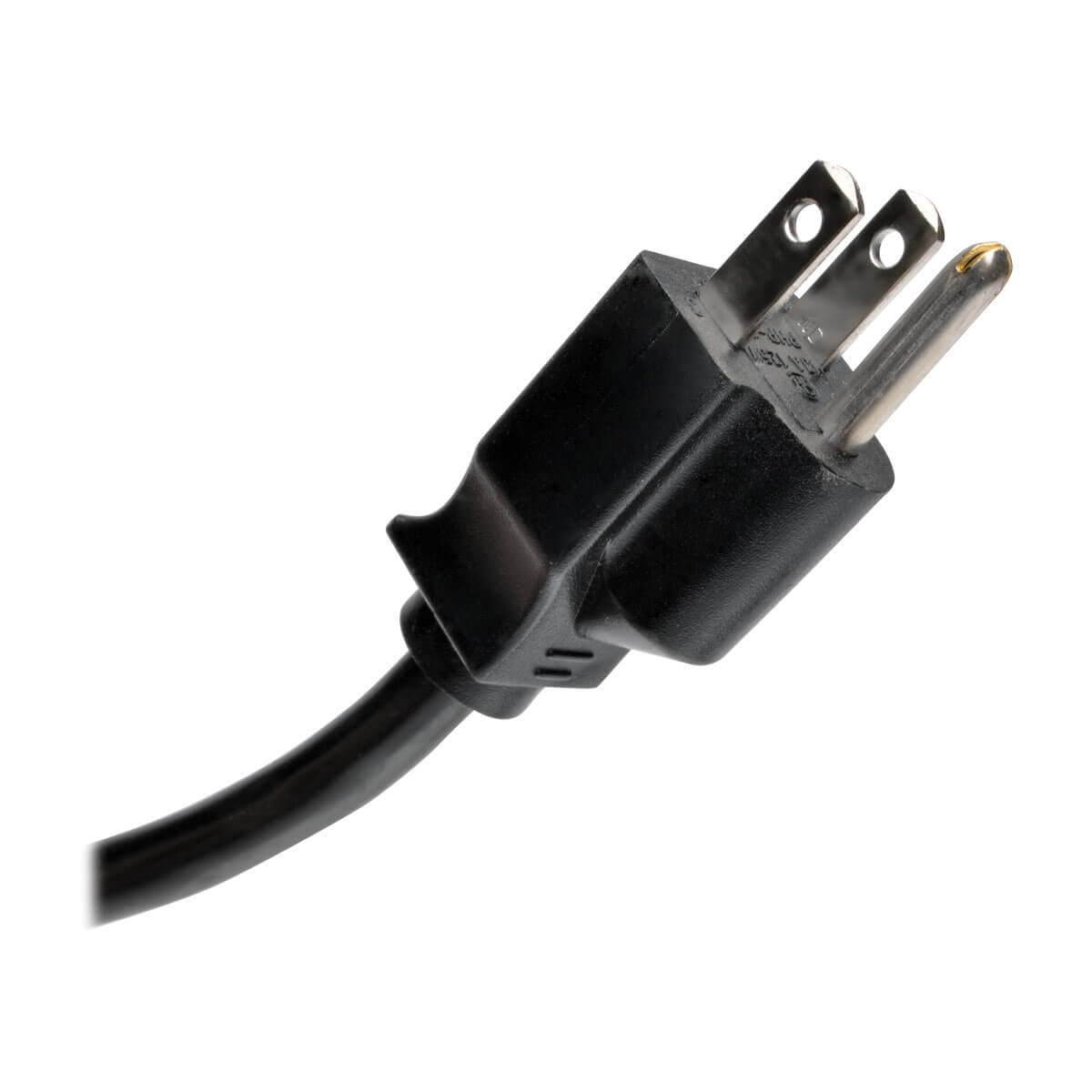

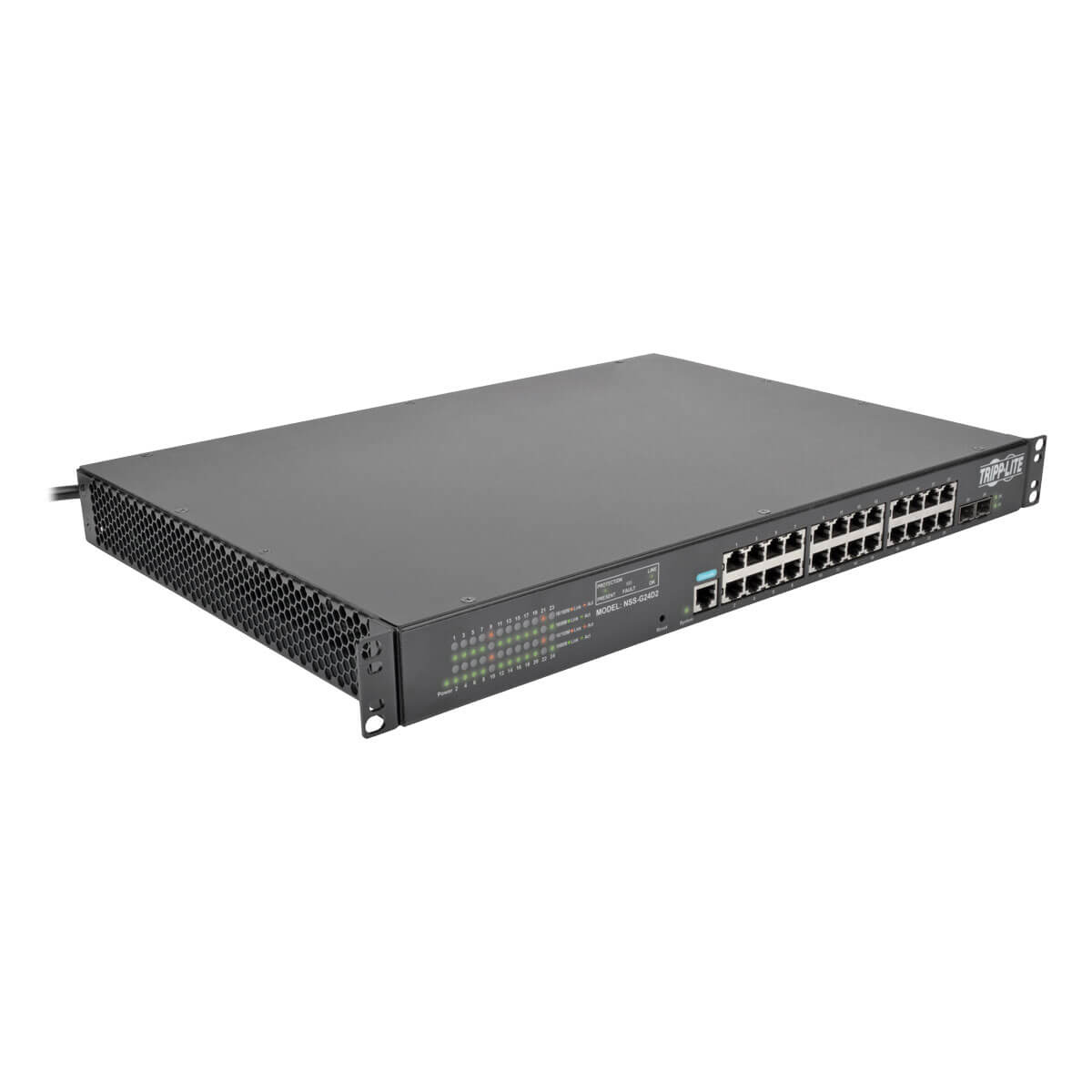

The NSS-G24D2 supports IEEE802.3az Energy Efficient Ethernet standards. The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included hardware. The six-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.

Combines a fully managed 24-port Gigabit network switch with a basic PDU with Isobar Surge Suppression, in one space-saving 1U rack-mount unit. Ideal for monitoring and controlling an LAN and powering equipment in a small-to-medium distributed network.
- IP-MAC-Port-Binding, ACL, Storm Control
- Port Security, DHCP Snooping, 802.1x, L2
- WEB/CLI management, SNMP, RMON features
- 24 ports and 2 dedicated Mini-GBIC SFP slots
- Enterprise-level, security and layer 2 management
- Cost-effective form factor for small and medium businesses
- Built-in 12-outlet PDU
- 3860 Joule suppression rating, Diagnostic LEDs

Specifications

Management features
Reset buttonYes
Switch typeManaged
Web-based managementYes
Switch layerL2
Virtual LAN features
VLAN supportYes
Power
Power connectorDC-in jack
AC input voltage100 - 127 V
Technical details
Form factor1U
Product colourBlack
Rack mountingYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity2
Console portRJ-45
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
Data transmission
Jumbo frames10000
MAC address table16000 entries
Switching capacity52 Gbit/s
Jumbo frames supportYes
Security
IP-MAC-Port bindingYes
Security algorithmsSNMP
Access Control List (ACL)Yes
DHCP featuresDHCP client
Certificates
CertificationRoHS, UL 60950-1, UL 1449, CAN/CSA-C22.2 No. 60950-1, FCC Part 15 Class A, REACH, NOM
Design
Reset buttonYes
Country of originChina
Form factor1U
Product colourBlack
LED indicatorsYes
CertificationRoHS, UL 60950-1, UL 1449, CAN/CSA-C22.2 No. 60950-1, FCC Part 15 Class A, REACH, NOM
Rack mountingYes
Performance
Harmonized System (HS) code8517.62.0020
Indication
LED indicatorsYes
Operational conditions
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Width17.3" (439.9 mm)
Depth12.4" (315 mm)
Height1.71" (43.4 mm)
Weight8.75 lbs (3.97 kg)
Packaging data
Mounting brackets includedYes
Package width17" (431.8 mm)
Package depth20.4" (518.2 mm)
Package height4.6" (116.8 mm)
Package weight11.5 lbs (5.22 kg)
ManualYes
Logistics data
Master (outer) case width17" (431.8 mm)
Master (outer) case length20.4" (518.2 mm)
Master (outer) case height4.6" (116.8 mm)
Master (outer) case gross weight11.5 lbs (5.22 kg)
Products per master (outer) case1 pc(s)
Harmonized System (HS) code8517.62.0020
Packaging content
Mounting brackets includedYes
ManualYes
Other features
Country of originChina
