Distributes DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling

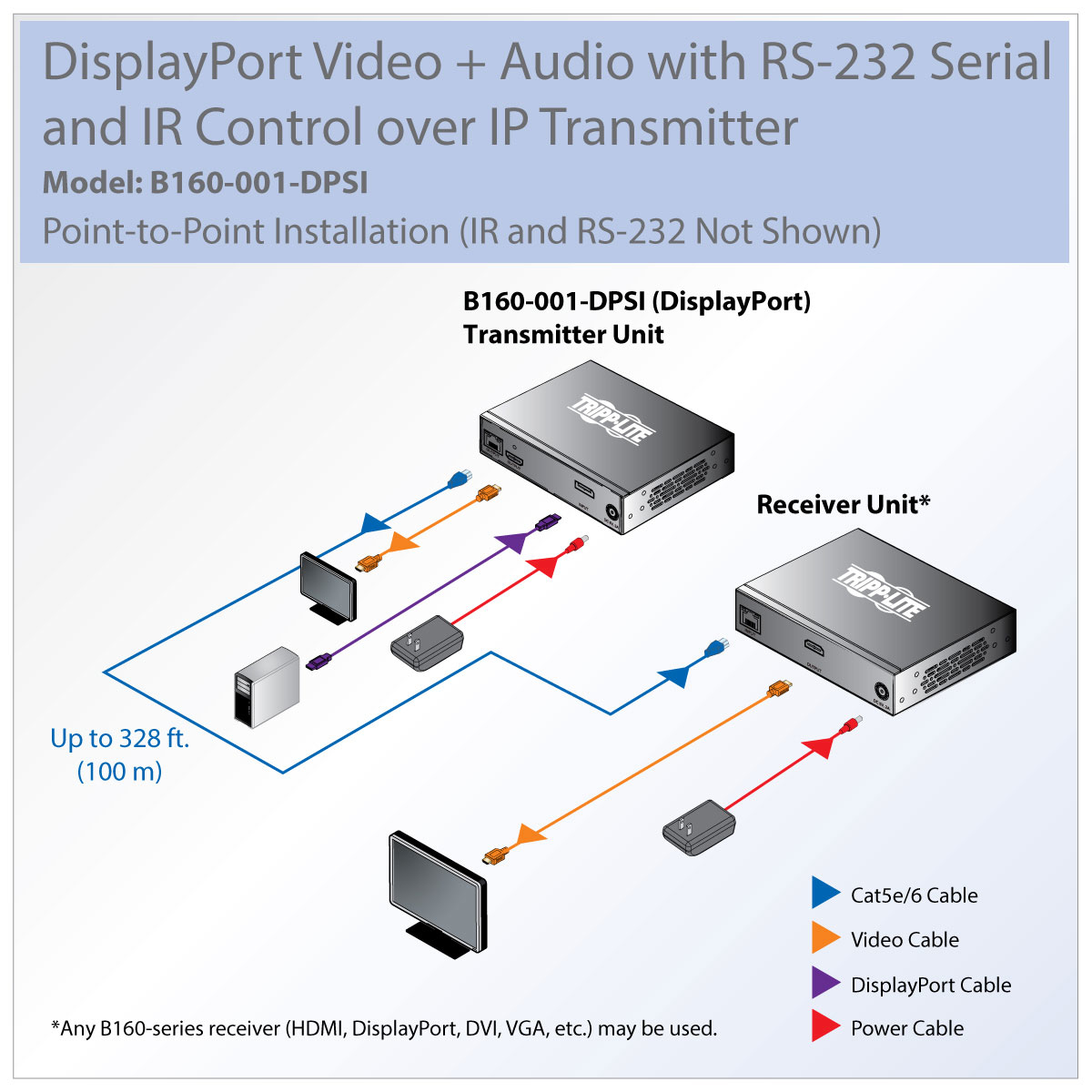

Converts audio/video to an IP-based signal that is transmitted point-to-point to a display 328 ft. away

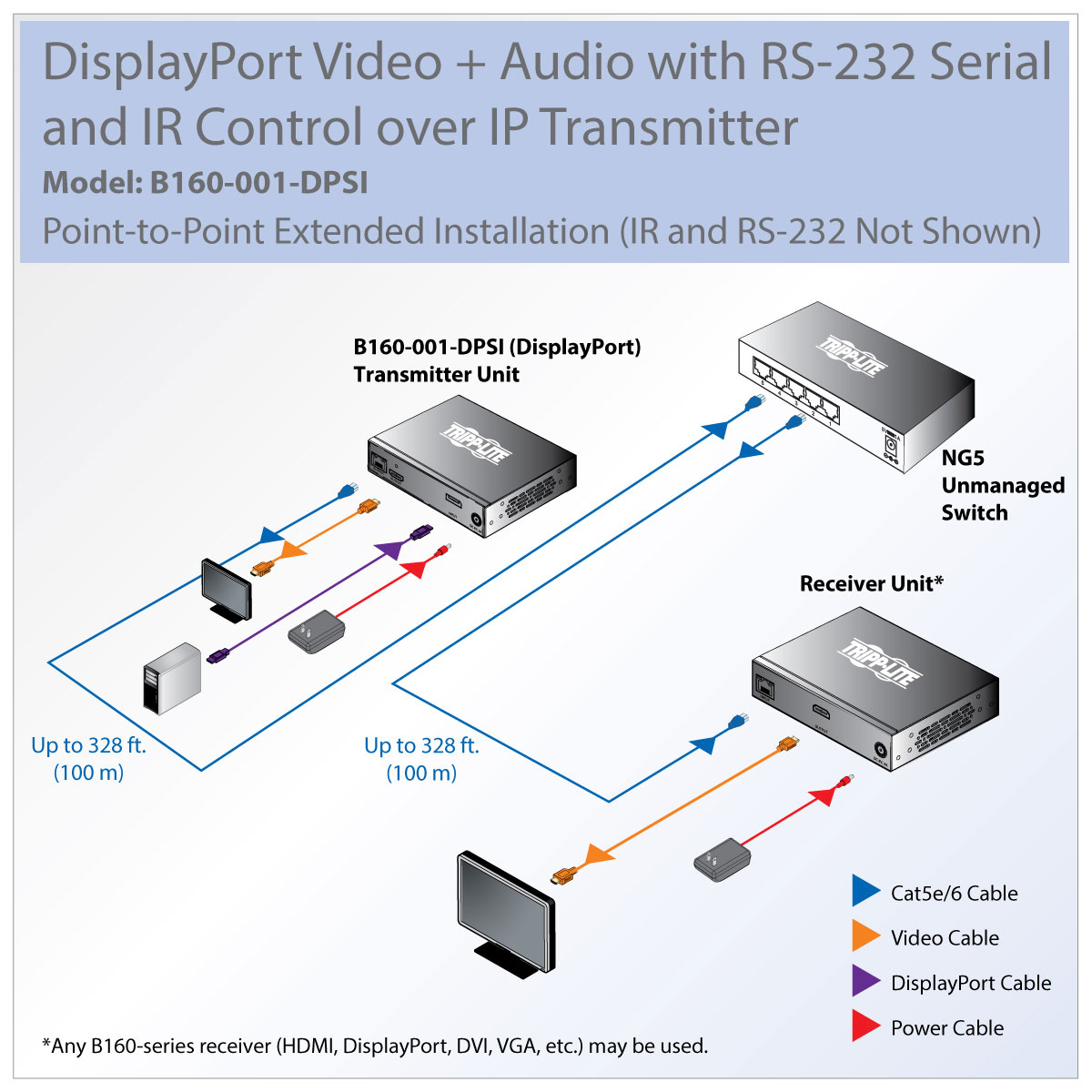

Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch

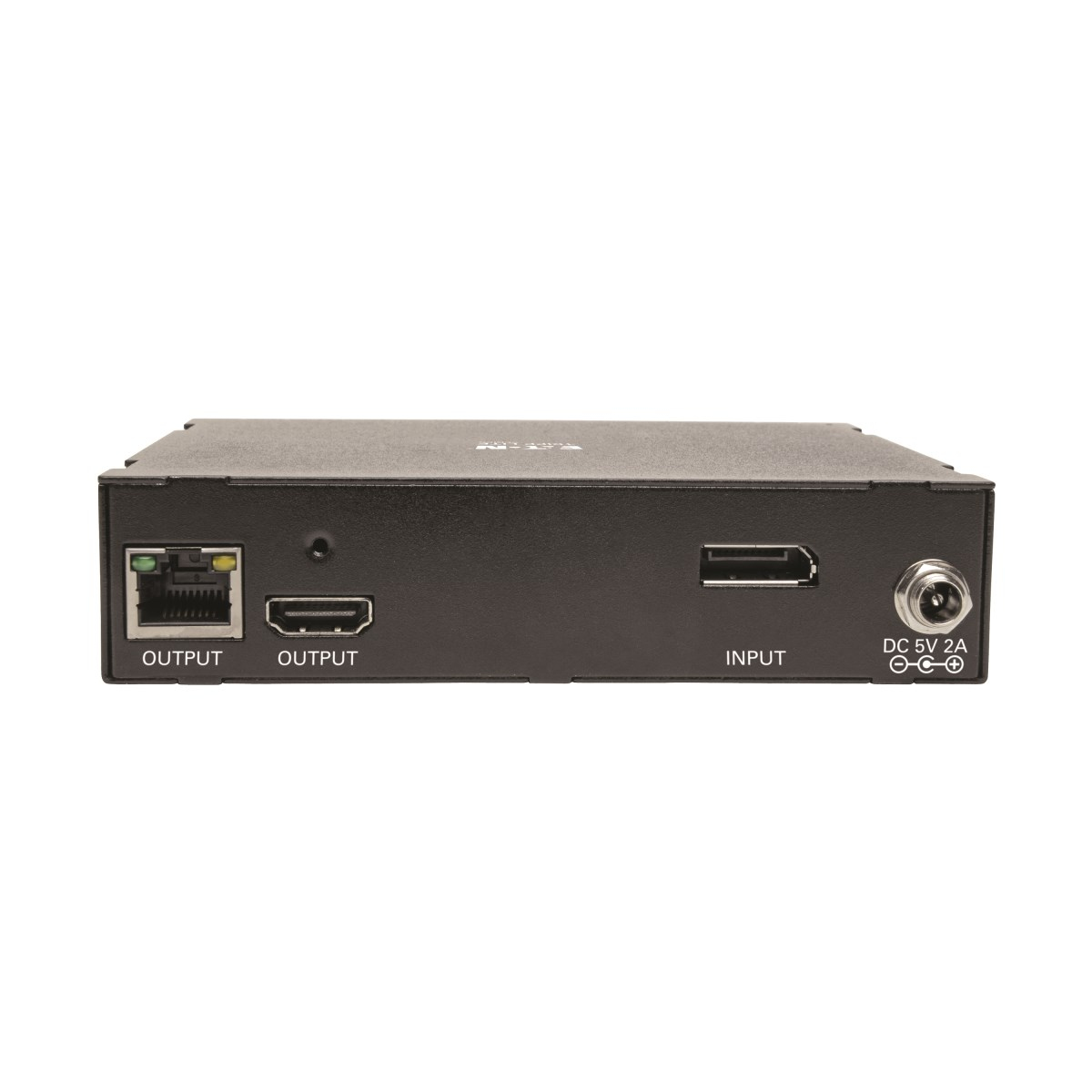

HDMI output for connecting a local display

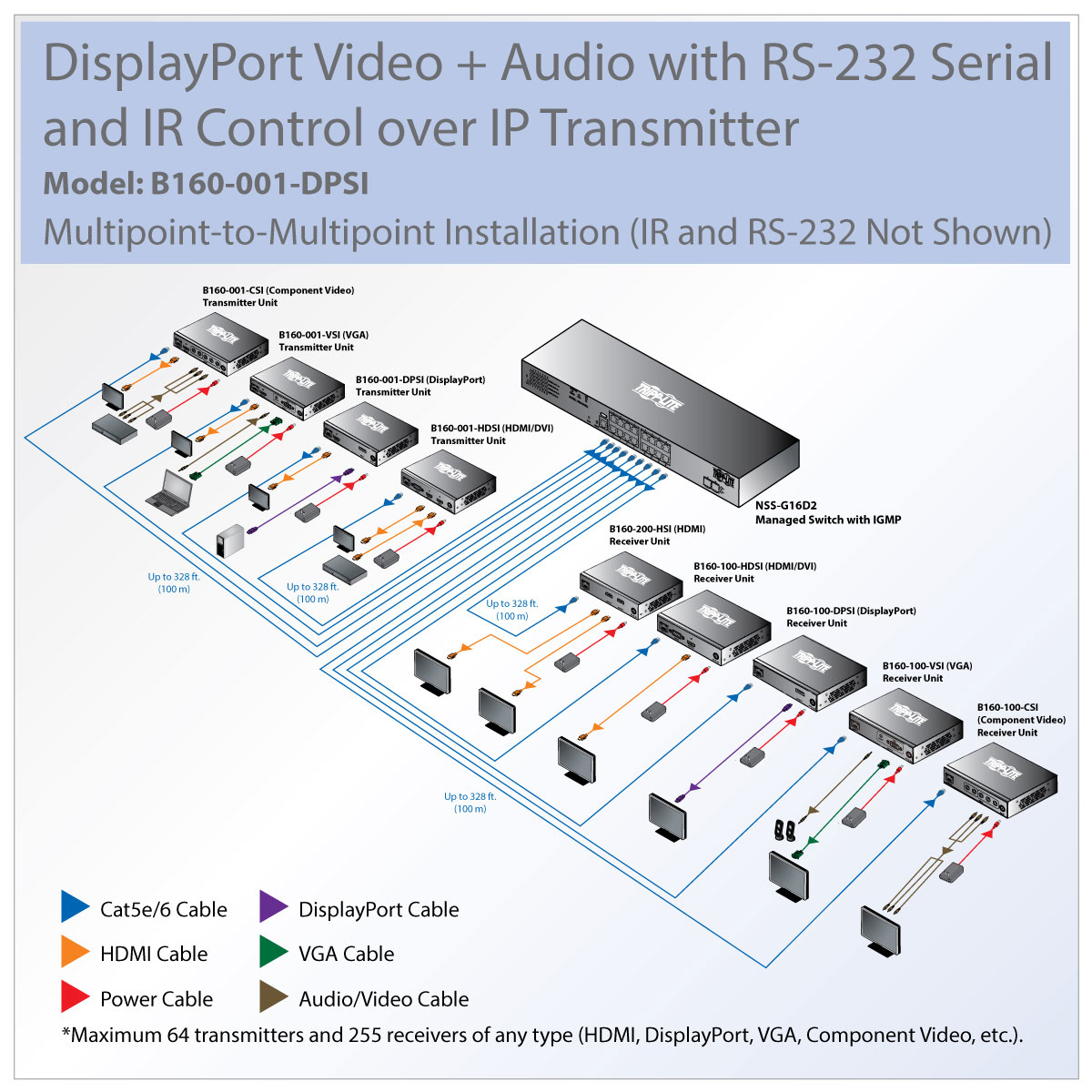

Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers
Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
IGMP-enabled switches allow centralized control over which sources show on which displays
Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors

Enhanced Technical Features
Supports video resolutions up to 1920 x 1080, including 1080p (limited to receiver’s max resolution)
Uses H.264 video compression standard
Transmits on 20–60 kHz IR frequency
Extends IR control signals that control a source from a remote display
Supports RS-232 serial baud rates up to 57600 Bps
HDCP and 3D compatible when used with a DisplayPort or HDMI receiver (not compatible with VGA receiver)

Plug-and-Play Functionality
No software or drivers required
Hardware included for mounting on wall, rack or pole
Compatible with all B160-Series A/V over IP receivers

TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
