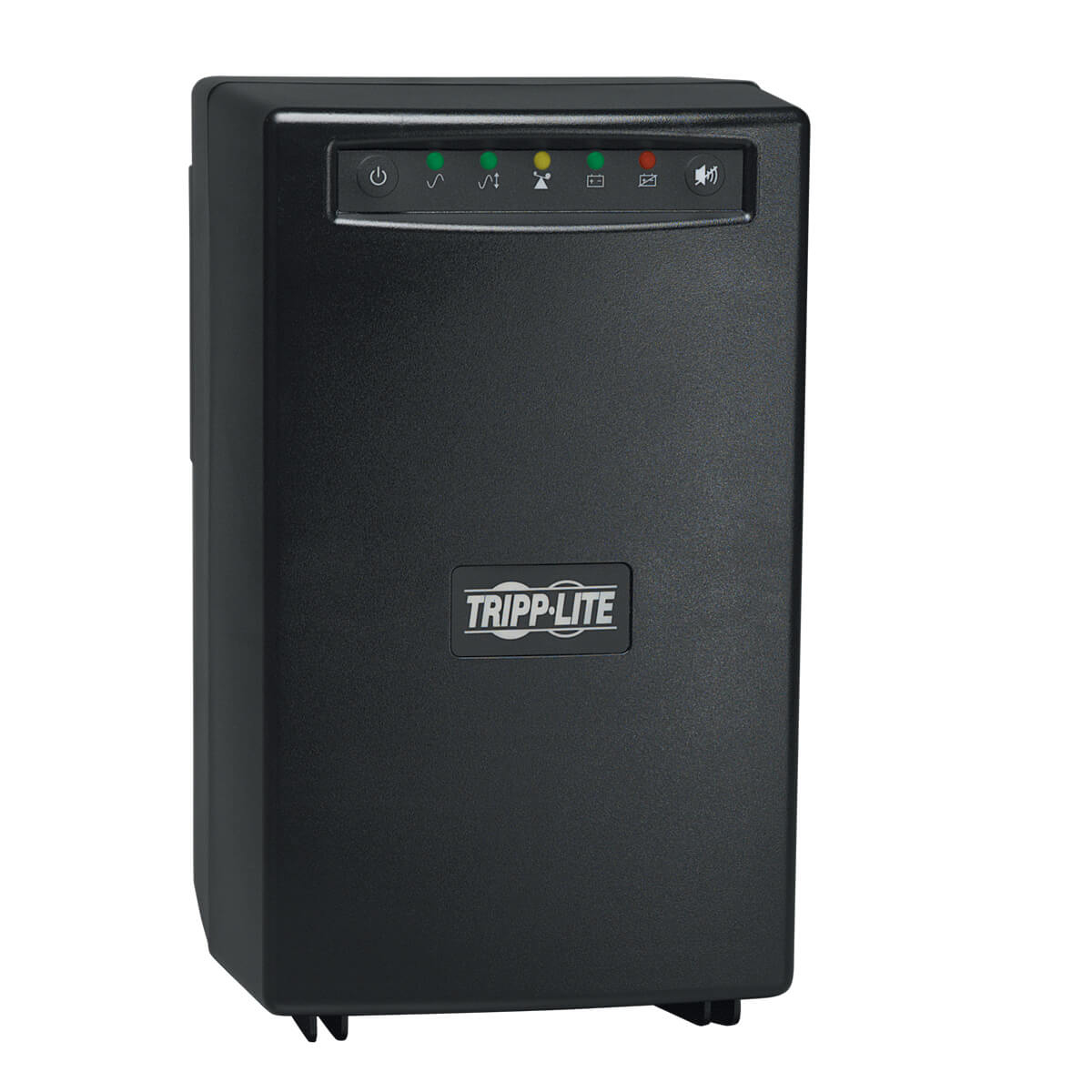

Tripp Lite OmniSmart Line Interactive UPS uninterruptible power supply (UPS) 0.7 kVA 500 W

Tripp Lite OmniSmart Line Interactive UPS uninterruptible power supply (UPS) 0.7 kVA 500 W

Tripp Lite OmniSmart Line Interactive UPS, 0.7 kVA, 500 W, 510 J, China, 13 min, 31 min

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 750VA 500W UPS BATTERY BACKUP TOWER ISOLATION 565286 Register free see stock
BlueStar TRIPP LITE, 750VA UPS OMNI TOWER FULL ISOLATION AVR LINE-INTERACTIVE 6 OUTLETS OMNI750ISO

Related Products

Description

Tripp Lite OmniSmart Line Interactive UPS. Output power capacity: 0.7 kVA, Output power: 500 W, Surge energy rating: 510 J. Typical backup time at full load: 13 min, Typical backup time at half load: 31 min, Battery recharge time: 4.5 h. Form factor: Tower, Product color: Black, Cable length: 70.9" (1.8 m). Width: 7.5" (190.5 mm), Depth: 9.25" (235 mm), Height: 12.7" (323.8 mm). Master (outer) case width: 12" (304.8 mm), Master (outer) case length: 13.7" (349.2 mm), Master (outer) case height: 18.3" (463.6 mm)

Specifications

Power
Output power500 W
Surge energy rating510 J
Output power capacity0.7 kVA
Ports & interfaces
Cable length70.9" (1.8 m)
Performance
LED indicatorsYes
Audible alarm(s)Yes
Features
Country of originChina
Output power500 W
Surge energy rating510 J
Audible alarm(s)Yes
Output power capacity0.7 kVA
Battery
Battery recharge time4.5 h
Typical backup time at half load31 min
Typical backup time at full load13 min
Hot-swap batteryYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationUL1778, CSA, FCC Part 15 Category B, ROHS
Cable length70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Packaging data
Package dimensions (WxDxH)13.7 x 12 x 18.3" (349 x 305 x 464 mm)
Package width12" (304.8 mm)
Package depth13.7" (349.2 mm)
Package height18.3" (463.6 mm)
Package weight43.2 lbs (19.6 kg)
Weight & dimensions
Package width12" (304.8 mm)
Package depth13.7" (349.2 mm)
Package height18.3" (463.6 mm)
Weight36.4 lbs (16.5 kg)
Width7.5" (190.5 mm)
Package weight43.2 lbs (19.6 kg)
Height12.7" (323.8 mm)
Depth9.25" (235 mm)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width12" (304.8 mm)
Master (outer) case length13.7" (349.2 mm)
Master (outer) case height18.3" (463.6 mm)
Master (outer) case gross weight43.2 lbs (19.6 kg)
Certificates
CertificationUL1778, CSA, FCC Part 15 Category B, ROHS
Other features

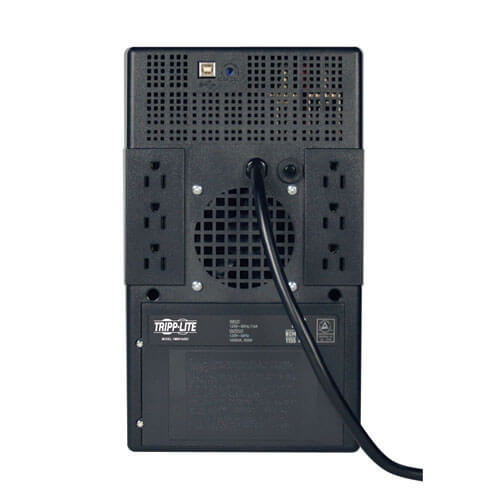

Output connections6 x 5-15R
Input connection type5-15P
Dimensions (WxDxH)7.48 x 9.25 x 12.8" (190 x 235 x 324 mm)
Package dimensions (WxDxH)13.7 x 12 x 18.3" (349 x 305 x 464 mm)
Nominal output voltage120 V
Nominal input voltage120 V
