Tripp Lite PDU3XVS6G20 power distribution unit (PDU) 30 AC outlet(s) 0U Black

Tripp Lite PDU3XVS6G20 power distribution unit (PDU) 30 AC outlet(s) 0U Black

11.5kW 3-Phase Switched PDU, 208-240V Outlets (24 C13, 6 C19), IEC309 16/20A Red 360-415V Input, 0U, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter PDU 3-PHASE 200/220/230/240V11.5KW C13 C19 IEC309 20A 0URMPDU3XVS6G20 812661 Register free see stock

Related Products

Description

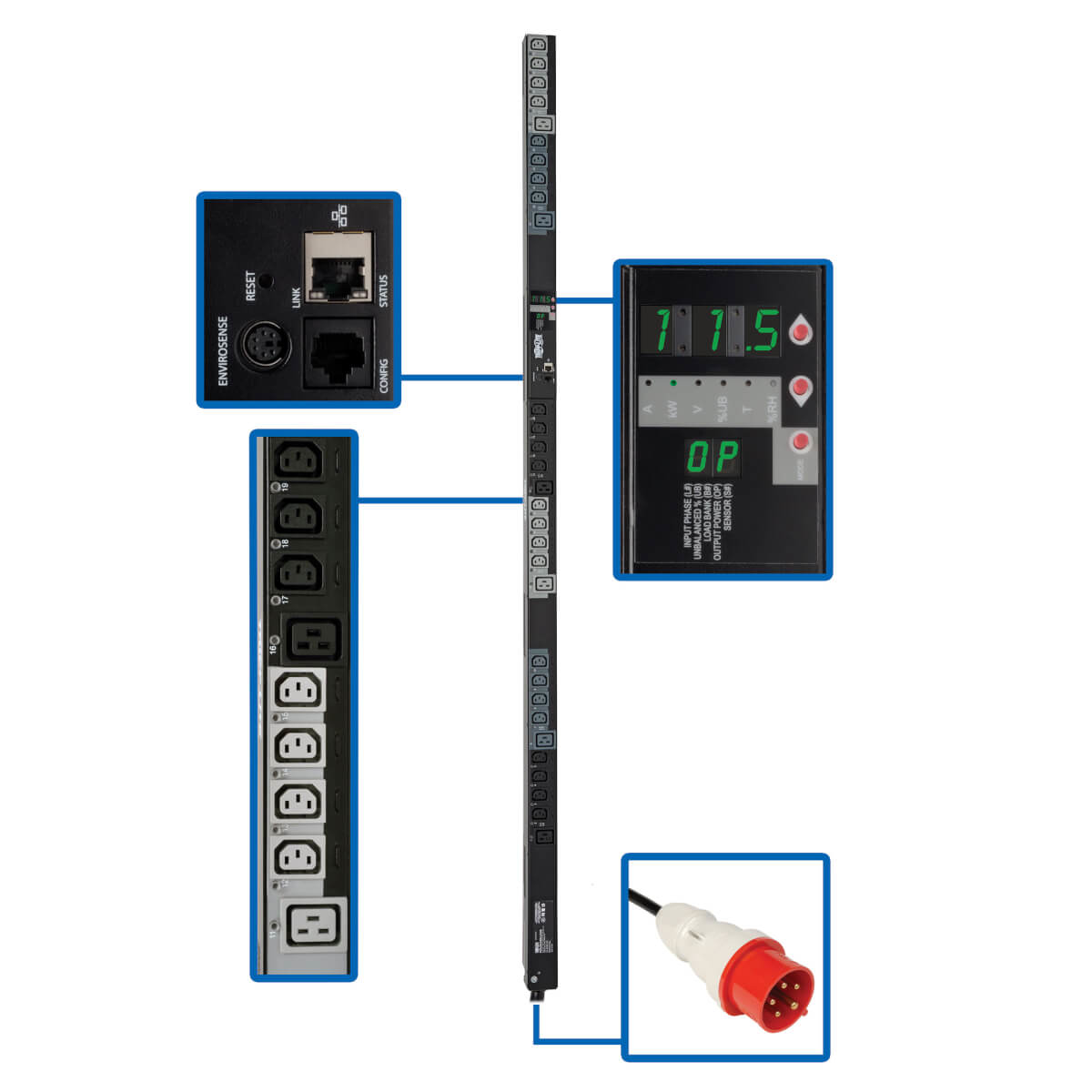

11.5kW Switched 360-415V input 208-240V output PDU with built-in web/network interface

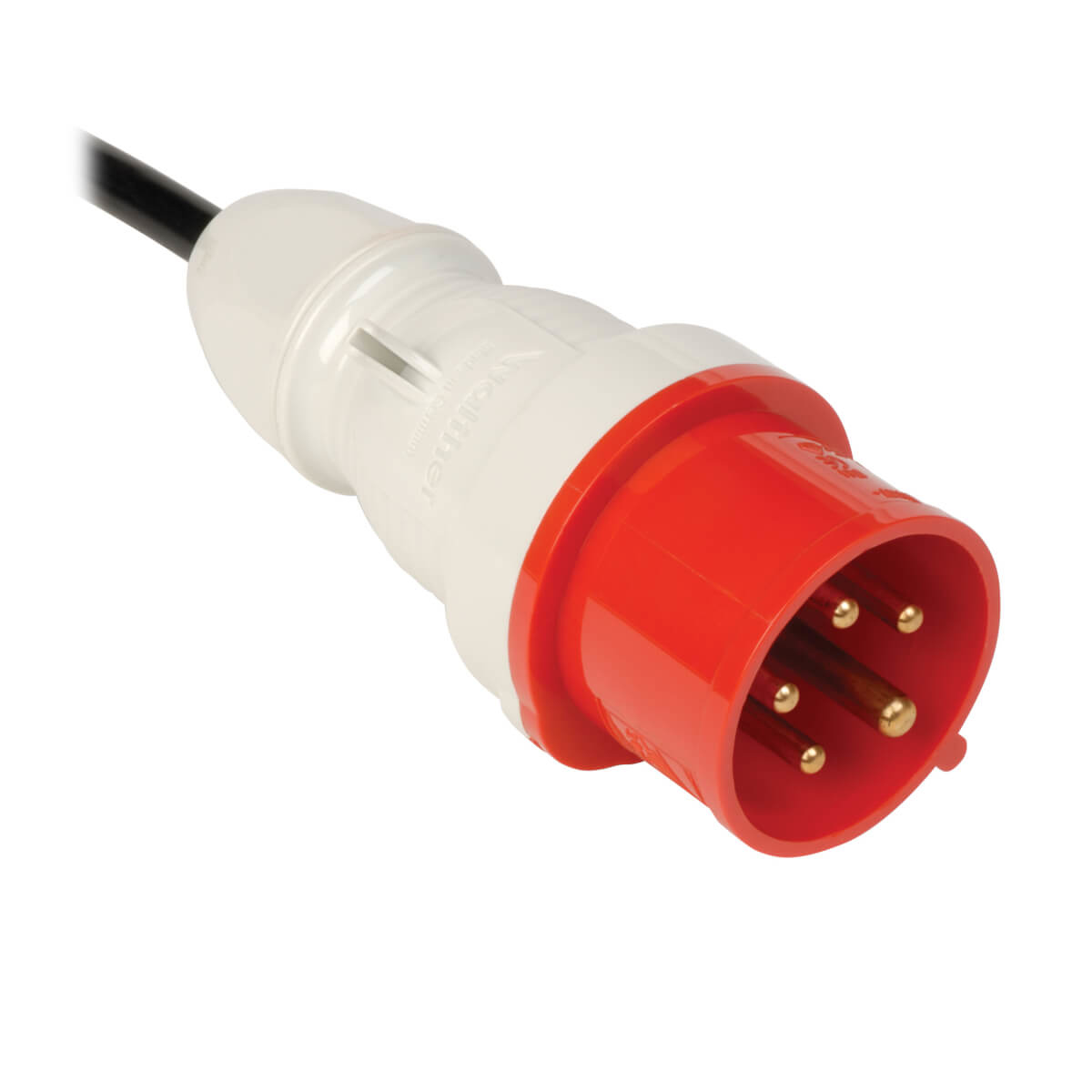

IEC309 16/20A Red (3P+N+E) 360-415V 3 phase input with 6 ft. / 1.8m line cord

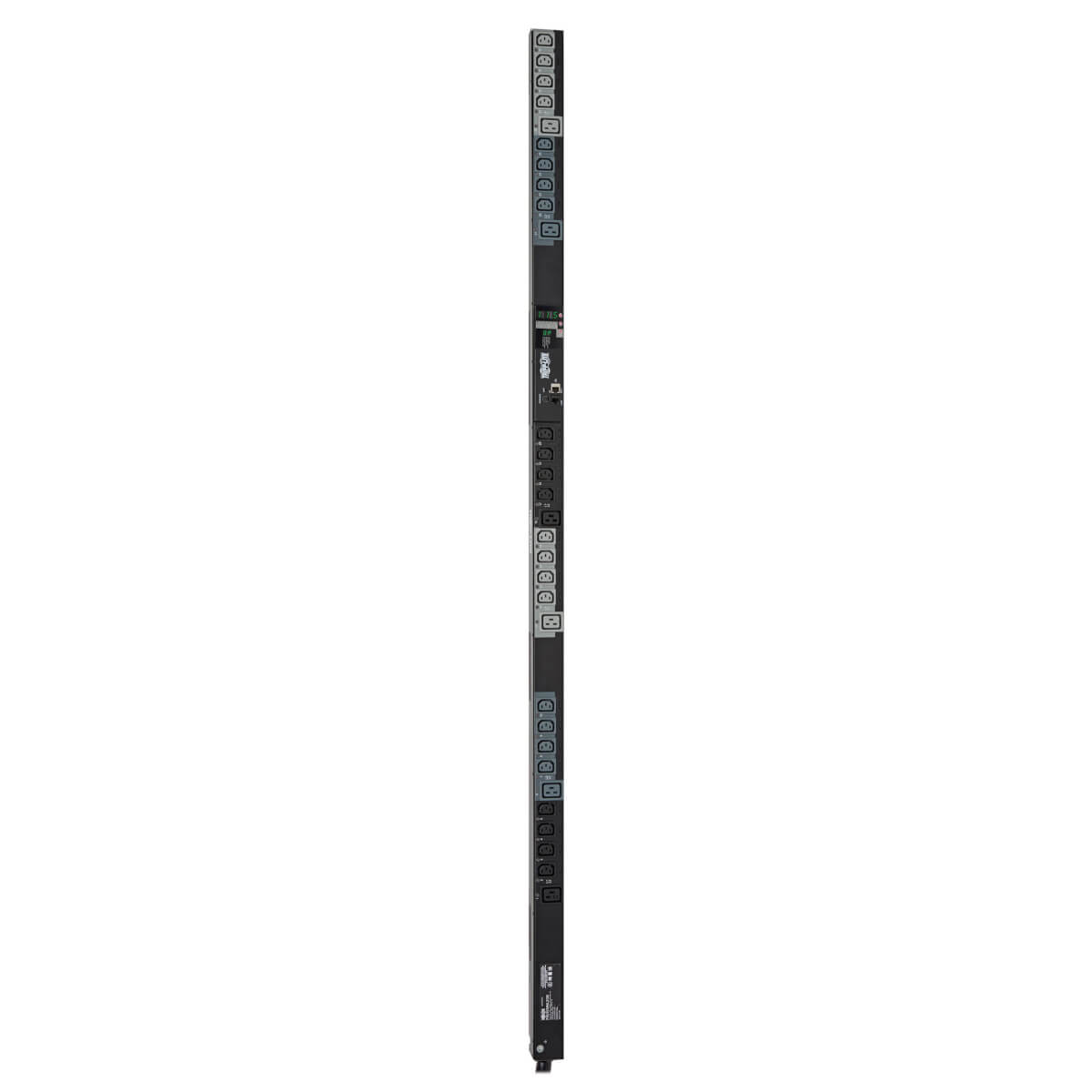

0U, 70 inch / 178cm vertical form factor

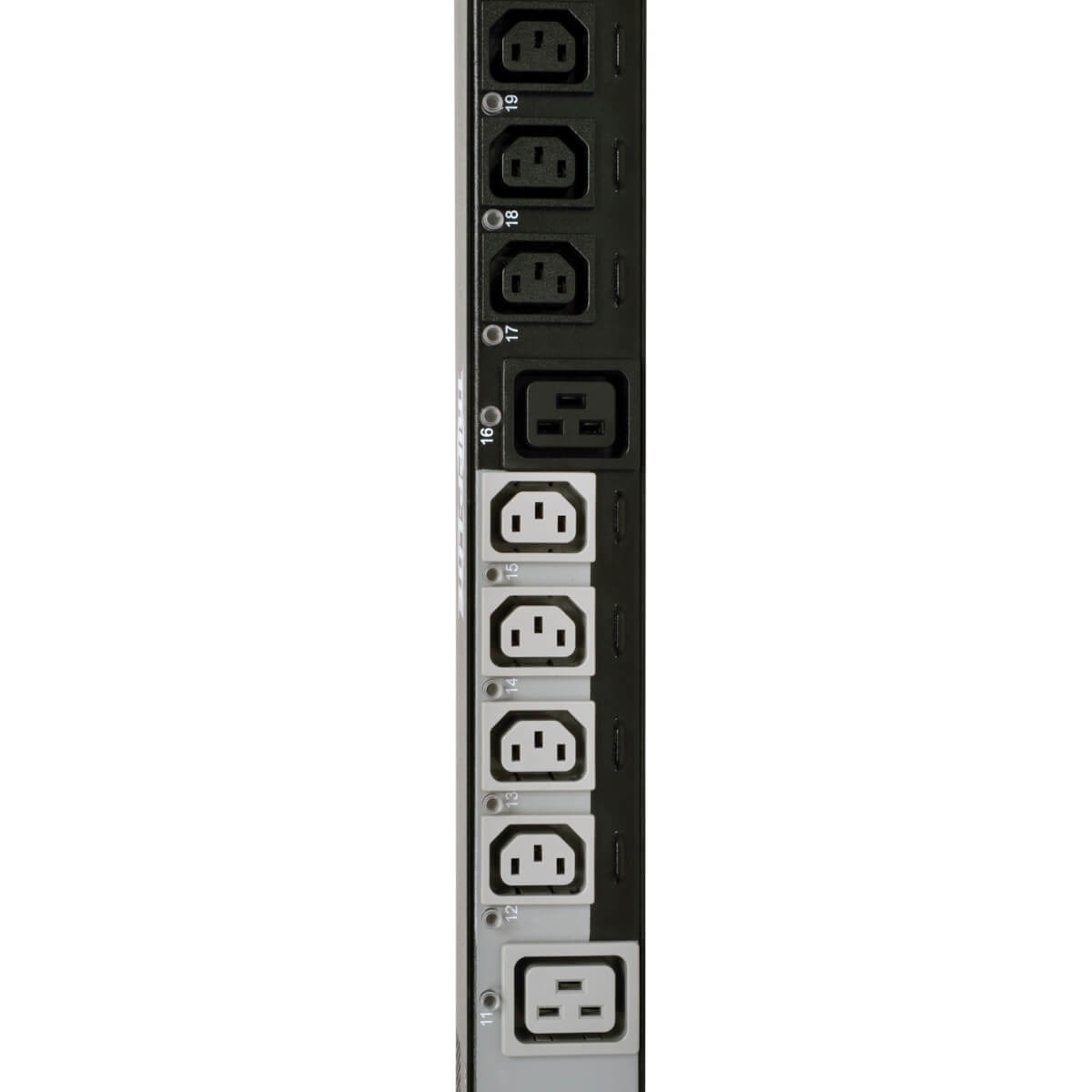

30 switched 208-240V outlets (24 C13, 6 C19) in 3 single phase load banks
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load shedding of optional loads and disabling unused outlets

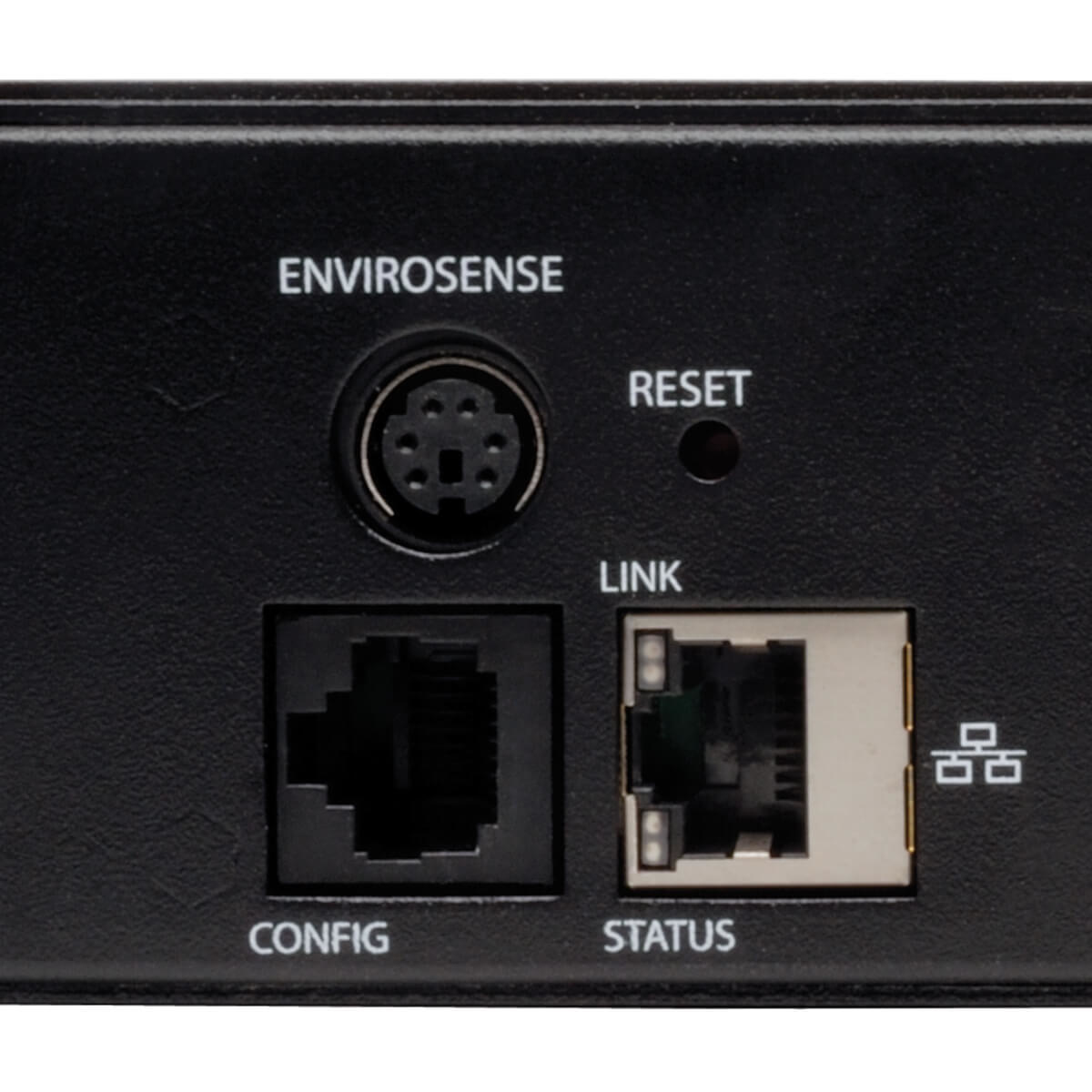

Network interface provides PDU control and data regarding input voltage and load levels per-phase

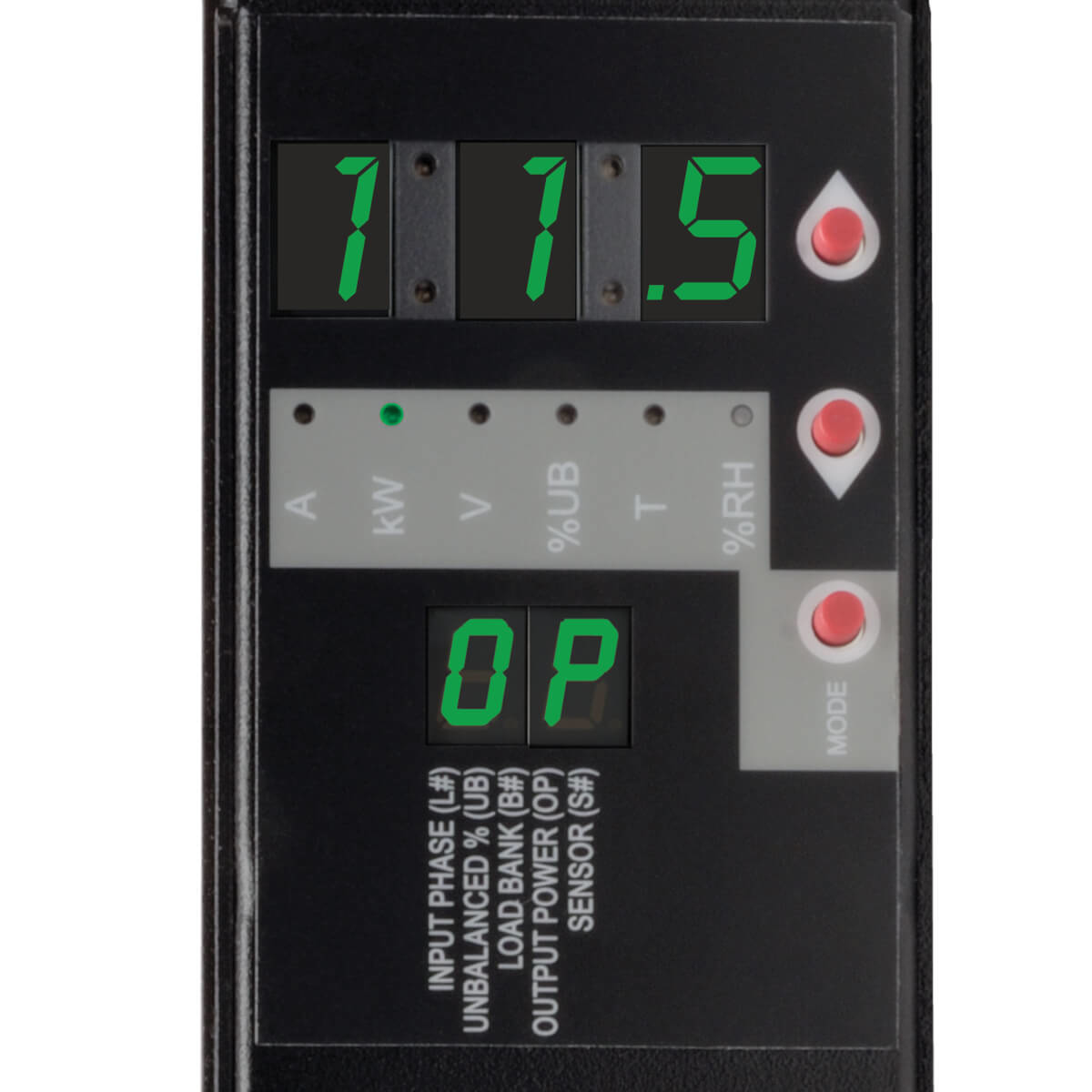

Built-in local digital display and remote web/network interface reports detailed voltage, amperage and kilowatt output values per phase with additional reporting options for power unbalance percentage, IP address and sensor based temperature and humidity data (requires ENVIROSENSE sensor)
In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
Local display supports electronic 180 degree display rotation for overhead or under-floor input cable orientation
Supports user-specified alarm notification thresholds
DHCP/Manual configuration support
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTPP, DHCP, BootP, NTP protocols
Fully compatible with FREE PowerAlert Network Management System / NMS Software

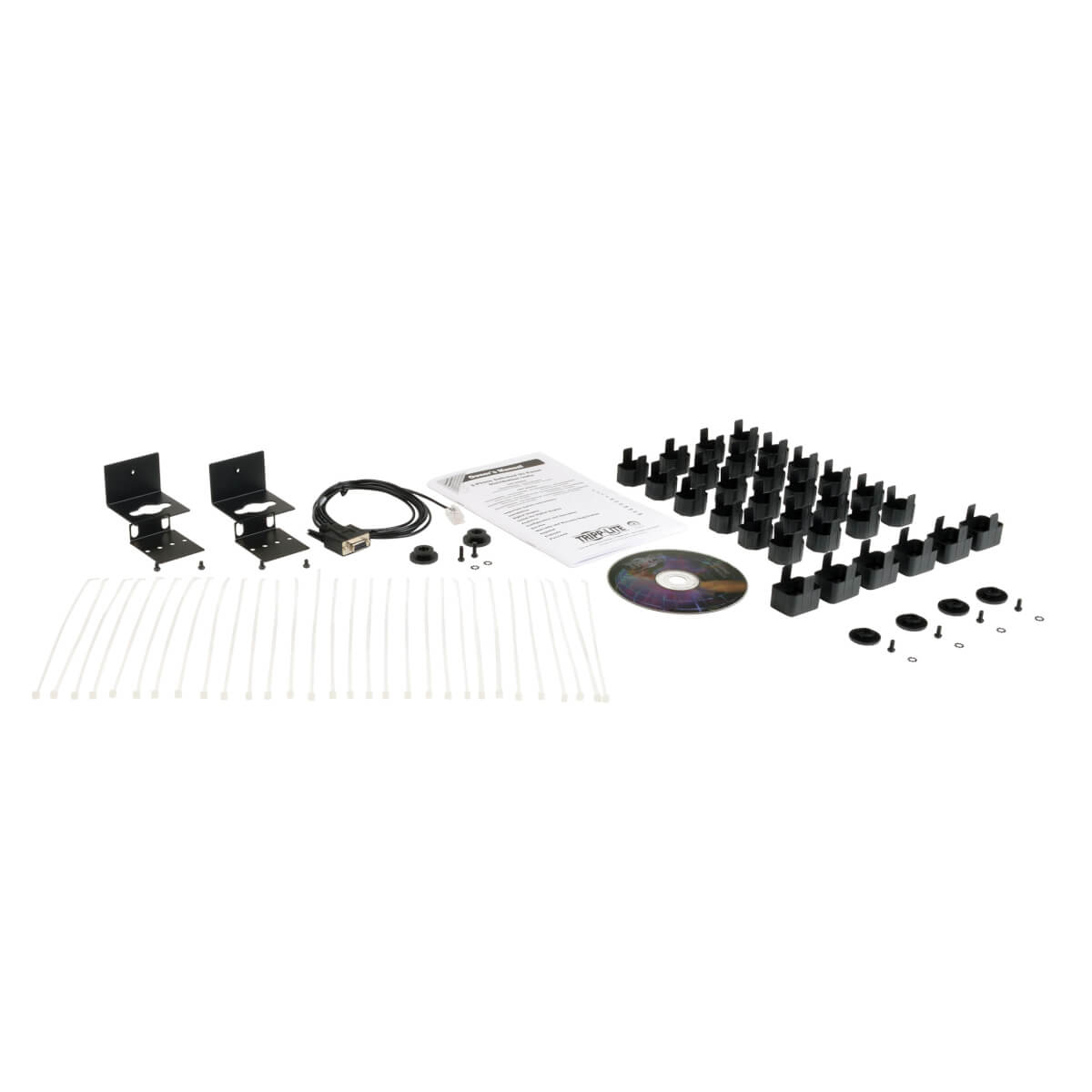

Included set of Plug-lock inserts keep C14 and C20 power cords solidly connected to PDU outlets
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Specifications

Design
On/off switchYes
PDU typesSwitched
MountingVertical
Product colourBlack
CertificationTested to UL60950-1 (USA), CSA (Canada), NOM (Mexico), CE (EN 60950-1), CE / FCC Class A (Emissions), RoHS (Hazardous Substances), TAA Compliant
Rack capacity0U
Housing materialMetal
Ports & interfaces
Master AC outlets quantity24
Slave AC outlets quantity6
AC outlets quantity30 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugIEC309
Ethernet LAN (RJ-45) ports2
Features
LED indicatorsYes
CertificationTested to UL60950-1 (USA), CSA (Canada), NOM (Mexico), CE (EN 60950-1), CE / FCC Class A (Emissions), RoHS (Hazardous Substances), TAA Compliant
Management features
MonitoringCurrent
Ergonomics
LED indicatorsYes
Power
Maximum power11500 W
Nominal input voltage380-415 V
Nominal output voltage200-240 V
Maximum current16 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)2.17 x 2.87 x 70" (55.1 x 73 x 1778 mm)
Weight14.3 lbs (6.47 kg)
Size (imperial)70"
Width2.17" (55.1 mm)
Depth2.86" (72.6 mm)
Height70" (1778 mm)
Package width9.65" (245.1 mm)
Package depth75.9" (1927.1 mm)
Package height6.89" (175 mm)
Package weight21 lbs (9.54 kg)
Package dimensions (WxDxH)9.69 x 75.9 x 6.89" (246 x 1928 x 175 mm)
Packaging data
Package width9.65" (245.1 mm)
Package depth75.9" (1927.1 mm)
Package height6.89" (175 mm)
Package weight21 lbs (9.54 kg)
Package dimensions (WxDxH)9.69 x 75.9 x 6.89" (246 x 1928 x 175 mm)
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)32 - 122 °F
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
