SNMP/Web/Modbus Management Accessory Card for Compatible UPS Systems

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SNMP WEB MANAGEMENT ACCESSORYCARD 811966 Register free see stock
Arlington Industries WEB MANAGEMENT ACCESSORY CARD FOR UPS TRPTLNETCARD
BlueStar TRIPP LITE, UPS WEB MANAGEMENT ACCESSORY CARD, SNMP REMOTE MONITORING TLNETCARD
D&H UPS SNMP Remote Monitor Card TLNETCARD
Ingram Micro UPS SNMP WEB MANAGEMENT CARD 3Q5913
TD Synnex UPS WEB CARD SNMP REMOTE MONITORING 4524756

Related Products

Description

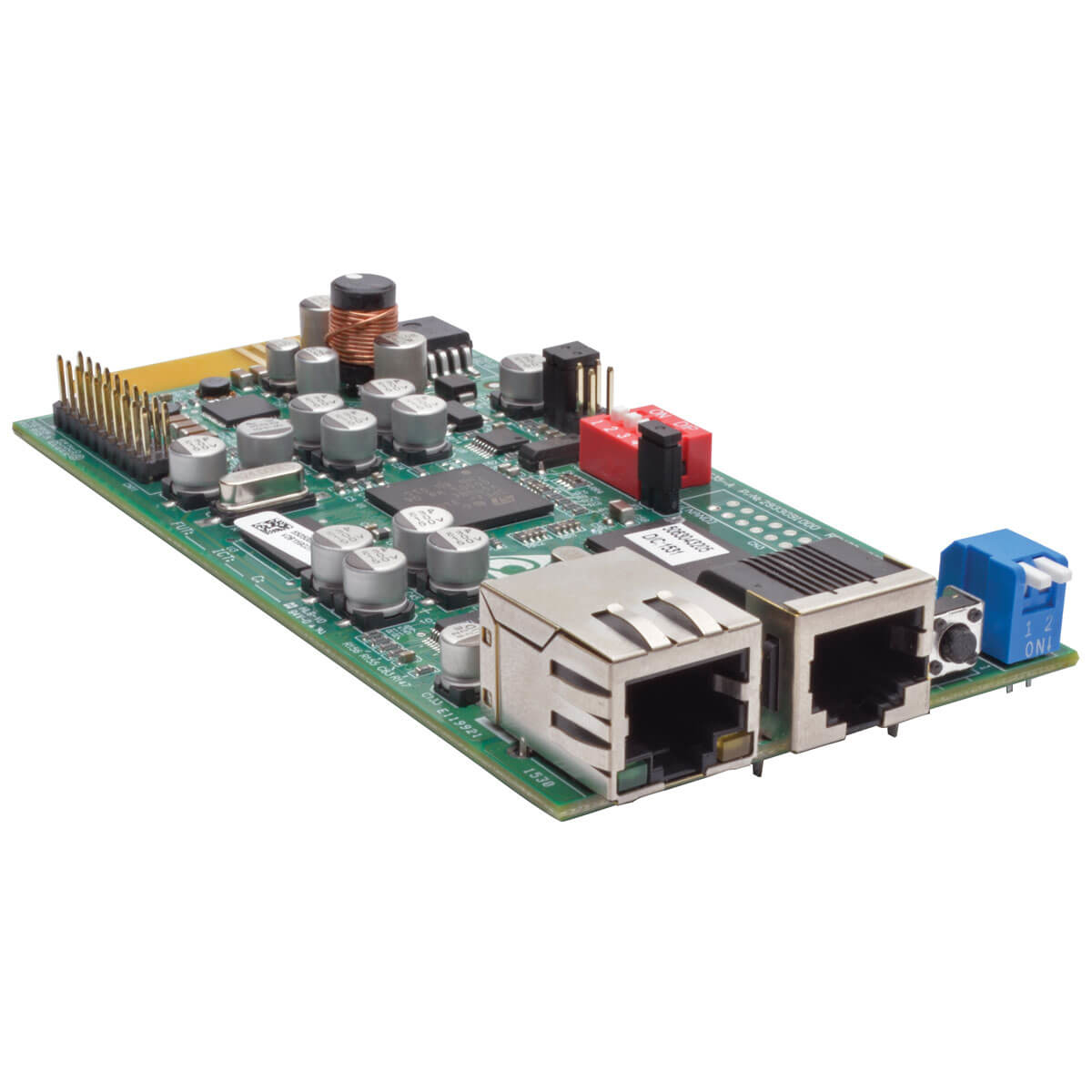

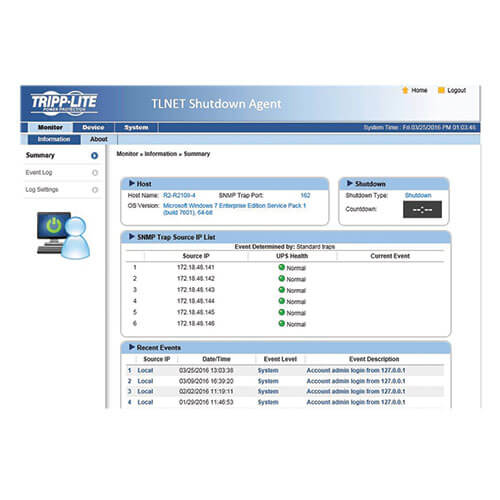

The TLNETCARD turns a compatible* SmartPro® or SmartOnline® UPS with an accessory slot into a device you can manage on your network. By inserting the TLNETCARD into the slot and using an SNMP network management platform, web browser, Modbus TCP, SSH or Telnet, you can monitor and control the UPS in your server room, data center or network closet. The TLNETCARD's intuitive web interface does not require the Java Runtime Environment (JRE)

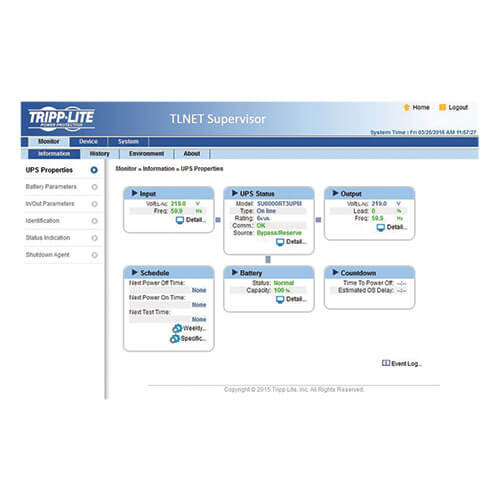

Keep an eye on site electrical data, UPS device status and logged power-related events, such as blackouts, brownouts and overvoltages. Reboot locked network equipment remotely without disrupting power to other devices when using the TLNETCARD with controllable outlets or remotely switchable outlets available on select UPS systems.

Tiered access allows three levels of permissions to be assigned to users for monitoring or controlling the UPS. If an electrical or UPS-related problem occurs on-site, you’ll be notified immediately via email or SNMP trap.

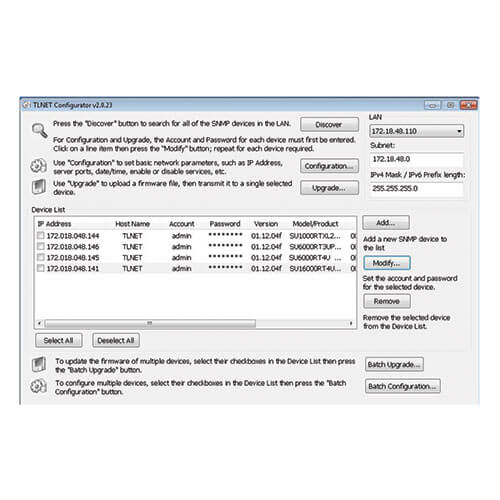

The TLNETCARD lets you configure and schedule automatic UPS-driven actions, perform UPS-related tests and shutdowns, upgrade firmware and upload configurations from the web interface.

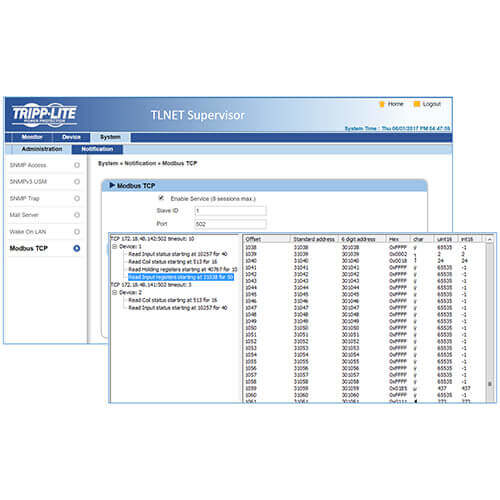

Multiple protocols are supported, including IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv3, Modbus TCP, Telnet, SSH, FTP, DHCP, BOOTP, and SCP. DHCP/manual configuration support enables network settings to be assigned automatically or manually.

* See Documents & Downloads section for a list of compatible devices

Specifications

Features
Product typeNetwork management card
LED indicatorsYes
Ports & interfaces
Host interface26-pin
Ethernet LAN (RJ-45) ports1
Network
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100BaseT(X)
Security algorithmsSNMP, SSH
Management features
Web-based managementYes
Supported network protocolsIPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP and SCP
SyslogYes
Weight & dimensions
Width2.38" (60.5 mm)
Depth5.19" (131.8 mm)
Height0.748" (19 mm)
Weight2.47 oz (70 g)
Package width6.02" (152.9 mm)
Package depth6.1" (154.9 mm)
Package height1.61" (40.9 mm)
Package weight8.82 oz (250 g)

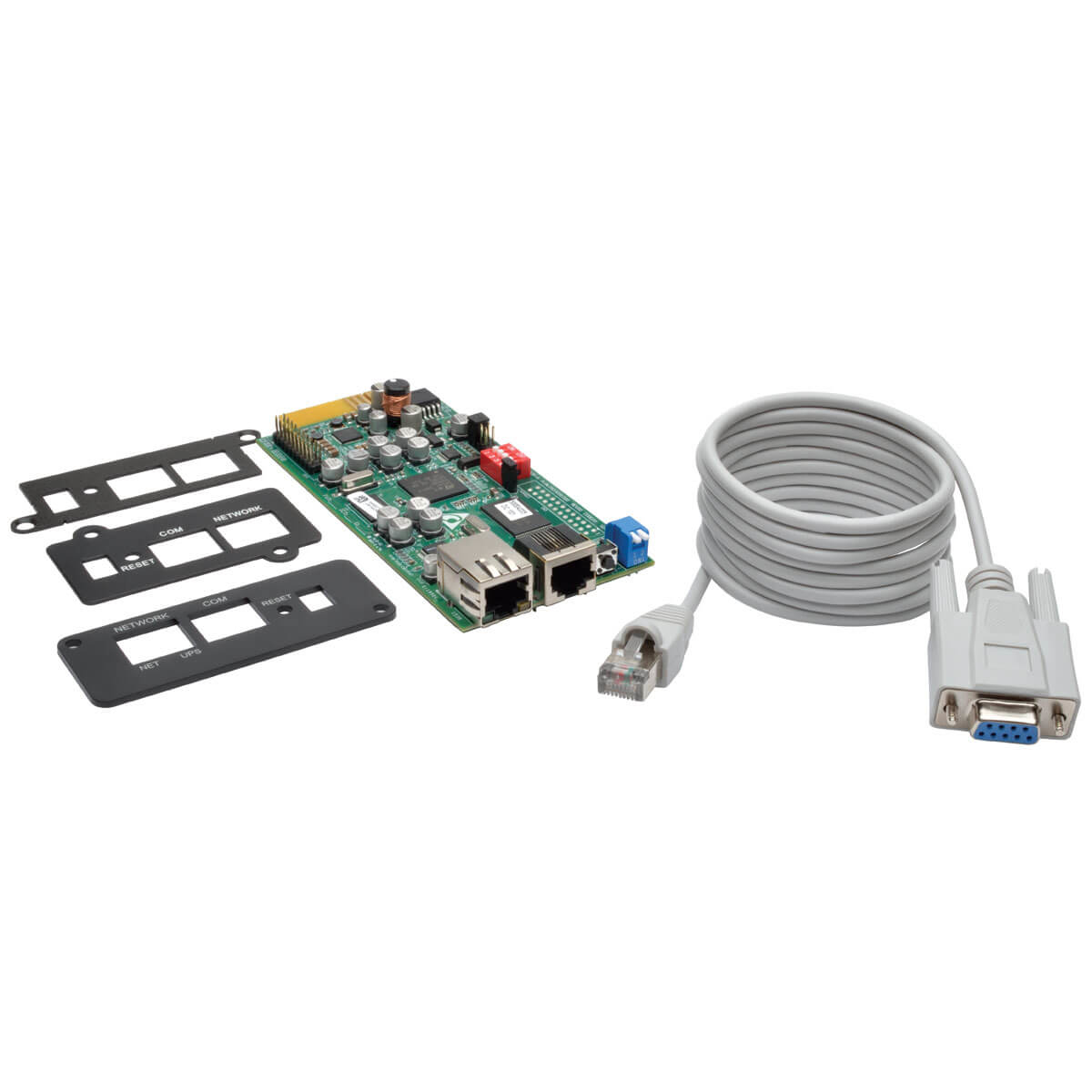

Packaging content
ManualYes
Technical details
Products per master (outer) case21 pc(s)
Master (outer) case width12.1" (307.3 mm)
Master (outer) case gross weight12.5 lbs (5.69 kg)
Master (outer) case length19.1" (485.1 mm)
Master (outer) case height6.5" (165.1 mm)
Master (outer) case GTIN (EAN/UPC)10037332191677
Compliance certificatesRoHS
Logistics data
Country of originChina
Products per master (outer) case21 pc(s)
Master (outer) case width12.1" (307.3 mm)
Master (outer) case gross weight12.5 lbs (5.69 kg)
Master (outer) case length19.1" (485.1 mm)
Master (outer) case height6.5" (165.1 mm)
