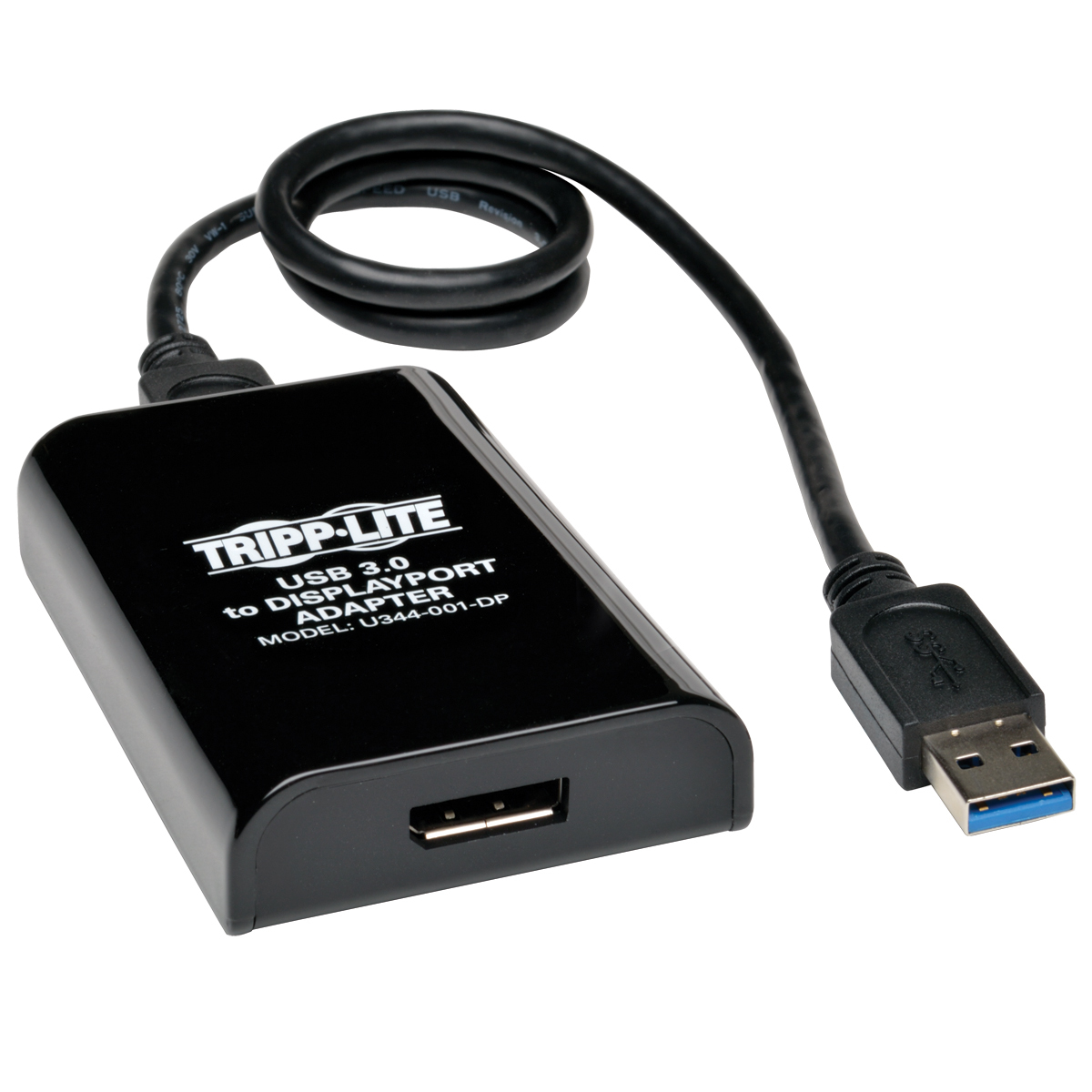

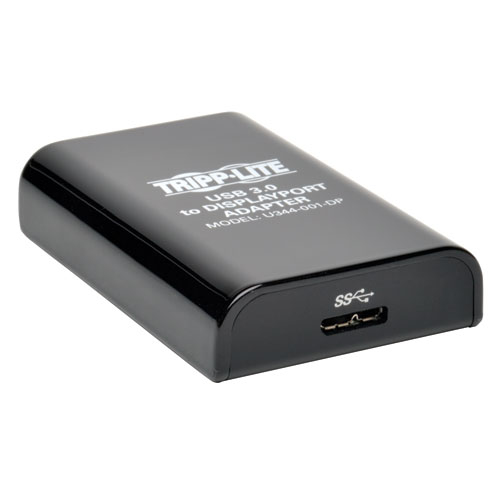

Tripp Lite U344-001-DP USB graphics adapter 2560 x 1600 pixels Black
- Brand: Tripp Lite
- Category:
- SKU: U344-001-DP
- EAN: 0037332180346 5054629730836 03 ...9730836 0373321803460more
USB 3.0 SuperSpeed to DisplayPort Dual-Monitor Cable, 512 MB SDRAM, 2560 x 1600, 1080p
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
USB 3.0 SUPERSPEED TODISPLAYPORT VIDEO ADAPTER |
565640 |
Related Products
-
Category: USB Cables -
Category: USB Cables -
Category: USB Cables -
Category: USB Cables
-
Category: Video Cable Adapters -
Category: Video Cable Adapters
-
Category: Cable Gender Changers
Description
Tripp Lite U344-001-DP USB 3.0 SuperSpeed to DisplayPort Dual-Monitor Cable creates as an external DisplayPort video card via an available USB 3.0 port on your PC or Laptop. Connect up to six DisplayPort enabled monitors, with support for video resolutions up to 2560 x 1600 (1080p) and 5.1 surround sound audio.
Taking advantage of the SuperSpeed USB 3.0 interface ( 5Gbps), the external video graphics card adapter delivers smooth, high-definition content to your DisplayPort-capable display, and can be used to clone the image on multiple displays, or extended across them. Windows and Intel Mac compatible.

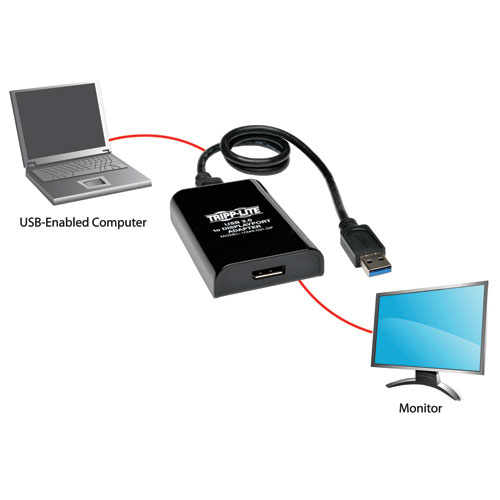

● Adds an additional monitor, LCD or projector through a single USB 3.0 port
● USB 3.0 is 10 times faster than USB 2.0, with transfer rates up to 5 Gbps
● Backward compatible with USB 2.0
● Simultaneously connect up to 6 display adapters
● Automatically resumes from hibernation and suspend modes
● Features 512MB DDR2 SDRAM of memory
● Supports video resolutions up to 2560 x 1600 @ 60Hz
● Video streaming is supported up to 1080p
● Set additional monitors to extend the primary display, duplicate the primary display, or set an additional monitor as the primary display
● Compatible with Windows 7 and later. Supports both 32- and 64-bit.
● Supports Surface tablets running non-RT Windows 8, 8.1 and 10.
● Compatible with Intel Mac OS X 10.8.5 and later, Mac 10.11. Supports both 32- and 64-bit.
● Mac OS X versions 10.8.5 and earlier do not support audio over USB 3.0. Mac OS X versions 10.7.x and earlier do not support USB 3.0.
● Uses DisplayLink DL3500 chipset
● Add an additional DisplayPort monitor through a single USB 3.0 port
● Windows and Intel Mac compatible
● Up to six adapters can be added to one computer
● Features 512MB DDR2 SDRAM of memory
● Supports video resolutions up to 2560 x 1600 @ 60Hz
● Compatible with Ubuntu 14.04.2
System Requirements
● Compatible with Windows 7 and later. Supports both 32- and 64-bit.
● Supports Surface tablets running non-RT Windows 8, 8.1 and 10.
● Compatible with Intel Mac OS X 10.8.5 and later, Mac 10.11. Supports both 32- and 64-bit.
● Mac OS X versions 10.8.5 and earlier do not support audio over USB 3.0. Mac OS X versions 10.7.x and earlier do not support USB 3.0.
● Reference the owner's manual for system requirements when using multiple adapters or when using the add-on monitor for DVD playback.

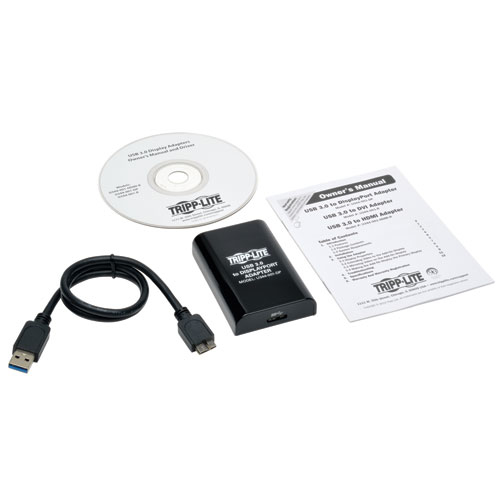

Package Includes
● U344-001-DP USB 3.0 SuperSpeed to DisplayPort Dual-Monitor Cable
● Driver CD
● USB 3.0 Cable
● Owners Manual
Taking advantage of the SuperSpeed USB 3.0 interface ( 5Gbps), the external video graphics card adapter delivers smooth, high-definition content to your DisplayPort-capable display, and can be used to clone the image on multiple displays, or extended across them. Windows and Intel Mac compatible.
● Adds an additional monitor, LCD or projector through a single USB 3.0 port
● USB 3.0 is 10 times faster than USB 2.0, with transfer rates up to 5 Gbps
● Backward compatible with USB 2.0
● Simultaneously connect up to 6 display adapters
● Automatically resumes from hibernation and suspend modes
● Features 512MB DDR2 SDRAM of memory
● Supports video resolutions up to 2560 x 1600 @ 60Hz
● Video streaming is supported up to 1080p
● Set additional monitors to extend the primary display, duplicate the primary display, or set an additional monitor as the primary display
● Compatible with Windows 7 and later. Supports both 32- and 64-bit.
● Supports Surface tablets running non-RT Windows 8, 8.1 and 10.
● Compatible with Intel Mac OS X 10.8.5 and later, Mac 10.11. Supports both 32- and 64-bit.
● Mac OS X versions 10.8.5 and earlier do not support audio over USB 3.0. Mac OS X versions 10.7.x and earlier do not support USB 3.0.
● Uses DisplayLink DL3500 chipset
● Add an additional DisplayPort monitor through a single USB 3.0 port
● Windows and Intel Mac compatible
● Up to six adapters can be added to one computer
● Features 512MB DDR2 SDRAM of memory
● Supports video resolutions up to 2560 x 1600 @ 60Hz
● Compatible with Ubuntu 14.04.2
System Requirements
● Compatible with Windows 7 and later. Supports both 32- and 64-bit.
● Supports Surface tablets running non-RT Windows 8, 8.1 and 10.
● Compatible with Intel Mac OS X 10.8.5 and later, Mac 10.11. Supports both 32- and 64-bit.
● Mac OS X versions 10.8.5 and earlier do not support audio over USB 3.0. Mac OS X versions 10.7.x and earlier do not support USB 3.0.
● Reference the owner's manual for system requirements when using multiple adapters or when using the add-on monitor for DVD playback.
Package Includes
● U344-001-DP USB 3.0 SuperSpeed to DisplayPort Dual-Monitor Cable
● Driver CD
● USB 3.0 Cable
● Owners Manual
Specifications
| Performance | |
|---|---|
| Maximum resolution | 2560 x 1600 pixels |
| Design | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 3.19" (81 mm) |
| Depth | 1" (25.4 mm) |
| Height | 0.394" (10 mm) |
| Weight | 11.2 oz (317 g) |
| Package width | 5" (127 mm) |
| Package depth | 6" (152.4 mm) |
| Package height | 1" (25.4 mm) |
| Package weight | 6.35 oz (180 g) |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Packaging data | |
| Package width | 5" (127 mm) |
| Package depth | 6" (152.4 mm) |
| Package height | 1" (25.4 mm) |
| Package weight | 6.35 oz (180 g) |
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 6.8" (172.7 mm) |
| Master (outer) case gross weight | 8.51 lbs (3.86 kg) |
| Master (outer) case length | 12.8" (325.1 mm) |
| Master (outer) case height | 11.4" (289.6 mm) |
