Tripp Lite B004-DUA2-K-R KVM switch Silver

Tripp Lite B004-DUA2-K-R KVM switch Silver

  • Brand: Tripp Lite
  • Category:
  • SKU: B004-DUA2-K-R
  • EAN: 0999992530858 0191120033037 08 ...0033037 0803982757418 0763615807111 0373321400362 0806291832470 0037332140036more
2-Port DVI/USB KVM Switch w/ Audio and Cables

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 2 PORT KVM SWITCHDVI/USB 381645 Register free see stock
BlueStar TRIPP LITE, 2 PORT KVM SWITCH (DVI/USB) WITH AUDIO & CABLES, DESKTOP B004-DUA2-K-R

Related Products

Description

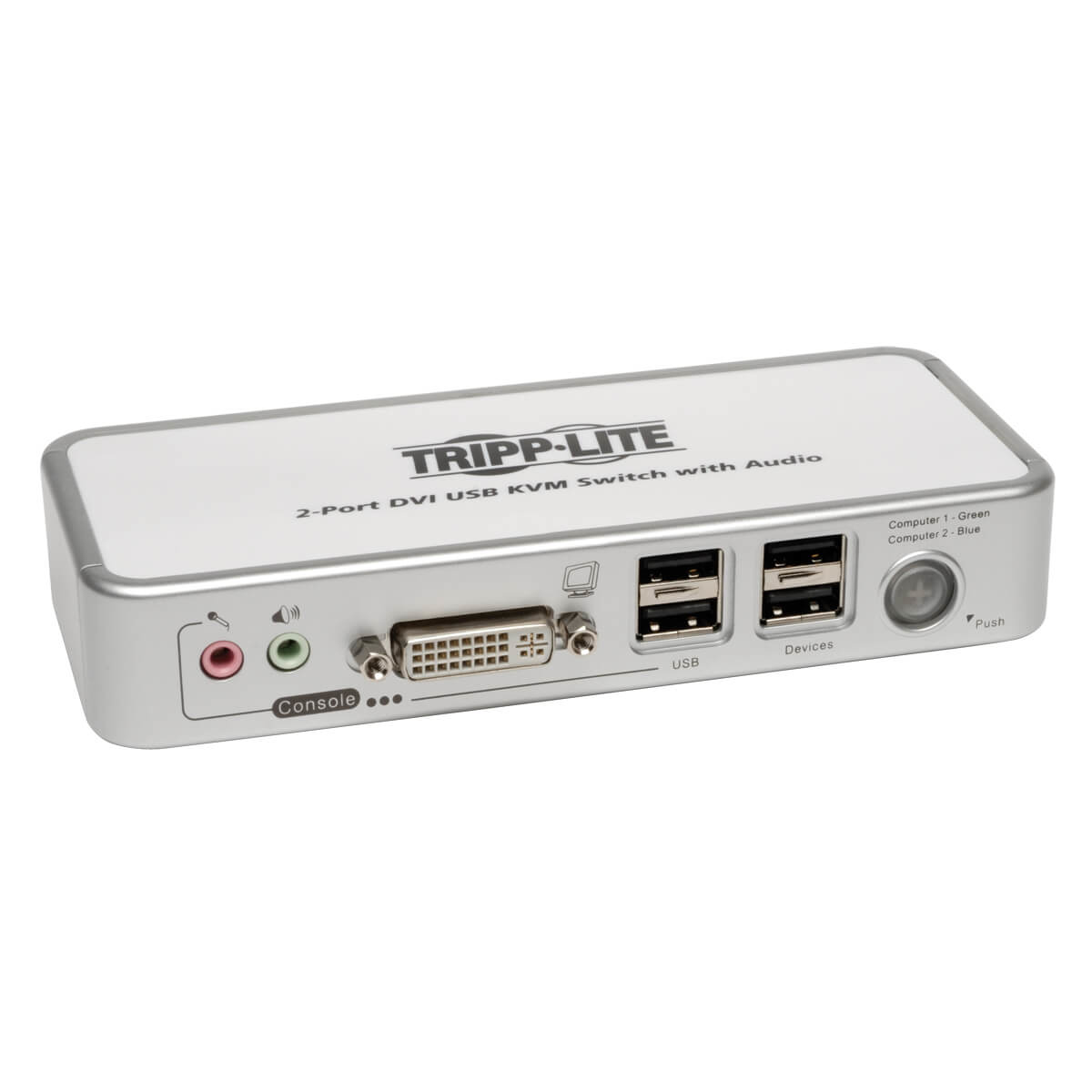

The B004-DUA2-K-R is a 2-Port DVI/USB KVM Switch with audio and USB 2.0 peripheral sharing. It allows you to access, control, boot and reboot two computers from a single USB keyboard, USB mouse, and monitor. Switching between connected computers is quick and simple using keyboard hotkeys or pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.

The B004-DUA2-K-R uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. Whichever you use, full time DDC support provides the necessary EDID information required for optimal video performance on Windows 7 and other operating systems. Compatible with all major operating systems.

● Fast, easy switching via keyboard hotkeys or pushbuttons
● Plug-and-play setup - no software required
● Hot-swap capability allows easy addition or removal of computers without powering down the switch or other computers
● Speaker and microphone connections allow for the sharing of audio components between systems
● Independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.
● Supports 2-Channel Stereo Audio
● Features two USB 2.0 ports for the sharing of USB peripherals (e.g. flash drives, printers, etc.) between the connected computers
● Uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor.
● To connect to a HDMI monitor, a DVI to HDMI adapter such as Tripp Lite's P132-000 is required (Audio is not supported when converting from DVI to HDMI).
● Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems
● Supports Microsoft® IntelliMouse® and the scrolling wheel on most mice
● (x2) 1.22 m USB cables and (x2) 1.22 m DVI + Audio KVM cable kits included
● Compatible with all major operating systems


● Control 2 computers with a single DVI monitor, USB keyboard and USB mouse

● Switch ports via keyboard hotkeys or pushbuttons

● Allows for the sharing of audio components between systems; listen to music from one computer while accessing another

● Features two USB 2.0 ports for the sharing of USB peripherals between the connected computers

● (x2) 1.22 m USB cables and (x2) 1.22 m DVI + Audio KVM cable kits included

● Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems

● Compatible with all major operating systems

System Requirements

● KVM Console: A DVI monitor, USB keyboard, and USB mouse
● Computers: DVI-I port (P118-000 DVI-I to DVI-D Adapter is required for computers with DVI-D ports), and USB Port
● Audio (Optional): A microphone and speakers with 3.5mm Mini-Stereo connectors and a computer with 3.5mm Mini-Stereo ports
● Compatible with all major operating systems

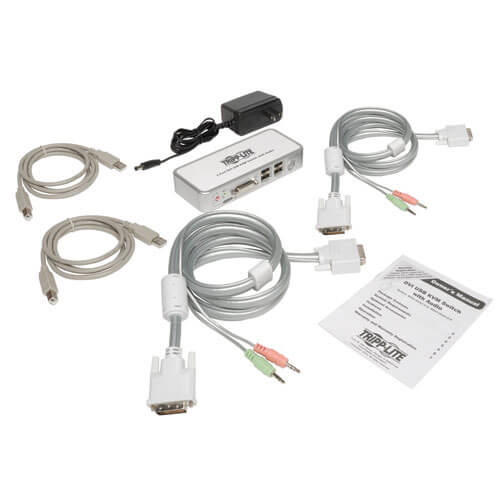

Package Includes


● B004-DUA2-K-R
● (x2) 4 ft. DVI-I + 3.5mm Audio Cable kits
● (x2) 4 ft. USB A-B Device Cables
● Owner's Manual
● External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.4A Output: 5V, 2A)

Specifications

Ports & interfaces
Number of microphone inputs1
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Audio connectionsYes
USB 2.0 ports quantity6
Headphone outputs1
DVI-I ports quantity2
DC-in jackYes
Cable length70.9" (1.8 m)
Performance
Maximum resolution2048 x 1536 pixels
Number of users1 user(s)
Technical details
Product colourSilver
Number of users1 user(s)
Compliance certificatesRoHS
Design
Product colourSilver
Cable length70.9" (1.8 m)
CertificationFCC, CE
Country of originChina
Display
Built-in displayNo
Power
Input current0.4 A
Output current2 A
AC input frequency50 - 60 Hz
External power adapterYes
Input voltage100-240 V
Video
Maximum resolution2048 x 1536 pixels
Features
Country of originChina
Sustainability
Compliance certificatesRoHS
Weight & dimensions
Width6" (152.4 mm)
Depth2.5" (63.5 mm)
Height1" (25.4 mm)
Weight5.64 oz (160 g)
Package width8.2" (208.3 mm)
Package depth7.1" (180.3 mm)
Package height5.6" (142.2 mm)
Package weight2.91 lbs (1.32 kg)
Packaging data
Package width8.2" (208.3 mm)
Package depth7.1" (180.3 mm)
Package height5.6" (142.2 mm)
Package weight2.91 lbs (1.32 kg)
Packaging content
Cables includedAudio (3.5mm), DC, DVI, USB
Certificates
CertificationFCC, CE
Other features
Connectivity technologyWired
Logistics data
Country of originChina
Master (outer) case width17.3" (439.4 mm)
Master (outer) case length16.9" (429.3 mm)
Master (outer) case height15.4" (391.2 mm)
Master (outer) case gross weight36.2 lbs (16.4 kg)
Products per master (outer) case12 pc(s)
Master (outer) case GTIN (EAN/UPC)20037332140030
Harmonized System (HS) code8517.62.0020
