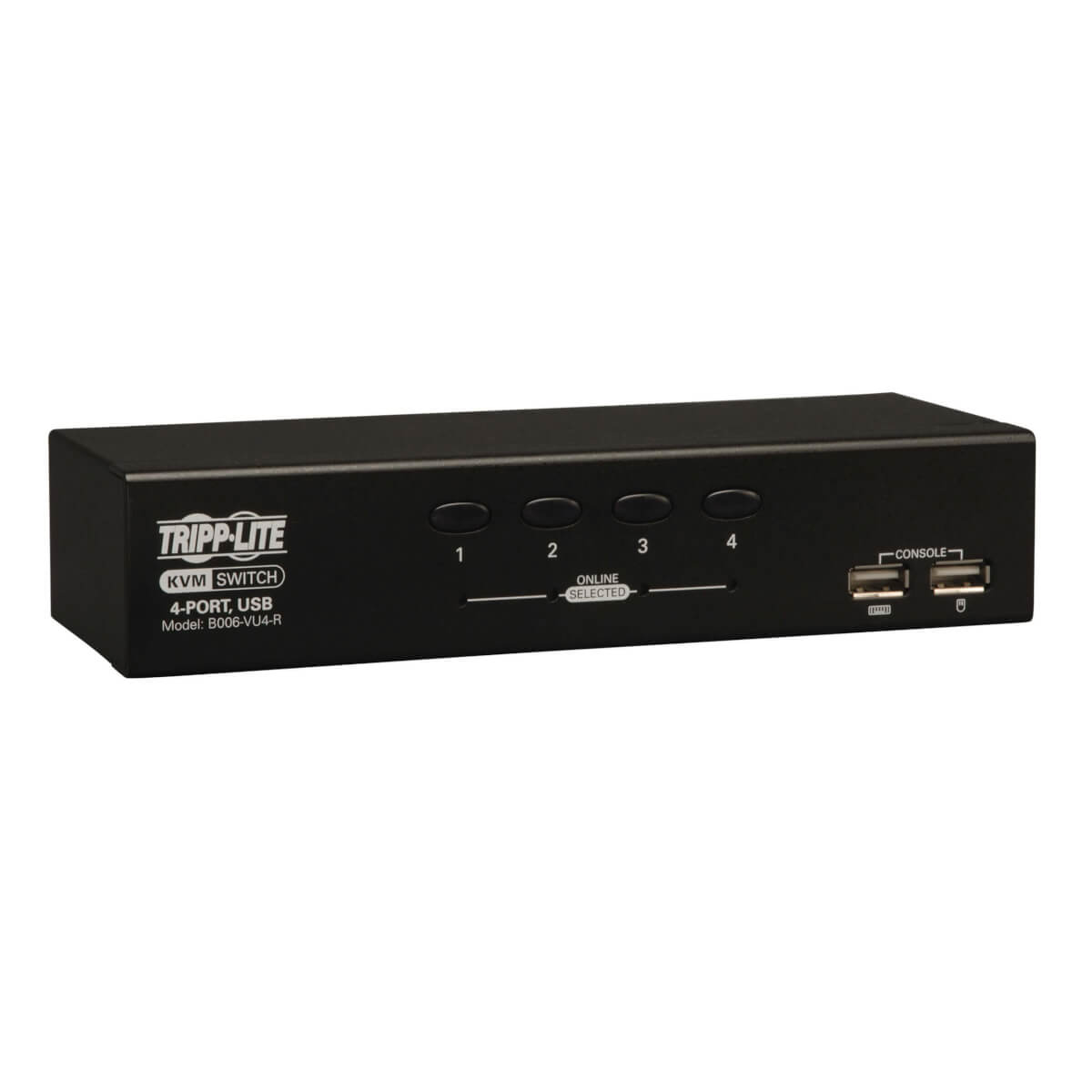

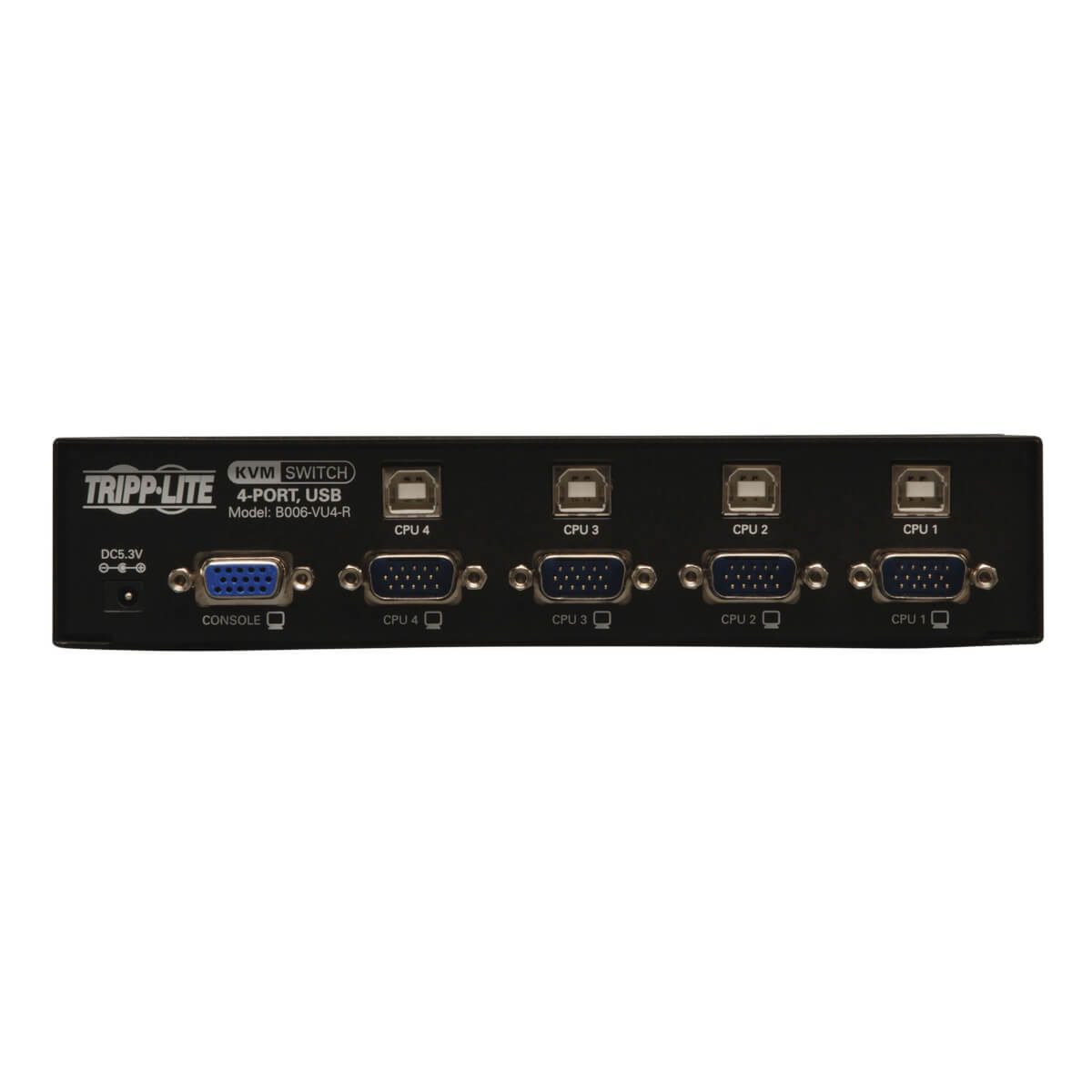

Tripp Lite B006-VU4-R KVM switch Black

Tripp Lite B006-VU4-R KVM switch Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B006-VU4-R
  • EAN: 0037332152947 0172302706802 71 ...2706802 7123290478601 0042035809449 0071030421738 0373321529476 0151903028087 5554442224920 7887117196047 0132018149058 0638865682262 0168141486371 5436639784359 0163120310784 0763615807159 0734911135772 0112840346191 0640206671699more
4-Port Desktop KVM Switch (USB)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter KVM SWITCH - 4-PORTDESKTOP KVM SWITCH (USB) 525943 Register free see stock
Arlington Industries 4-P0RT USB/VGA DESKTOP KVM SWITCH TRPB006-VU4-R
BlueStar TRIPP LITE, EOL, REPLACED BY B006-VUA4-K-R, 4 PORT DESKTOP KVM SWITH, USB B006-VU4-R

Related Products

Description

Tripp Lite's 4-port Desktop USB KVM Switch is the optimal solution for controlling up to 4 USB computers from one VGA monitor and USB keyboard/mouse. Manually switch between connected computers using pushbuttons or hotkey controls; or, monitor connected computers automatically via Auto Scan Mode. The B006-VU4-R is operating system independent, and works with all computers that have an available VGA and USB port. It supports video resolutions up to 2048 x 1536, and features a compact design that does not require software or complicated set-up procedures. Constructed of heavy-duty steel housing. Order P758 Cables separately.

● Control up to 4 USB computers from a single VGA monitor and USB keyboard/mouse
● Order P758 Cables separately
● Port LEDs illuminate Light Orange to indicate a computer is connected, and Bright Orange to indicate it is the selected port
● Supports video resolutions up to 2048 x 1536, DDC2B
● No software or complicated set-up procedures required
● Manually switch between connected computers via front panel pushbuttons or hotkey commands
● Automatically monitor connected computers via Auto Scan Mode
● Compatible with all major operating systems
● Compatibile with most mice; including scroll mice
● Constructed of heavy-duty steel housing


● Control up to 4 USB computers from a single VGA monitor and USB keyboard/mouse

● Switch between connected computers via pushbuttons or hotkey commands

● Auto Scan Mode allows monitoring of connected computers without manually switching between them

● Compatible with all major operating systems

● Supports video resolutions up to 2048 x 1536, DDC2B

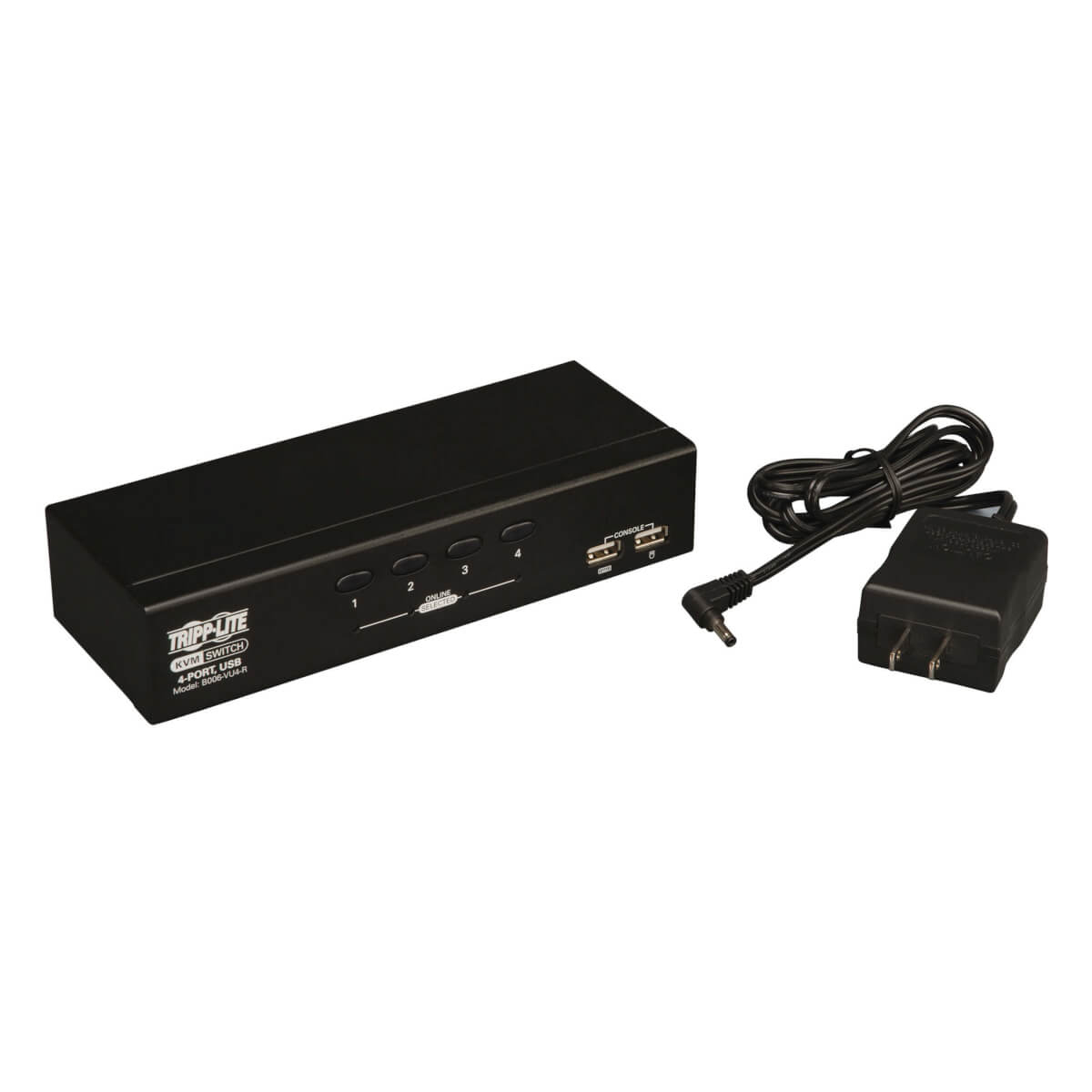

Package Includes

● B006-VU4-R 4-port USB KVM Switch
● External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A / Output: 5.3V, 190mA)
● Owner's manual

Specifications

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
USB 2.0 ports quantity6
VGA (D-Sub) ports quantity5
DC-in jackYes
Performance
Maximum resolution2048 x 1536 pixels
Technical details
Product colourBlack
LED indicatorsYes
Weight (imperial)1.5 lbs
Compliance certificatesRoHS
Design
Product colourBlack
LED indicatorsYes
Country of originChina
Display
Built-in displayNo
Power
Input current0.5 A
AC input frequency50 - 60 Hz
External power adapterYes
Input voltage100-230 V
Video
Maximum resolution2048 x 1536 pixels
Features
Country of originChina
Sustainability
Compliance certificatesRoHS
Weight & dimensions
Width7.9" (200.7 mm)
Depth2.9" (73.7 mm)
Height1.7" (43.2 mm)
Weight24 oz (680 g)
Package width9.8" (248.9 mm)
Package depth8.7" (221 mm)
Package height3.5" (88.9 mm)
Package weight2.2 lbs (1 kg)
Packaging data
Package width9.8" (248.9 mm)
Package depth8.7" (221 mm)
Package height3.5" (88.9 mm)
Package weight2.2 lbs (1 kg)
Packaging content
ManualYes
AC adapter includedYes
Other features
Connectivity technologyWired
Weight (imperial)1.5 lbs
Logistics data
Country of originChina
Master (outer) case width19.3" (490.2 mm)
Master (outer) case length13.3" (337.8 mm)
Master (outer) case height12.4" (315 mm)
Master (outer) case gross weight46.3 lbs (21 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332152944
Harmonized System (HS) code8471.80.1000
