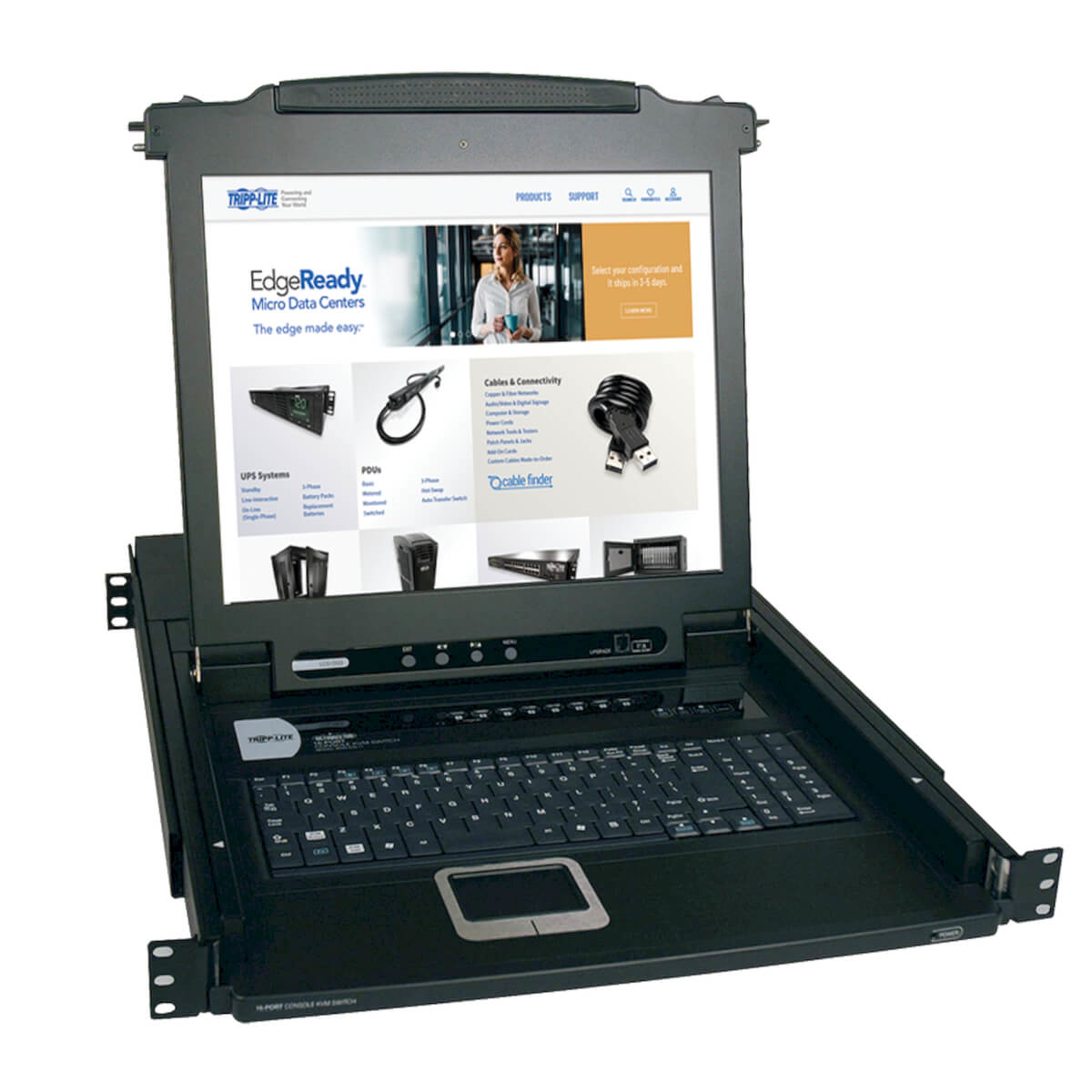

Tripp Lite’s B020-008-17 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers to up
to 256 by daisy-chaining up to 31 B022-U08 KVM switches


The B020-008-17 has a built-in 17” LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.

This switch controls PS/2 or USB computers/servers using a P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit (one of each is included). An extra HD15 port allows an additional VGA monitor to be connected. Two PS/2 ports also are included on the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. When not in use, the B020-008-17 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems (special keys on Mac and Sun keyboards are not supported). Heavy-duty steel housing stands up to frequent use.

Saves Valuable Space and Money

● Combines an 8-port KVM switch, 17" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
● Mounts into 19”-wide rack, 24”-37” deep
● Gives you control of up to 8 computers/servers from a single, easily accessible console – ideal when rack space is at a premium
● Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
● Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

● Switch quickly and easily between the 8 ports via on-console buttons, on-screen display or keyboard hot key commands
● Hot pluggable; add or remove computers without having to power down the switch
● Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 17” LCD

● Wide display makes multitasking easier
● Supports video resolutions up to 1280 x 1024
● DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD

Multi-Level Password Security

● Enhances security by limiting access to an administrator and up to 4 local users
● Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

● Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
● Includes additional HD15 VGA monitor port and PS/2 keyboard/mouse ports for connecting an external console or a Tripp Lite B051-000 IP Remote Access Unit
● Compatible with all major operating systems for easy integration into your existing structure (special keys on Mac and Sun keyboards are not supported)
● Firmware is easily upgradable with included cable and utility
● Heavy-duty steel housing stands up to frequent use


● Occupies just 1U of space in a rack-mountable drawer

● 17” LCD screen supports video resolutions up to 1280 x 1024

● Simplifies IT tasks with easy switching between all 8 ports

● Provides 2-level password security (administrator and user)

● Compatible with all operating systems

System Requirements


● PS/2 or USB computer
● (1) P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit is required for each connected computer/server
● Compatible with all major operating systems (special keys on Mac and Sun keyboards are supported)
● Power consumption: 120V, 60Hz, 22.8W; 230V, 50Hz, 24W

Package Includes


● B020-008-17 8-Port Console KVM Switch with 17" LCD
● P774-Series 6 ft. PS/2 KVM Cable Kit
● P776-Series 6 ft. USB KVM Cable Kit
● C13 to 5-15P power cord
● RJ11 to DB9 firmware upgrade cable
● Owner’s Manual CD
