Tripp Lite N286-01GTX network transceiver module Copper 1000 Mbit/s SFP+
- Brand: Tripp Lite
- Category:
- SKU: N286-01GTX
- EAN: 0037332197412
Cisco-Compatible GLC-T SFP Mini Transceiver, 1000Base-TX Copper RJ45, Cat5e, Cat6, 328.08 ft. (100 m)
Offer details
Trade Prices
Description

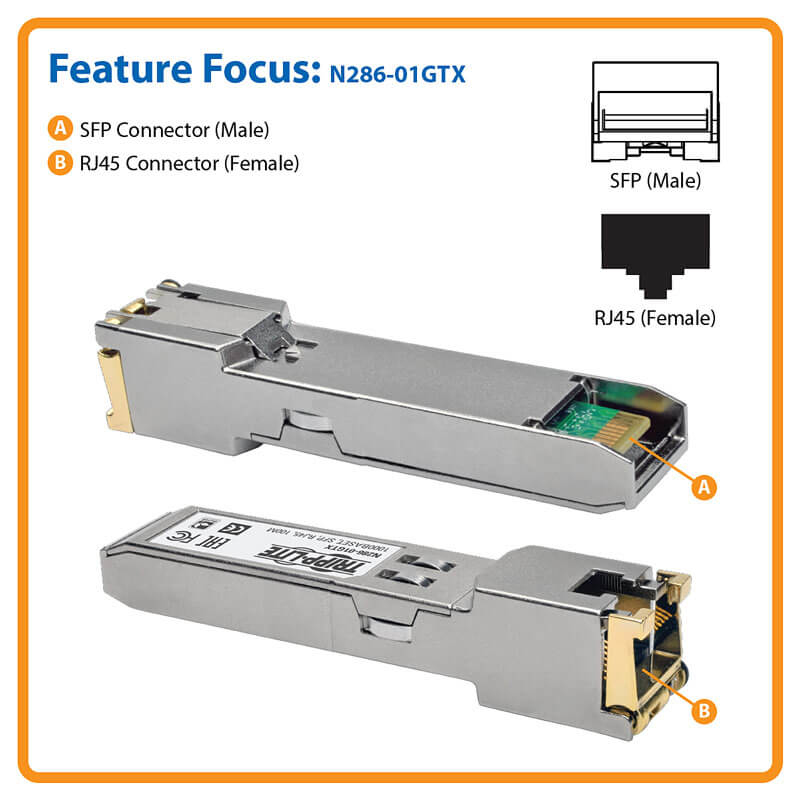

The N286-01GTX Cisco GLC-T Compatible 1000Base-TX Copper RJ45 SFP Mini Transceiver with an RJ45 Ethernet connector functions just like the Cisco® GLC-T transceiver module and is designed to operate with Cisco networking equipment. It also meets or exceeds the GLC-T's original specifications and complies with MSA standards.
This 1000Base-TX copper transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with auto-negotiation up to 328.08-ft. (100 m) and automatic MDI/MDI-X crossover support. Its metallic housing allows low EMI and power dissipation. It supports up to 1.25 Gbps bi-directional communication.
This 1000Base-TX copper transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 1 Gbps with auto-negotiation up to 328.08-ft. (100 m) and automatic MDI/MDI-X crossover support. Its metallic housing allows low EMI and power dissipation. It supports up to 1.25 Gbps bi-directional communication.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Copper |
| Interface type | SFP+ |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 3937" (100 m) |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | No |
| Country of origin | China |
| Product colour | Metallic |
| Hot-Plug support | Yes |
| Brand compatibility | Cisco |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Metallic |
| Hot-Plug support | Yes |
| Brand compatibility | Cisco |
| Country of origin | China |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Network | |
| SFP transceiver type | Copper |
| Interface type | SFP+ |
| Maximum data transfer rate | 1000 Mbit/s |
| Weight & dimensions | |
| Width | 5.2" (132 mm) |
| Depth | 22.4" (569 mm) |
| Height | 3.31" (84 mm) |
| Weight | 0.705 oz (20 g) |
| Package depth | 2.2" (55.9 mm) |
| Package width | 4.6" (116.8 mm) |
| Package height | 1.1" (27.9 mm) |
| Package weight | 1.76 oz (50 g) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package depth | 2.2" (55.9 mm) |
| Package width | 4.6" (116.8 mm) |
| Package height | 1.1" (27.9 mm) |
| Package weight | 1.76 oz (50 g) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332197419 |
| Compliance certificates | RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Master (outer) case width | 10.8" (274.3 mm) |
| Master (outer) case length | 6.5" (165.1 mm) |
| Master (outer) case height | 2.4" (61 mm) |
| Master (outer) case gross weight | 19.4 oz (550 g) |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case GTIN (EAN/UPC) | 10037332197419 |
