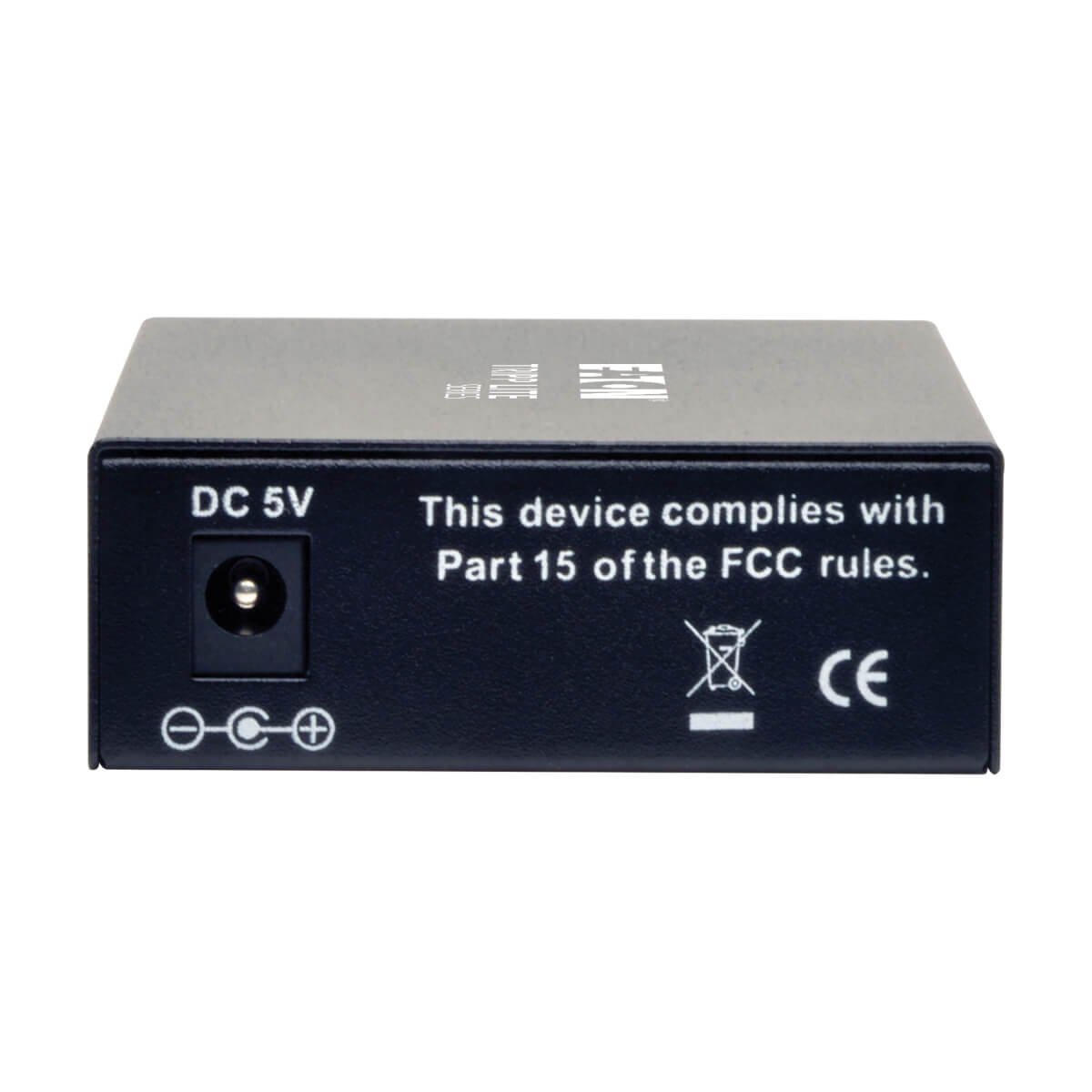

Tripp Lite N784-001-SC-MM network media converter 100 Mbit/s 850 nm Multi-mode Black
- Brand: Eaton
- Category:
- SKU: N784-001-SC-MM
- EAN: 0037332183934
10/100 SC Multimode Media Converter, 550M, 850nm
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
10/100 UTP to Multimode Fiber |
POW-N784001SCMM | |||
|
Tripp Lite Series 10/100 SC Multimode Fiber to Ethernet Media Converter, 550M, 850nm |
4032440 |
Related Products
-
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters -
Category: Network Media Converters
Description
Tripp Lite's N784-001-SC-MM 10/100 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.
- Extends a 100Mb Ethernet signal up to 550M over Multimode Fiber Optic Cable
- 10/100 UTP to SC Multimode Fiber converter
- Up to 550M (1800-ft.) range
- Auto-detects Full / Half Duplex Transfer Mode
- Auto Negotiation MDI / MDI-X
- 6 performance monitoring LEDs
- 850nm wavelength
- Small, compact design
- Extends a 100Mb Ethernet signal up to 550M over Multimode Fiber Optic Cable
- 10/100 UTP to SC Multimode Fiber converter
- Up to 550M (1800-ft.) range
- Auto-detects Full / Half Duplex Transfer Mode
- Auto Negotiation MDI / MDI-X
- 6 performance monitoring LEDs
- 850nm wavelength
- Small, compact design
Specifications
| Network | |
|---|---|
| Converter input interface | 100Base-TX |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Fiber mode structure | Multi-mode |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current | 1.2 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 2.76" (70.1 mm) |
| Depth | 3.7" (94 mm) |
| Weight | 7.05 oz (200 g) |
| Height | 1.02" (25.9 mm) |
| Package depth | 4.92" (125 mm) |
| Package width | 2.17" (55.1 mm) |
| Package height | 9.06" (230.1 mm) |
| Package weight | 13.8 oz (390 g) |
| Packaging data | |
| Package depth | 4.92" (125 mm) |
| Package width | 2.17" (55.1 mm) |
| Package height | 9.06" (230.1 mm) |
| Package weight | 13.8 oz (390 g) |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Master (outer) case GTIN (EAN/UPC) | 10037332183931 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| Country of origin | China |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 10" (254 mm) |
| Master (outer) case length | 10.8" (275.1 mm) |
| Master (outer) case height | 12" (305.1 mm) |
| Master (outer) case gross weight | 9.92 lbs (4.5 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332183931 |
