Tripp Lite N846-10M-24-P InfiniBand/fibre optic cable 396.1" (10.1 m) MTP Black, Turquoise

Tripp Lite N846-10M-24-P InfiniBand/fibre optic cable 396.1" (10.1 m) MTP Black, Turquoise

MTP/MPO Patch Cable with Push/Pull Tab Connectors, 100GBASE-SR10, CXP, 24 Fiber, 100Gb OM3 Plenum-rated - Aqua, 10M (33 ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

MTP/MPO PATCH CABLE,100GBASE-SR10, CXP, 24F 100GBEOM3 PLENUM AQUA 33FT

 642405 Register free see stock

Related Products

Description

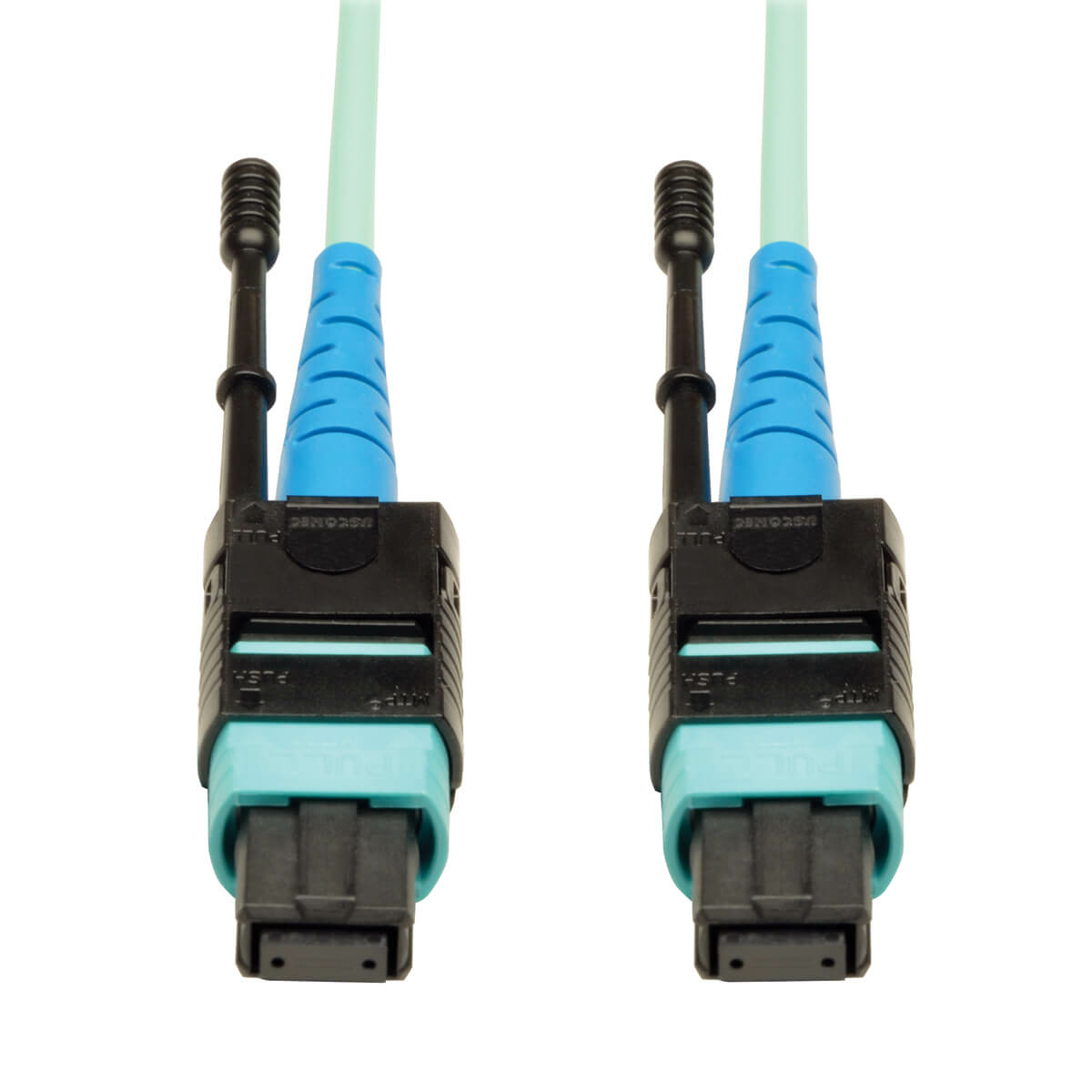

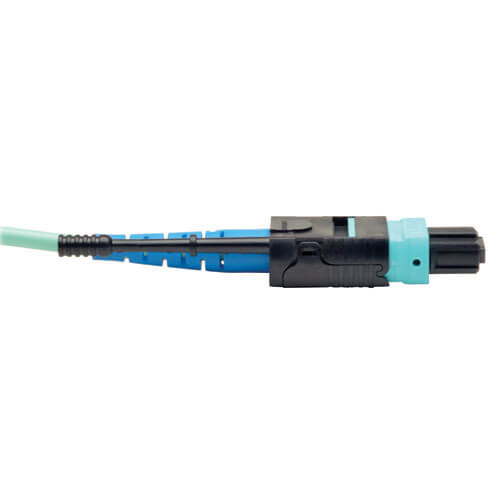

MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections

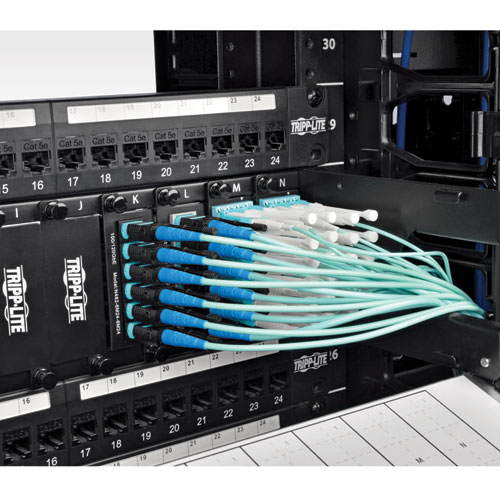

Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
24 times the density of SC style connectors
No need for long fan-out cables or individual long duplex cable runs
High Density design cuts down on installation costs
50/125 OM3 Rated Multimode Fiber, 850nm
Plenum rated jacket
Unique cable ID label for Quality Control and Traceability
Each cable 100% tested for low insertion loss and back reflection
Test data supplied with each cable
Custom lengths available

Specifications

Features
Fibre optic typeOM3
Fiber mode structureMulti-mode
Connector 1MTP
Connector 2MTP
Cable length396.1" (10.1 m)
Core diameter50 µm
Cladding diameter125 µm
Data transfer rate100 Gbit/s
Wavelengths supported850 nm
Product colourBlack, Turquoise
Connector 2 genderMale
Connector 1 genderMale
Country of originChina
Harmonized System (HS) code8544.70.0000
Certificates
Compliance certificatesRoHS
Packaging data
Package width7" (177.8 mm)
Package depth0.5" (12.7 mm)
Package height9" (228.6 mm)
Package weight3.53 oz (100 g)
Technical details
Fiber mode structureMulti-mode
Connector 1MTP
Connector 2MTP
Cable length396.1" (10.1 m)
Core diameter50 µm
Cladding diameter125 µm
Master (outer) case GTIN (EAN/UPC)10037332173826
Compliance certificatesRoHS
Data transmission
Data transfer rate100 Gbit/s
Weight & dimensions
Cable length396.1" (10.1 m)
Package width7" (177.8 mm)
Package depth0.5" (12.7 mm)
Package height9" (228.6 mm)
Package weight3.53 oz (100 g)
Logistics data
Master (outer) case width7.3" (185.4 mm)
Master (outer) case length6.1" (154.9 mm)
Master (outer) case height5.9" (149.9 mm)
Master (outer) case gross weight34.9 oz (990 g)
Products per master (outer) case10 pc(s)
Country of originChina
Harmonized System (HS) code8544.70.0000
Master (outer) case GTIN (EAN/UPC)10037332173826
