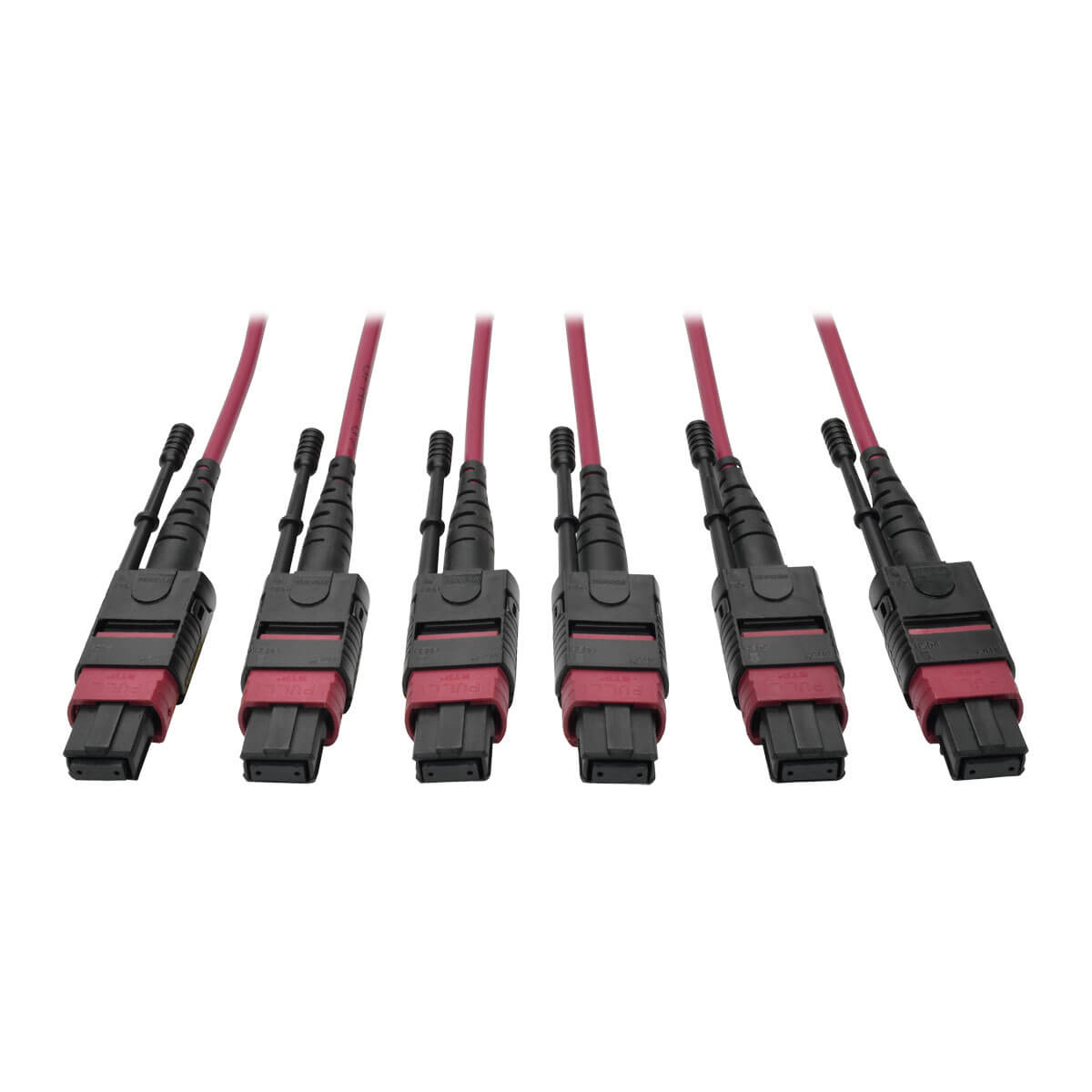

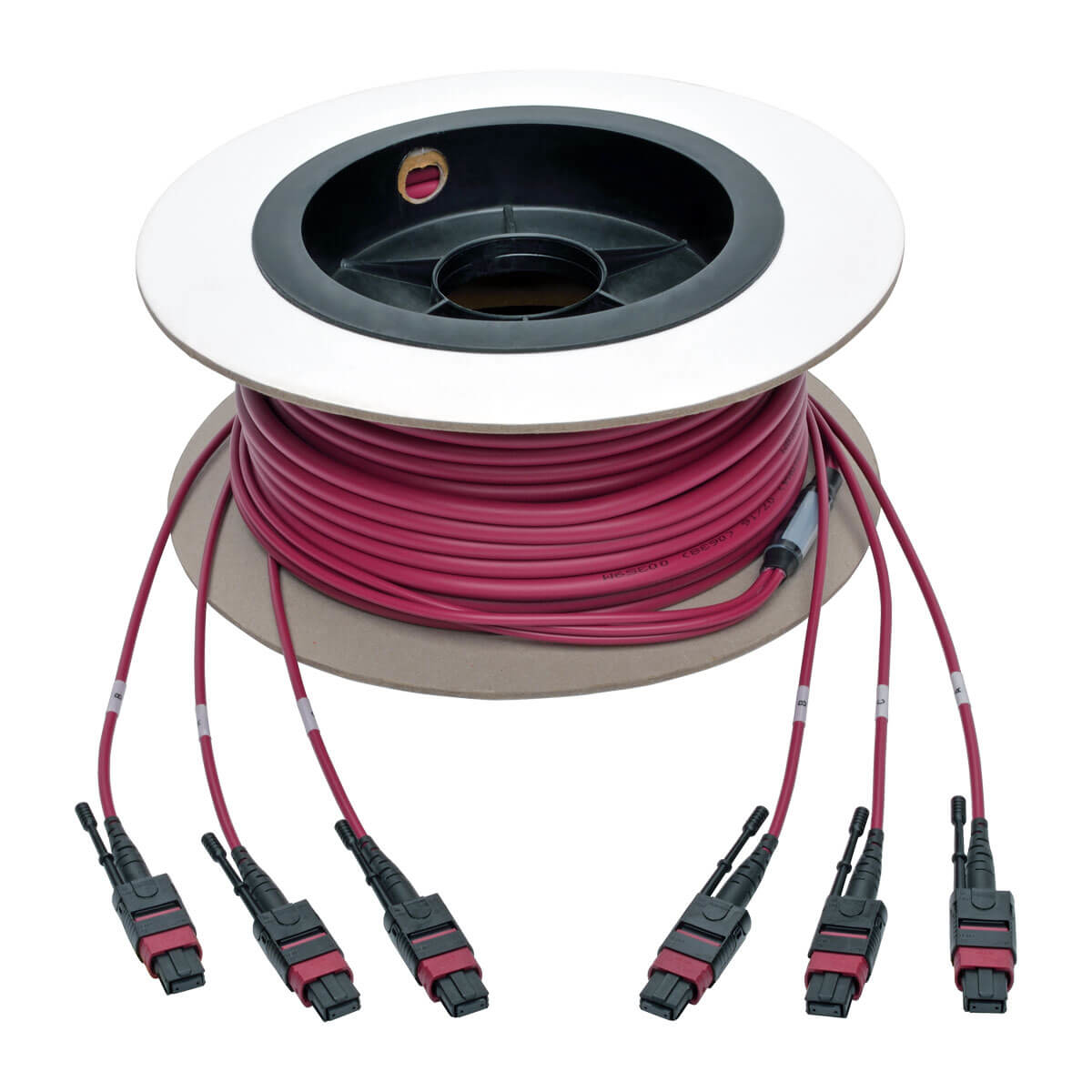

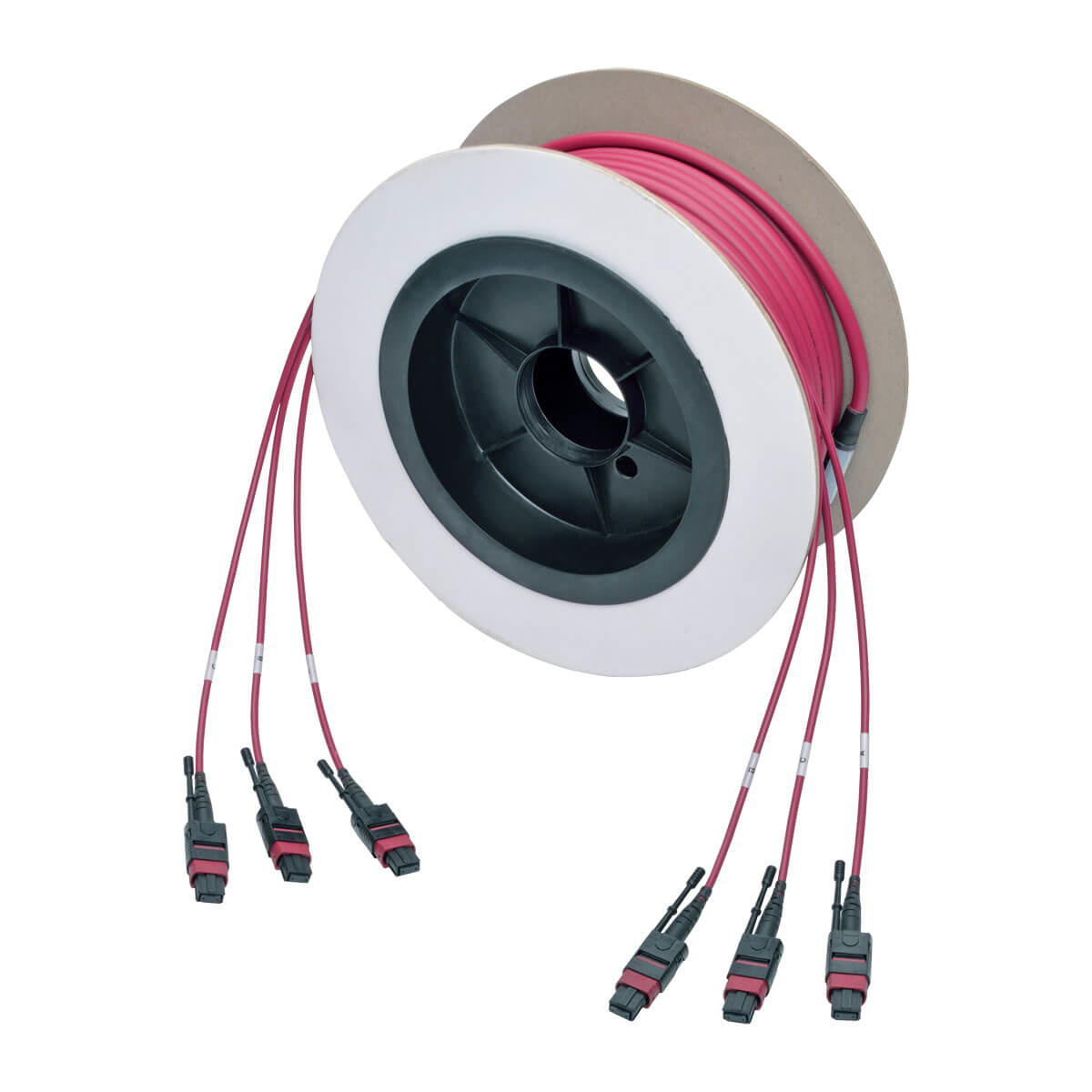

Tripp Lite N858-11M-3X8-MG InfiniBand/fibre optic cable 433.1" (11 m) MTP Black, Magenta

Tripp Lite N858-11M-3X8-MG InfiniBand/fibre optic cable 433.1" (11 m) MTP Black, Magenta

MTP/MPO Multimode Base-8 Trunk Cable, 24-Strand, 40GB/100GB, 40/100GBASE-SR4, OM4 Plenum-Rated (3xF/3xF), Push/Pull Tab, Magenta, 11 m (36 ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

MTP/MPO MULTIMODE BASE-8TRUNK CABLE, 24-STRAND,40/100 GBE

 9810457 Register free see stock

Related Products

Description

OM4-Rated for 40/100 Gb Ethernet Applications
Designed to extend high-density connections between network equipment in telecom rooms and data centers
Recommended for patching between data center MDFs and IDFs
Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
Magenta-colored for identification as an OM4 cable

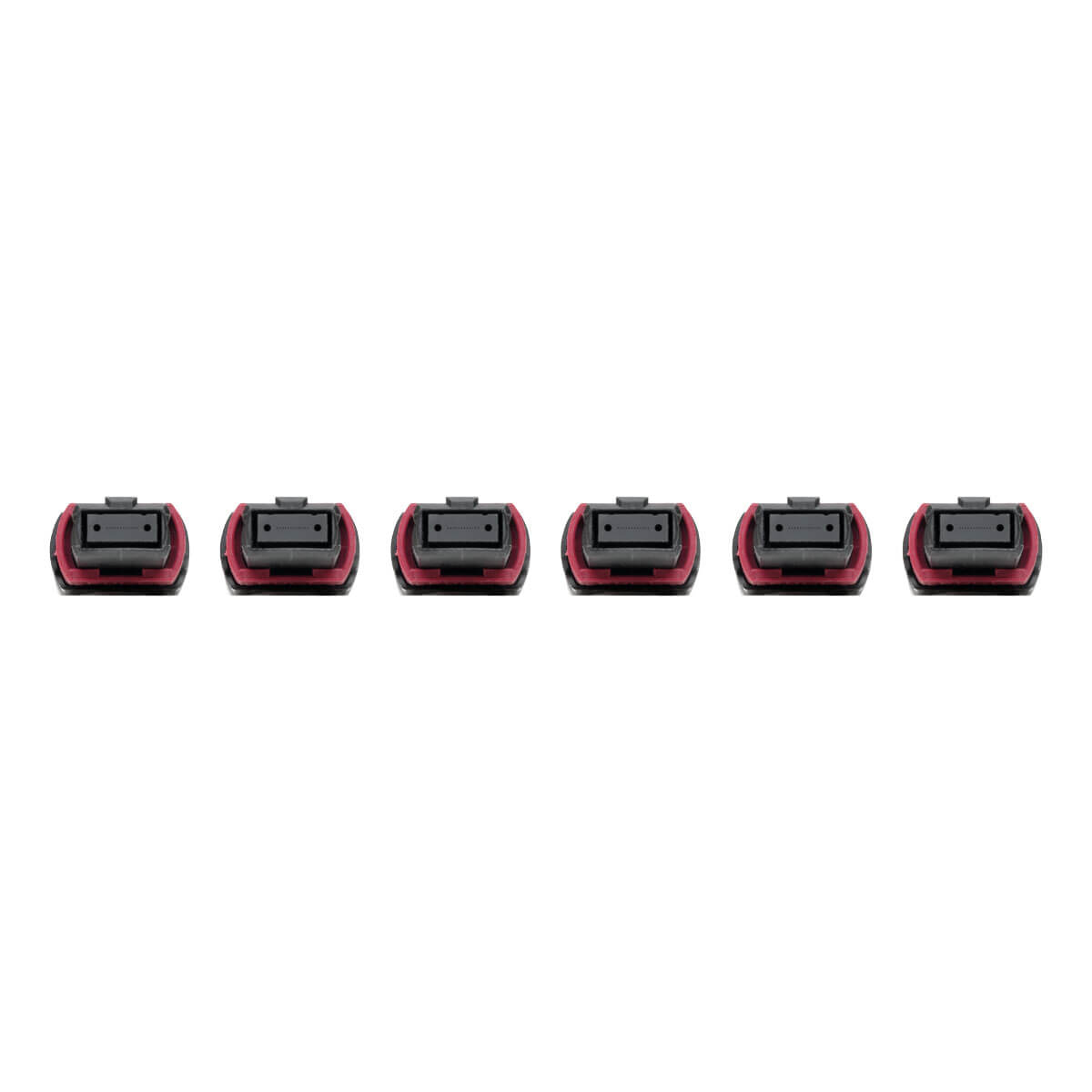

MTP/MPO Connectors with Push/Pull Tabs
8-fiber female connectors 12 times denser than SC connectors
Push/pull tab connectors easy to install and remove with one hand
100% tested for low insertion loss and back reflection

Error-Free Signal Transfer
50/125 duplex glass fiber construction
Plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts

Specifications

Features
Fibre optic typeOM4
Fiber mode structureMulti-mode
Connector 1MTP
Connector 2MTP
Cable length433.1" (11 m)
Core diameter50 µm
Cladding diameter125 µm
Data transfer rate100 Gbit/s
Product colourBlack, Magenta
Connector 2 genderFemale
Connector 1 genderFemale
Bending radius0.22" (5.6 mm)
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Country of originChina
Harmonized System (HS) code8544.70.0000
Certificates
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Bending radius0.22" (5.6 mm)
Cable length433.1" (11 m)
Package width8.3" (210.8 mm)
Package depth8.2" (208.3 mm)
Package height3.7" (94 mm)
Packaging data
Package width8.3" (210.8 mm)
Package depth8.2" (208.3 mm)
Package height3.7" (94 mm)
Technical details
Fiber mode structureMulti-mode
Connector 1MTP
Connector 2MTP
Cable length433.1" (11 m)
Core diameter50 µm
Cladding diameter125 µm
Master (outer) case GTIN (EAN/UPC)10037332200171
Compliance certificatesRoHS
Data transmission
Data transfer rate100 Gbit/s
Logistics data
Master (outer) case width15.4" (391.2 mm)
Master (outer) case length12.8" (325.1 mm)
Master (outer) case height12.8" (325.1 mm)
Master (outer) case gross weight11.2 lbs (5.06 kg)
Products per master (outer) case6 pc(s)
Country of originChina
Harmonized System (HS) code8544.70.0000
Master (outer) case GTIN (EAN/UPC)10037332200171
