Tripp Lite N484-12M24 patch panel

Tripp Lite N484-12M24 patch panel

  • Brand: Tripp Lite
  • Category:
  • SKU: N484-12M24
  • EAN: 0037332187208
100Gb/120Gb Pass-Through Cassette - (x12) 24-Fiber MTP/MPO ( Female )

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 100GB/120GB PASS-THROUGHCASSETTE 12 24-FIBER MTP/MPON484-12M24 812478 Register free see stock
Ingram Micro 100GB/120GB PASS-THROUGH ZZ0213
TD Synnex 100/120GB FIBER CASSETTE X12 24 MTP/MPO 4195722

Related Products

Description

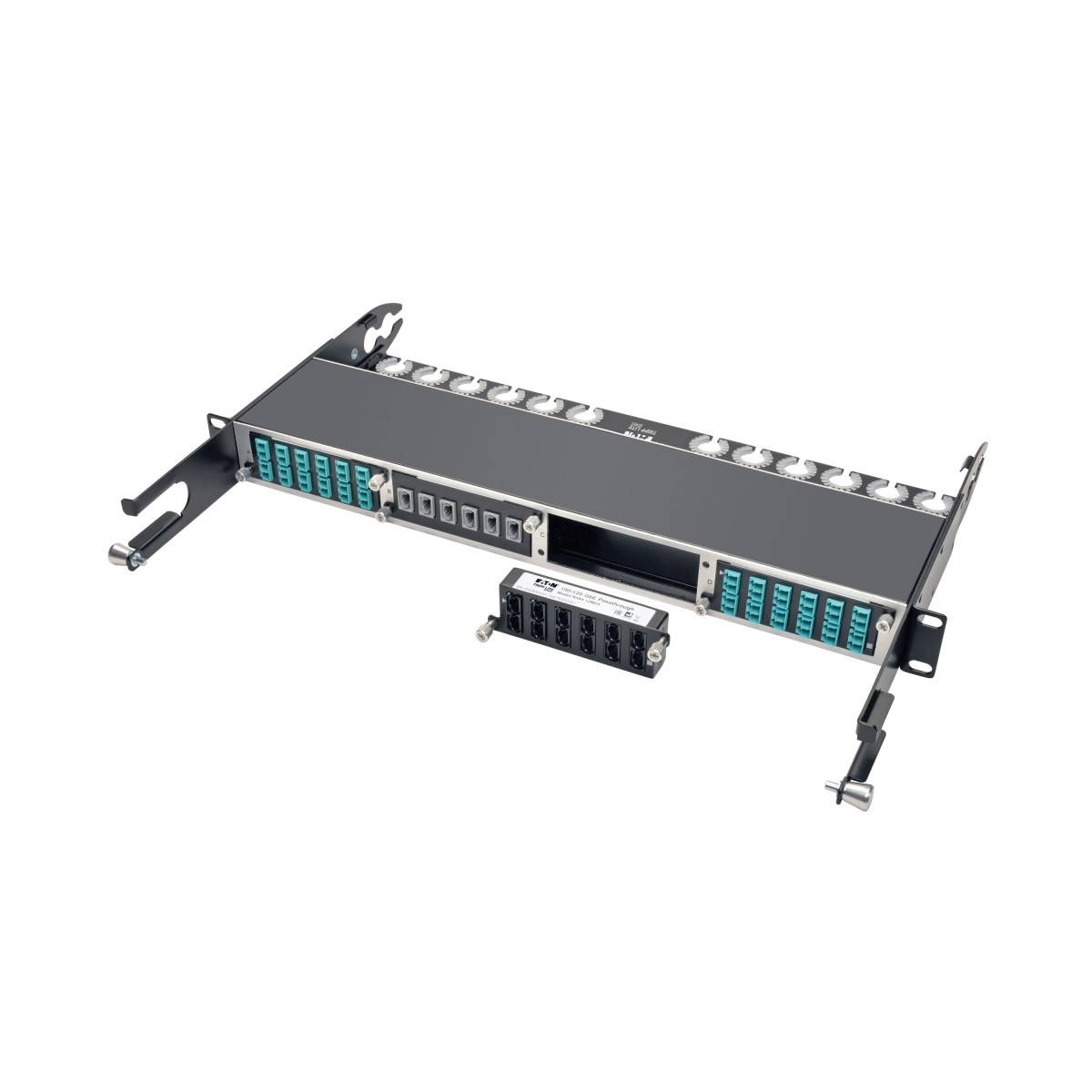

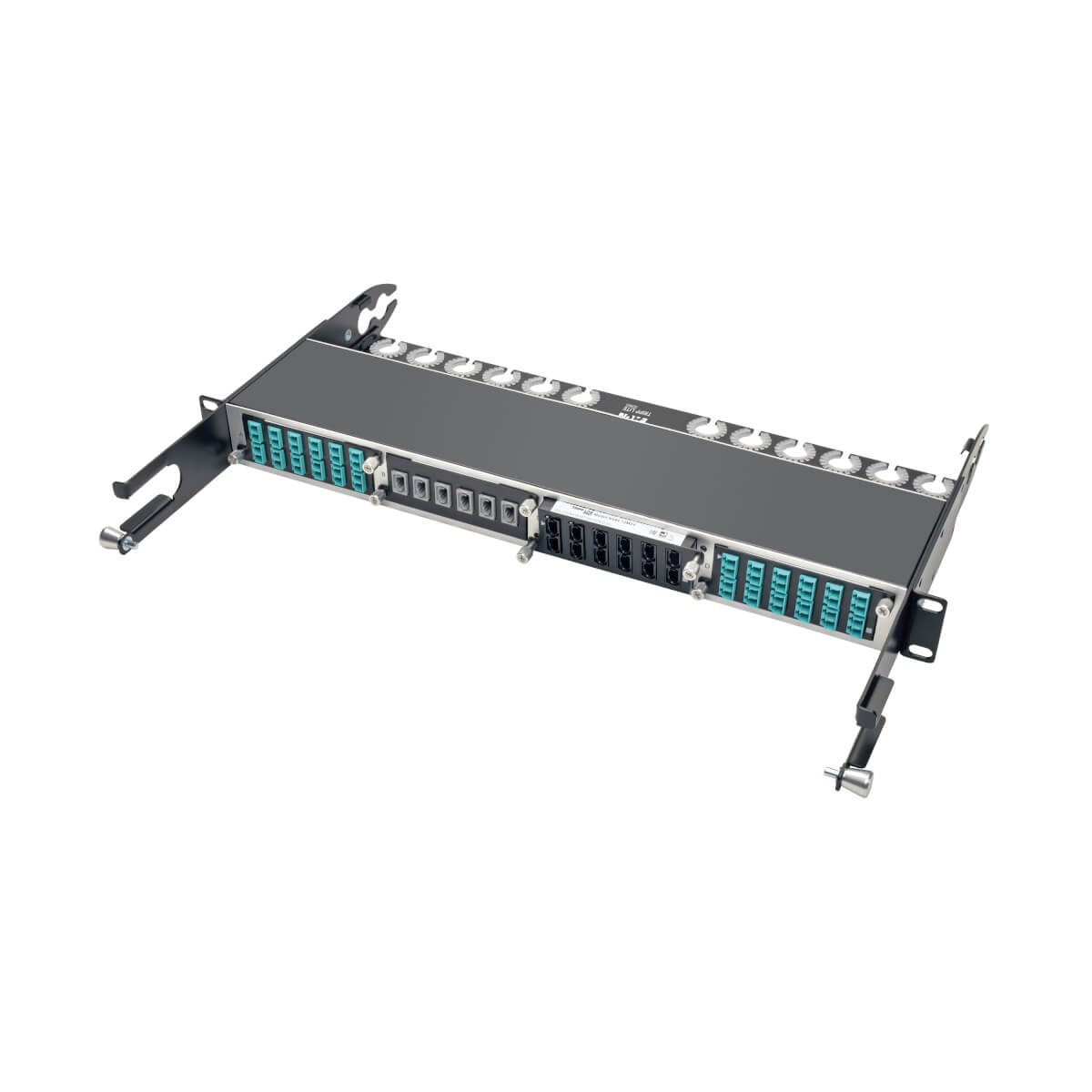

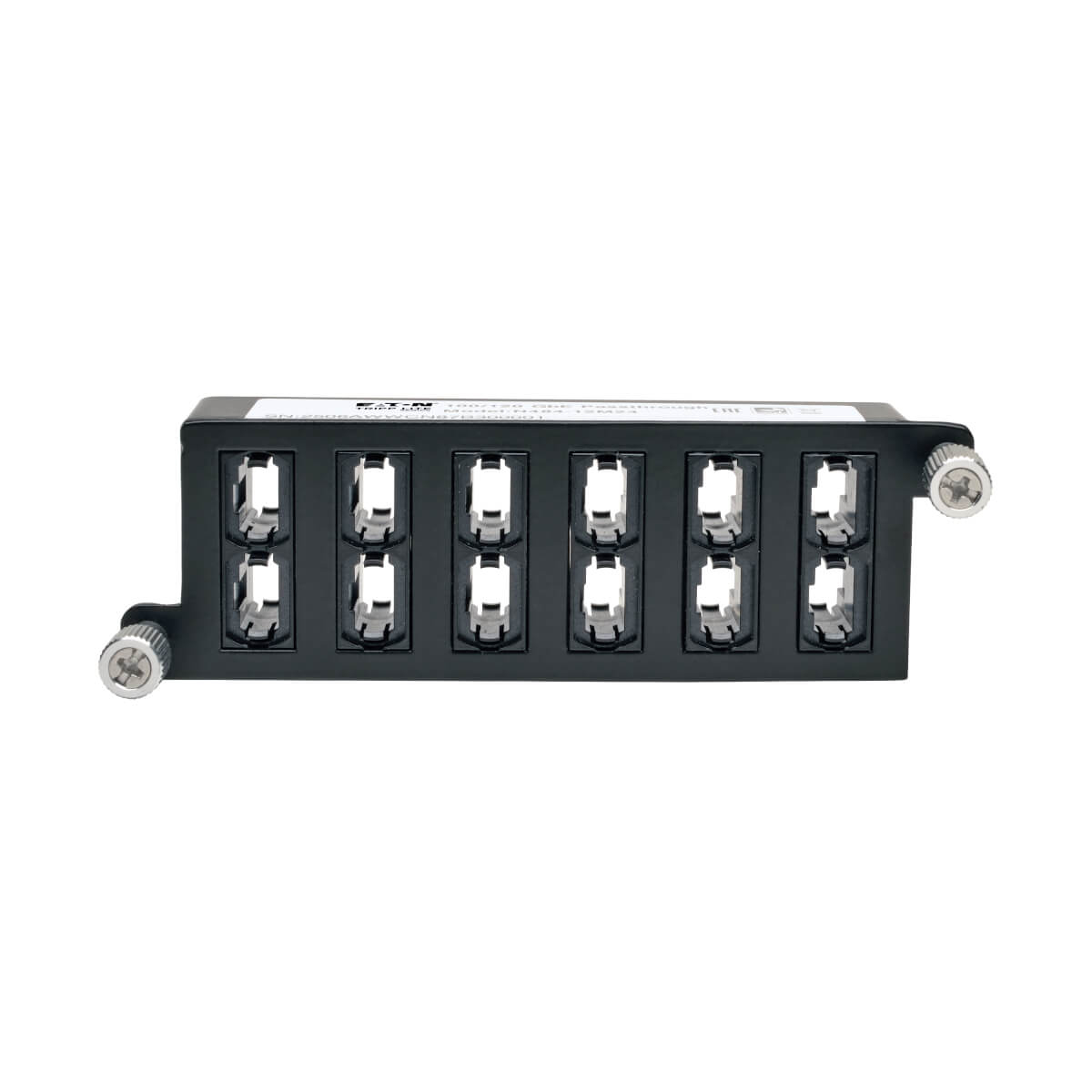

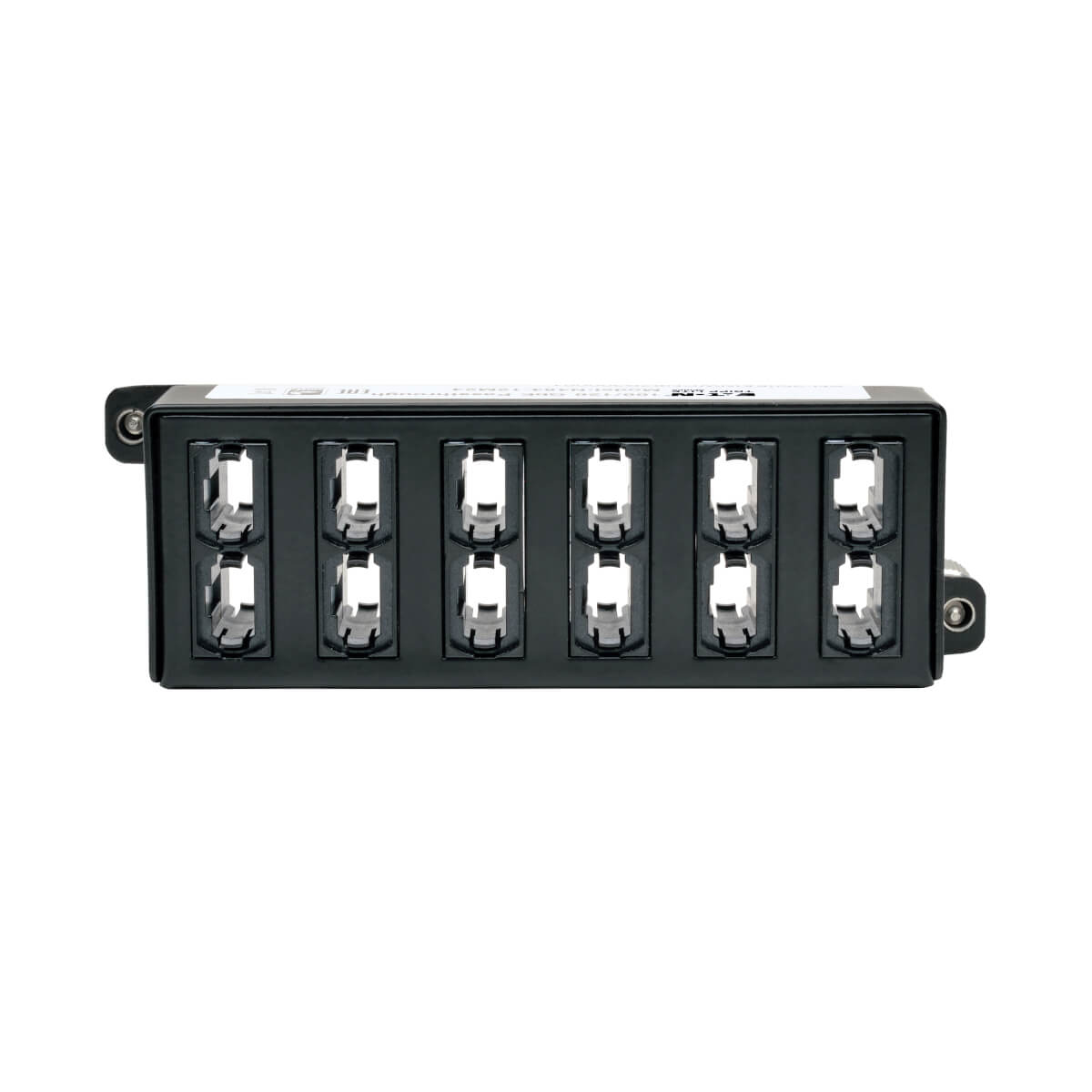

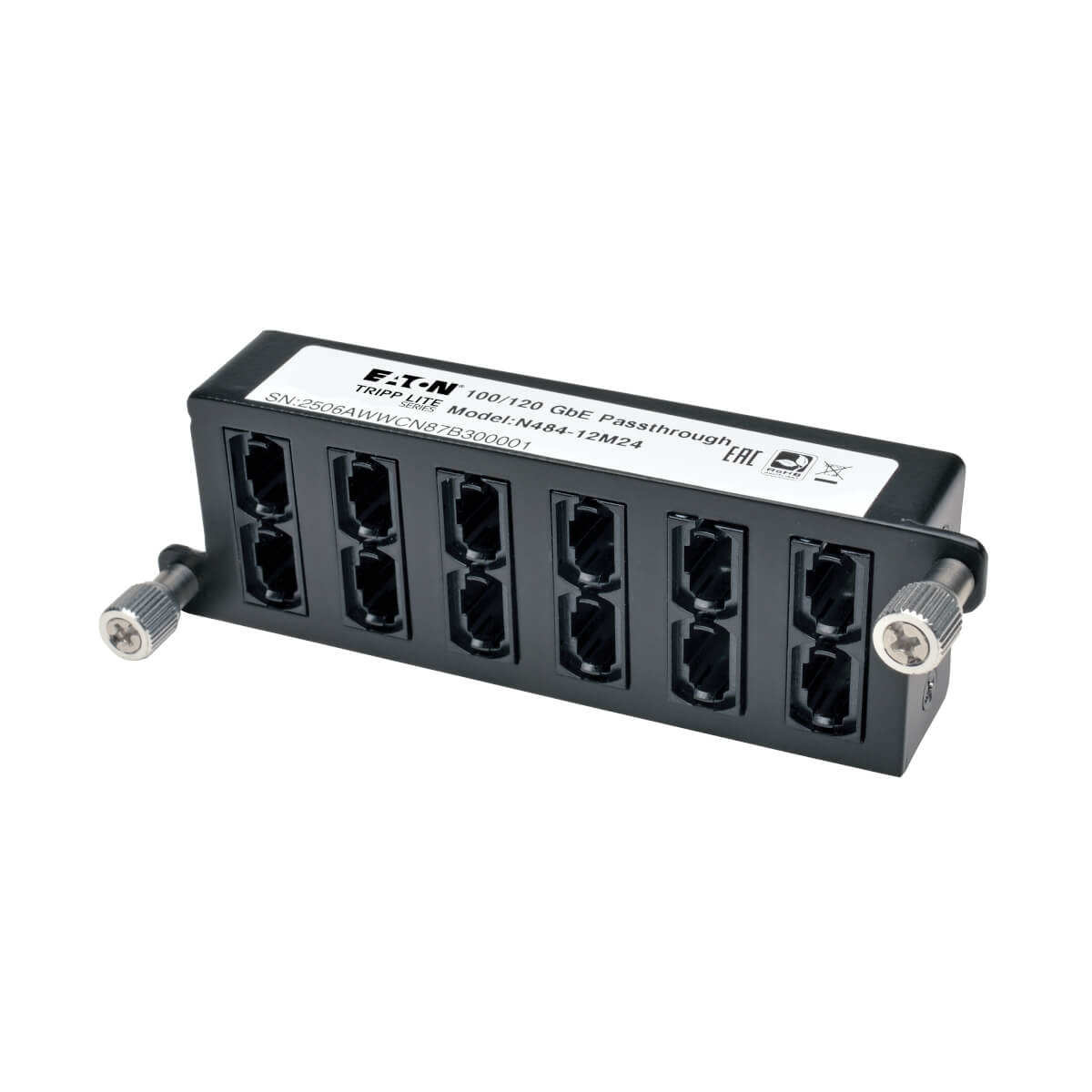

The N484-12M24 is a high-density 100/120 Gb Pass-Through Cassette with (x12) 24-Fiber MTP/MPO connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Guaranteed compatibility when used with recommended cabling. Designed specifically for use with N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.

Specifications

Network
Maximum data transfer rate120000 Mbit/s
Ports quantity12
Connector(s)MTP
Features
MaterialSteel
Product colourBlack
CertificationREACH
Technical details
Operating temperature (T-T)-20 - 50 °C
Package width5.12" (130 mm)
Package height2.36" (59.9 mm)
MaterialSteel
Compliance certificatesRoHS
Design
MaterialSteel
Product colourBlack
CertificationREACH
Operational conditions
Operating temperature (T-T)-20 - 50 °C
Colour
Product colourBlack
Certificates
CertificationREACH
Weight & dimensions
Width3.5" (88.9 mm)
Weight7.76 oz (220 g)
Height1.2" (30.5 mm)
Depth4.7" (119.4 mm)
Package weight7.76 oz (220 g)
Package width5.12" (130 mm)
Package height2.36" (59.9 mm)
Packaging data
Package weight7.76 oz (220 g)
Package depth1.46" (37.1 mm)
Package width5.12" (130 mm)
Package height2.36" (59.9 mm)
Logistics data
Products per pallet1 pc(s)
Master (outer) case gross weight5.07 lbs (2.3 kg)
Products per master (outer) case10 pc(s)
Master (outer) case width8.86" (225 mm)
Master (outer) case length4.92" (125 mm)
Master (outer) case height5.31" (134.9 mm)
Master (outer) case GTIN (EAN/UPC)10037332187205
Country of originChina
