Tripp Lite PDU3MV6H50 power distribution unit (PDU) 45 AC outlet(s) 0U Black

Tripp Lite PDU3MV6H50 power distribution unit (PDU) 45 AC outlet(s) 0U Black

3-Phase Metered PDU, 12.6 kW

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 42-OUTLET PDU 3-PHASE METERED208V 12.6 KW HUBBELL 36 C13; 6C19 0URM 6' CORD 509075 Register free see stock
ASI Corp PDU PDU3MV6H50 12.6kW 3-Phase Metered PDU 208V Outlets 50A TAA 211008
Ingram Micro PDU 3-PHASE METERED 12.6KW PK7162
TD Synnex PDU 3PH METERED 50A C13/C19 CS8365C 0U 3330788

Related Products

Description

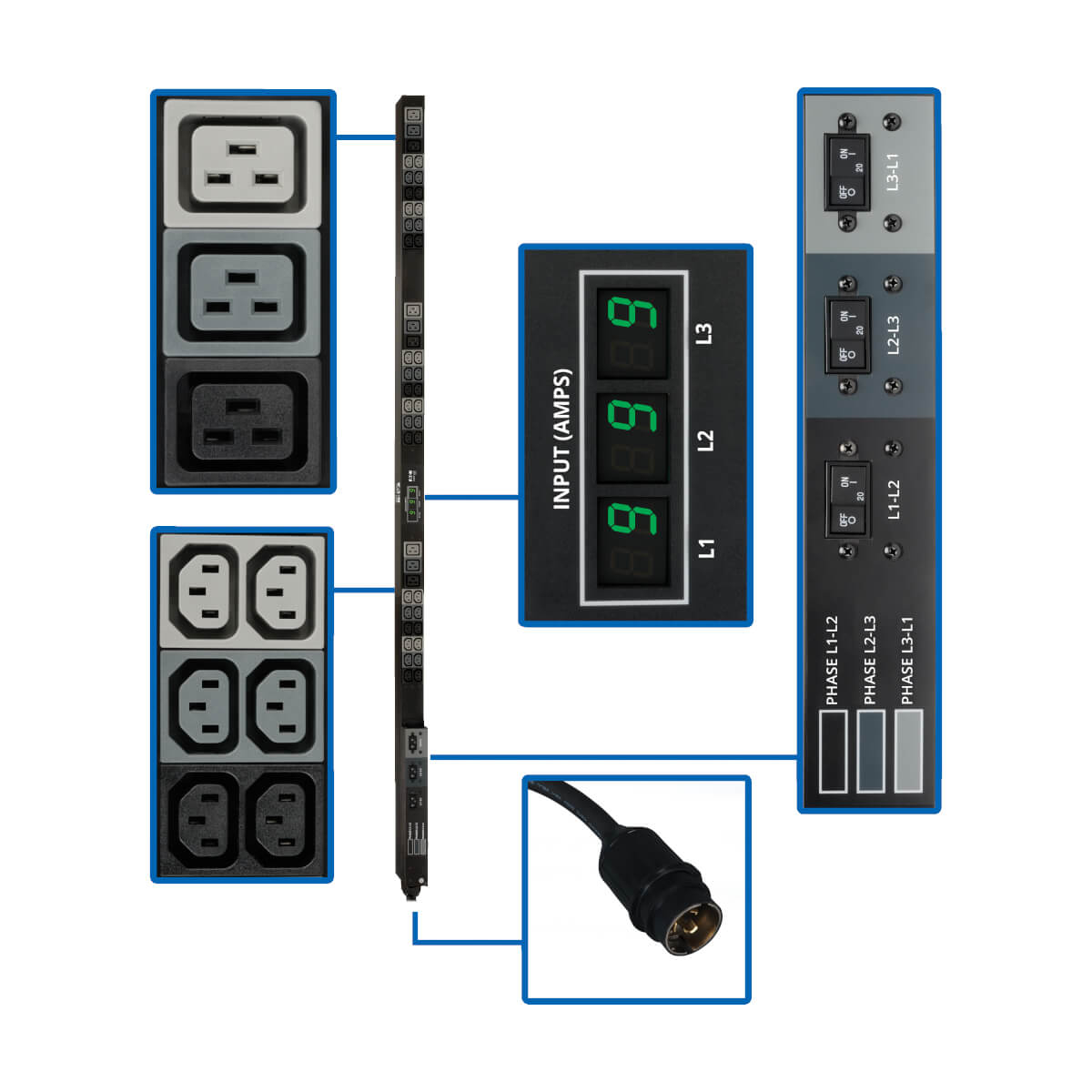

3-Phase Metered PDU, 12.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft Hubbell CS8365C 50A input connection
- Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
- Reports load current per-phase via set of 3 built-in current meters
- Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord

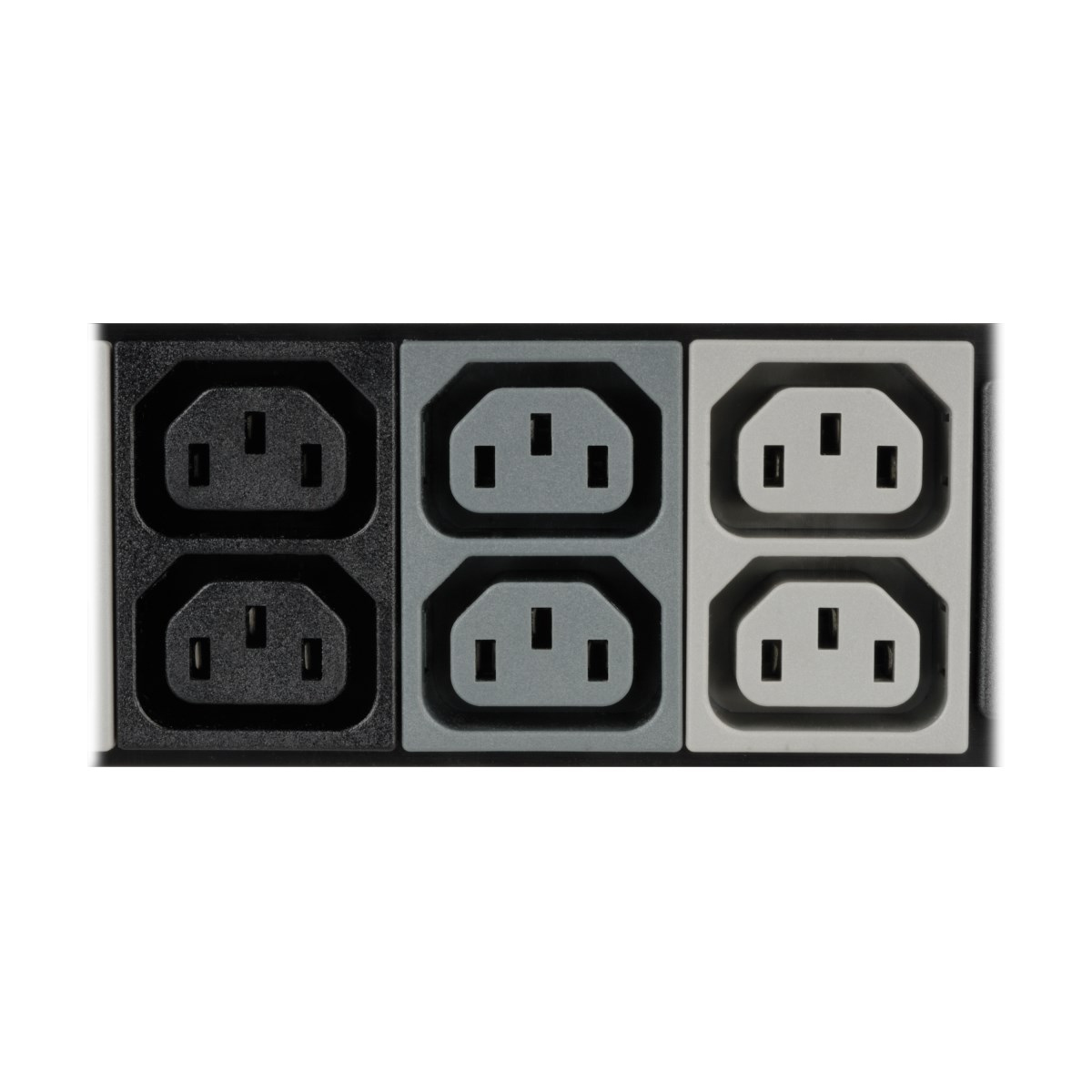

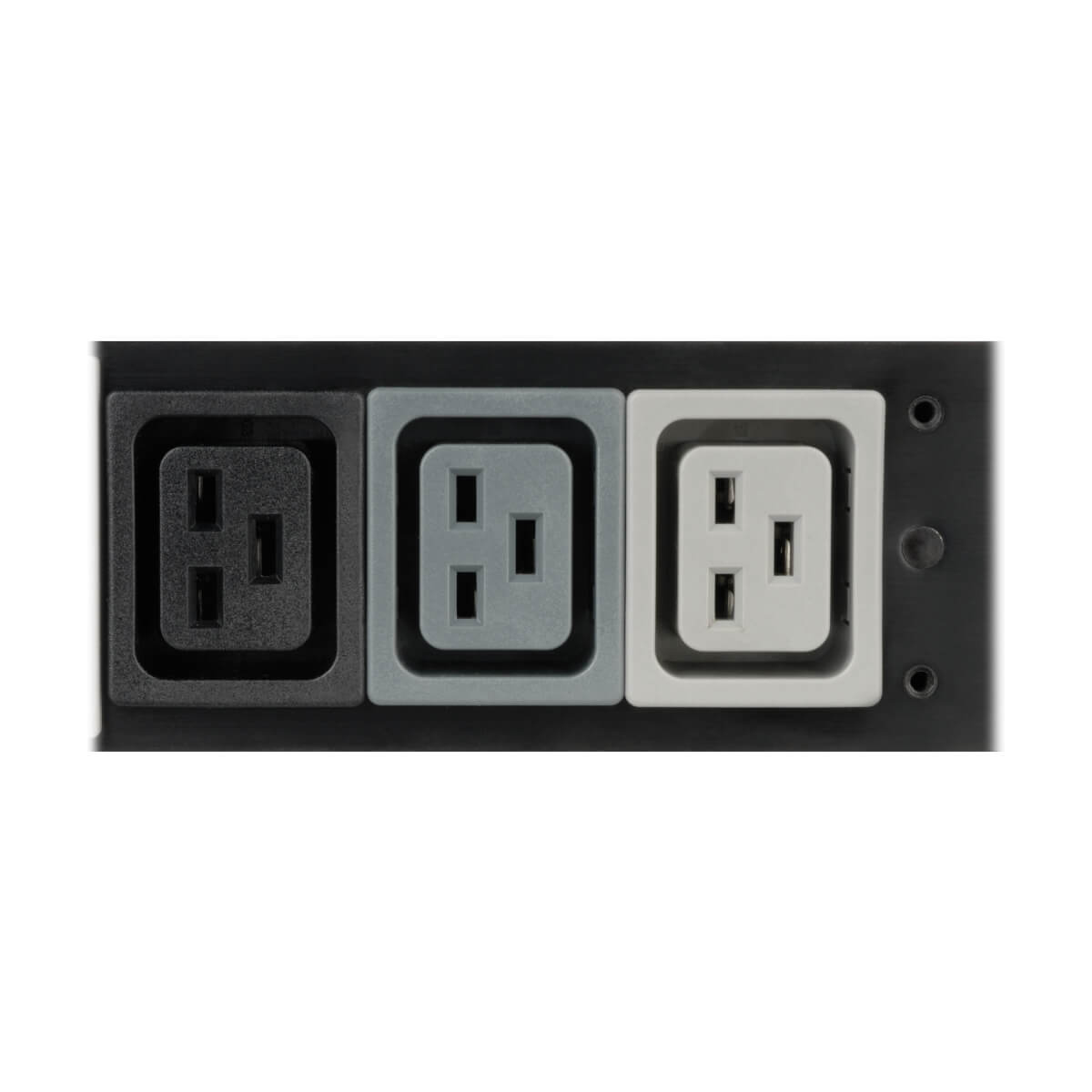

- 45 208V outlets total (36 C13, 9 C19)
- Toolless button-mount installation; cord retention brackets included

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Key Features
- 12.6kW 3 phase 208V Metered Power Distribution Unit / PDU

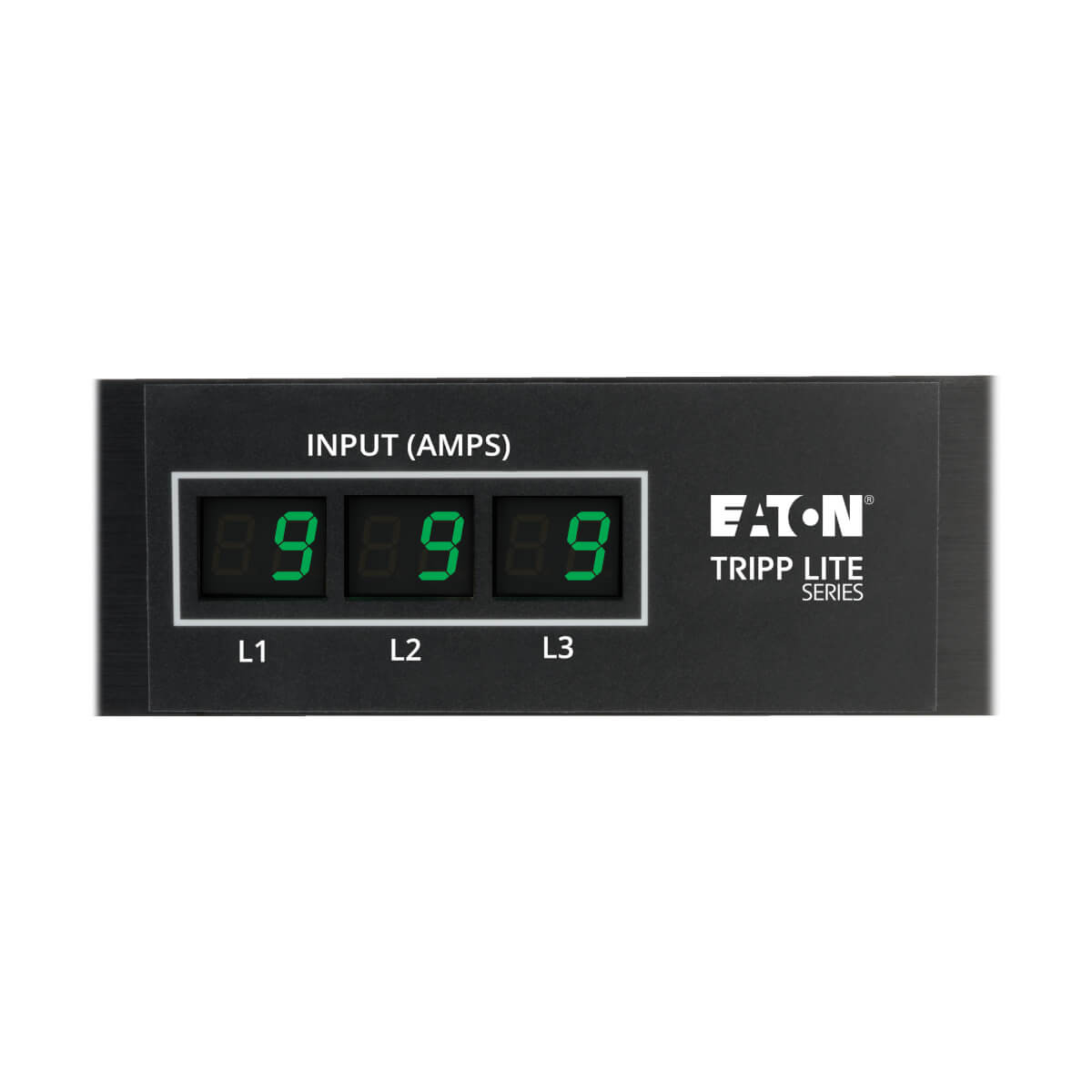

- Set of 3 built-in current meters continuously report load current in amps for all 3 output phases

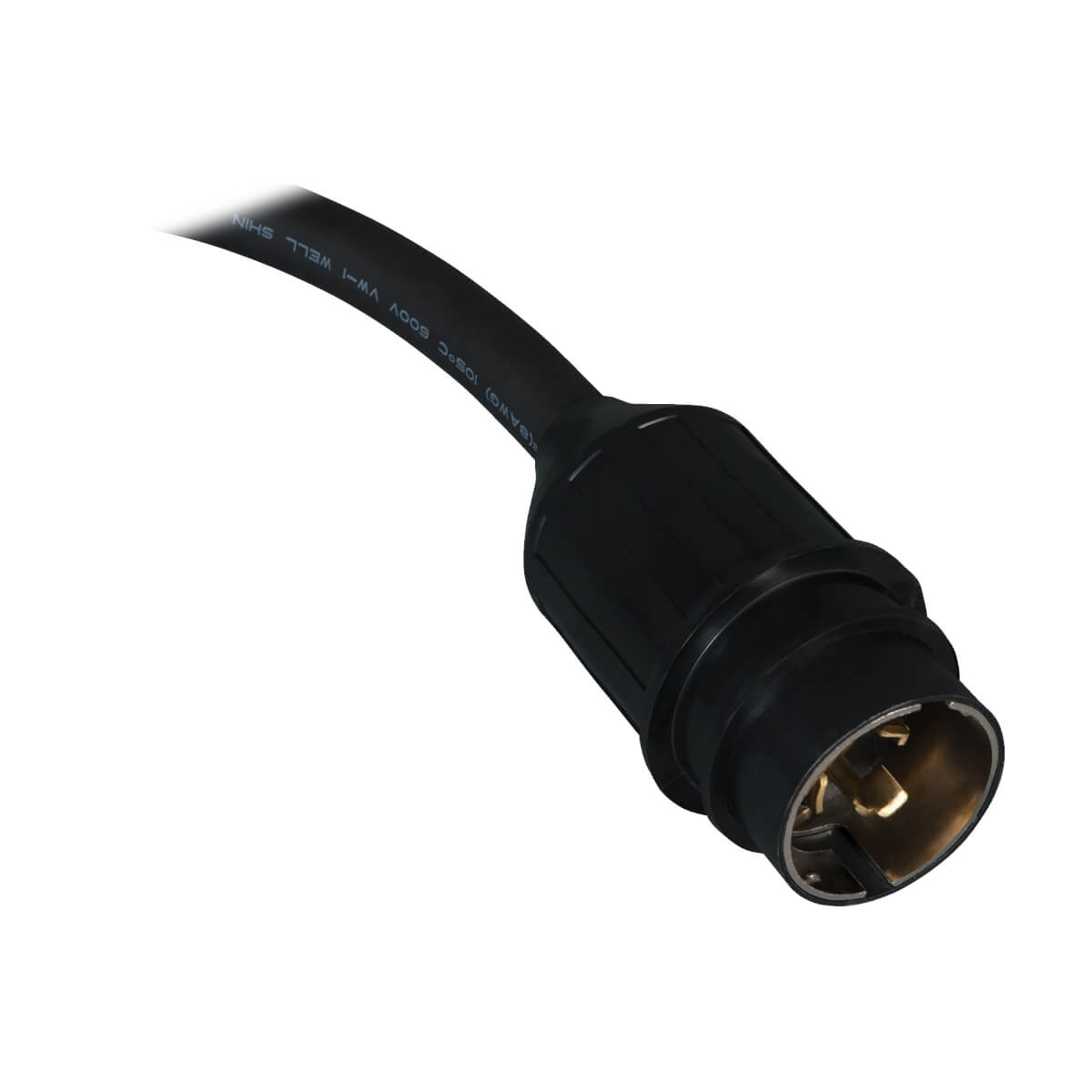

- Attached Hubbell CS8365C 50A (3P+E) 208V 3 phase input plug with 6 ft. / 1.8m cord

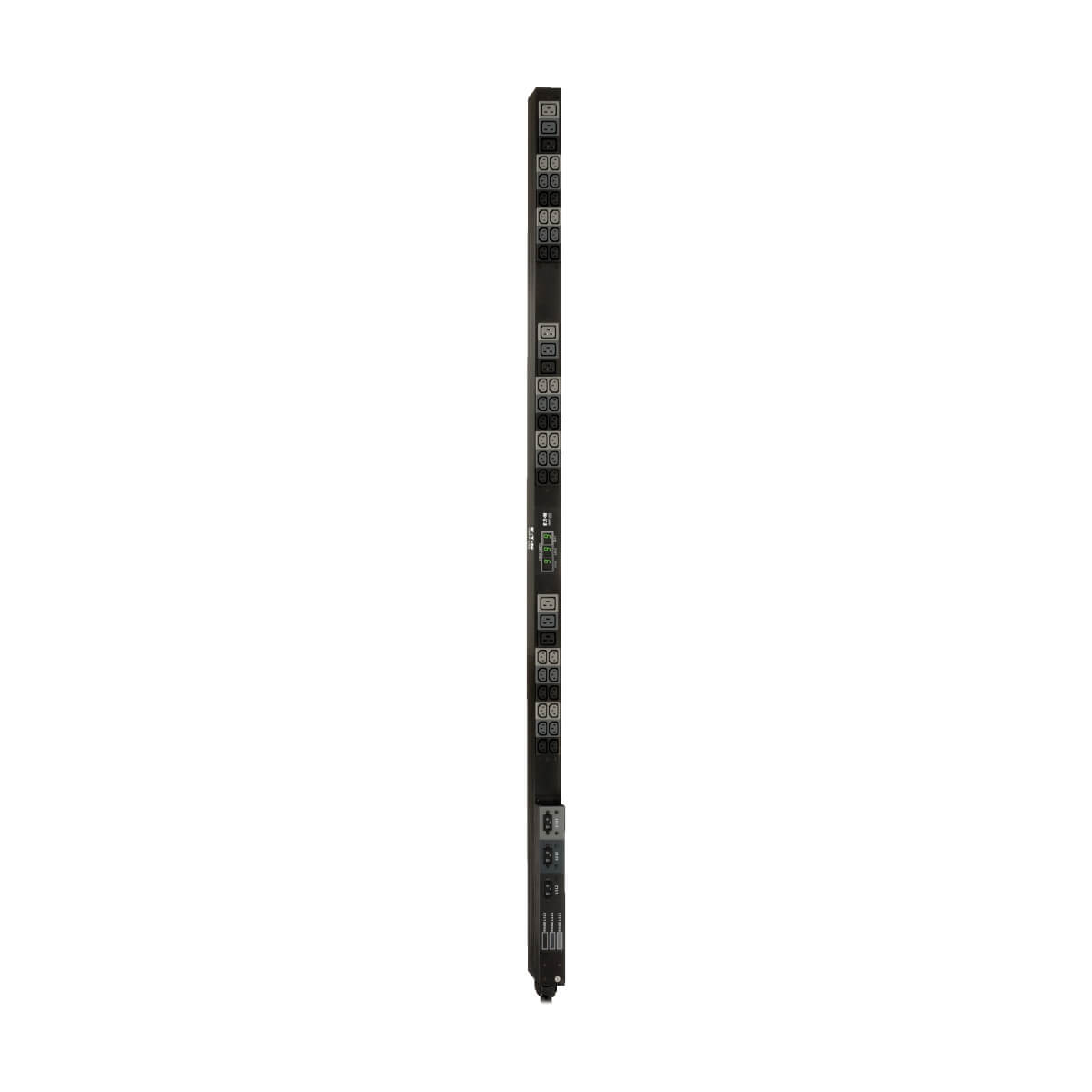

- 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks

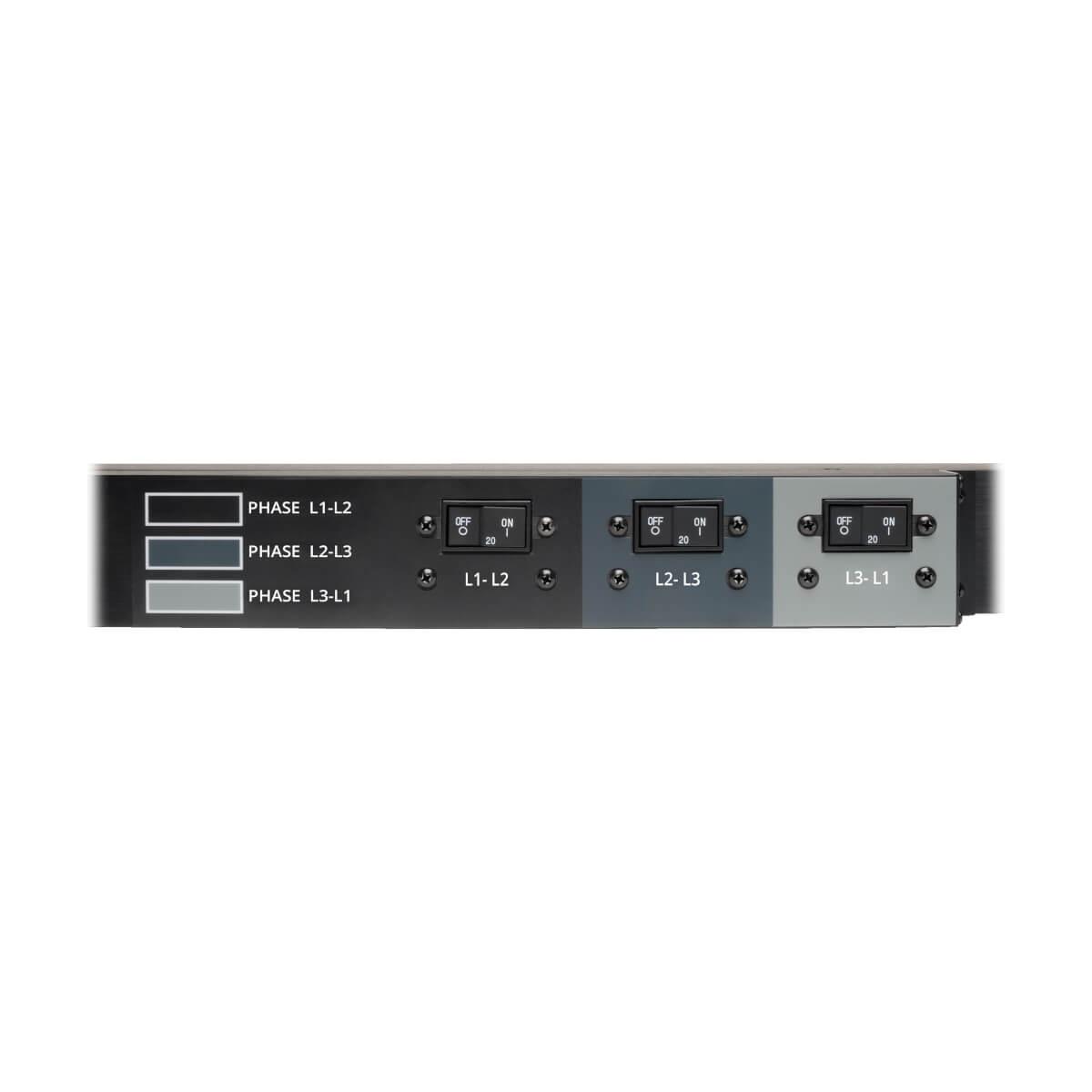

- 45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks
- Included cord retention brackets keep vital network equipment plugged in and continuously powered
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications

Typical Applications
Ideal for 3 phase network configurations in datacenters and heavily configured equipment racks

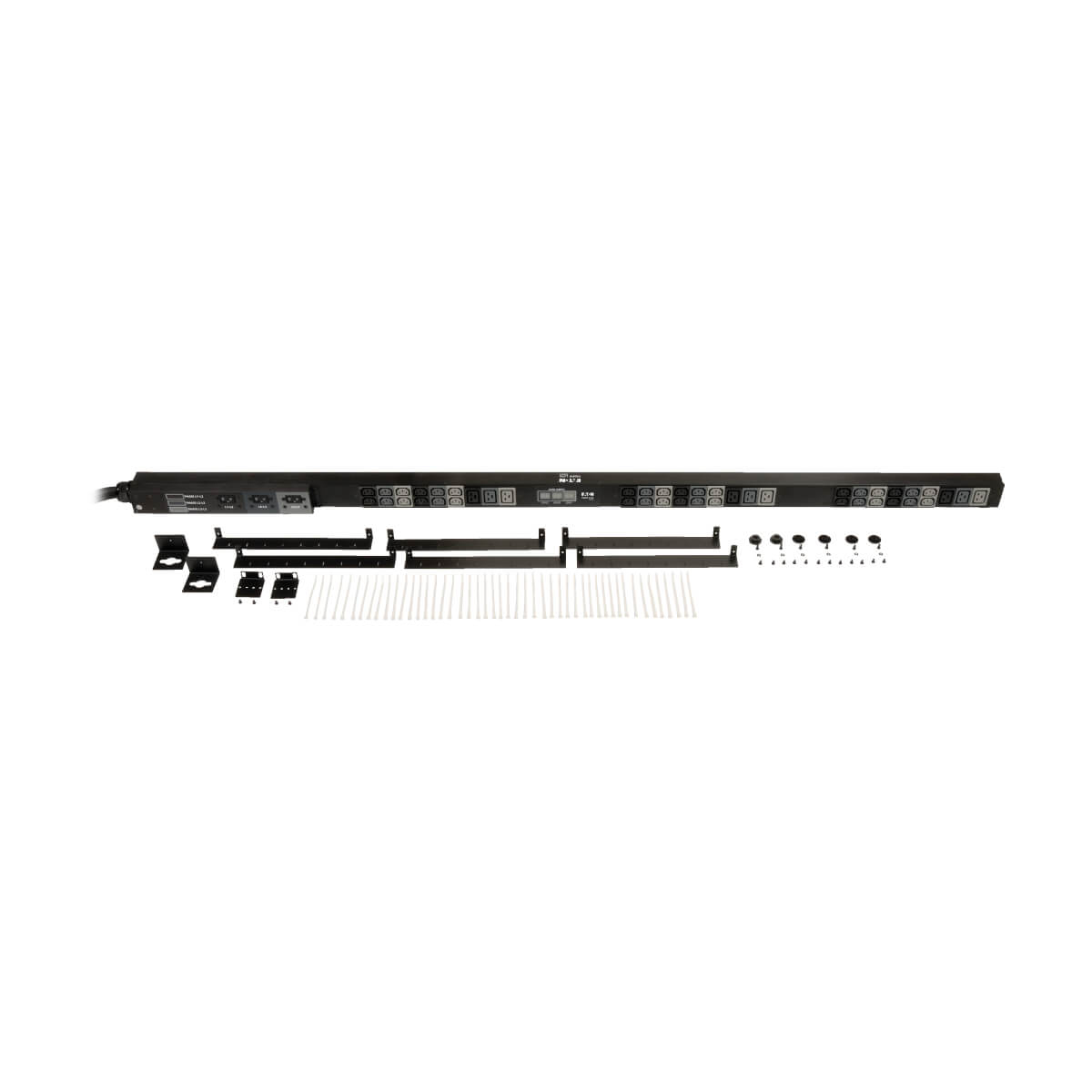

Package Includes
- Metered PDU with pre-installed mounting buttons
- Cord retention brackets
- Rack mounting brackets
- Owner's manual

Specifications

Design
PDU typesMetered
MountingHorizontal/Vertical
Product colourBlack
CertificationUL60950-1 NOM
Rack capacity0U
Housing materialMetal
Ports & interfaces
AC outlets quantity45 AC outlet(s)
Features
Cable length72" (1.83 m)
CertificationUL60950-1 NOM
Ergonomics
Cable length72" (1.83 m)
Power
Nominal input voltage208 V
Nominal output voltage208 V
Maximum current35 A
Weight & dimensions
Dimensions (WxDxH)2.64 x 2.2 x 70" (67 x 56 x 1778 mm)
Weight14.5 lbs (6.57 kg)
Width2.2" (55.9 mm)
Depth2.65" (67.3 mm)
Height70" (1778 mm)
Package width10" (254 mm)
Package depth77.3" (1963.4 mm)
Package height6" (152.4 mm)
Package weight21.4 lbs (9.71 kg)
Package dimensions (WxDxH)9.49 x 5.31 x 76.8" (241 x 135 x 1950 mm)
Packaging data
Package width10" (254 mm)
Package depth77.3" (1963.4 mm)
Package height6" (152.4 mm)
Package weight21.4 lbs (9.71 kg)
Package dimensions (WxDxH)9.49 x 5.31 x 76.8" (241 x 135 x 1950 mm)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
