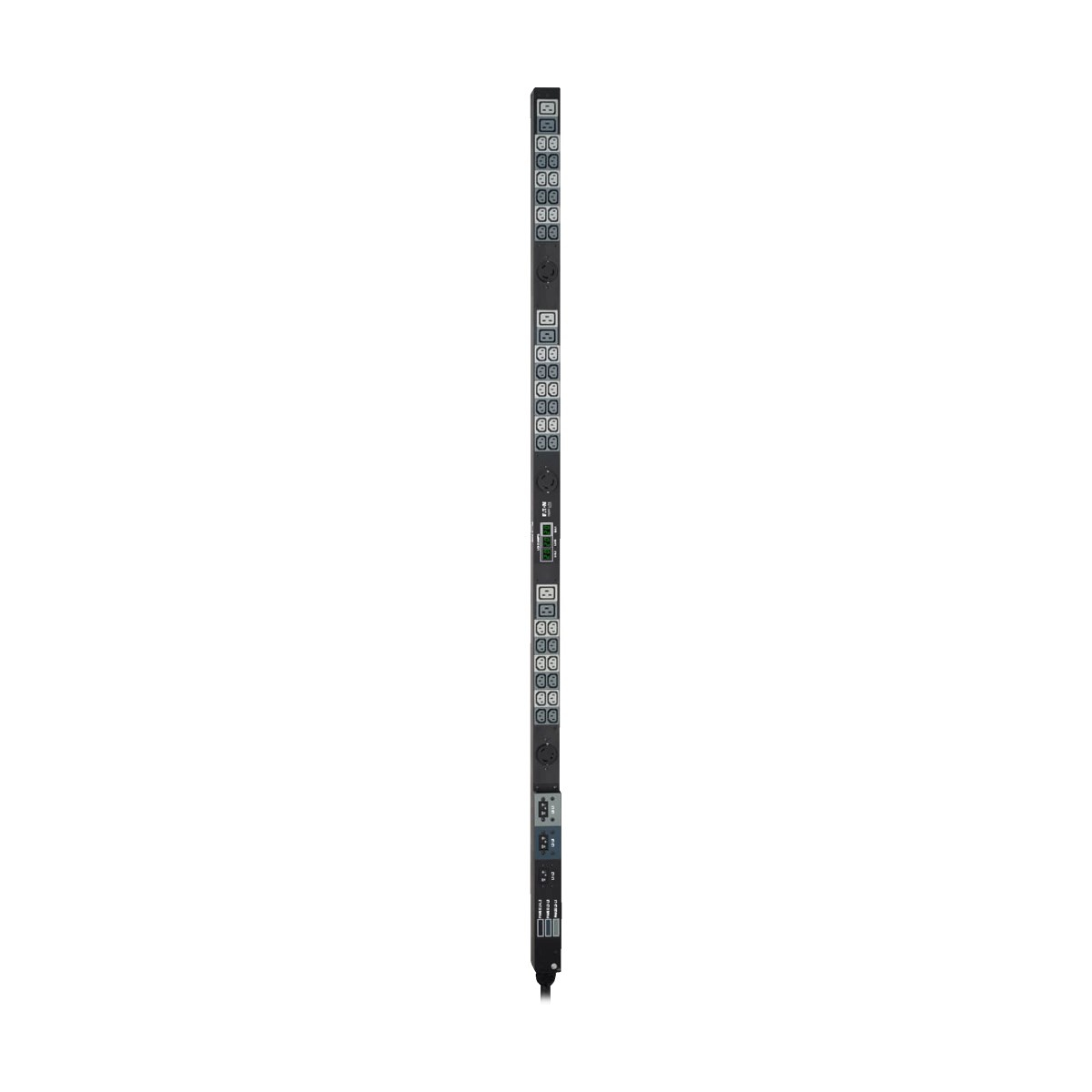

Tripp Lite PDU3MV6H50A power distribution unit (PDU) 45 AC outlet(s) 0U Black

Tripp Lite PDU3MV6H50A power distribution unit (PDU) 45 AC outlet(s) 0U Black

3-Phase Metered PDU, 14.4kW, 45 208V outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter PDU 3-PHASE METERED 208V14.4KW 36 C13; 6 C19; 3 565293 Register free see stock
ASI Corp PDU3MV6H50A 14.4kW 3-Phase Metered 208V 36xC13 6xC19 Retail 184154
Ingram Micro PDU 3-PHASE METERED 14.4KW PK7844
TD Synnex PDU 3-PHASE METERED 208V 14.4KW 36 C13; 6 C19; 3 L6-30R 0URM 3344802

Related Products

Description

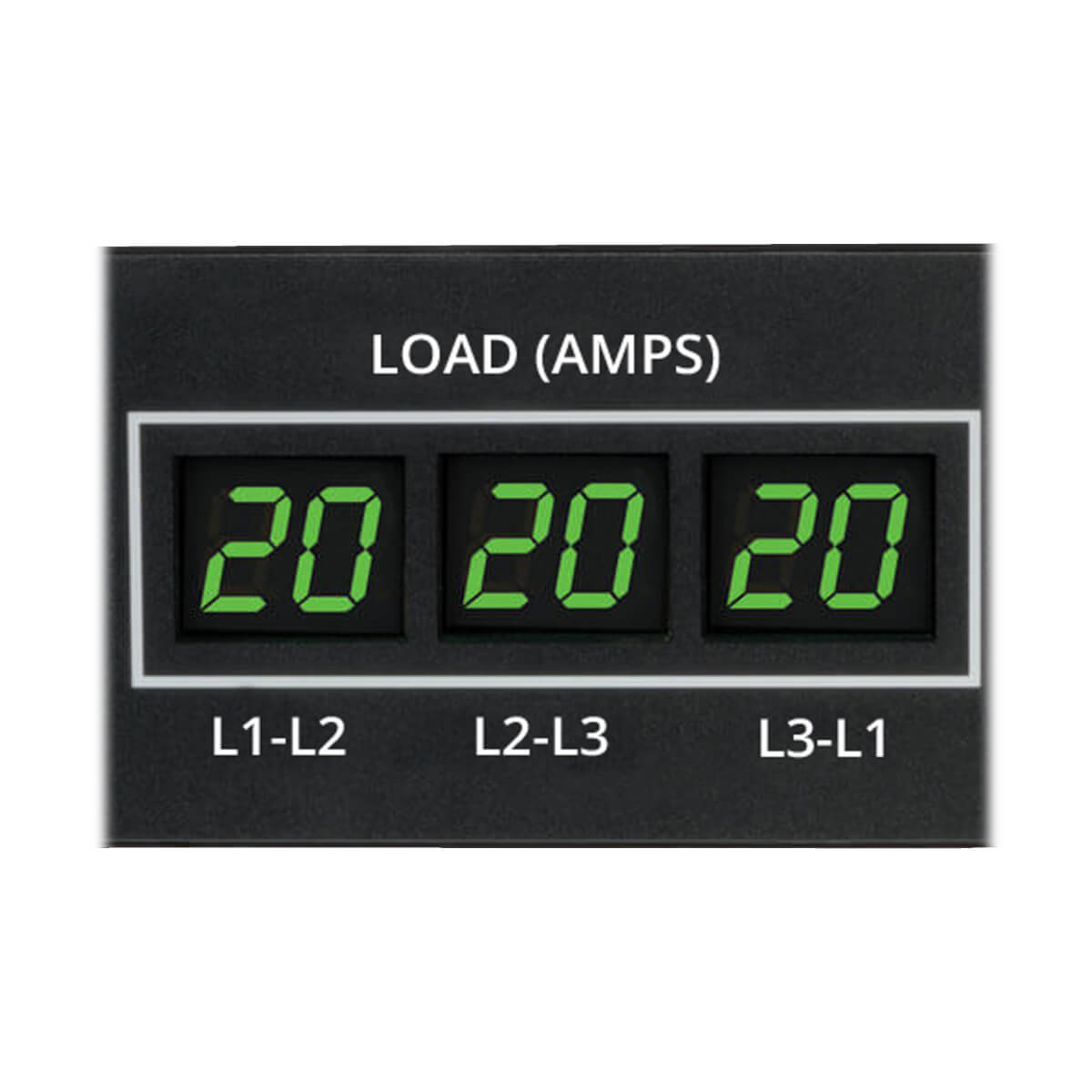

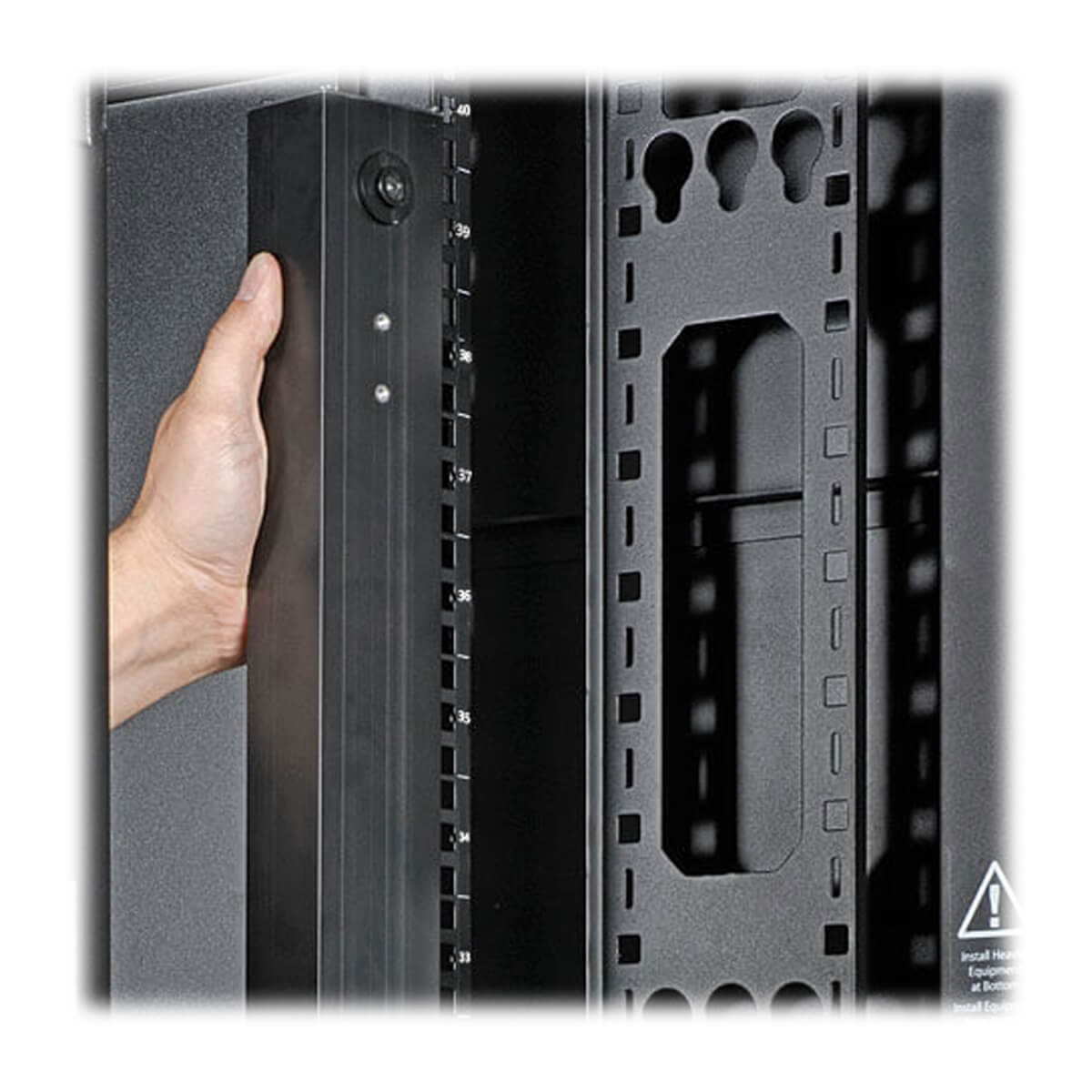

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Specifications

Design
PDU typesMetered
MountingVertical
Product colourBlack
CertificationUL60950-1
Rack capacity0U
Ports & interfaces
AC outlets quantity45 AC outlet(s)
Features
Cable length72" (1.83 m)
LED indicatorsYes
CertificationUL60950-1
Ergonomics
Cable length72" (1.83 m)
LED indicatorsYes
Power
Nominal input voltage208 V
Nominal output voltage208 V
Maximum current40 A
Load capacity14400 VA
AC input frequency60 Hz
Weight & dimensions
Dimensions (WxDxH)2.64 x 2.2 x 70" (67 x 56 x 1778 mm)
Weight14.2 lbs (6.44 kg)
Width2.2" (55.9 mm)
Depth2.65" (67.3 mm)
Height70" (1778 mm)
Package width10" (254 mm)
Package depth77.5" (1968.5 mm)
Package height6.1" (154.9 mm)
Package weight22 lbs (10 kg)
Packaging data
Package width10" (254 mm)
Package depth77.5" (1968.5 mm)
Package height6.1" (154.9 mm)
Package weight22 lbs (10 kg)
Technical details
Sustainability certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
