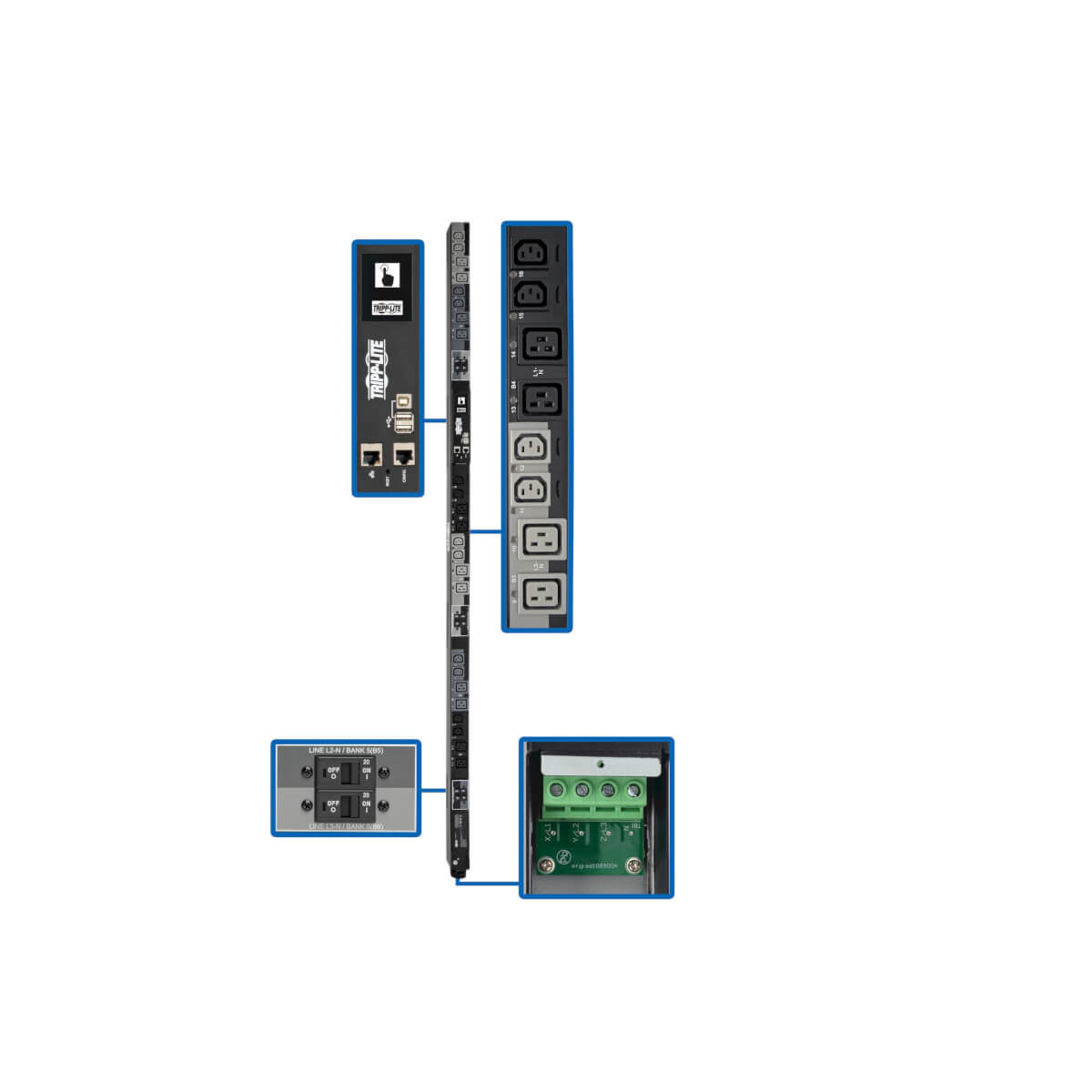

Tripp Lite PDU3XEVSRHWA power distribution unit (PDU) 24 AC outlet(s) 0U Black

Tripp Lite PDU3XEVSRHWA power distribution unit (PDU) 24 AC outlet(s) 0U Black

28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 24 Outlets, Hardwire 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp PDU PDU3XEVSRHWA 28.8kW 3-Phase Switched PDU with LX Platform RTL 237595 Register free see stock
D&H 3 Phase PDU Switched 28.8kW 22 PDU3XEVSRHWA
Ingram Micro 3-PHASE PDU SWITCHED 28.8KW 5JV839
TD Synnex 3P PDU SWITCHED 220/230/240V 12C13 12C19 5363524

Related Products

Description

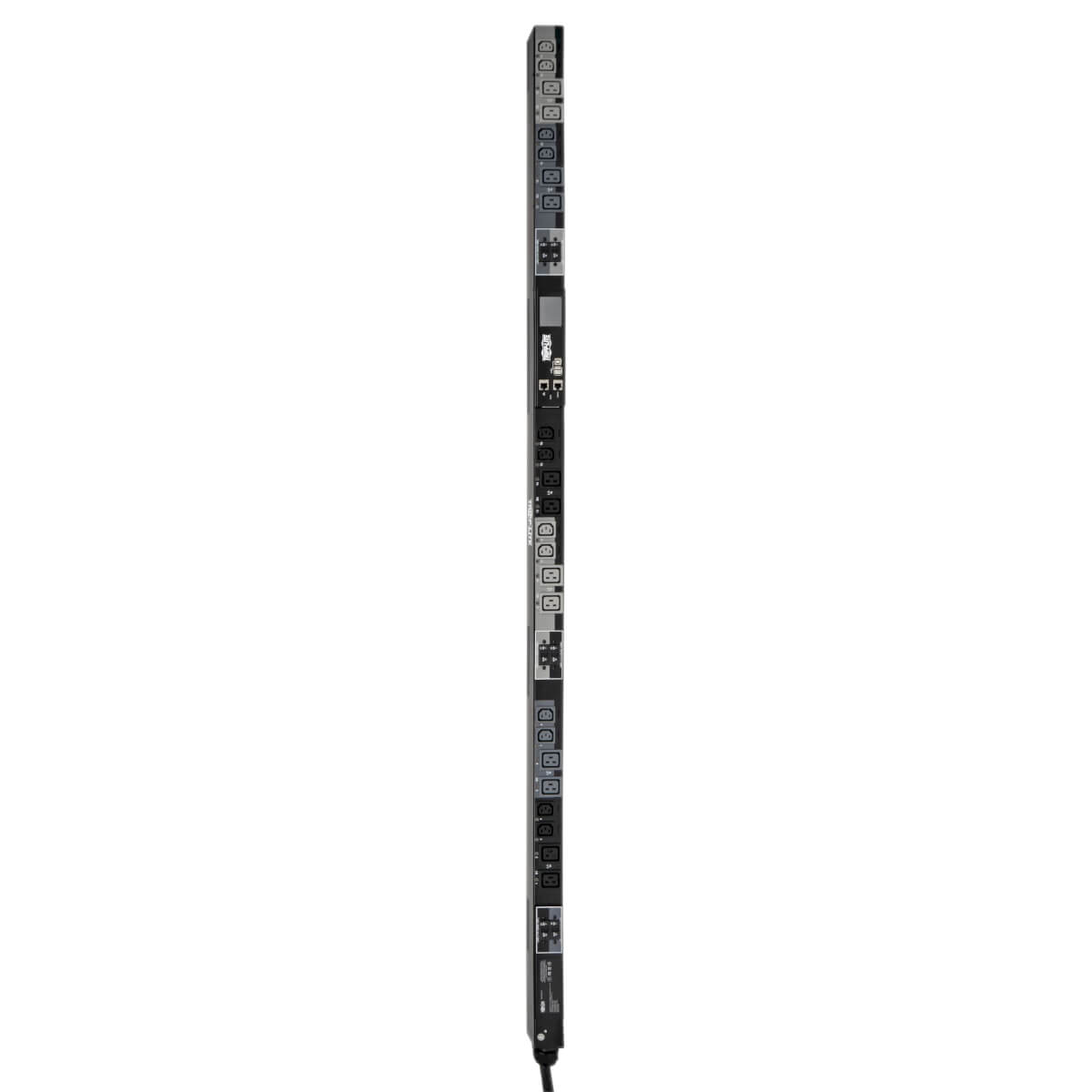

The PDU3XEVSRHWA 28.8kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

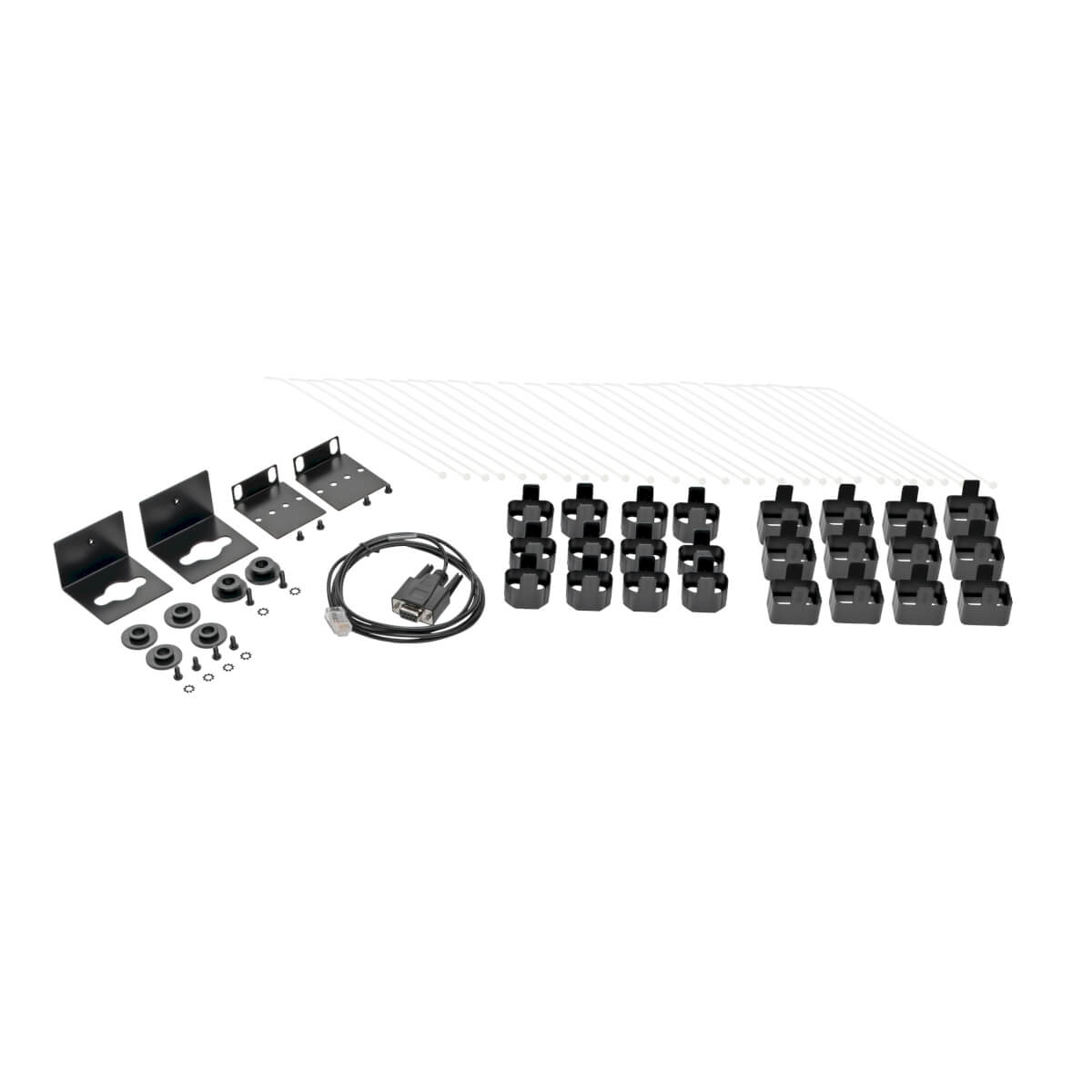

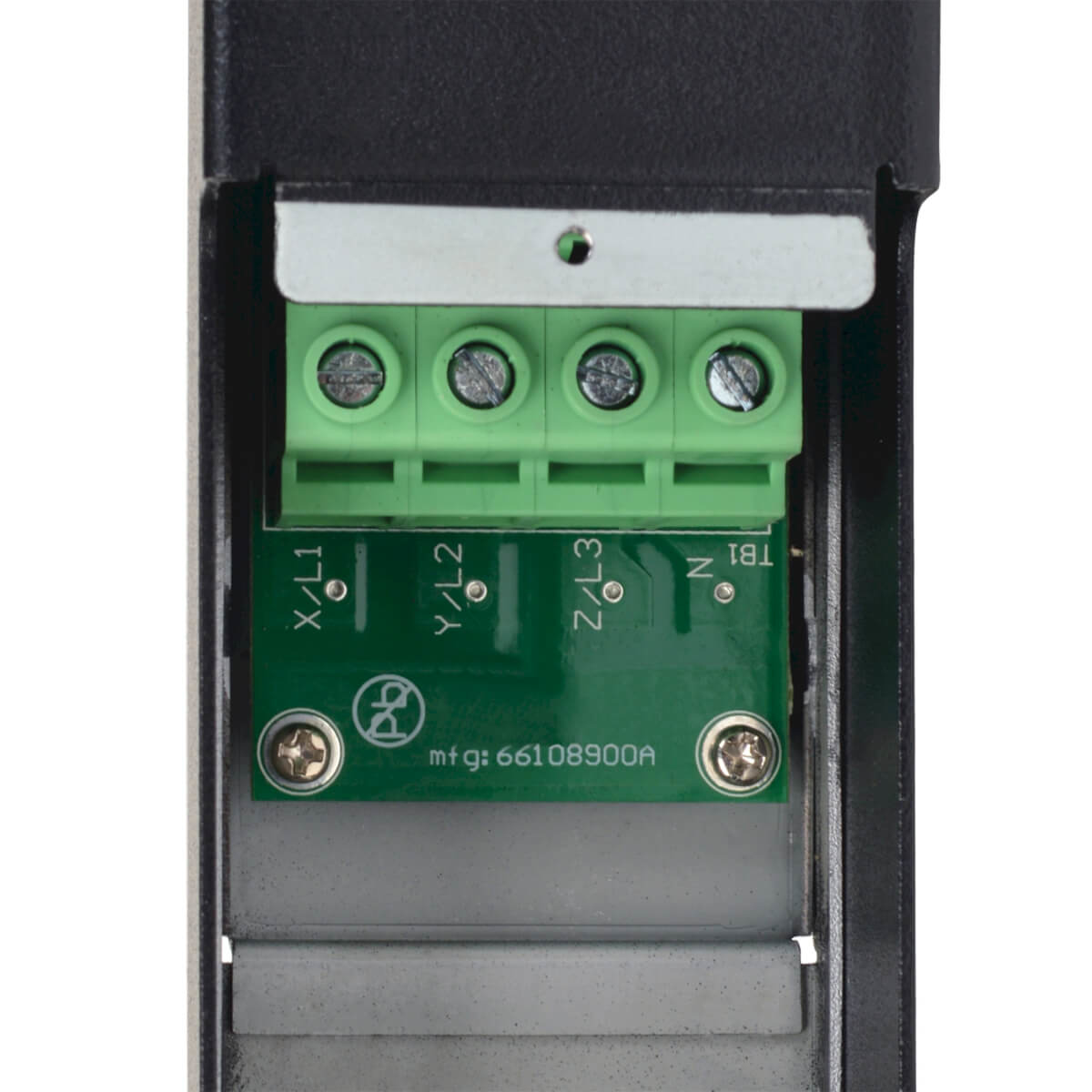

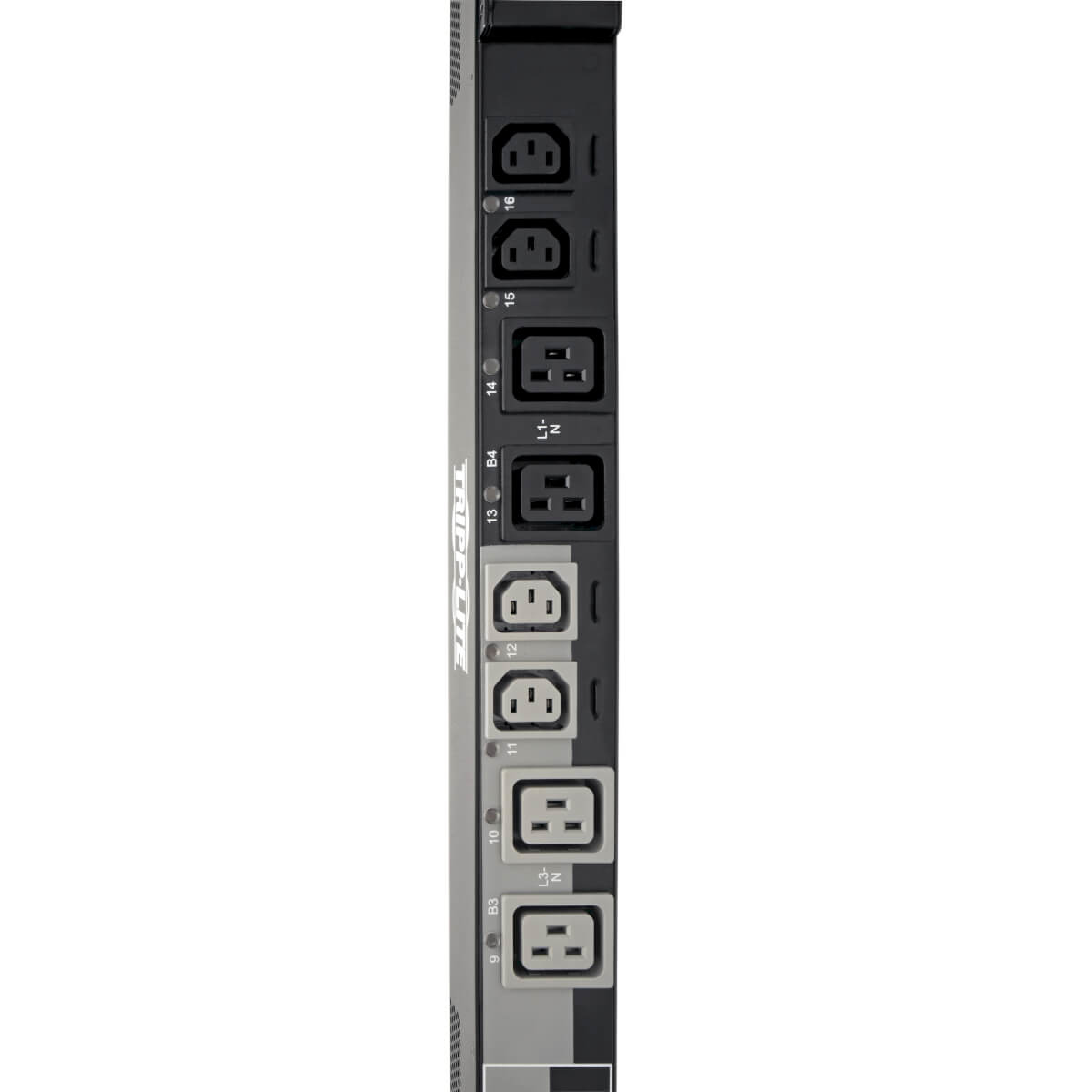

The 0U PDU features 24 switched 220-240V outlets (12 C13 and 12 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. Hardwire 380-415V input connects the PDU to a compatible AC power source, generator or protected UPS.

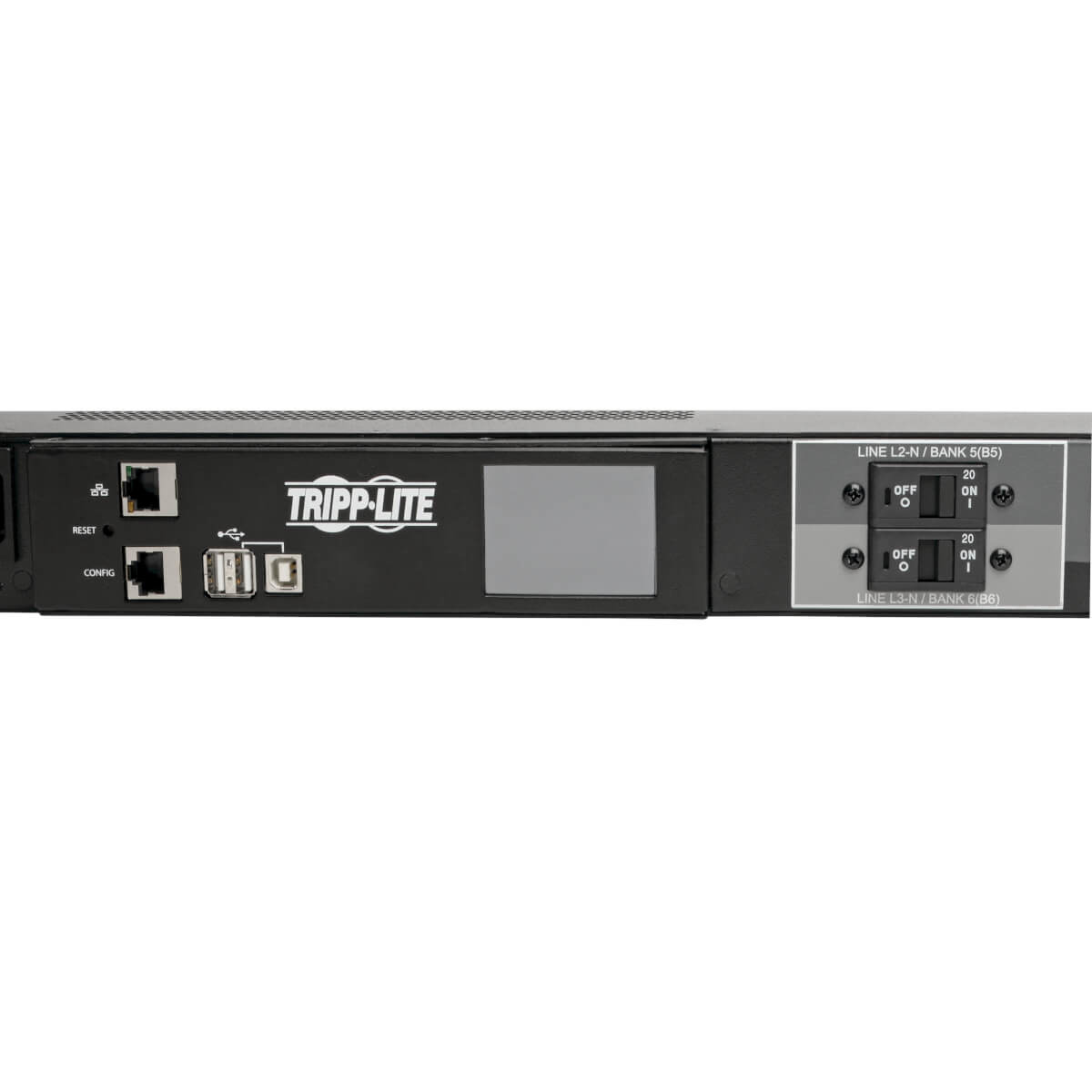

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

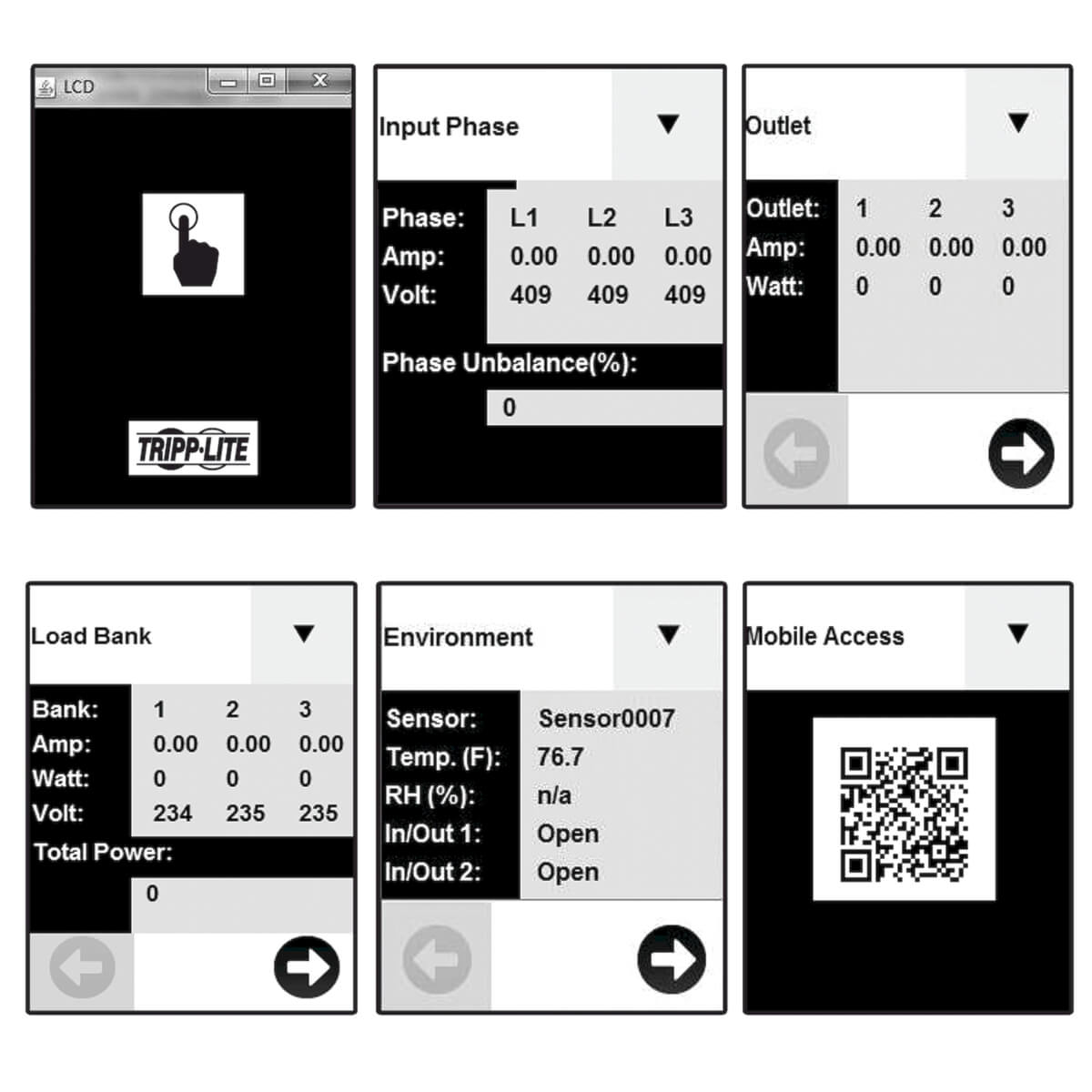

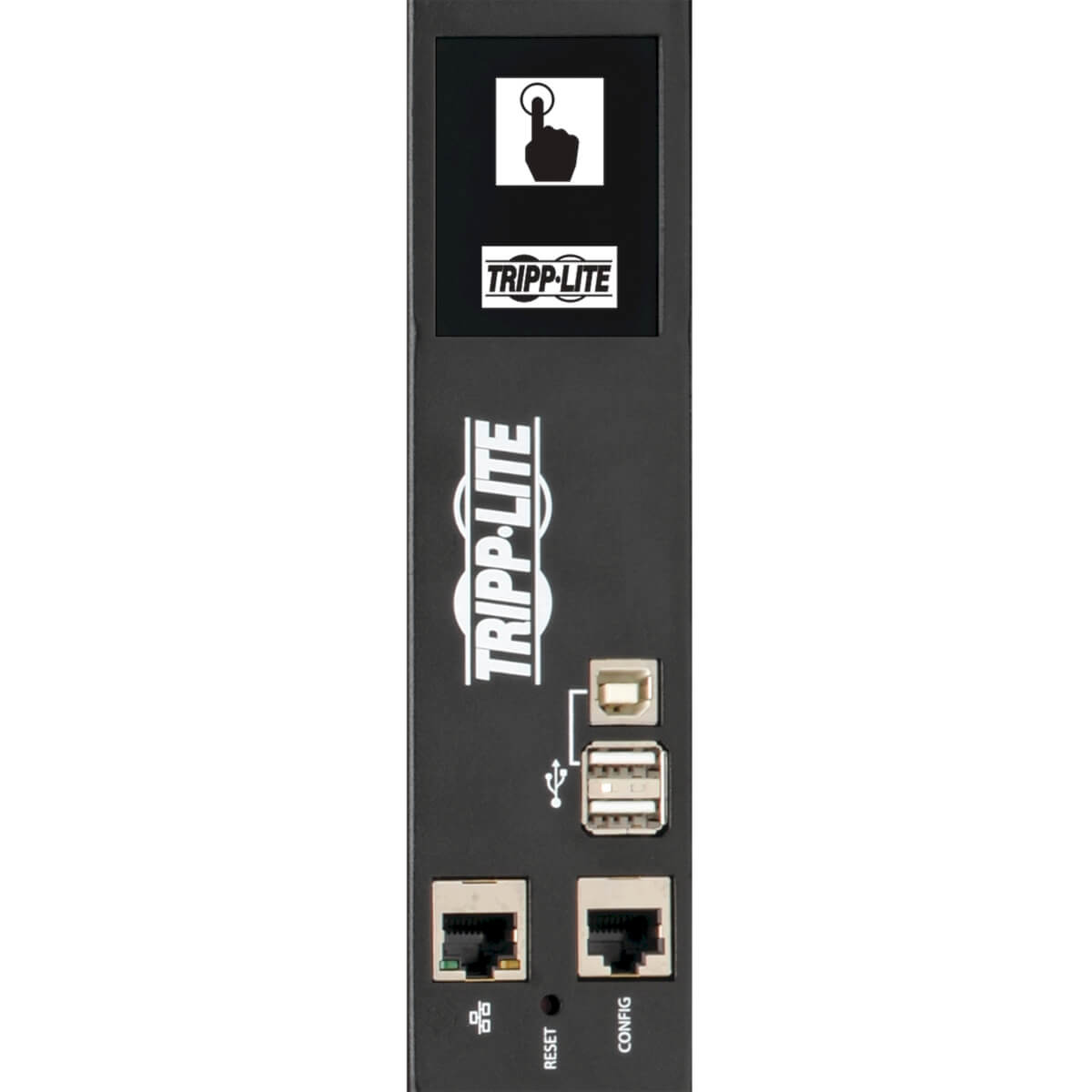

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.

Specifications

Design
On/off switchYes
TypeThree-phase
PDU typesSwitched
MountingVertical
Product colourBlack
CertificationTAA
Rack capacity0U
Ports & interfaces
AC outlets quantity24 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Features
CertificationTAA
Power
Nominal input voltage380-415 V
Nominal output voltage220-415 V
Maximum current40 A
Weight & dimensions
Dimensions (WxDxH)2.17 x 2.52 x 70" (55.1 x 64 x 1778 mm)
Weight13 lbs (5.9 kg)
Width2.17" (55.1 mm)
Depth2.52" (64 mm)
Height70" (1778 mm)
Package width6.89" (175 mm)
Package depth76.6" (1944.9 mm)
Package height5.91" (150.1 mm)
Package weight17.1 lbs (7.77 kg)
Package dimensions (WxDxH)6.89 x 5.91 x 76.6" (175 x 150.1 x 1944.9 mm)
Packaging data
Package width6.89" (175 mm)
Package depth76.6" (1944.9 mm)
Package height5.91" (150.1 mm)
Package weight17.1 lbs (7.77 kg)
Package dimensions (WxDxH)6.89 x 5.91 x 76.6" (175 x 150.1 x 1944.9 mm)
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
