Tripp Lite PDU3XVSRHWB power distribution unit (PDU) 30 AC outlet(s) 0U Black

Tripp Lite PDU3XVSRHWB power distribution unit (PDU) 30 AC outlet(s) 0U Black

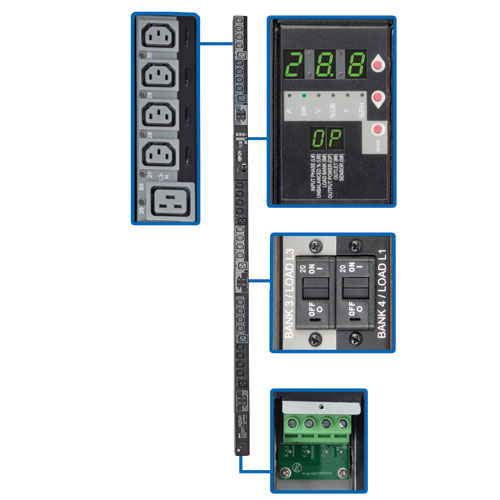

28.8kW 3-Phase Switched PDU, 240/230/220V Outlets (24 C13 & 6 C19), Hardwire 415/400/380V Input, 0U Vertical

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Corp PDU PDU3XVSRHWB 28.8kW 3-Phase Switch PDU Hardwire 0U Vertical TAA 202182 Register free see stock

Related Products

Description

Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase, breakered load bank and individual outlet.
● 28.8kW Switched 415/400/380V input 240/230/220V output PDU with built-in web/network interface

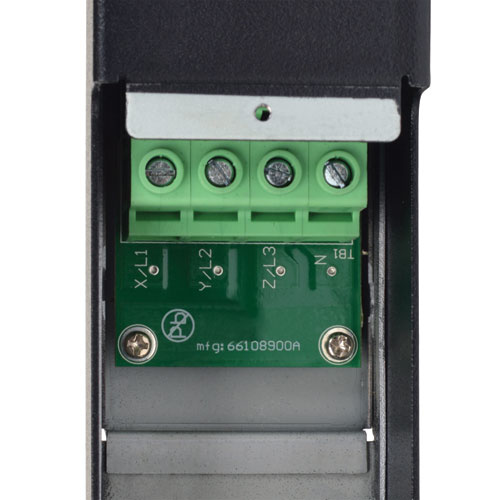

● Hardwire (3P+N+E) 415/400/380V 3 phase input

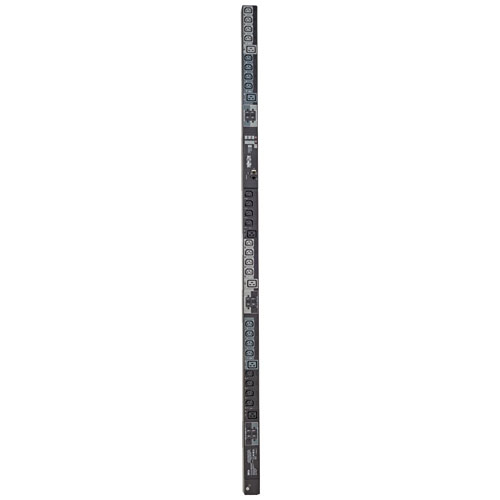

● 0U, 70 inch / 178cm vertical form factor

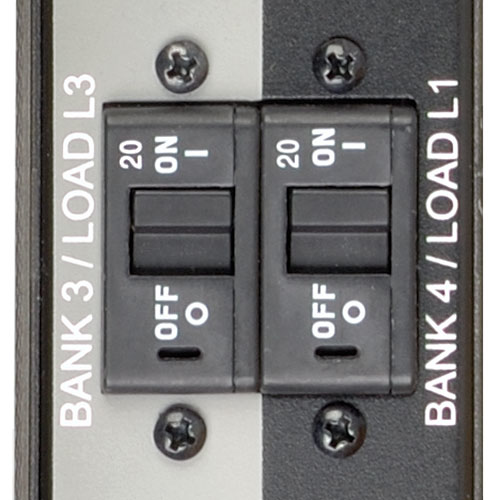

● 30 switched 240/230/200V outlets (24 C13, 6 C19) in 6 separately breakered 20A single phase load banks
● Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
● Enables reboot of locked equipment, custom power-on/power-off sequences, load shedding of optional loads and disabling unused outlets
● Network interface provides PDU control and data regarding input voltage and load levels per-outlet, per-breaker and per-phase

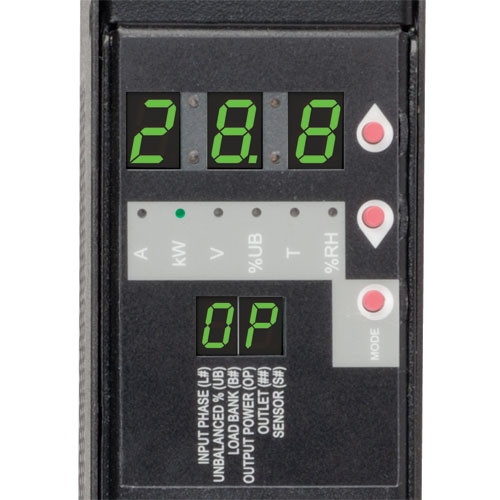

● Built-in local digital display and remote web/network interface reports detailed voltage, amperage and kilowatt output values per outlet, per breaker and per phase with additional reporting options for power unbalance percentage, IP address and sensor based temperature and humidity data (requires ENVIROSENSE sensor)
● In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
● Local display supports electronic 180 degree display rotation for overhead or under-floor input cable orientation
● Supports user-specified alarm notification thresholds
● DHCP/Manual configuration support
● 10/100 Mbps auto-sensing
● Real-time clock backup maintains the time of day and date even if the PDU is unpowered
● Tiered access privileges allow an administrator and a guest to login via web browser
● Alert notifications via email or SNMP traps offer immediate event notification
● Firmware upgrade ability supports future product enhancements
● Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTPP, DHCP, BootP, NTP protocols
● Fully compatible with FREE PowerAlert Network Management System / NMS Software
● Included set of Plug-lock inserts keep C14 and C20 power cords solidly connected to PDU outlets

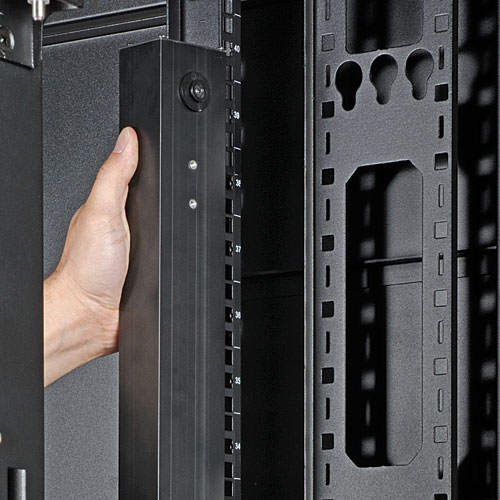

● Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
● Switched 28.8kW 3-Phase 415/400/380V input 240/230/220V output PDU
● Reports voltage & load per-outlet or per phase via ethernet interface
● 1% billing-grade accuracy; Digital display reports detailed status information
● 70in / 1778mm 0U vertical format; Toolless button-mount installation

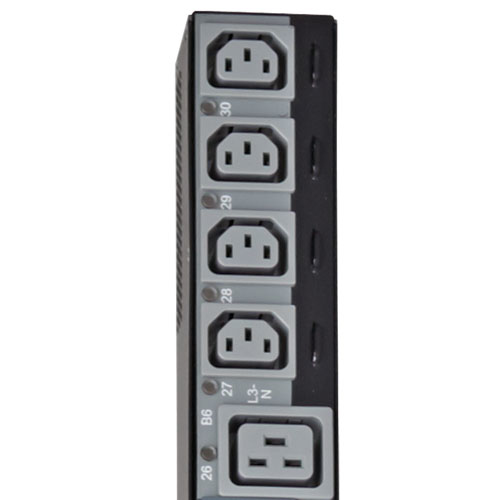

● 24 C13 & 6 C19 single phase outlets; Plug-lock cable retention inserts
● Hardwire 3 phase input

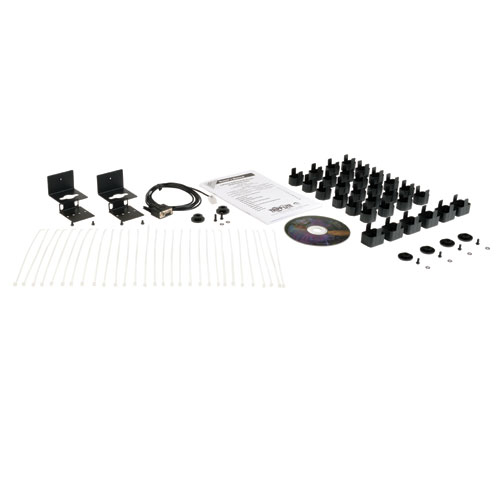

Package Includes

● Switched, vertical rackmount PDU with pre-installed mounting buttons
● 24 C13/C14 and 6 C19/C20 Plug-lock cable retention inserts
● Spare installation buttons (2 9mm / 4 6mm), Mounting brackets
● Configuration cable
● Owner's manual

Specifications

Design
PDU typesSwitched
MountingVertical
Product colourBlack
CertificationCE (EN60950-1), UL60950-1 (USA), CSA22.2 (Canada), NOM (Mexico), FCC Class A (Emissions)
Rack capacity0U
Housing materialSteel
Ports & interfaces
AC outlets quantity30 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Features
CertificationCE (EN60950-1), UL60950-1 (USA), CSA22.2 (Canada), NOM (Mexico), FCC Class A (Emissions)
Power
Nominal input voltage380-415 V
Nominal output voltage220-415 V
Maximum current40 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)2.17 x 2.52 x 70" (55.1 x 64 x 1778 mm)
Weight13 lbs (5.9 kg)
Package width6.9" (175.3 mm)
Package depth76" (1930.4 mm)
Package height5.5" (139.7 mm)
Package weight18.2 lbs (8.26 kg)
Packaging data
Package width6.9" (175.3 mm)
Package depth76" (1930.4 mm)
Package height5.5" (139.7 mm)
Package weight18.2 lbs (8.26 kg)
Technical details
Compliance certificatesRoHS
