Tripp Lite PDUMVR20NET power distribution unit (PDU) 24 AC outlet(s) 0U Black

Tripp Lite PDUMVR20NET power distribution unit (PDU) 24 AC outlet(s) 0U Black

1.9kW Single-Phase Switched PDU, 120V Outlets (24 5-15/20R), L5-20P/5-20P Adapter, 10ft Cord, 0U Vertical

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

SINGLE-PHASE SWITCHED PDU, 20A120V, 0U VERTICAL RACKMOUNT24 OUTLETS

 524897 Register free see stock

Related Products

Description

Tripp Lite single phase Switched PDU / Power Distribution Unit with individual outlet metering offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption for each individual outlet. Built-in current monitoring offers 1% billing grade accuracy. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

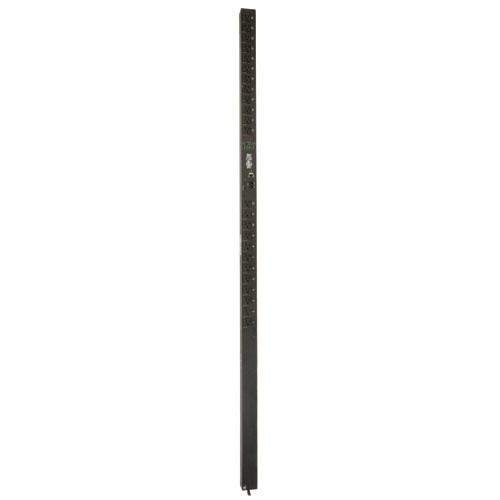

- 120V 20A Switched PDU with built-in web/network interface in 0U 70in / 178cm vertical rackmount form factor; 20A max capacity (agency derated to 16A)

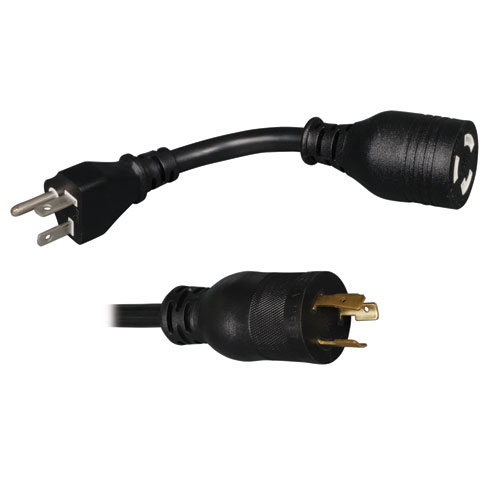

- Attached NEMA L5-20P 120V single phase input with 5-20P plug adapter, 10 ft. / 3m cord

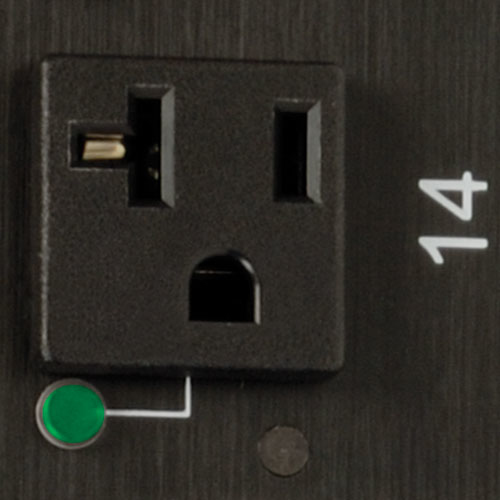

- 24 switched NEMA 5-15/20R outlets
- Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
- Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding and disabling unused outlets
- Network interface provides PDU control and data regarding input voltage and load level for each load bank or each individual outlet in amps
- Current monitoring provides 1% billing grade accuracy

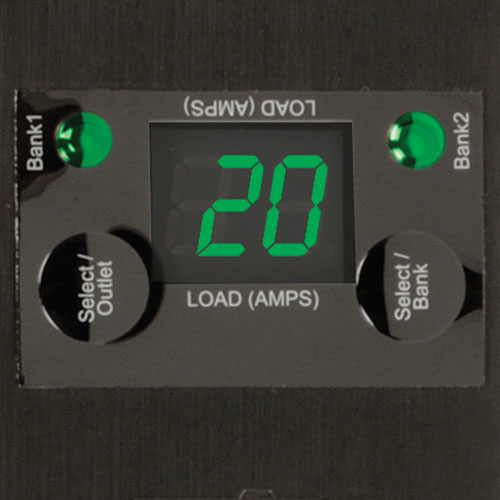

- Digital display continuously report output load level in amps
- Display also supports IP-address self-identification and 180 degree display rotation
- Supports user-specified alarm notification thresholds
- In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login via web browser
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Fully compatible with FREE PowerAlert Network Management System / NMS Software

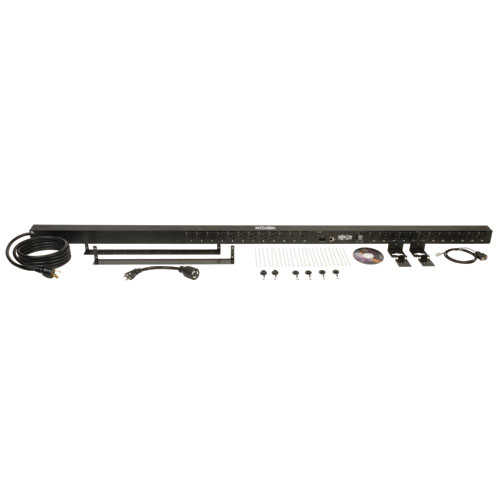

- Included cord retention brackets

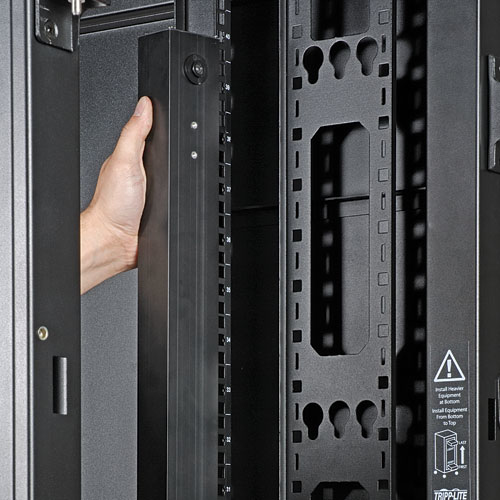

- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Specifications

Design
PDU typesSwitched
MountingVertical
DisplayLCD
Product colourBlack
CertificationUL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), TAA
Rack capacity0U
Ports & interfaces
AC outlets quantity24 AC outlet(s)
AC outlet typesNEMA 5–15, NEMA 5–20R
Input connection typeNEMA 5-20P, NEMA L5-20P
Features
Cable length118.1" (3 m)
LED indicatorsYes
CertificationUL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), TAA
Ergonomics
Cable length118.1" (3 m)
LED indicatorsYes
DisplayLCD
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current20 A
AC input frequency50 - 60 Hz
Certificates
CertificationUL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), TAA
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight9.7 lbs (4.4 kg)
Width2.2" (56 mm)
Depth2.05" (52 mm)
Height70.1" (1780 mm)
Technical details
Compliance certificatesRoHS
