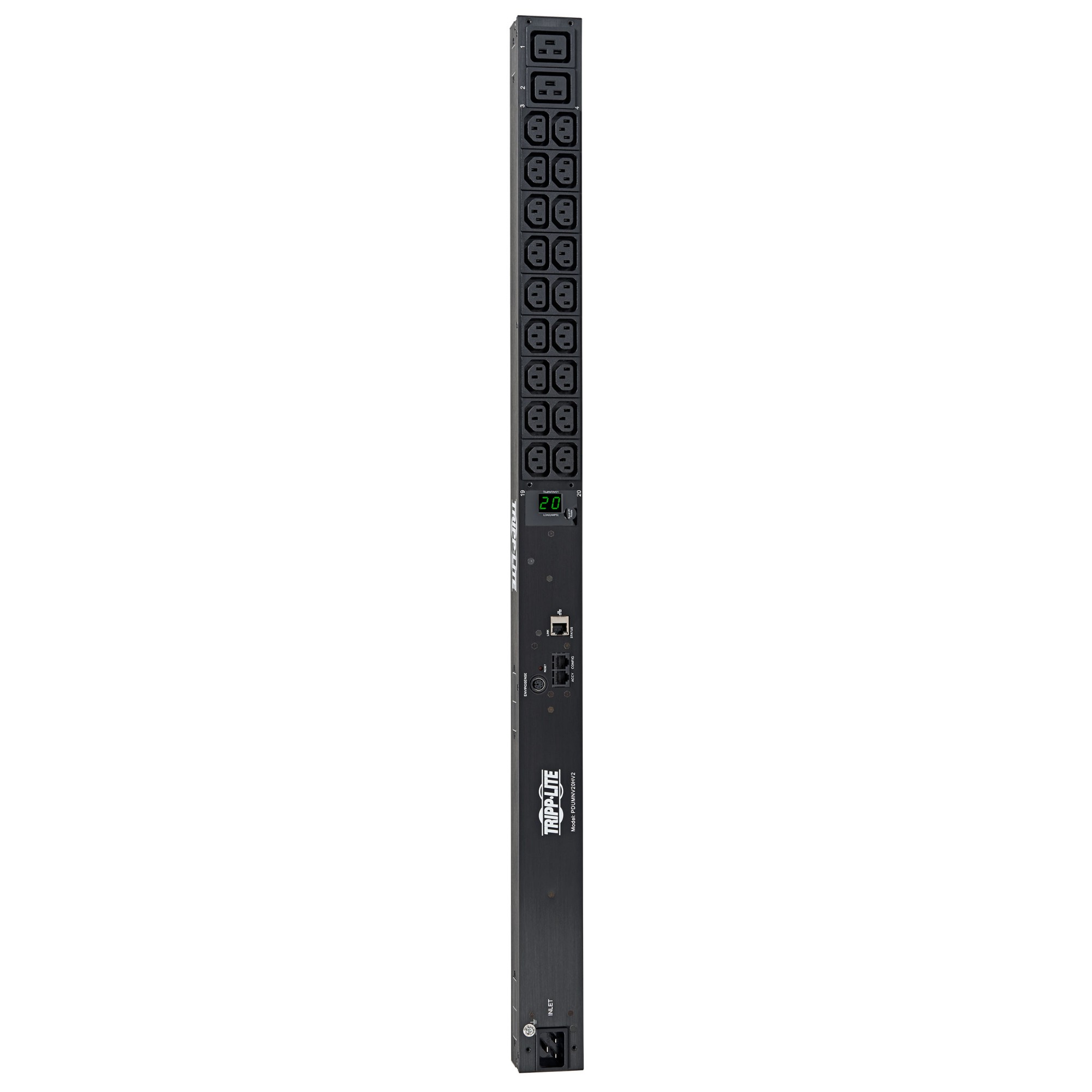

Tripp Lite PDUMNV20HV2 power distribution unit (PDU) 20 AC outlet(s) 0U Black

Tripp Lite PDUMNV20HV2 power distribution unit (PDU) 20 AC outlet(s) 0U Black

3.2-3.8kW Single-Phase Monitored PDU, 200-240V Outlets (18-C13 & 2-C19), C20/L6-20P, 0U Vertical, 35.5 in.

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

PDU MONITORED 200V-240V 20A18 C13; 2 C19 C20 VERTICAL

 565322 Register free see stock

Description

Tripp Lite Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current consumption in amps is displayed via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers trip.

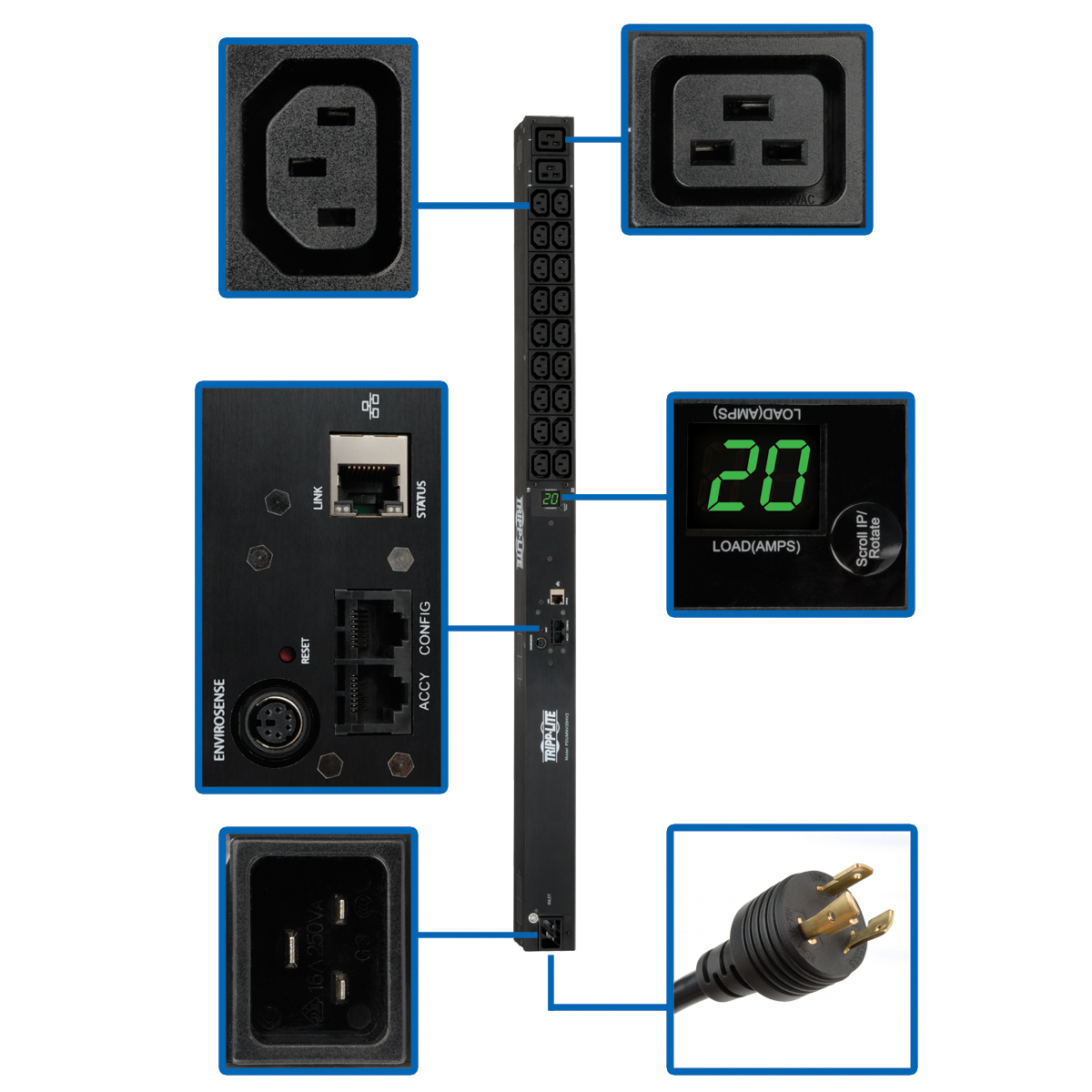

● 200/208/230/240V Monitored PDU with built-in web/network interface in 0U 35.5 in. / 90.2cm rackmount form factor; 20A maximum capacity (agency de-rated to 16A)
● C20 inlet supports user supplied input cabling; 3m L6-20P power cord included
● 20 outlets (18 C13 & 2 C19)
● 0U 35.5in / 90.2cm vertical rackmount form factor
● Network interface provides PDU control and data regarding input voltage, frequency and loading information
● Digital display reports load level information in amps
● Supports user-specified alarm notification thresholds
● In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
● DHCP/Manual configuration support
● 10/100 Mbps auto-sensing
● Real-time clock backup maintains the time of day and date even if the PDU is unpowered
● Tiered access privileges allow an administrator and a guest to login via web browser
● Alert notifications via email or SNMP traps offer immediate event notification
● Firmware upgrade ability supports future product enhancements
● Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
● Fully compatible with FREE PowerAlert Network Management System / NMS Software
● Included cord retention brackets
● Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
● Monitored 16/20A 200-240V PDU; 0U 35.5 in / 90.2cm vertical rackmount
● Reports voltage, frequency & loading information via ethernet interface
● Visual current meter; Toolless button-mount installation
● C20 inlet; 3m L6-20P power cable included
● 20 outlets (18 C13 & 2 C19); cord retention brackets included
● Temperature, humidity and contact-closure monitoring options

Package Includes

● Rackmount PDU
● Plug retention plates
● Rack mounting brackets
● Owner's manual

Specifications

Design
PDU typesMonitored
MountingVertical
Product colourBlack
Certification60950-1 (USA, Canada), CE (International), Class A (Emissions), NOM (Mexico)
Rack capacity0U
Ports & interfaces
AC outlets quantity20 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Input connection typeNEMA L6-20P, IEC-320 C20
Features
Cable length118.1" (3 m)
LED indicatorsYes
Certification60950-1 (USA, Canada), CE (International), Class A (Emissions), NOM (Mexico)
Ergonomics
Cable length118.1" (3 m)
LED indicatorsYes
Power
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Maximum current20 A
AC input frequency50 - 60 Hz
Certificates
Certification60950-1 (USA, Canada), CE (International), Class A (Emissions), NOM (Mexico)
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight6.61 lbs (3 kg)
Width2.2" (56 mm)
Depth1.85" (47 mm)
Height35.5" (902 mm)
Technical details
Compliance certificatesRoHS
