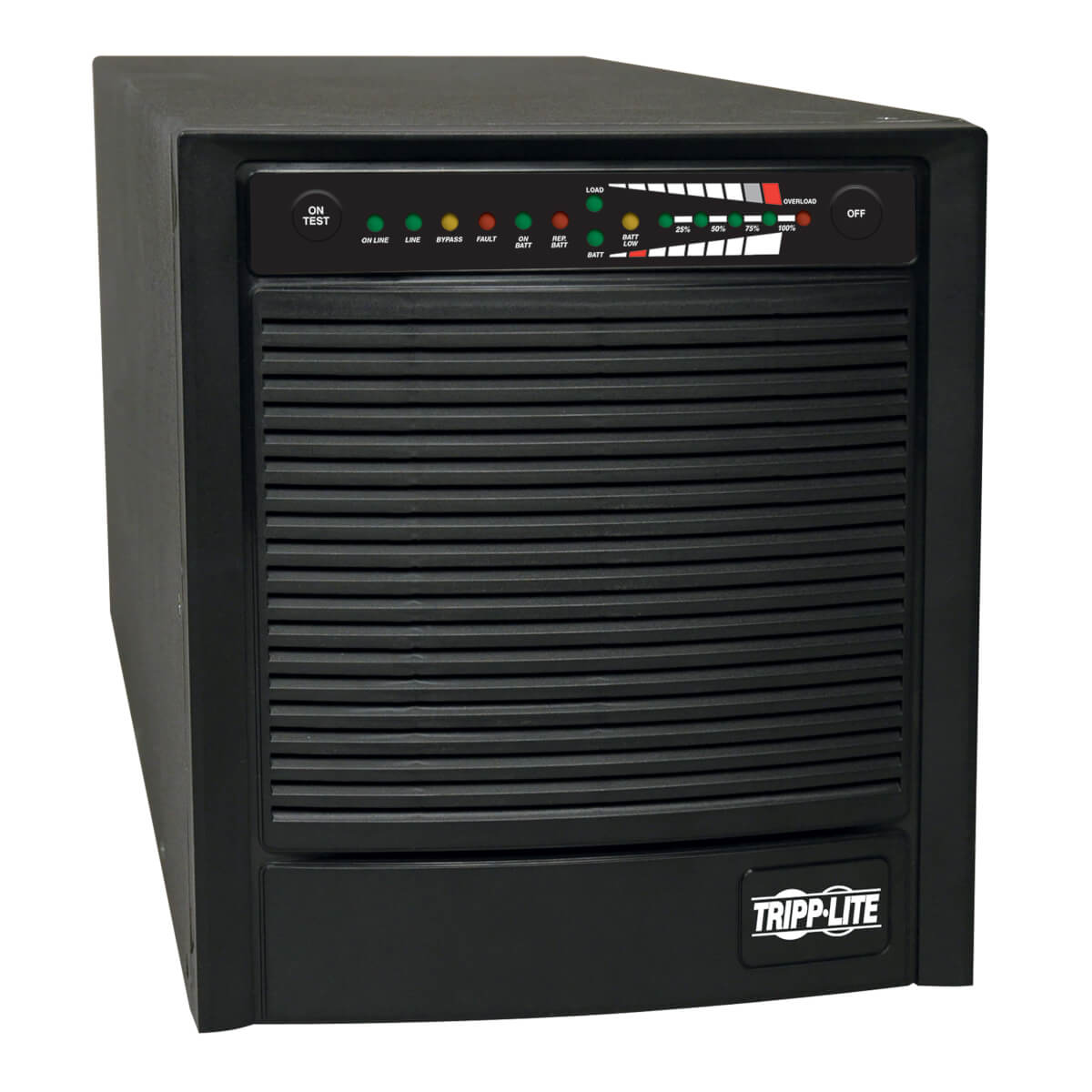

Tripp Lite SU1500XL uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1200 W 6 AC outlet(s)
- Brand: Tripp Lite
- Category:
- SKU: SU1500XL
- EAN: 0373321258598 0072090770620 00 ...0770620 0037332125859 0087944509370more
SmartOnline 100-120V 1.5kVA 1.2kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
1500VA/1200W UPSEXTENDED RUNTIMELINE INTERACTIVE |
355002 |
Related Products
-
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs)
Description
Tripp Lite's SmartOnline SU1500XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. Large-capacity 1.5kVA/1200W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time provides guaranteed compatibility with all equipment types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Includes 6 UPS-supported outlets. 2 load banks, each with 3 outlets, can be independently controlled via a software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery backup time can be extended with the addition of multiple external battery packs. Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's Watchdog Service Monitoring/Rebooting Software. Attractive all-black upright tower format. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
- True on-line, double conversion UPS provides constant, pure sine wave AC output
- Zero transfer time, on-line, double-conversion and economy-mode operation supported
- Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time
- Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
- Accepts input voltages between 80V and 150V (65V to 150V at loads under 70%), regulating output to 120V AC +/-2%

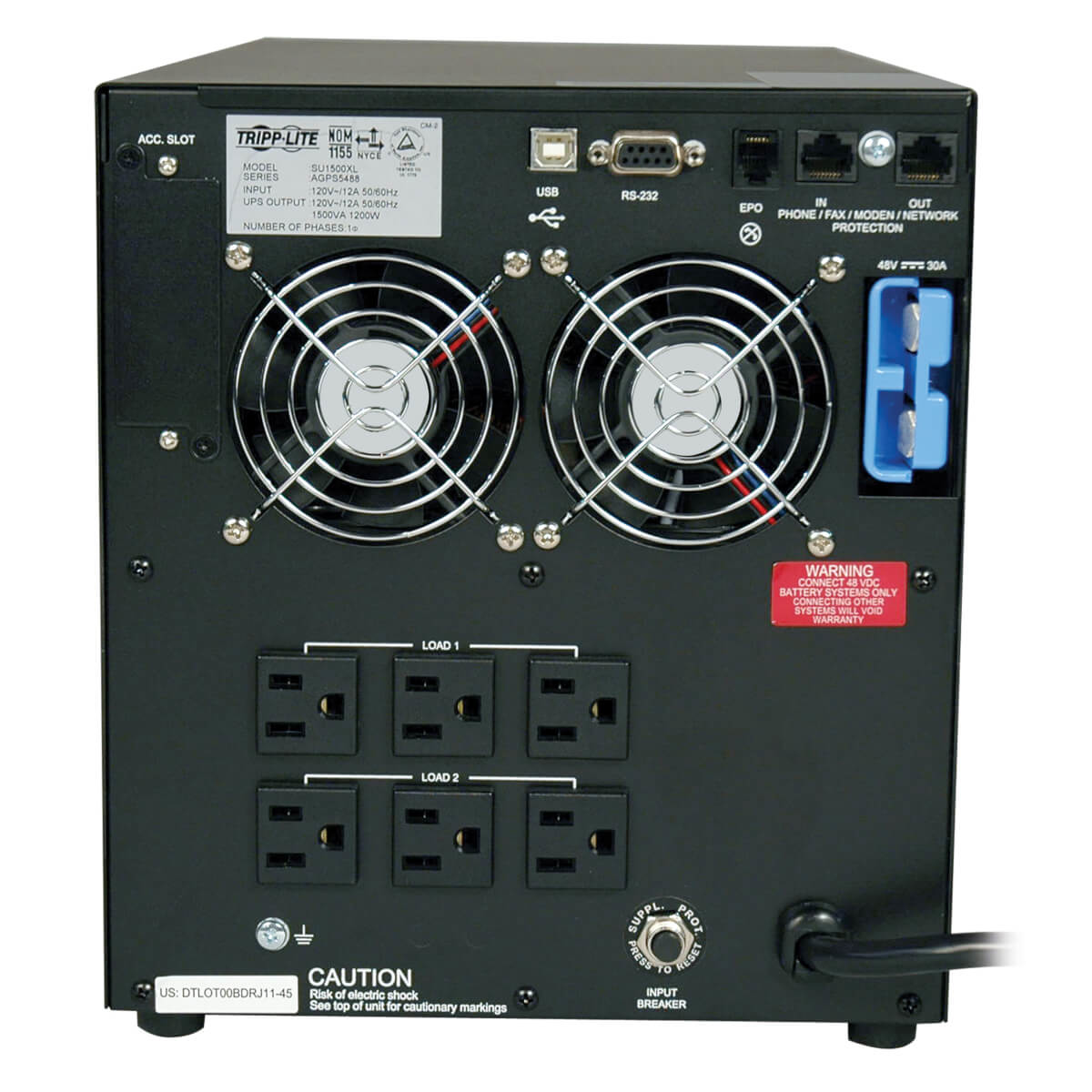

- 1500VA/1200W output capacity with 6 NEMA 5-15R outlets
- Two built-in, individually switchable load banks, each with 3 outlets, can be controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment
- Standard internal battery set provides 14 min. runtime at half load and 4.5 min. at full load
- Runtime is expandable with BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
- Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
- Attractive all-black upright tower format
- Simultaneous communications via HID-compliant USB port, DB9 serial port, and SNMP/web card slot
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- DB9 serial network interface supports RS-232 and contact closure messaging
- Slot for optional SNMP/web card (part# SNMPWEBCARD)
- Included PowerAlert UPS Power Management Software and cabling provides monitoring of in-depth site power conditions, full UPS status and fault warnings, output load level and load bank power control
- Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software (part # WATCHDOGSW)
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
- Diagnostic LEDs
- Built-in RJ-11 EPO (Emergency Power Off) jack allows connection to site emergency power off systems
- $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment (USA and Canada Only)
- True on-line, double conversion UPS provides constant, pure sine wave AC output
- Zero transfer time, on-line, double-conversion and economy-mode operation supported
- Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time
- Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
- Accepts input voltages between 80V and 150V (65V to 150V at loads under 70%), regulating output to 120V AC +/-2%
- 1500VA/1200W output capacity with 6 NEMA 5-15R outlets
- Two built-in, individually switchable load banks, each with 3 outlets, can be controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment
- Standard internal battery set provides 14 min. runtime at half load and 4.5 min. at full load
- Runtime is expandable with BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
- Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
- Attractive all-black upright tower format
- Simultaneous communications via HID-compliant USB port, DB9 serial port, and SNMP/web card slot
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- DB9 serial network interface supports RS-232 and contact closure messaging
- Slot for optional SNMP/web card (part# SNMPWEBCARD)
- Included PowerAlert UPS Power Management Software and cabling provides monitoring of in-depth site power conditions, full UPS status and fault warnings, output load level and load bank power control
- Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software (part # WATCHDOGSW)
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
- Diagnostic LEDs
- Built-in RJ-11 EPO (Emergency Power Off) jack allows connection to site emergency power off systems
- $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment (USA and Canada Only)
Specifications
| Power | |
|---|---|
| Output power | 1200 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 120 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 570 J |
| Maximum current | 15 A |
| Output power capacity | 1.5 kVA |
| Ports & interfaces | |
| Cable length | 118.1" (3 m) |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Country of origin | China |
| UPS topology | Double-conversion (Online) |
| Output power | 1200 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 120 V |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 570 J |
| Maximum current | 15 A |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 1.5 kVA |
| Battery | |
| Typical backup time at half load | 4.5 min |
| Typical backup time at full load | 14 min |
| Hot-swap battery | Yes |
| Design | |
| Country of origin | China |
| Form factor | Tower |
| Product colour | Black |
| Cable length | 118.1" (3 m) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 23.3" (591.8 mm) |
| Package depth | 12.7" (322.6 mm) |
| Package height | 14.7" (373.4 mm) |
| Weight | 49.4 lbs (22.4 kg) |
| Width | 9" (228.6 mm) |
| Package weight | 54.9 lbs (24.9 kg) |
| Height | 10.3" (260.4 mm) |
| Depth | 19.5" (495.3 mm) |
| Packaging data | |
| Package width | 23.3" (591.8 mm) |
| Package depth | 12.7" (322.6 mm) |
| Package height | 14.7" (373.4 mm) |
| Package weight | 54.9 lbs (24.9 kg) |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case width | 23.3" (591.8 mm) |
| Master (outer) case length | 12.7" (322.6 mm) |
| Master (outer) case height | 14.7" (373.4 mm) |
| Master (outer) case gross weight | 54.9 lbs (24.9 kg) |
| Other features | |
| Interface | USB & DB9 |
| Input connection type | 5-15P |
