Tripp Lite SU3000RTXL3U uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 9 AC outlet(s)

Tripp Lite SU3000RTXL3U uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 9 AC outlet(s)

SmartOnline 120V 3kVA 2.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, 3U Rack/Tower, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 3000VA/2400W UPS ONLINE UNISONEXTENDED RUNTIMERACK OR TOWER 261521 Register free see stock
Arlington Industries 3000VA/2400W 3U 7-OUT ON-LINE UPS TRPSU3000RTXL3U

Related Products

Description

3000VA on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 3U rackmount form factor with an installed depth of 26 inches. Expandable battery runtime with optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. NEMA L5-30P input plug. NEMA 5-15, NEMA 5-15/20R and NEMA L5-30R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated two-bank PDU switching supports load shedding and remote reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for viewing in rackmount or tower configurations. Dataline surge suppression for dialup, DSL or network Ethernet connection. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Fault-tolerant auto-bypass mode. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITHD 2-post rackmount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
- SmartOnline high performance UPS system is ideal for critical voice, data, medical and industrial network applications
- True on-line, double-conversion UPS provides perfectly regulated sine wave output within 2% of 110/120V (user selectable) under all usage conditions
- Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time
- Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs
- Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types
- Corrects line voltage conditions as low as 65V and as high as 150V back to selectable 110/120V (+/-2%) values
- Standard internal battery set offers 14 minutes runtime at half load (1200W) and 5 minutes at full load (2400W)
- Expandable battery runtime with optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs
- Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
- Compact rackmount form factor installs using only 3 rack spaces (3U) with a maximum installed depth of 26 inches
- Ships with all mounting accessories for 4 post rackmount installation
- Optional 2POSTRMKITHD enables 2 post rackmount installation (not wallmount compatible)
- Optional 2-9USTAND accessory enables small-footprint upright tower placement
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
- Network interfaces support simultaneous communications via built-in USB, DB9 serial / contact-closure and SNMPWEBCARD slot
- HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate self-test, load bank output power control and remote reboot, UPS nominal voltage adjustment and UPS line to battery power voltage setpoints
- Built-in Emergency Power Off (EPO) interface with cable
- NEMA L5-30P input plug; NEMA 5-15/20R & L5-30R output receptacles
- Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual load banks (each bank has four outlets)
- Front panel LEDs offer current monitoring and battery charge level information
- UPS ships fully assembled in full compliance with DOT regulations; no time consuming connection of internal batteries by user required
- Single line TEL/DSL or network ethernet line surge suppression
- $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

Specifications

Power
Output power2400 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Surge energy rating480 J
Output power capacity3 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity9 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R, NEMA L5-30R

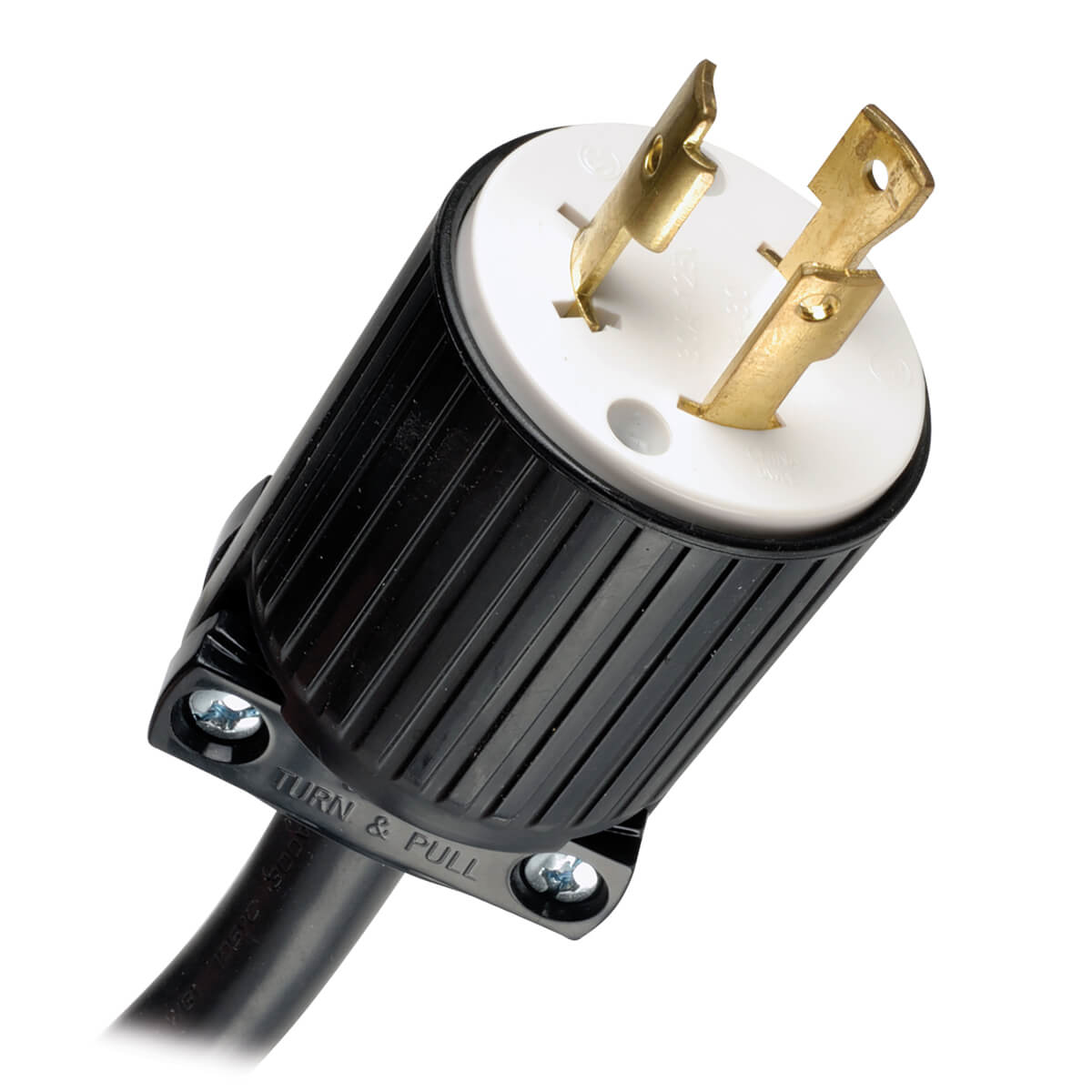

Power plugNEMA L5-30P
Performance
UPS topologyDouble-conversion (Online)
Features
Country of originChina
UPS topologyDouble-conversion (Online)
Output power2400 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Surge energy rating480 J
Output power capacity3 kVA
Input frequency50/60 Hz
Battery
Typical backup time at half load14 min
Typical backup time at full load5 min
Design
Country of originChina
Form factorRackmount/Tower
Product colourBlack
CertificationUL1778 (USA), CSA C22.2 No. 107.3 (Canada), NOM (Mexico), Class A, FCC Part 68 / Industry Canada, RoHS.
Cable length118.1" (3 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Weight & dimensions
Package width23" (584.2 mm)
Package depth33" (838.2 mm)
Package height10" (254 mm)
Weight73.9 lbs (33.5 kg)
Width17.7" (450.8 mm)
Package weight112 lbs (50.8 kg)
Height5.25" (133.4 mm)
Depth26" (660.4 mm)
Packaging data
Package width23" (584.2 mm)
Package depth33" (838.2 mm)
Package height10" (254 mm)
Package weight112 lbs (50.8 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width23" (584.2 mm)
Master (outer) case length33" (838.2 mm)
Master (outer) case height10" (254 mm)
Master (outer) case gross weight112 lbs (50.8 kg)
Certificates
CertificationUL1778 (USA), CSA C22.2 No. 107.3 (Canada), NOM (Mexico), Class A, FCC Part 68 / Industry Canada, RoHS.
Other features
Input connection typeNEMA L5-30P
