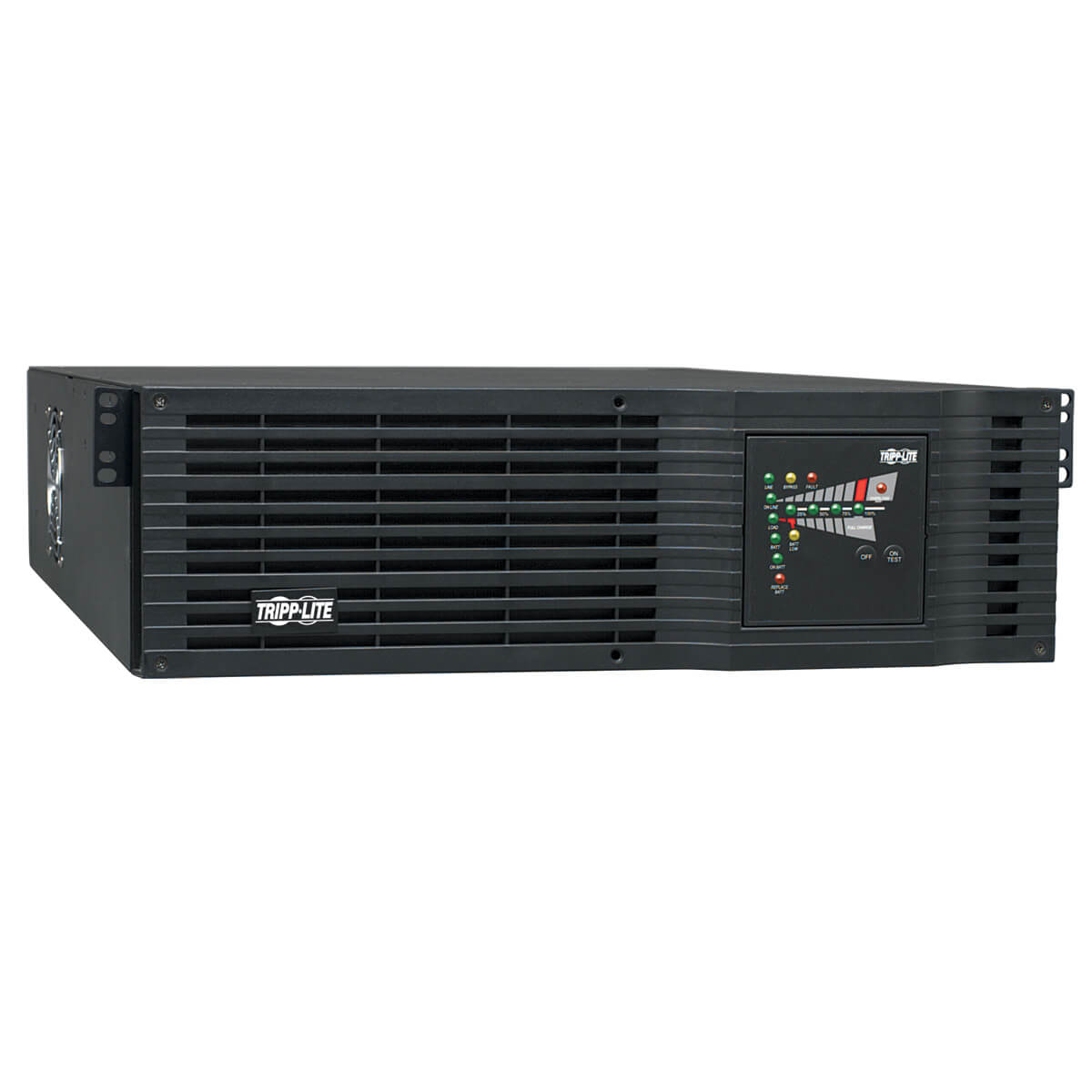

Tripp Lite SU3000RTXL3UN uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 9 AC outlet(s)
- Brand: Tripp Lite
- Category:
- SKU: SU3000RTXL3UN
- EAN: 0373321814664 0037332181466
SmartOnline 120V 3kVA 2.4kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard pre-installed, 3U Rack/Tower, USB, DB9 Serial
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
3000VA 2400W UPS SMART ONLINERACKMOUNT 110V / 120V USB |
565579 |
Related Products
-
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs)
Description
Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. High 98% efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and PRE-INSTALLED SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation and output power availability. Audible alarm with push-button momentary alarm-cancel. Programmable self-test. Battery independent restart. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
- Tripp Lite SU3000RTXL3UN 3000VA / 3kVA / 2400W on-line, double-conversion 3U rackmount UPS
- Selectable 110/120V output (120V factory preset)

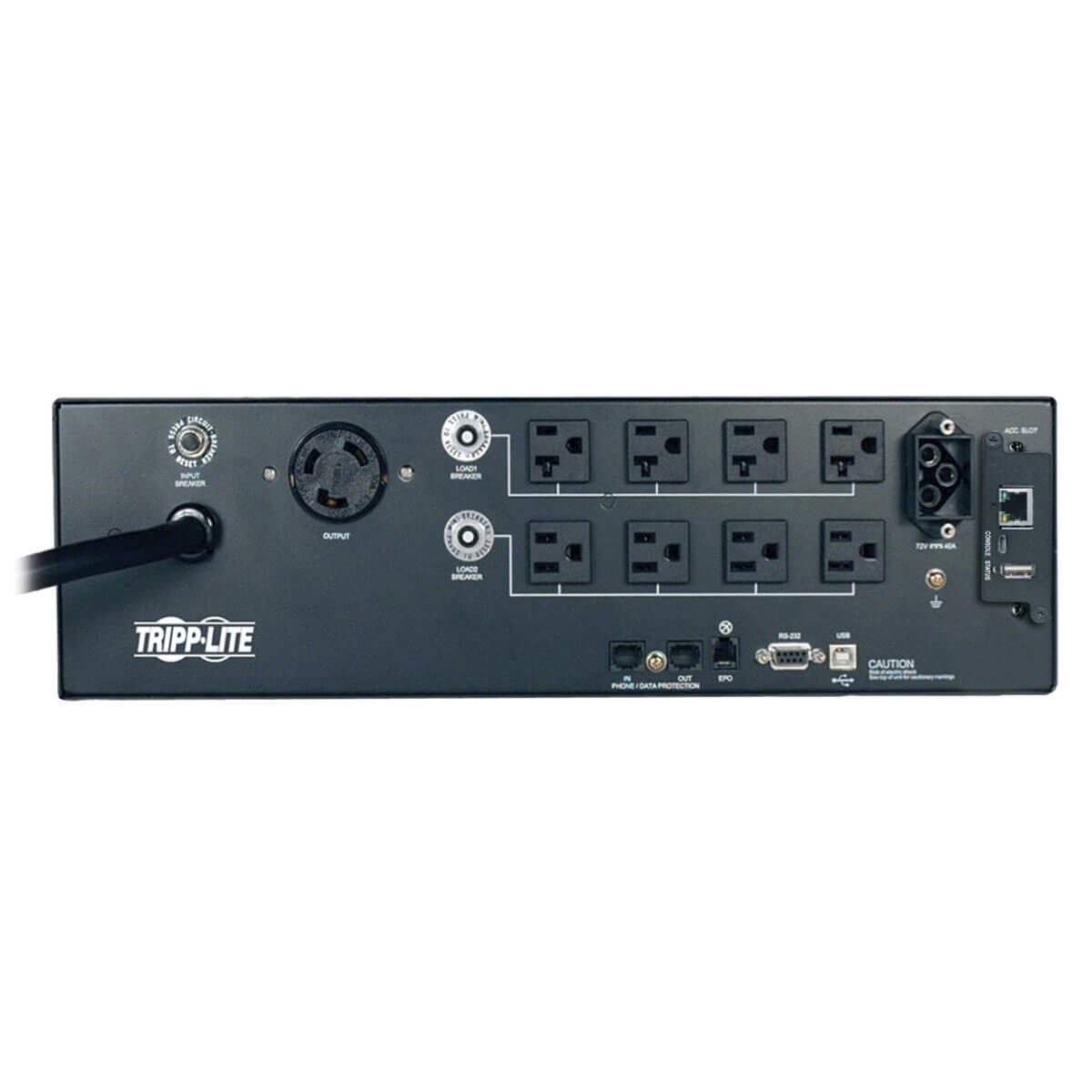

- NEMA L5-30P input, 4 NEMA 5-15/20R, 4 5-15R & 1 L5-30R outlets
- Two switched 4-outlet load banks support remote reboot or programmable load shedding options
- Supports 2% output voltage regulation and zero transfer time in double conversion mode
- Economy mode option offers enhanced 98% efficiency operation, reduced power consumption and lower BTU emissions
- 14 minutes runtime at 50% load (1200W) and 5 minutes at 100% load (2400W) with internal batteries
- BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)
- LED Display reports UPS operating mode, line power availability, battery mode operation, inverter status and output power availability
- Audible alarm with push-button momentary alarm-cancel
- 4 post installation hardware included, Optional 2POSTRMKITHD enables 2 post rack installation
- Single line TEL / Network surge suppression
- Electronic bypass maintains utility output during a variety of UPS fault conditions
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Built-in USB, RS-232, contact-closure and PRE-INSTALLED SNMPWEBCARD network interface
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software
- Tripp Lite SU3000RTXL3UN 3000VA / 3kVA / 2400W on-line, double-conversion 3U rackmount UPS
- Selectable 110/120V output (120V factory preset)
- NEMA L5-30P input, 4 NEMA 5-15/20R, 4 5-15R & 1 L5-30R outlets
- Two switched 4-outlet load banks support remote reboot or programmable load shedding options
- Supports 2% output voltage regulation and zero transfer time in double conversion mode
- Economy mode option offers enhanced 98% efficiency operation, reduced power consumption and lower BTU emissions
- 14 minutes runtime at 50% load (1200W) and 5 minutes at 100% load (2400W) with internal batteries
- BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)
- LED Display reports UPS operating mode, line power availability, battery mode operation, inverter status and output power availability
- Audible alarm with push-button momentary alarm-cancel
- 4 post installation hardware included, Optional 2POSTRMKITHD enables 2 post rack installation
- Single line TEL / Network surge suppression
- Electronic bypass maintains utility output during a variety of UPS fault conditions
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Built-in USB, RS-232, contact-closure and PRE-INSTALLED SNMPWEBCARD network interface
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software
Specifications
| Power | |
|---|---|
| Output power | 2400 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 120 V |
| Surge energy rating | 510 J |
| Maximum current | 40 A |
| Output power capacity | 3 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 118.1" (3 m) |
| AC outlets quantity | 9 AC outlet(s) |
| AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L5-30R |
| Power plug | NEMA L5-30P |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Features | |
| Country of origin | China |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 2400 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 120 V |
| Surge energy rating | 510 J |
| Maximum current | 40 A |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Number of batteries supported | 1 |
| Typical backup time at half load | 14 min |
| Typical backup time at full load | 5 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Design | |
| Country of origin | China |
| Rack capacity | 3U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Cooling type | Active |
| Certification | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) |
| Cable length | 118.1" (3 m) |
| Built-in fan | Yes |
| Housing material | Steel |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI) |
| Compliance certificates | RoHS |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Weight & dimensions | |
| Package width | 23" (584.2 mm) |
| Package depth | 32.5" (825.5 mm) |
| Package height | 12" (304.8 mm) |
| Weight | 74.1 lbs (33.6 kg) |
| Width | 17.7" (450.8 mm) |
| Package weight | 110 lbs (49.9 kg) |
| Height | 5.25" (133.4 mm) |
| Depth | 26" (660.4 mm) |
| Packaging data | |
| Package width | 23" (584.2 mm) |
| Package depth | 32.5" (825.5 mm) |
| Package height | 12" (304.8 mm) |
| Package weight | 110 lbs (49.9 kg) |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |
