Tripp Lite SVX60KM2P3B uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA 60000 W

Tripp Lite SVX60KM2P3B uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA 60000 W

SmartOnline SVX Series 60kVA 400/230V 50/60Hz Modular Scalable 3-Phase On-Line Double-Conversion Medium-Frame UPS System, 3 Battery Modules

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SMARTONLINE SVX SERIES 60KVA400/230V 50/60HZ MODULARSCALABLE 3-PHASE 9810732 Register free see stock

Related Products

Description

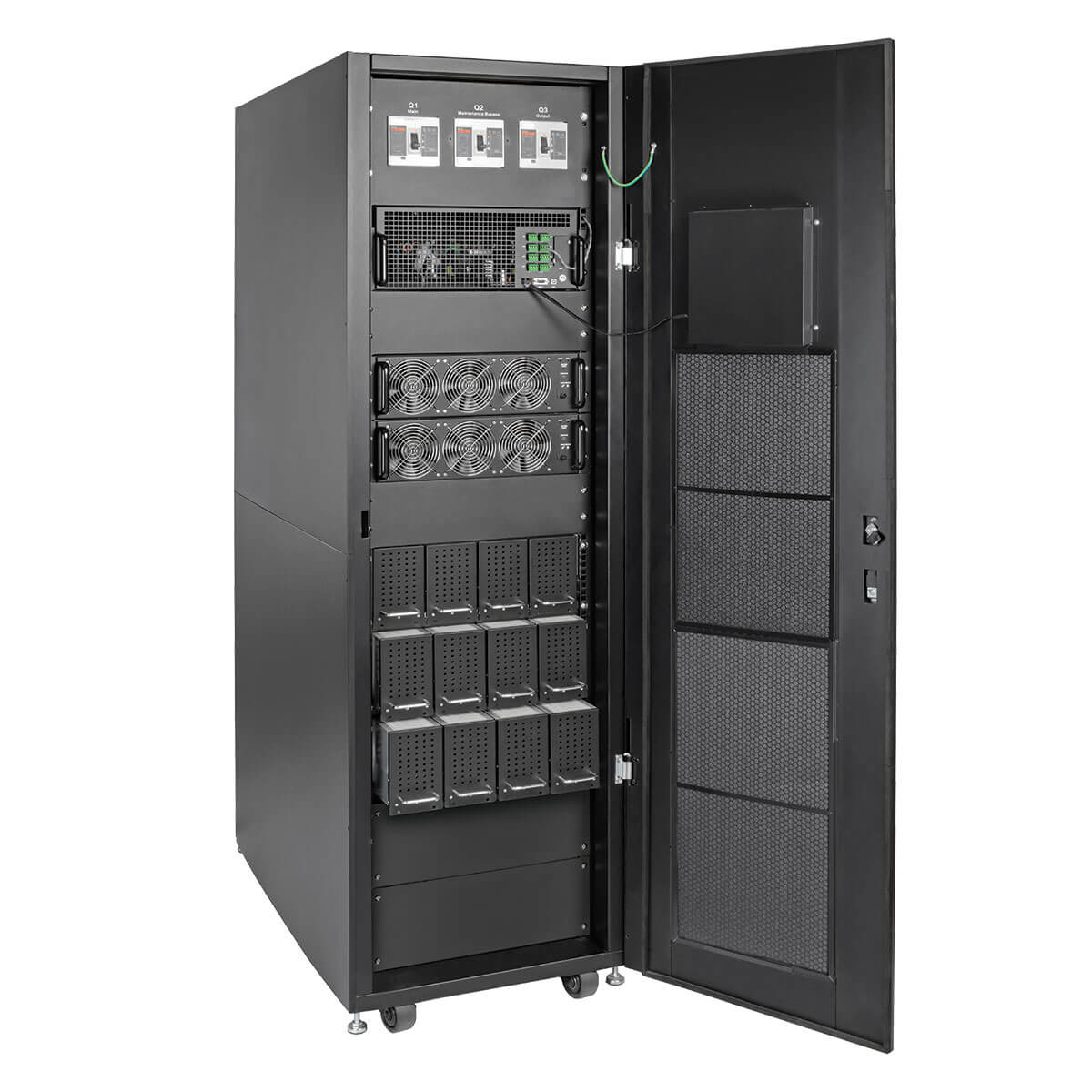

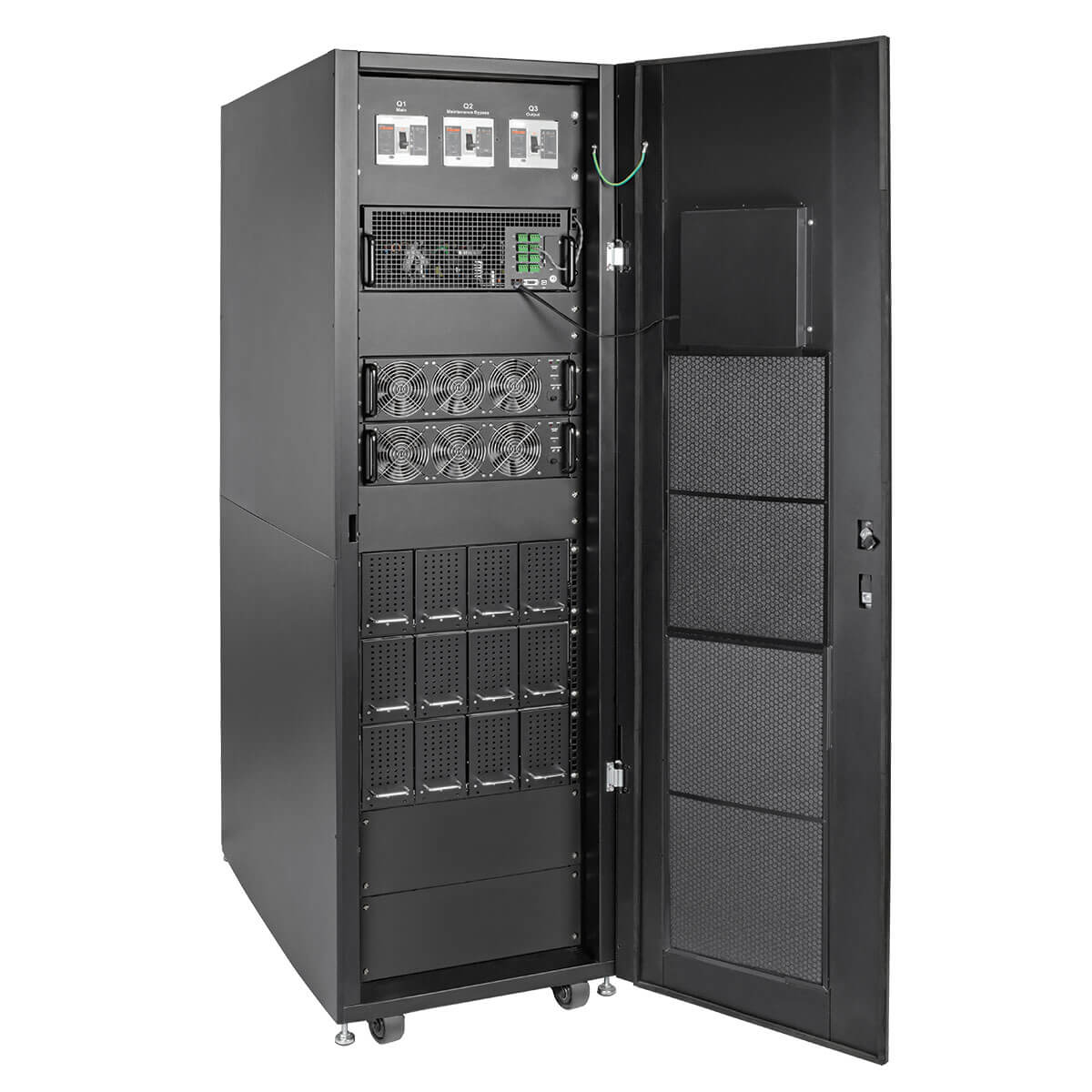

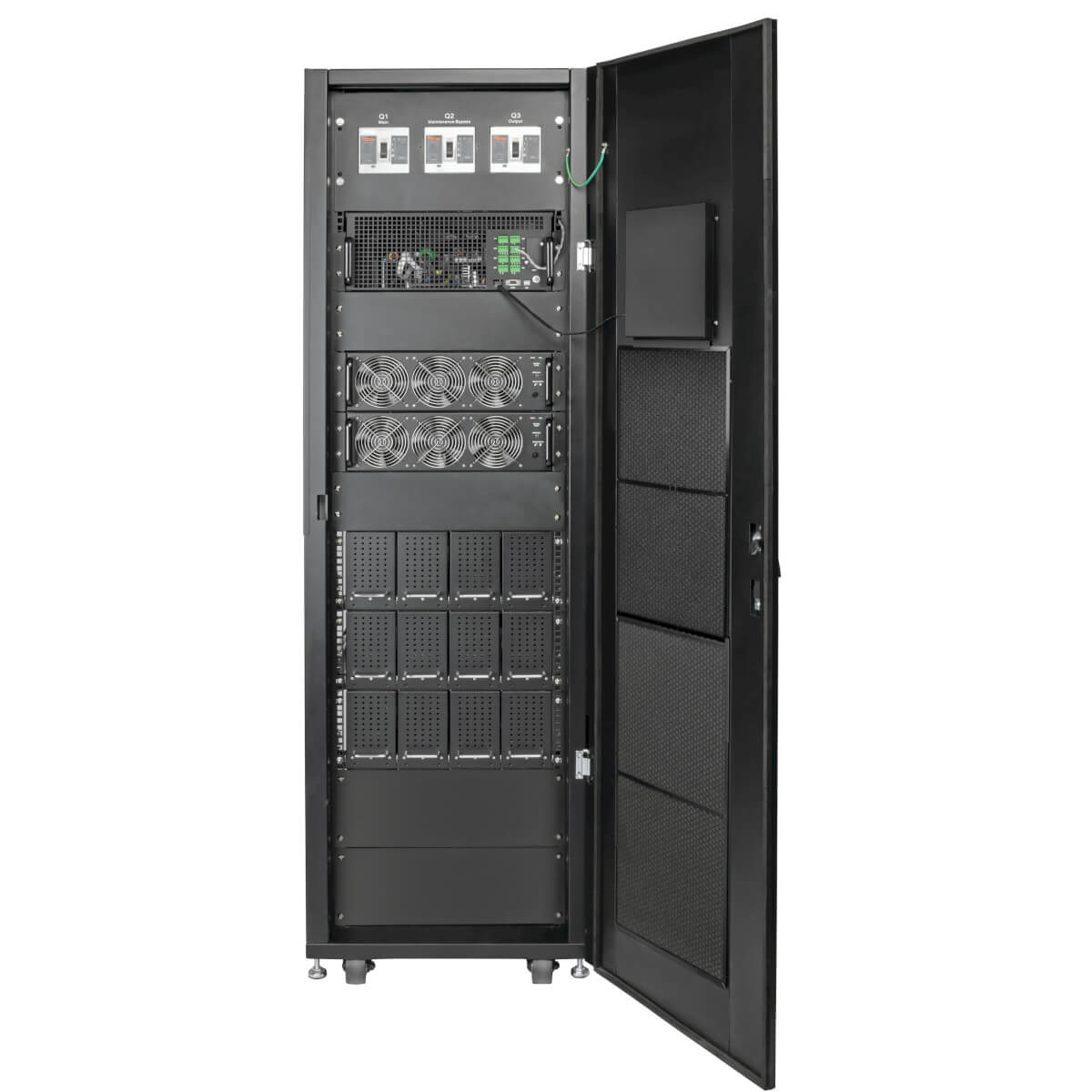

The SVX60KM2P3B 60kVA/60kW SmartOnline® Medium-Frame UPS includes installed input, bypass and output breakers, a static transfer switch (STS) and two included 30kVA SVX30PM power modules. This system supports the addition of up to two additional user-installable SVX30PM power modules to accommodate increased capacity up to 90kW with N+1 fault-tolerance. Three internal battery modules are included, with space for two additional SVXBM internal battery modules or support for any number of compatible ±240VDC external battery packs (sold separately).

Featuring a modular, scalable design with high-efficiency voltage and frequency independent/VFI operation, SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online mode and over 99% efficient in optional economy mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8 – 0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual-input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault-tolerance is configurable anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure.

Specifications

Power
Output power60000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Surge energy rating2496 J
Power factor1
Crest factor3:1
Output power capacity60 kVA
Input frequency50/60 Hz
Performance
UPS topologyDouble-conversion (Online)
Number of input phases3
LED indicatorsYes
Noise level73 dB
Features
Country of originChina
UPS topologyDouble-conversion (Online)
Number of input phases3
Output power60000 W
Input operation voltage (min)220 V
Input operation voltage (max)415 V
Output operation voltage (min)220 V
Output operation voltage (max)415 V
Surge energy rating2496 J
Power factor1
Noise level73 dB
Crest factor3:1
Output power capacity60 kVA
Input frequency50/60 Hz
Ports & interfaces
Serial interfaceYes
Battery
Number of batteries supported3
Typical backup time at half load7.5 min
Typical backup time at full load3.5 min
Hot-swap batteryYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
Cooling typeActive
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 39370.1" (0 - 1000 m)
Cooling
Cooling typeActive
Weight & dimensions
Package width11.6" (294.9 mm)
Package depth34.3" (870 mm)
Package height85.6" (2174.7 mm)
Weight604.7 lbs (274.3 kg)
Width4.21" (106.9 mm)
Package weight739.7 lbs (335.5 kg)
Height79.1" (2009.9 mm)
Depth30.2" (766.8 mm)
Packaging data
ManualYes
Package width11.6" (294.9 mm)
Package depth34.3" (870 mm)
Package height85.6" (2174.7 mm)
Package weight739.7 lbs (335.5 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width11.6" (294.9 mm)
Master (outer) case length34.3" (870 mm)
Master (outer) case height9.84" (249.9 mm)
Master (outer) case gross weight76.9 lbs (34.9 kg)
Packaging content
ManualYes
