Tripp Lite SV60KS3P0B uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA 54000 W

Tripp Lite SV60KS3P0B uninterruptible power supply (UPS) Double-conversion (Online) 60 kVA 54000 W

SmartOnline SV Series 60kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, No SVBM Battery Modules

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SMARTONLINE SV SERIES 60KVASMALL-FRAME MODULAR SCALABLE3-PHASE ON-LINE 9810722 Register free see stock

Related Products

Description

The SV60KS3P0B SmartOnline® SV Series 60kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.

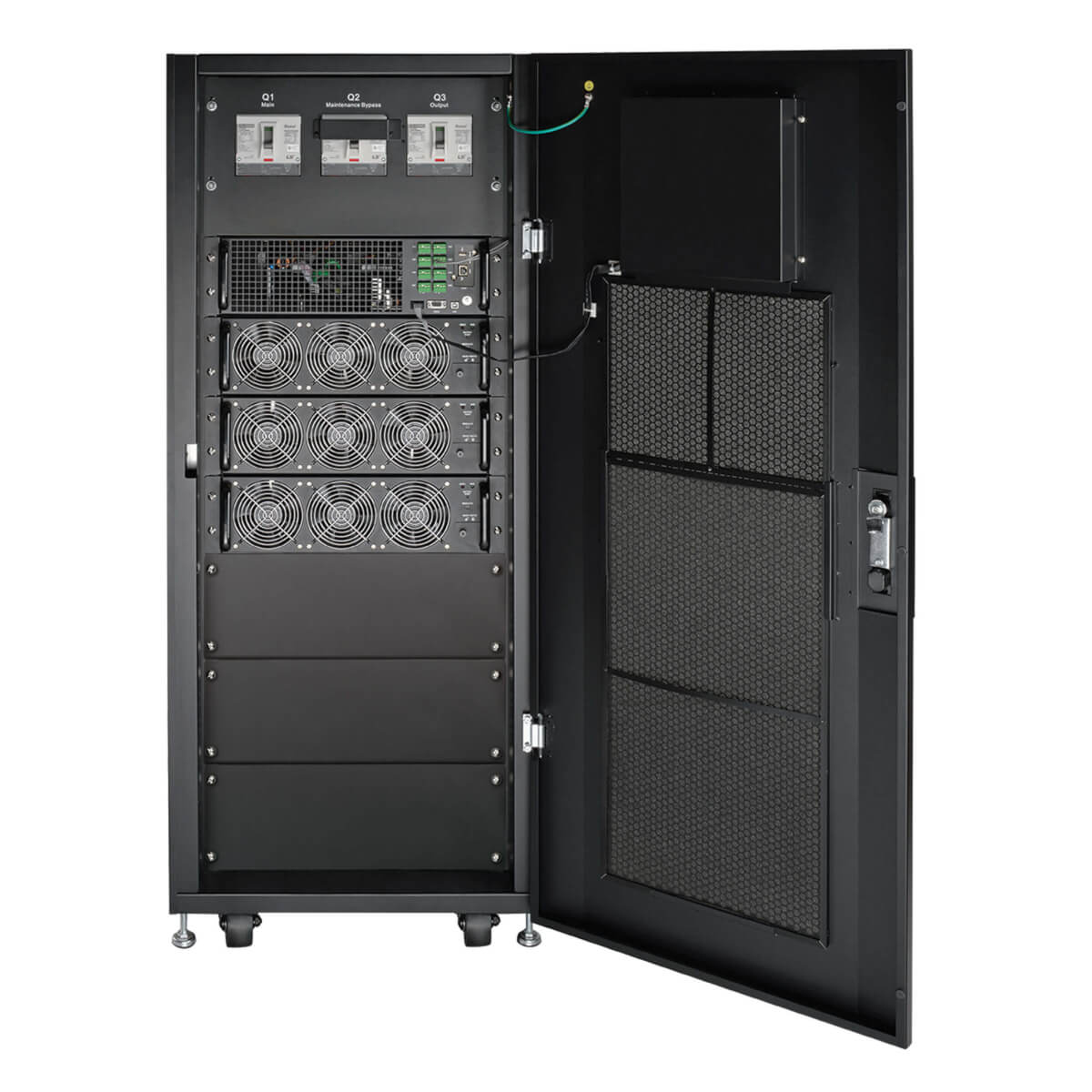

The SV60KS3P0B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and three 20kVA SV20PM power modules. It comes fully configured for 60kVA total capacity or 40kVA with enhanced N+1 protection. External ±120VDC battery options, such as BP240V370 or EBP240VXXX series battery cabinets, are available from Tripp Lite for extended runtime.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

With up to 92% efficiency in standard mode and up to 98% efficiency in optional economy mode, this 60kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.

60kVA 54kW 3-Phase Small-Chassis UPS System
- Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring
- Dual hardwire input design enables operation from up to 2 power sources
- Network-grade sine-wave AC output with 1% output voltage regulation and less than 2% output total harmonic distortion
- Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards
- High 0.9 power factor offers higher kW output than lower-rated competing legacy designs

Pre-Installed WEBCARDLX Network Interface
- Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH
- Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
- Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status
- No Java required

Modular, Scalable Design for Maximum Flexibility
- Modular configuration with hot-swappable power and battery modules enables easy, fast maintenance with zero downtime
- Comes fully configured for 60kVA total capacity or 40kVA with N+1 fault tolerance
- Supports external ±120VDC battery options for extended runtimes

Optional Economy Mode
- Up to 98% efficiency in optional economy mode to lower operating and cooling costs

Wide Input/Narrow Output Voltage Operating Range
- Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V
- Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode

Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology
- Provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity

Automatic and Manual Bypass Options
- Keep connected equipment operational during routine maintenance or critical power module failure

Package Includes
- SV60KS3P0B SmartOnline SV Series 60kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System
- Pre-installed WEBCARDLX network interface
- (3) SV20PM 20kVA power modules (shipped separately)
- Owner’s manual

Specifications

Power
Output voltage regulation1%
Input power factor0.99
Output power54000 W
Input operation voltage (min)120 V
Input operation voltage (max)220 V
Output operation voltage (min)120 V
Output operation voltage (max)220 V
Surge energy rating2496 J
Maximum current60 A
Efficiency98%
Emergency Power Off (EPO)Yes
Power factor0.9
Output voltage Total Harmonic Distortion (THD)1.5%
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Output power capacity60 kVA
Input frequency50/60 Hz
Performance
Audible alarm modesAlarm when on battery, Fault, Low battery alarm
UPS topologyDouble-conversion (Online)
Number of output phases3
Number of input phases3
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protectionYes
Noise level73 dB
Audible alarm(s)Yes
Features
Country of originChina
Audible alarm modesAlarm when on battery, Fault, Low battery alarm
UPS topologyDouble-conversion (Online)
Output voltage regulation1%
Number of output phases3
Number of input phases3
Input power factor0.99
Output power54000 W
Input operation voltage (min)120 V
Input operation voltage (max)220 V
Output operation voltage (min)120 V
Output operation voltage (max)220 V
Surge energy rating2496 J
Maximum current60 A
Efficiency98%
EMI/RFI noise filteringYes
Surge protectionYes
Emergency Power Off (EPO)Yes
Power factor0.9
Output voltage Total Harmonic Distortion (THD)1.5%
Noise level73 dB
Input current Total Harmonic Distortion (THD)3%
Crest factor3:1
Audible alarm(s)Yes
Output power capacity60 kVA
Input frequency50/60 Hz
Ports & interfaces
Emergency Power Off (EPO) connectorYes
Serial interfaceYes
Serial interface typeRS-232
AC outlet typesTerminal
Power plugTerminal
Battery
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) UL1778: 2014 5th Edition; CSA C22.2 No. 107.3.14; FCC Part 15 Class A
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 39370.1" (0 - 1000 m)
Technical details
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width22.8" (579.9 mm)
Package depth34.3" (870 mm)
Package height64.8" (1644.9 mm)
Weight570.1 lbs (258.6 kg)
Width19.3" (490 mm)
Package weight570.1 lbs (258.6 kg)
Height58.1" (1475 mm)
Depth29" (736.3 mm)
Packaging data
ManualYes
Package width22.8" (579.9 mm)
Package depth34.3" (870 mm)
Package height64.8" (1644.9 mm)
Package weight570.1 lbs (258.6 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width22.8" (579.9 mm)
Master (outer) case length34.3" (870 mm)
Master (outer) case height9.84" (249.9 mm)
Master (outer) case gross weight82 lbs (37.2 kg)
Certificates
CertificationROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA) UL1778: 2014 5th Edition; CSA C22.2 No. 107.3.14; FCC Part 15 Class A
Packaging content
ManualYes
