Tripp Lite B004-DPUA2-K KVM switch Black

Tripp Lite B004-DPUA2-K KVM switch Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B004-DPUA2-K
  • EAN: 0037332188625

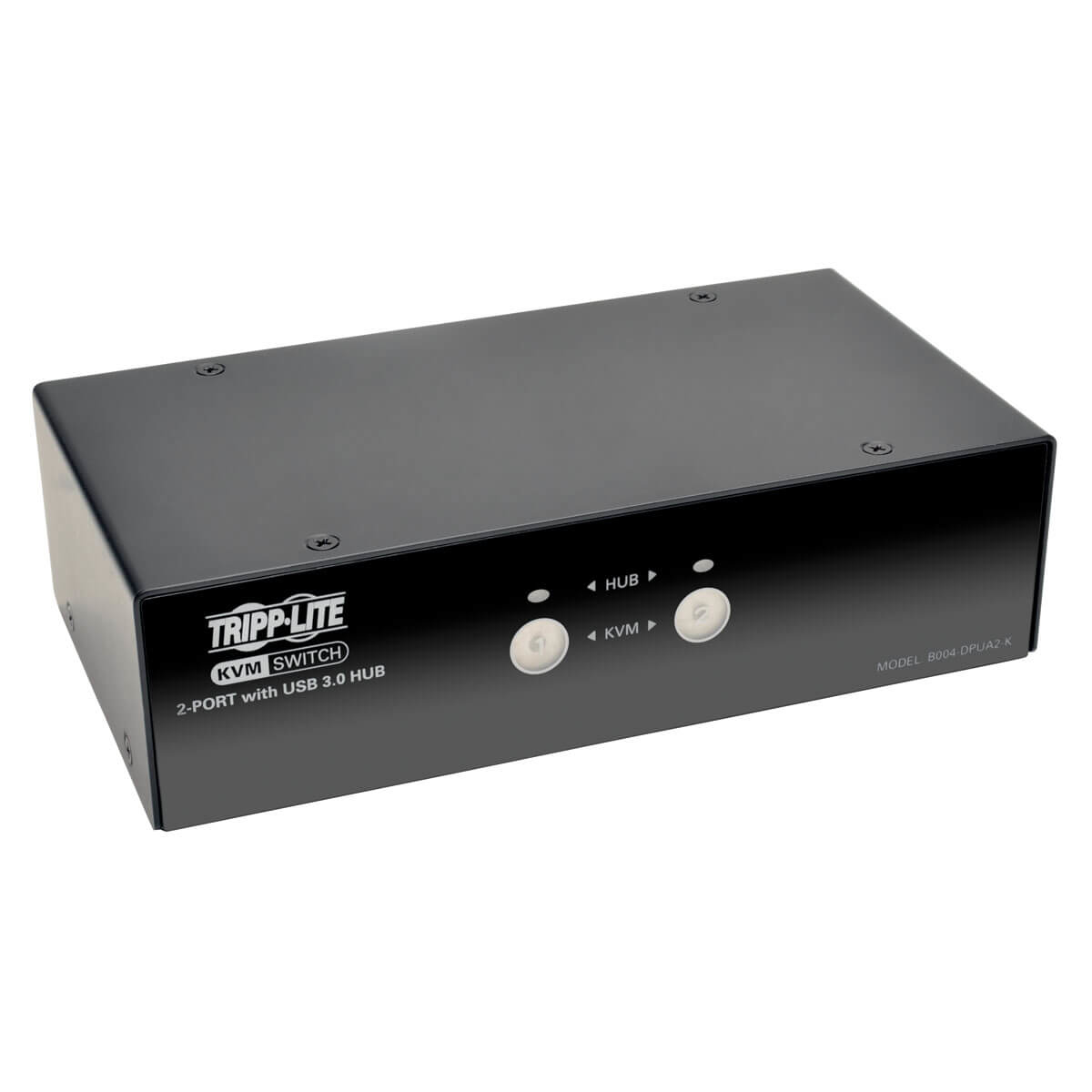

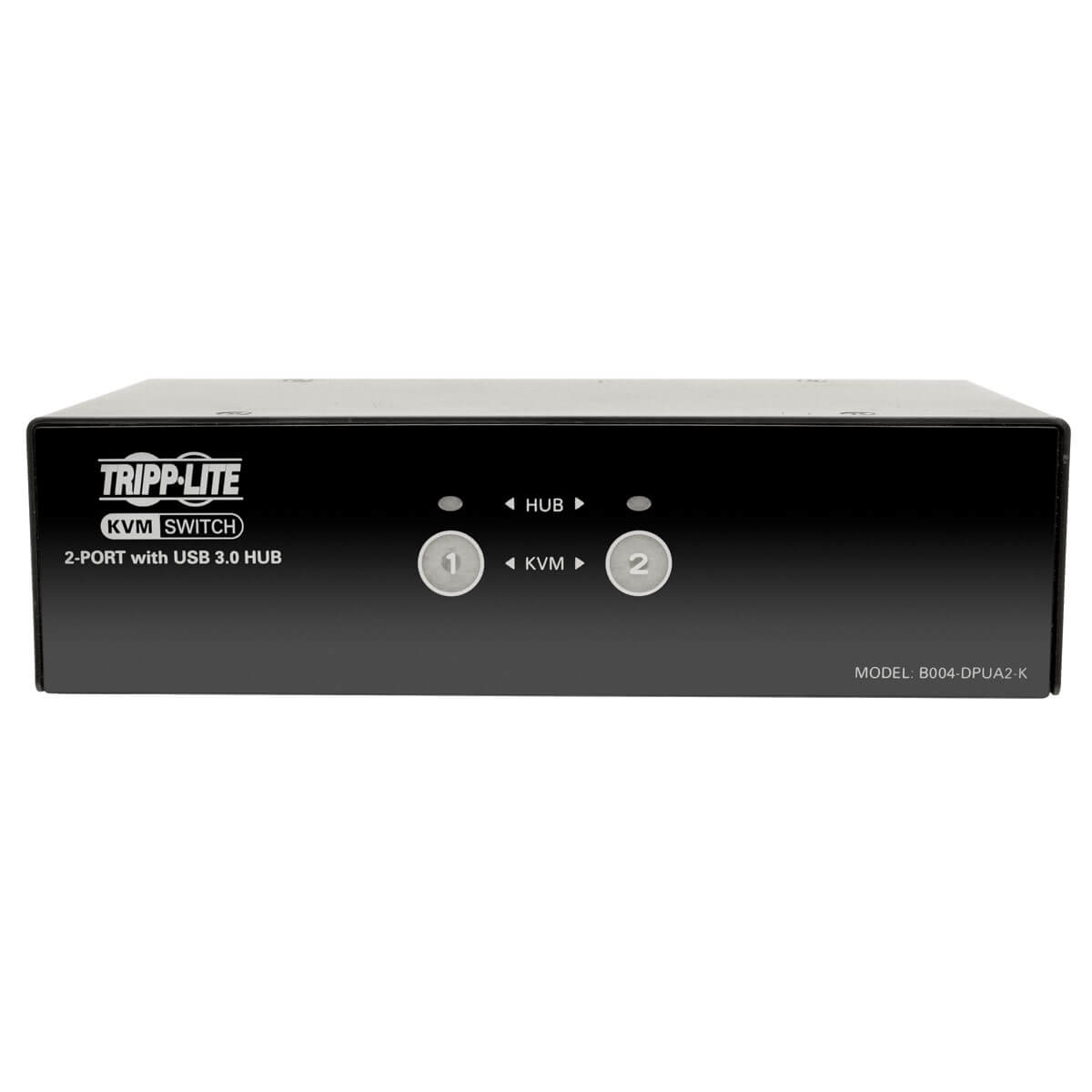

2-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub

Trade Prices

Distributor Product SKU Stock Updated Price
BlueStar TRIPP LITE, 2-PORT DISPLAYPORT KVM SWITCH W/ AUDIO, CABLES & USB 3.0 HUB B004-DPUA2-K Register free see stock
D&H 2 Port DP KVM Switch w Audio B004DPUA2K
Ingram Micro 2PORT DISPLAYPORT KVM SWITCH 1R0677
ScanSource 2-Port DisplayPort KVM Switch POW-B004DPUA2K
TD Synnex 2-PORT DESKTOP DISPLAYPORT KVM SWITCH 4279197

Related Products

Description

Access and Control 2 Computers with One KVM Switch
Switch between computers using keyboard hotkeys or front-panel buttons
Auto Scan feature cycles between computers at regular intervals for at-a-glance observation of activity
Monitor's EDID information sent to connected computer when selected

Supports DisplayPort 1.1

Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment between computers
Listen to audio files on one computer while accessing the other computer
Supports 2-channel stereo audio

Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing the other computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices

Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun
All necessary cables included

Specifications

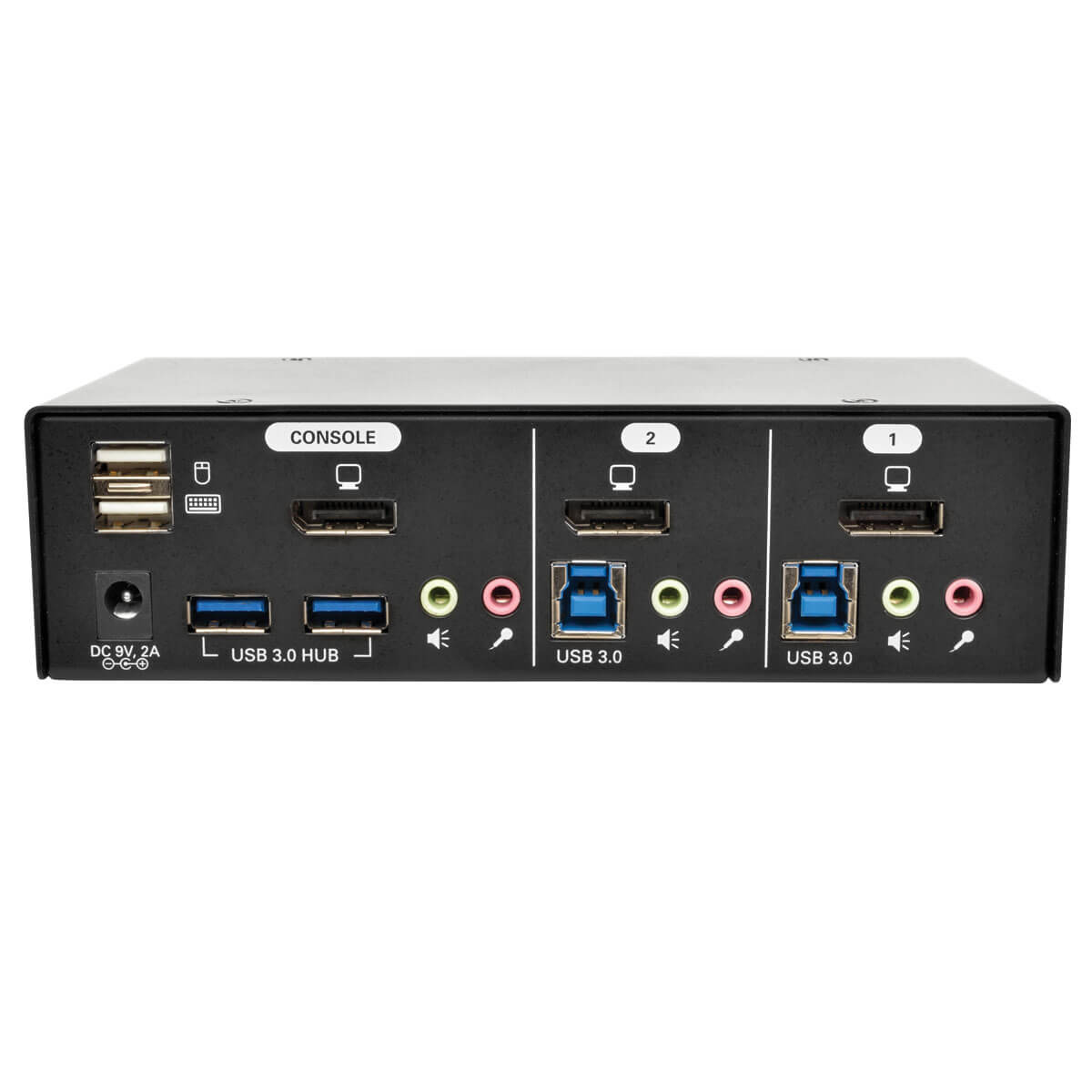

Ports & interfaces
Console USB ports quantity2
Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB B
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
Display connectionYes
USB connector typeUSB Type-A, USB Type-B
Number of computers controlled1
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
USB 2.0 ports quantity2
Headphone outputs3
DC-in jackYes
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Cable length47.2" (1.2 m)
Performance
DDC/DDC2 supportedYes
Maximum resolution2560 x 1600 pixels
Number of users1 user(s)
Technical details
Product colourBlack
Rack mountingNo
Number of users1 user(s)
LED indicatorsYes
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
Display connectionYes
USB hubYes
Compliance certificatesRoHS
Design
Product colourBlack
Cable length47.2" (1.2 m)
Rack mountingNo
LED indicatorsYes
Country of originChina
Display
Built-in displayNo
Power
Input current0.5 A
Output current2 A
Output voltage9 V
AC input frequency50 - 60 Hz
Input voltage100-240 V
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Video
Maximum resolution2560 x 1600 pixels
Features
Country of originChina
Sustainability
Compliance certificatesRoHS
Weight & dimensions
Width6.5" (165.1 mm)
Depth3.5" (88.9 mm)
Height1.8" (45.7 mm)
Weight20.8 oz (590 g)
Package width8.1" (205.7 mm)
Package depth5.5" (139.7 mm)
Package height6.9" (175.3 mm)
Package weight3 lbs (1.36 kg)
Packaging data
Package width8.1" (205.7 mm)
Package depth5.5" (139.7 mm)
Package height6.9" (175.3 mm)
Package weight3 lbs (1.36 kg)

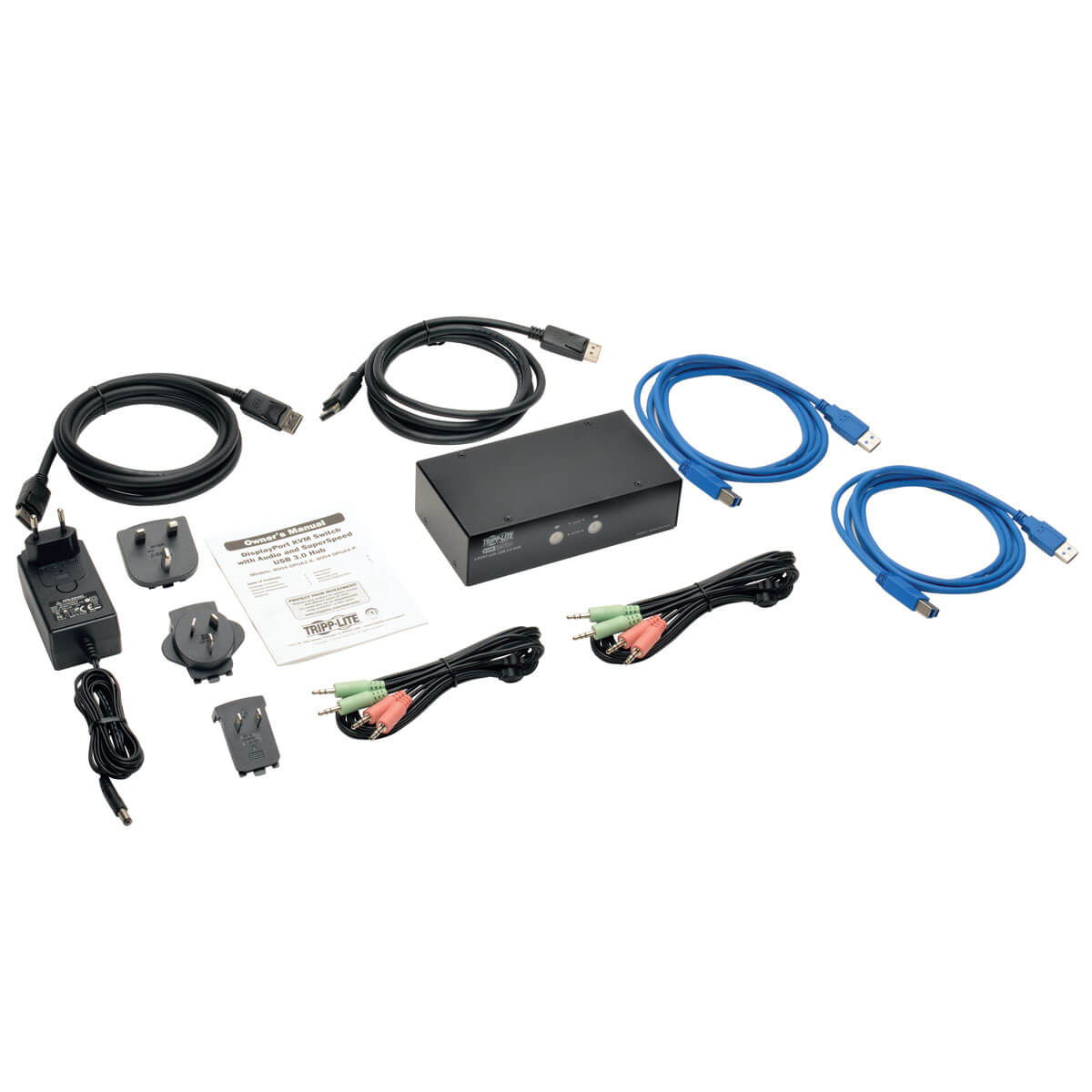

Packaging content
Cables includedAudio (3.5mm), DisplayPort, USB
ManualYes
AC adapter includedYes
Logistics data
Country of originChina
Master (outer) case width17.3" (439.4 mm)
Master (outer) case length16.9" (429.3 mm)
Master (outer) case height15.4" (391.2 mm)
Master (outer) case gross weight37.7 lbs (17.1 kg)
Products per master (outer) case12 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332188622
Harmonized System (HS) code85176200
